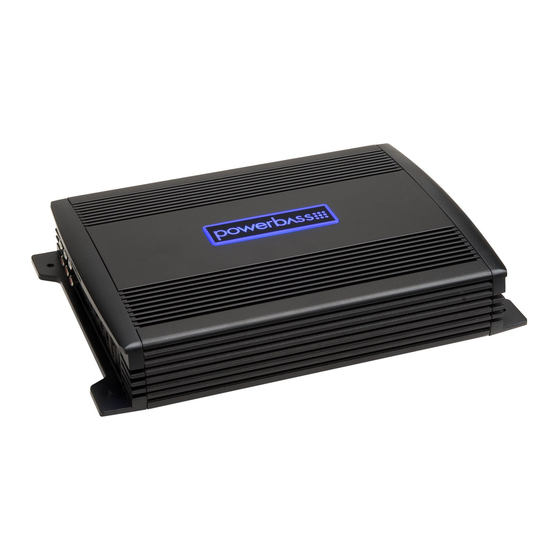

ASA SERIES CLASS A/B AMPLIFIER
Please read through this manual to familiarize yourself with your new amplifi er. Should your PowerBass
AutoSound mobile amplifi er ever require service, you will need to have the original dated receipt.

Owners Manual

ASA3-200.2
ASA3-300.2
ASA3-400.2
ASA3-600.2
ASA3-800.2
ASA3-1200.2
ASA3-400.4
ASA3-600.4
ASA3-700.5
ASA3-1100.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASA3-200.2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerBass ASA3-200.2

Summary of Contents for PowerBass ASA3-200.2

  • Page 1: Owners Manual

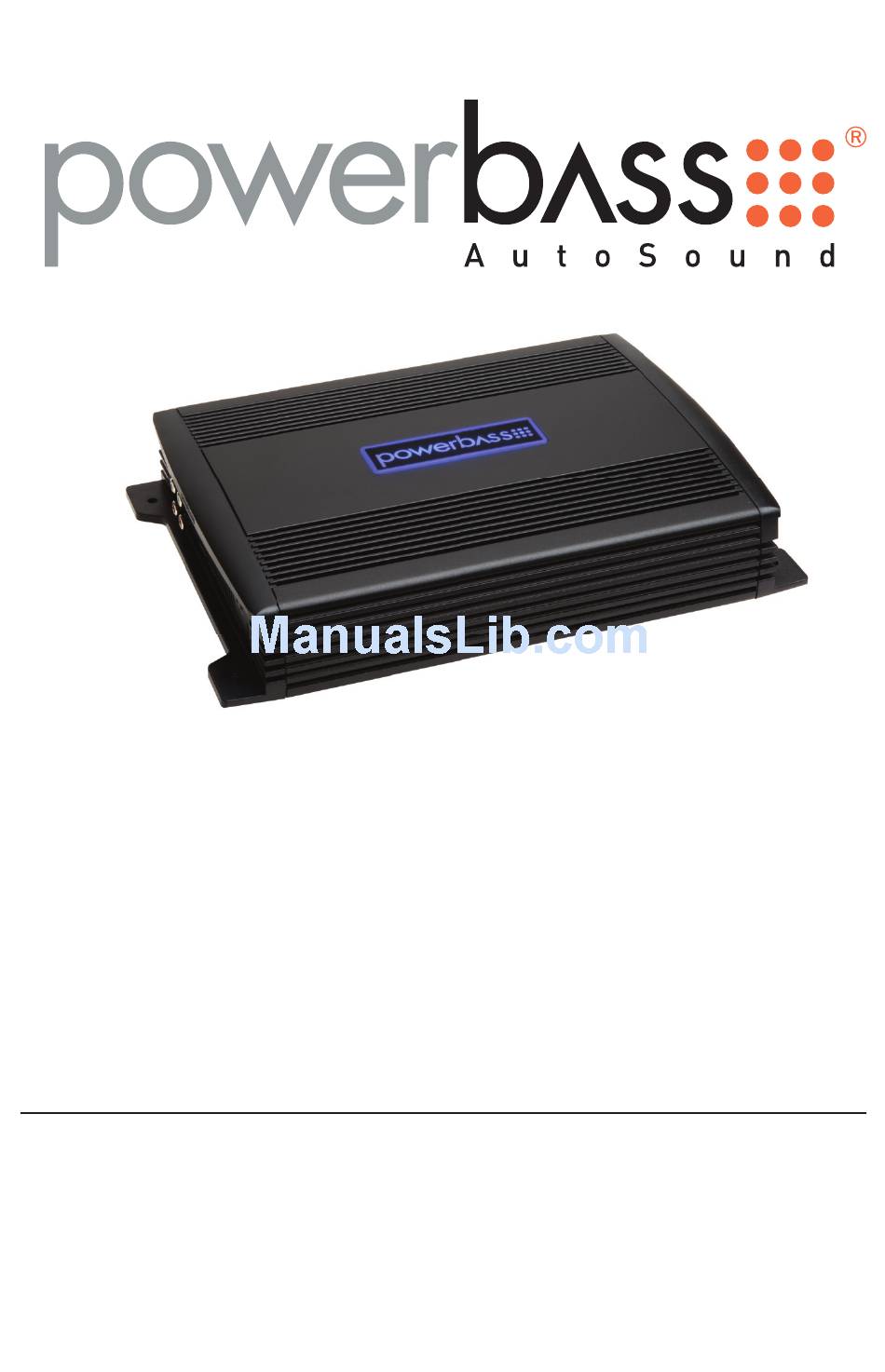

    ASA3-1100.5 ASA SERIES CLASS A/B AMPLIFIER Owners Manual Please read through this manual to familiarize yourself with your new amplifi er. Should your PowerBass AutoSound mobile amplifi er ever require service, you will need to have the original dated receipt.
  • Page 2 In the interest of safety, PowerBass USA highly recommends listening at lower volume...

  • Page 3: Technical Features

    Low Level Line Inputs and Outputs INSTALLATION EXPERIENCE Installation of PowerBass mobile amplifiers requires detailed knowledge of electronics wiring and proper speaker impedance. We strongly recommend installation by an authorized PowerBass dealer. This Own- ers Manual only provides general installation and operation instructions. If you have any reservations about your installation skills, please contact your local PowerBass dealer for assistance.

  • Page 4: Installation Precautions

    INSTALLATION PRECAUTIONS NOTE: Proceed only if you are a qualified installer, otherwise; see your Authorized PowerBass Dealer to professionally install this amplifier. Always wear protective eyewear when using tools. • Turn off all electrical devices before you begin. • Disconnect the negative (-) lead from your vehicles battery.

  • Page 5: Mounting Location

    The amplifier should be protected from exposure to moisture and direct sunlight. The best places to mount your amplifier are: The floor of the trunk, under a seat, or on the back of the rear seat. For alternate installation locations, please consult your authorized PowerBass Dealer. NOTE: Do not use a drill with driver bit to mount the amplifier.

  • Page 6: Control Panel Layout

    CONTROL PANEL LAYOUT Fig.2 Panel Layout NOTE: Panel Layout and Controls may differ by model. 1. Line OUTPUT (RCA) Jacks RCA style pass through output jacks allow for a signal to be sent to other amplifiers. 2. Line INPUT (RCA) Jacks These RCA style input jacks are for use with source units that have RCA line level outputs.
  • Page 7 8. REMOTE LEVEL Port This is the connector port for the optional Remote Level Control. Now the amplifiers secondary gain circuit can be adjusted from the driver’s seat. (See your local PowerBass dealer and ask for model PB-GAIN1 sold separately.) 9.
  • Page 8 14. REM (Remote Input Connection) All PowerBass AutoSound amplifiers can be turned on by applying 12 volts to this terminal. This can be found on the rear of the source unit in the form of an electric antenna output, or a remote output. If this is not available you can wire to the ACC position on the key.
  • Page 9 Fig.3 Power Input Connection These amplifiers are designed to work within a 9 to 17 volt DC range. Before any wires are connected, the vehicles electrical system should be checked for correct voltage supply with the help of a voltmeter. First, check the voltage at the battery with the ignition in the OFF position.
  • Page 10 GND (Ground) When grounding your amplifier, locate a metal area close to the amplifier that is good source of ground (preferable the floor pan). Once again, investigate the area you wish to use for electrical wires, vacuum lines, and brake or fuel lines. Use either a wire brush or sandpaper to eliminate unwanted paint for better contact of the ground.
  • Page 11 FUSE REQUIREMENTS While the panel on your PowerBass amplifier incorporates one or more fuses, these do nothing to protect the vehicle from a dangerous short circuit. It is absolutely vital that the main power lead to the amplifier(s) in the system be fused within 18-inches (45cm) of the connection to the vehicle battery. The value of this fuse (or circuit breaker) should be no greater than the sum of the fuses found on all of the equipment being connected to that power wire.

  • Page 12: Rca Interconnect Wiring

    RCA INTERCONNECT WIRING Fig.5 Low Level Input using RCA Choose the correct length and style of RCA interconnects for your needs. Always use high quality RCA audio cables (not supplied) for signal connections—those with multiple layers of shielding or a twisted pair variety for better noise rejection.

  • Page 13: Set-Up Adjustments

    SET UP ADJUSTMENTS Input GAIN Adjustment GAIN Fig.6 GAIN Control This control allows you to match the input level of the amplifier to the output level of your head unit. Matching the input can be accomplished in three simple steps: Set the volume of GAIN on the amplifier to Min (completely counter clock wise).

  • Page 14: Input Mode

    “LPF”. REMOTE LEVEL Port This is for the optional Remote Gain Control (part# PB-GAIN1 see your Authorized PowerBass dealer for details). Plugging in the remote Bass Control overrides the BASS EQ Control on the amplifier side panel.
  • Page 15 SPECIAL CONTROLS FOR THE ASA3-1200.2 The following instructions apply to the model ASA3-1200.2 only. You will not find this switch on any of the other models in this series. Fig.12 Sub Sonic Adjustment SUB SONIC Switch When set to the ON position, the sub sonic control will filter out all frequencies below 28 Hz from going to the speaker(s).

  • Page 16: Speaker Wiring

    SPEAKER WIRING AND CONFIGURATIONS Speaker Load Keep in mind your PowerBass Autosound amplifier is a high power amplifier and not a high current amplifier. In other words this amplifier requires a minimum impedance of 2 ohms STEREO and 4 ohms bridged MONO to operate trouble free.
  • Page 17 Speaker Output Configurations 2 Channel Models ( ASA3-200.2, ASA3-300.2, ASA3-400.2, ASA3-600.2, ASA3-800.2, ASA3-1200.2 2-Channel Speaker Output Connection Fig.13 2-CH Speaker Connection (Do not connect total impedance under 2 ohms) 1-Channel (Bridged Mode) Speaker Output Connection Fig.14 1-CH (Bridged Mode) Speaker Connection...
  • Page 18 Speaker Output Configurations 4 Channel Models ( ASA3-400.4, ASA3-600.4 3. 4-Channel Speaker Output Connection FRONT REAR Fig.15 4-CH Speaker Connection / 2 ohms minimum 4. 3-Channel Stereo/Mono Speaker Output Connection FRONT REAR Fig.16 3-CH Speaker Connection 5. 2-Channel (Bridged Mode) Speaker Output Connection Fig.17 2-CH Speaker Connection / 4 ohms minimum...
  • Page 19 Speaker Output Connections 5 Channel Models ( ASA3-700.5, ASA3-1100.5 6. 5-Channel Speaker Output Connection FRONT REAR Fig.18 5-CH Speaker Connection / 2 ohms minimum 7. 3-Channel Speaker Output Connection FRONT REAR Fig.19 3-CH Speaker Connection...

  • Page 20: Recommended Wire Sizes

    Miscellaneous: ______________________________________________________ This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. © Copyright 2014 PowerBass USA, Inc.

  • Page 21: Troubleshooting Tips

    NOTE: If the Status L.E.D. is activated and glows RED with no speakers connected to the amplifier, and all the power connections are correct, this would indicate an internal problem with the ampli- fier. Contact PowerBass USA or your local dealer.
  • Page 22 SPECIFICATIONS FOR AUTOSOUND A/B AMPLIFIERS Two Channel Models ASA3-200.2 ASA3-300.2 ASA3-400.2 4 Ohms Power (Watts) 50 x 2 75 x 2 100 x 2 2 Ohms Power (Watts) 100 x 2 150 x 2 200 x 2 4 Ohms Mono Power (Watts)
  • Page 23 SPECIFICATIONS FOR AUTOSOUND A/B AMPLIFIERS Cont. Two Channel Models ASA3-600.2 ASA3-800.2 ASA3-1200.2 4 Ohms Power (Watts) 150 x 2 200 x 2 300 x 2 2 Ohms Power (Watts) 300 x 2 400 x 2 600 x 2 4 Ohms Mono Power (Watts) 600 x 1 800 x 1 1200 x 1...
  • Page 24 SPECIFICATIONS FOR AUTOSOUND A/B AMPLIFIERS Cont. ASA3-400.4 ASA3-600.4 Four Channel Models 4 Ohms Power (Watts) 50 x 4 100 x 4 2 Ohms Power (Watts) 100 x 4 200 x 4 4 Ohms Mono Power (Watts) 200 x 2 400 x 2 Peak Power (Watts) 1600 <0.05%...
  • Page 25 SPECIFICATIONS FOR AUTOSOUND A/B AMPLIFIERS Cont. Five Channel Models ASA3-700.5 ASA3-1100.5 4 Ohms Stereo Power (Watts) 50 x 4 + 200 x 1 75 x 4 + 250 x 1 2 Ohms Stereo Power (Watts) 100 x 4 + 400 x 1 150 x 4 + 500 x 1 4 Ohms Mono Power (Watts) 200 x 2 + 400 x 1...
  • Page 26 NOTES...
  • Page 27 NOTES...
  • Page 28 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
  • Page 29 PowerBass Autosound – A division of PowerBass USA, Inc. 2133 S. Green Privado – Ontario, CA 917161 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
