- Page 1 UIDE ® HDMI OVER XTENDER Model: 40477...
-
Page 2: Table Of Contents
ABLE OF ONTENTS Introduction..............................2 Features..............................3 Package Contents............................4 Device Overview............................5 Device Installation ............................6 Troubleshooting............................8 Technical Specifications..........................9 Cables To Go One Year Warranty......................10 Important Safety Information........................11... -
Page 3: Introduction
NTRODUCTION ® ® Thank you for purchasing the TruLink HDMI over Cat5e Extender. This product is a robust solution that allows you to extend your HDMI signal up to 60 meters (200 feet) over two Cat5e Unshielded Twisted Pair (UTP) cables. This solution is ideal for applications where your HDMI monitor needs to be placed further than the average 10 meter HDMI cable limitation. -
Page 4: Features
EATURES Extend your digital video signal up to 60 meters (200 feet) Cat5e UTP cabling enables easy and cost effective in-wall installation Supports HDCP Video Bandwidth: 2.25Gbps Adjustable equalization Wall mountable... -
Page 5: Package Contents
ACKAGE ONTENTS TruLink HDMI over Cat5e Extender- Transmitter Unit TruLink HDMI over Cat5e Extender-Receiver Unit Mounting Brackets DC 5V 2.6A Power Adapter User Manual... -

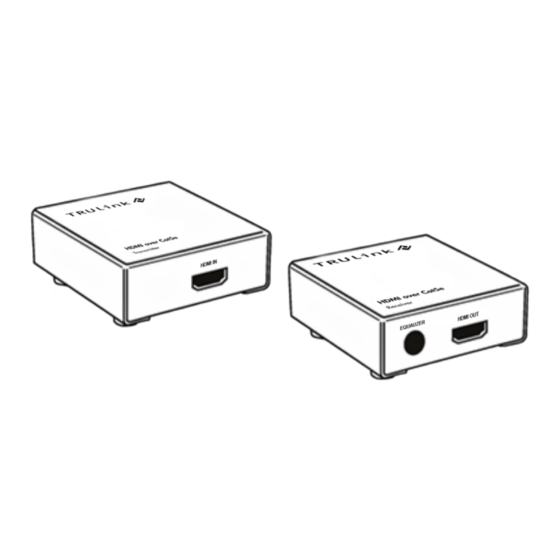

Page 6: Device Overview
EVICE VERVIEW HDMI Input HDMI Output Equalizer RJ 45 Ports RJ 45 Ports... -
Page 7: Device Installation
EVICE NSTALLATION Step 1 Make sure that your HDMI enabled device and televisions/monitors are turned off. Step 2 Using an HDMI cable (not included), connect the HDMI output of your source device to the HDMI input on the HDMI over Cat5e Transmitter unit. Step 3 Using an HDMI cable, connect the HDMI output of the HDMI over Cat5e Receiver unit to your display device. - Page 8 EVICE NSTALLATION Application Diagram Note: -If your video signal flickers or is not clear, adjust the Equalizer rotational switch to adjust the setting. -The following resolutions are supported using various lengths of Cat5e cable: 1920x1080 (1080p 12bit) 1920x1080 (1080i) 1280x720 (720p)
-
Page 9: Troubleshooting
ROUBLESHOOTING Problem Possible Solution No Operation Verify the 5V power supply is connected to the selector. No picture or signal; 1. Make sure your video display is HDCP compliant. Poor picture. 2. Make sure all HDMI connectors are tightly secured to all HDMI ports. -
Page 10: Technical Specifications
ECHNICAL PECIFICATIONS Product Number 40477 HDMI Type A 19-pin Output Ports female on Receiver HDMI Type A 19-pin Input Port female on Transmitter RJ-45 Connector 2 indication LEDs Video Amplifier 2.25 Gbps Bandwidth Input TMDS signal 1.2 volts (peak-to-peak) Input DDC signal... -
Page 11: Cables To Go One Year Warranty
® ABLES ARRANTY At Cables To Go, we want you to be totally confident in your purchase. That is why we offer a one year warranty on this device. If you experience problems due to workmanship or material defect for the duration of this warranty, we will repair or replace this device. -
Page 12: Important Safety Information
©2010.TruLink is a registered trademark of Cables To Go. HDMI is either a trademark or registered trademark of HDMI Licensing LLC. This product is not manufactured or endorsed by HDMI Licensing LLC. - Page 13 For more information on this product or to check for updated drivers, manuals or frequently asked questions please visit our website. www.cablestogo.com . 2.0.9.22.10...
