Wi-Ex Soho Xtreme YX545x Overview

PACKAGE CONTENTS

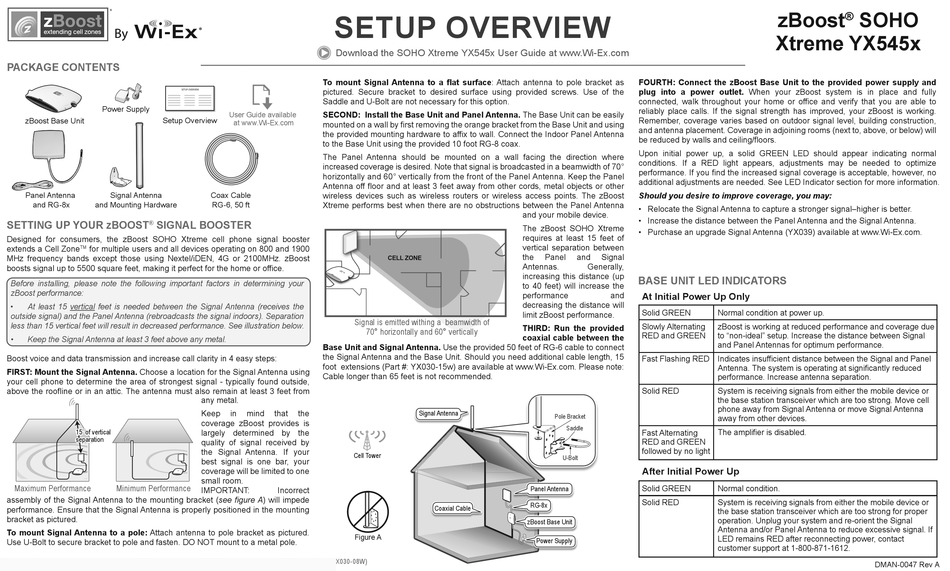

SETUP OVERVIEW
Power Supply
zBoost Base Unit Setup Overview
Panel Antenna P l A Signal Antenna
and RG-8x and Mounting Hardware
SETTING UP YOUR zBOOST ® SIGNAL BOOSTER
Designed for consumers, the zBoost SOHO Xtreme cell phone signal booster
extends a Cell Zone for multiple users and all devices operating on 800 and 1900
TM
MHz frequency bands except those using Nextel/iDEN, 4G or 2100MHz. zBoost
boosts signal up to 5500 square feet, making it perfect for the home or office.
Before installing, please note the following important factors in determining your
zBoost performance:
• At least 15 vertical feet is needed between the Signal Antenna (receives the
outside signal) and the Panel Antenna (rebroadcasts the signal indoors). Separation
less than 15 vertical feet will result in decreased performance. See illustration below.
• Keep the Signal Antenna at least 3 feet above any metal.
Boost voice and data transmission and increase call clarity in 4 easy steps:
FIRST: Mount the Signal Antenna. Choose a location for the Signal Antenna using
your cell phone to determine the area of strongest signal - typically found outside,
above the roofline or in an attic. The antenna must also remain at least 3 feet from
15' of vertical 15' of vertical 15' of vertical 15' of vertical
separation separation separation separation
Maximum Performance Minimum Performance
assembly of the Signal Antenna to the mounting bracket (see figure A) will impede
performance. Ensure that the Signal Antenna is properly positioned in the mounting
bracket as pictured.
To mount Signal Antenna to a pole: Attach antenna to pole bracket as pictured.
Use U-Bolt to secure bracket to pole and fasten. DO NOT mount to a metal pole.
*Note: An 8 inch window entry cable may be needed for this option. It is available for purchase at www.Wi-Ex.com (Part #: YX030-08W)
SETUP OVERVIEW
Download the SOHO Xtreme YX545x User Guide at www.Wi-Ex.com
To mount Signal Antenna to a flat surface: Attach antenna to pole bracket as
pictured. Secure bracket to desired surface using provided screws. Use of the
Saddle and U-Bolt are not necessary for this option.
SECOND: Install the Base Unit and Panel Antenna. The Base Unit can be easily
User Guide available
at www.Wi-Ex.com
mounted on a wall by first removing the orange bracket from the Base Unit and using
the provided mounting hardware to affix to wall. Connect the Indoor Panel Antenna
to the Base Unit using the provided 10 foot RG-8 coax.
The Panel Antenna should be mounted on a wall facing the direction where
increased coverage is desired. Note that signal is broadcasted in a beamwidth of 70°
horizontally and 60° vertically from the front of the Panel Antenna. Keep the Panel
Antenna off floor and at least 3 feet away from other cords, metal objects or other
Coax Cable wireless devices such as wireless routers or wireless access points. The zBoost
RG-6, 50 ft
Xtreme performs best when there are no obstructions between the Panel Antenna
Signal is emitted withing a beamwidth of
70° horizontally and 60° vertically
Base Unit and Signal Antenna. Use the provided 50 feet of RG-6 cable to connect
the Signal Antenna and the Base Unit. Should you need additional cable length, 15
foot extensions (Part #: YX030-15w) are available at www.Wi-Ex.com. Please note:
Cable longer than 65 feet is not recommended.
any metal.
Keep in mind that the
coverage zBoost provides is
largely determined by the
quality of signal received by
the Signal Antenna. If your
Cell Tower
best signal is one bar, your
coverage will be limited to one
small room.
IMPORTANT: Incorrect
Figure A
and your mobile device.
The zBoost SOHO Xtreme
requires at least 15 feet of
vertical separation between
the Panel and
Antennas. Generally,
increasing this distance (up
to 40 feet) will increase the
performance
decreasing the distance will
limit zBoost performance.
THIRD: Run the provided
coaxial cable between the
Signal Antenna
Pole Bracket
Saddle
U-Bolt
Panel Antenna
RG-8x
Coaxial Cable
zBoost Base Unit
Power Supply
zBoost
Xtreme YX545x
FOURTH: Connect the zBoost Base Unit to the provided power supply and
plug into a power outlet. When your zBoost system is in place and fully
connected, walk throughout your home or office and verify that you are able to
reliably place calls. If the signal strength has improved, your zBoost is working.
Remember, coverage varies based on outdoor signal level, building construction,
and antenna placement. Coverage in adjoining rooms (next to, above, or below) will
be reduced by walls and ceiling/floors.
Upon initial power up, a solid GREEN LED should appear indicating normal
conditions. If a RED light appears, adjustments may be needed to optimize
performance. If you find the increased signal coverage is acceptable, however, no
additional adjustments are needed. See LED Indicator section for more information.
Should you desire to improve coverage, you may:
• Relocate the Signal Antenna to capture a stronger signal–higher is better.
• Increase the distance between the Panel Antenna and the Signal Antenna.
• Purchase an upgrade Signal Antenna (YX039) available at www.Wi-Ex.com.
Signal
BASE UNIT LED INDICATORS
and At Initial Power Up Only
Solid GREEN Normal condition at power up.
Slowly Alternating zBoost is working at reduced performance and coverage due
RED and GREEN to "non-ideal" setup. Increase the distance between Signal
and Panel Antennas for optimum performance.
Fast Flashing RED Indicates insufficient distance between the Signal and Panel
Antenna. The system is operating at significantly reduced
performance. Increase antenna separation.
Solid RED System is receiving signals from either the mobile device or
the base station transceiver which are too strong. Move cell
phone away from Signal Antenna or move Signal Antenna
away from other devices.
Fast Alternating The amplifier is disabled.
RED and GREEN
followed by no light
After Initial Power Up
Solid GREEN Normal condition.
Solid RED System is receiving signals from either the mobile device or
the base station transceiver which are too strong for proper
operation. Unplug your system and re-orient the Signal
Antenna and/or Panel Antenna to reduce excessive signal. If
LED remains RED after reconnecting power, contact
customer support at 1-800-871-1612.
® SOHO
DMAN-0047 Rev A
