  • Page 1: User Guide

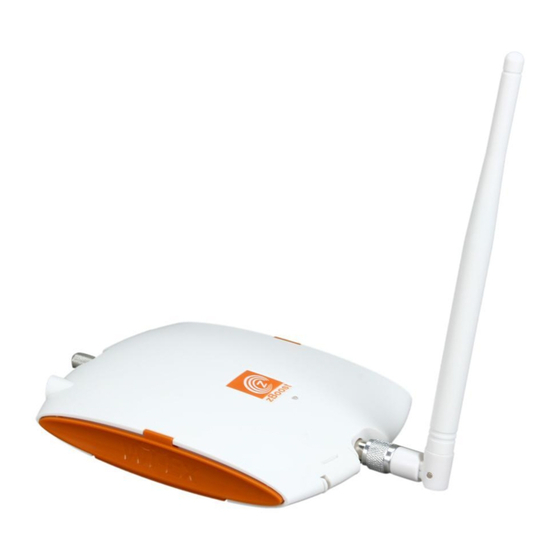

    YX520 International User Guide 30 day money back guarantee when you buy directly from Wi-Ex . If product is purchased ® from a reseller or third party, you must use their return policy. 1 Year Manufacturer Warranty Register your zBoost product at www.Wi-Ex.com...

  • Page 2: About Zboost® From Wi-Ex

    Wireless Extenders. Copyright © 2010 by Wireless Extenders, Inc. Trademarks Wireless Extenders, Wi-Ex, the Wi-Ex logo, zBoost, the zBoost logo and Extending Cell Zones are registered trademarks of Wireless Extenders, Inc. Safety Guidelines In accordance with FCC requirements of human exposure to radiofrequency fi elds, the radiating element (antenna) shall be positioned such that a minimum separation distance of 8 inches (20cm) is maintained between the radiating element and the user and/or general population.

  • Page 3: International Certifi Cations

    YX520 INTERNATIONAL USER GUIDE zBOOST® YX520 INTERNATIONAL USER GUIDE International Certifi cations Read First Before Setting Up Your zBoost® Before unpacking the contents, verify that your mobile phone operates on the frequency band supported by Th e equipment you purcahsed has required the extraction and use of natural resources this product.

  • Page 4: Package Contents: Zboost® Yx520-I

    YX520 INTERNATIONAL USER GUIDE zBOOST® YX520 INTERNATIONAL USER GUIDE Package Contents: zBoost® YX520-I Optional zBoost® Accessories Before you begin, make sure all of the following parts came with your zBoost® YX-520i: Th e following accessories are available to improve signal reception and provide increased coverage in your home or offi ce.

  • Page 5: Table Of Contents

    YX520 INTERNATIONAL USER GUIDE Table of Contents About zBoost® from Wi-Ex® .........................i FCC Information ............................ i Industry Canada Regulations ........................i Safety and Product Warranty Information ....................ii Copyright Notice ........................... ii Trademarks ............................ii Safety Guidelines ........................... ii Limited Liability ............................ ii International Certifi cations.........................ii...

  • Page 6: Overview

    YX520 INTERNATIONAL USER GUIDE zBOOST® YX520 INTERNATIONAL USER GUIDE Overview Preparing to Set Up Your zBoost® Product Th ank you for choosing zBoost®. You will now be able to use your cell phone INSIDE your home or offi ce.

  • Page 7: Determine The Needed Coverage Area

    Note Note Avoid placing the Signal Antenna near metal such as Th e zBoost® YX520-I base unit MUST only be used with the provided power adaptor. Use of other power adaptors wiring, A/C ducts, metal siding, truss plates, etc. When connecting the cable to the antenna, run the cable will void the warranty and may damage the unit.

  • Page 8: Setting Up Your Zboost® Signal Booster

    YX520 INTERNATIONAL USER GUIDE zBOOST® YX520 INTERNATIONAL USER GUIDE  BETTER PERFORMANCE:  Outside of a window Setting Up Your zBoost® Signal Booster Locate a window where you get signal. Placement of the Signal Aerial Locate a window where you get signal.

  • Page 9: Best Performance

    YX520 INTERNATIONAL USER GUIDE zBOOST® YX520 INTERNATIONAL USER GUIDE   BEST PERFORMANCE: Attic/Outdoor placement The following instructions are recommended for the best reception: Using your mobile phone as a signal meter, confi rm that either your attic or your roof will deliver optimal signal strength to the Signal Aerial.

  • Page 10: Positioning The Base Unit

    6 to 10 seconds. An increase of only one bar typically indicates a 4x to 10x signal increase. THE BEST INDICATOR OF PRODUCT PERFORMANCE IS THE ABILITY TO RELIABLY PLACE AND RECEIVE CALLS WHERE YOU COULD NOT BEFORE SETTING UP THE YX520-I.

  • Page 11: Zboost® Base Unit Light Indicators

    YX520 INTERNATIONAL USER GUIDE zBOOST® YX520 INTERNATIONAL USER GUIDE zBoost® Base Unit Light Indicators Technical Specifi cations At Initial Power Up Only YX520-I Technical Specifi cations Solid GREEN Normal condition at power Frequency: 890-960 MHz Slowly Alternating RED and GREEN zBoost®...

  • Page 12: Frequently Asked Questions

    There are usually several cell phones in use at one time in my home, will your product boost all of our these modifi cations. signals simultaneously? Th e zBoost® YX520-I is designed to cover multiple signals simultaneously and will allow multiple users to operate at the same time. Does the zBoost® work if you have no bars? No, if no signal is present outdoors zBoost®...
  • Page 13 YX520 INTERNATIONAL USER GUIDE Make sure you keep… Please keep your sales receipt or other document showing proof of purchase. Attach it to this User Guide and keep both nearby. Also, keep the original box and packing material in case you need to return your product.
