Summary of Contents for Zorlu ADX-6006

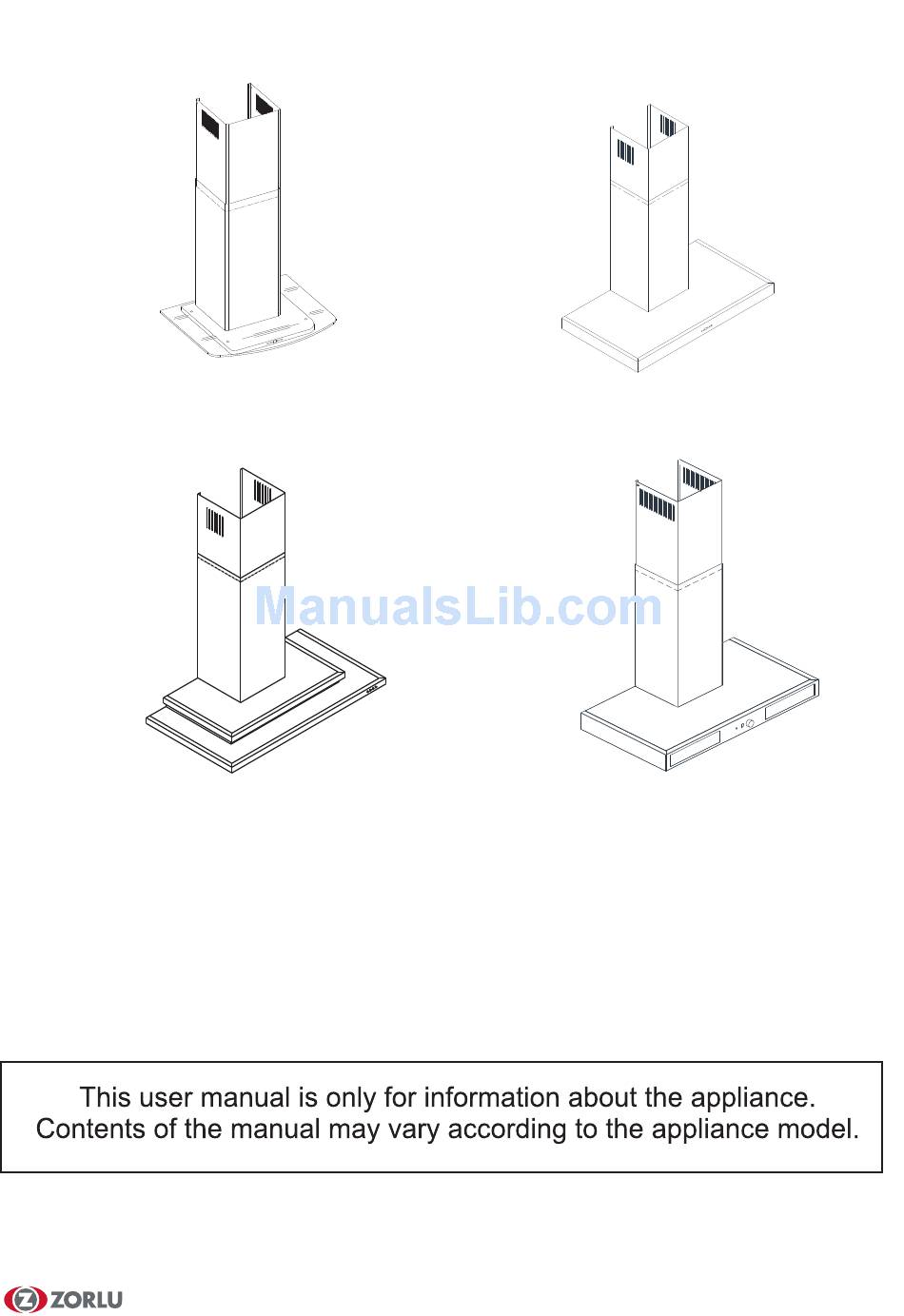

- Page 1 COOKER HOOD USER MANUAL...
- Page 2 r product.
-
Page 4: Introduction Of Device
INTRODUCTION OF DEVICE MODELS ADX-6006 VAD 655 TXS ADX-9006 ADX-6005 ADX-6007 VAD 955 TXS ADX-7007 ADX-9005 ADX-9007 ADB-9010 ADW-9010 Internal Chimney External Chimney Control Panel Cooker Lighting Aluminum Cassette Filter... -
Page 5: Warnings And Safety Precautions
WARNINGS AND SAFETY PRECAUTIONS *Before you take pot, fry-pan etc. from the hob, *This product is designed for usage at home. put their lids on. *Your products usage voltage is 220-240 *Do not leave hot oil on the hob. Pots that have Volts~50Hz hot oil in them may cause selfignition. - Page 6 *Keep package materials away from *In case of flame, cut power of the cooker children as they may be dangerous for hood and the cooking appliances, cover the them. flame. Never use water in order to *Be sure that your child does not play with extinguish it.
- Page 7 Standard Accessories Plastic Outlet (Figure 1) Plastic outlet mounted to air outlet of the cooker hood Figure 1 Place of the Product: After installation of your product, distance between range hood and electrical hob should be at least 65 cm and gas hobs at least 75cm. Figure 2 Min.65 cm Min.75 cm Figure 2...
- Page 8 Installing Plastic Outlet Install plastic outlet to top of motor cabin via 3,5x9,5 screws (Figure 4). Figure 4 3,5 x 9,5 RYSB Screws Ø 8 mm Drilling Mounting Holes Ø 6 mm Attach mounting schemeon the wall and drill holes on points marked as A,B,C via Ø8 mm driller.
- Page 9 Chimney Fixing Bar Screws; Drill holes on the wall via Ø6 mm driller. Fix the chimney fixing bar via 3,9 x 22 Ysb screws on Ø6 mm plastic dowels. Drill holes on the wall via Ø10 mm driller. Fix 2 pcs of 5,5 x 60 Ysb screws on A,B points on Ø10 mm plastic dowels.
- Page 10 Tighten the Hanging Screws: Fix product onto wall from point C with 5,5x60 Ysb screw in order to ensure your product is safely installed. Figure 9 Figure 9 G - H 3112-3125-3130-3178 models / 60-70-90cm models; Fix product onto wall from point G,H with 5,5x60 screws in order to ensure your product is safely installed.
- Page 11 Installing the External Chimney: Place internal chimney into external chimney. Place External chimneys to motor box and push it downward. Make chimney sure that the connection between the body and motor box is so tight.Figure 12 Figure 12 Installing internal chimney Pull internal chimney upwards through the external chimney.
- Page 12 Replacing the Lamps Cut off the connection of the cooker hood with electricity. Take off the aluminum cassette filter. Take off the failed lamp and replace it with a new one that is of the same rating. (Please wait for the lamps to cool as they might hurt your hand.) Replacing 50W Halogen Lamp In order to change halogen lamps, take the lamp downwards...
-
Page 13: Control Panel Use
CONTROL PANEL USE After installation, remove the protective plastic film from the metal panels. Speed adjustment Product has 5-speed motor. Low-mid-high levels can be selected according to the cooking fume intensity. Push pull knob controlling the motor is located on the front panel. As the knob is rotatedclockwise, the desired fan speed can be selected. - Page 14 Usage of 5 Speed Digital Control Usage Remove protective folio on the inox product after installation. Speed Selection The product has 5 speeds of ventilation level. One of 1,2,3,4,5 speeds is selected in accordance with steam of cooking or fry. Motor is started pressing control button on the front panel.
- Page 15 Carbon Filter Usage Your product is compatible with two types of carbon filters. You may see following information on how to use carbon filters. Before installing or replacing carbon filter, first you should cut your product's power off.Carbon filters should be replaced with a new one each 3-5 months because it is used at kitchens that does not have chimney outlet.
-
Page 16: Technical Specifications
Usage of the Control Panel Speed Selection: Your product has 3 ventilation speed level. Depending on the cooking and frying steam , you may use your device with low- medium or high speed. To operate product, press on motor control buttons on the front panel. Press on button on the control panel to switch the device off. - Page 17 Usage of 3 Speed Digital Control Peel protective papers out from the inox devices after assembly. Speed Choice The device has 3 degrees of ventilation. According to the cooking and frying steam, you can choose low-middle-high ventilation levels. Buttons on the front panel are used for turning the device on.
-
Page 18: Maintenance
MAINTENANCE *Disconnect electricity connection before maintenance and cleaning process. *Aluminum cassette filter holds the dust and the oil in the air. *Metal filter should be washed once in a month with hot and soaped water or, if possible, at dishwasher (60C). *Take off aluminum cassette filter pressing on springy latches on end point. - Page 19 Cooker-hood does not work Illumination Lamp does not work Cooker-hoods air suction is weak Cooker-hood does not direct air out (at places without chimney) If the product does not work: Before you contact the technical service: Make sure that the product is plugged in and the electric fuse of the electric wiring is running. Do not take any action that will damage the product.
