Summary of Contents for Zorlu ADX-6004

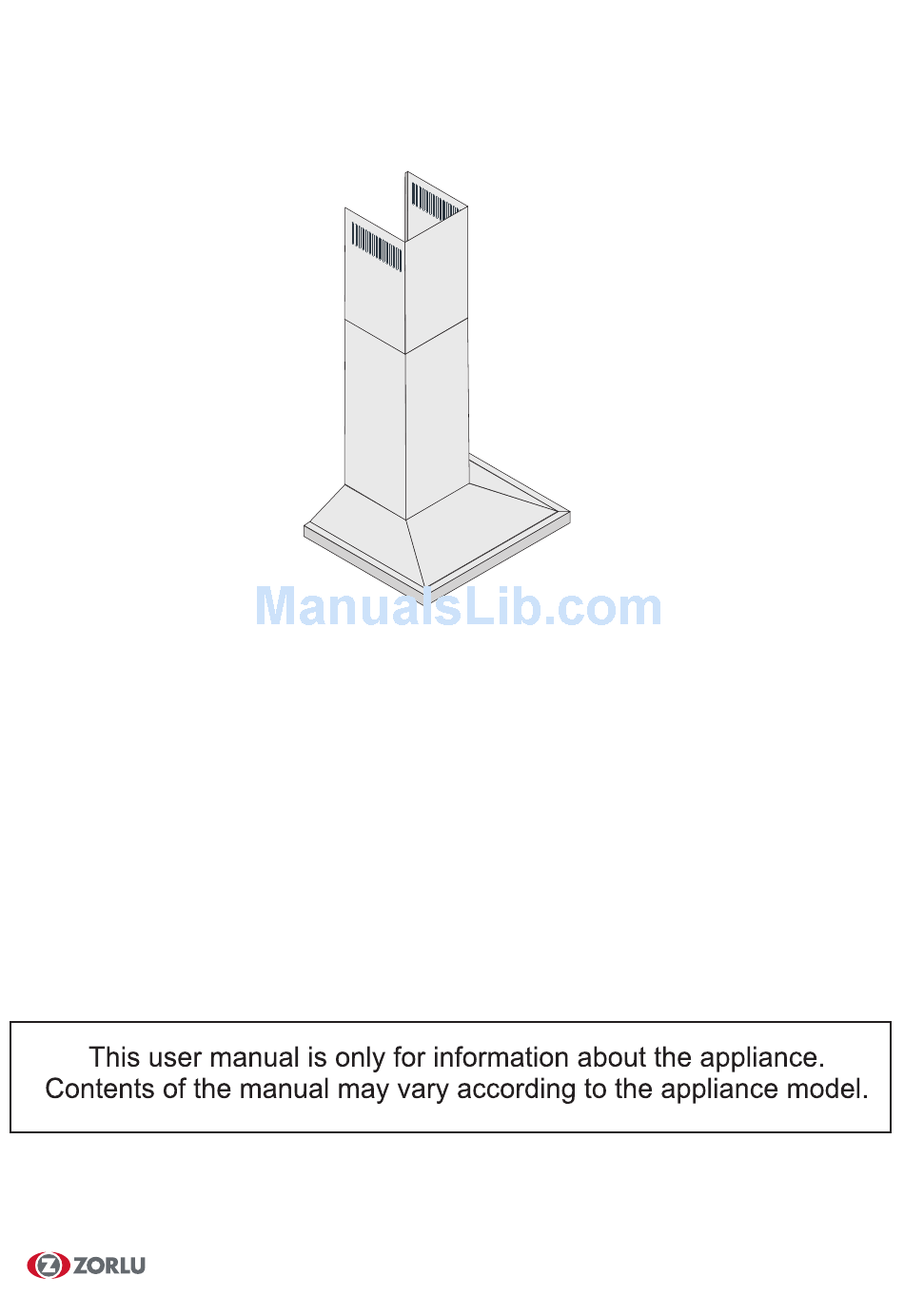

- Page 1 COOKER HOOD USER MANUAL...
- Page 2 r product.
-
Page 4: Introduction Of Device
INTRODUCTION OF DEVICE MODELS ADX-6004 ADX-9004 Internal chimney 2 External chimney 3. Control panel 4. Cooker lighting 5.Aleminum cassette filter... -
Page 5: Warnings And Safety Precautions
WARNINGS AND SAFETY PRECAUTIONS *This product is designed for usage at *Flaming foods should not be cooked under the product. home. *Start your product after you put pot, *Your products usage voltage is 220-240 Volts~50Hz fry-pan etc. on the hob. Otherwise high temperature may cause some *Grounded plug is used at your product's parts of your product to get... - Page 6 *Be sure that your child does not play *When chimney hood and the with the product. Do not allow kids to appliances working with energy other use your product. than electricity are operated at the same time, negative pressure in the *If power supply cable is damaged, room should not be more than this cable should be changed by its...
- Page 7 Cooker-hood does not work Illumination Lamp does not work Cooker-hoods air suction is weak Cooker-hood does not direct air out (at places without chimney) Table 2 If the product does not work: Before you contact the technical service: Make sure that the product is plugged in and the electric fuse of the electric wiring is running.
- Page 8 USAGE Remove protective foil on your inox product after installation. Speed Selection The product has 3 ventilation speed choice. Ventilation speed is selected in accordance with steam of cooking or fry. You may switch on your product by pressing control buttons on the front panel. Automatic timer (TIMER) is available at all models with electronic control.
- Page 9 Cleaning Periods of Aluminum Filter Filter should be cleaned when “C” signal appears on the Display or each 2-3 weeks (in accordance with the usage frequency). After cleaning and replacing filters to their places, button should be pressed for more than 3 seconds (when the product is off) in order to remove the “C”...
-
Page 10: Important Note
MAINTENANCE *Disconnect electricity connection before maintenance and cleaning process. *Aluminum cassette filter holds the dust and the oil in the air. *Metal filter should be washed once in a month with hot and soaped water or, if possible, at dishwasher (55C). *Take off aluminum cassette filter pressing on springy latches on end point. - Page 11 Functions of the Product Your hood is compatible for use with our without chimney. Usage with chimney The product should be connected to a chimney that will direct the air out during usage with chimney. In order to achieve best performance, pay attention that the duct system follows the shortest way for connection to the chimney.
- Page 12 Replacing the Lamps Cut off the connection of the cooker hood with electricity. Take off the aluminum cassette filter. Take off the failed lamp and replace it with a new one that is of the same rating. (Please wait for the lamps to cool as they might hurt your hand.) Replacing 50W Halogen Lamp In order to change halogen lamps, take the lamp...
- Page 13 Chimney hood is hang on the wall through 2 hanging plates in (L) shape. These plates are provided with screw set for ease of packing. Before you hang the product on the wall, screw these plates to M5 turnscrew with M5 x 40 capscrews.
- Page 14 Screw chimney installation plate to ø6 dowels nailed on the wall with 3,9 x 22 screws. Picture 8 Picture 8 Hanging screws Screw hanging plugs with 5,5 x 45 screws to ø8mm dowels (A,B). Distance between screw head and wall should be 5mm.
- Page 15 NOTE: If your hood is montaged inclined, loosen M5 screws on which hanging plates on the top are installed. Picture 13 Installation of aluminum flexible duct Fix aluminum flexible duct to product's plastic chimney. Fix the other end to the chimney hole on the wall. Picture 14 Picture 14 As bends and ells will result in decrease in suction power, avoid using them as...
-
Page 16: Technical Specifications
TECHNICAL SPECIFICATIONS ADX-6004/ADX-9004 Model 220-240 V 50Hz Feeding Voltage Lamp Power (W) 2 x 50 W Motor Power (W) 185 W 210 W Flow Capacity (m3/h) Motor Isolation Class Isolation Class CLASS I Table 1 In order to use the cooker hood efficiently;...
