Summary of Contents for Zorlu ADB-6002

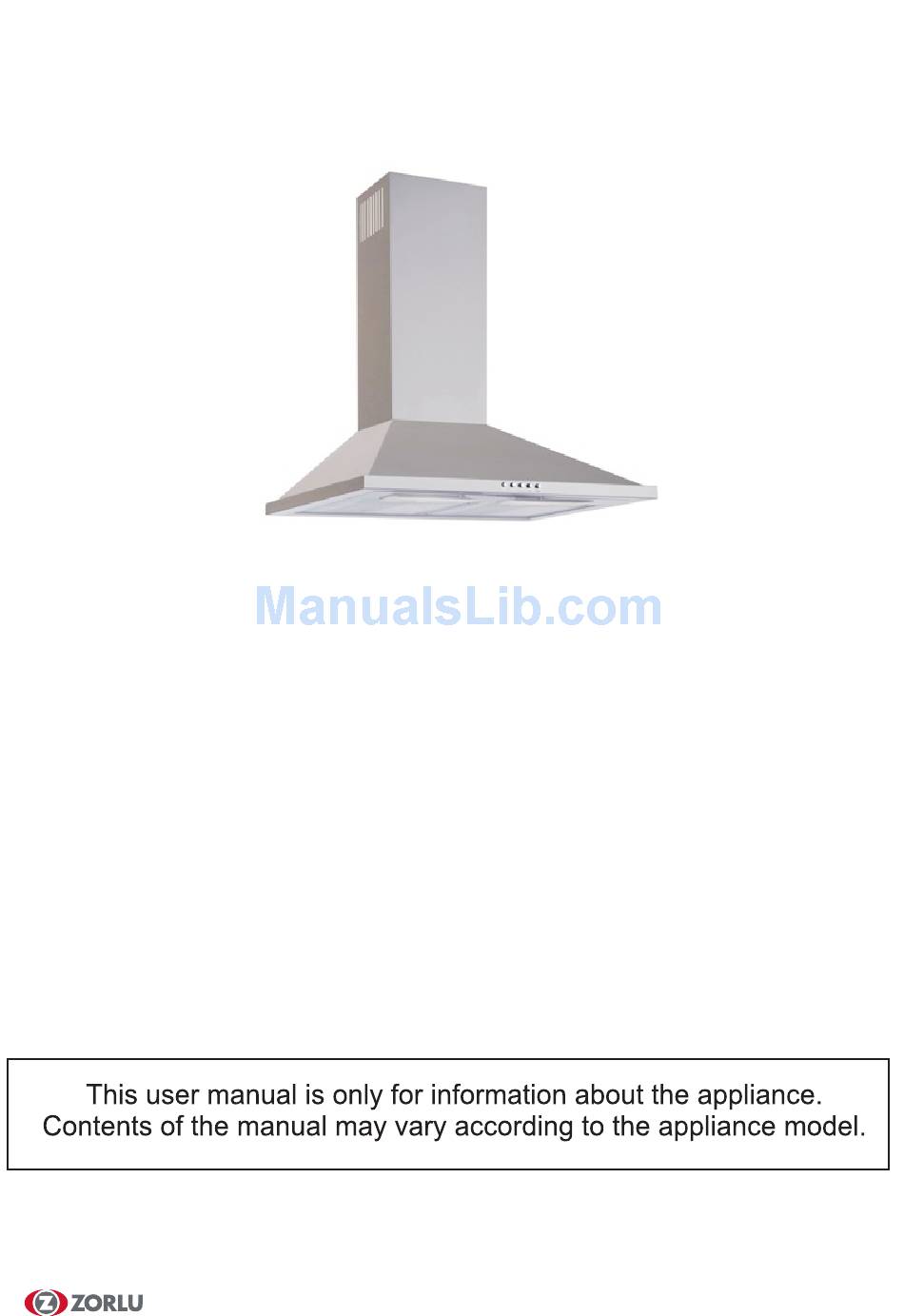

- Page 1 COOKER HOOD USER MANUAL...
- Page 2 r product.
-
Page 4: Introduction Of Device
INTRODUCTION OF DEVICE MODELS ADB-6002 ADW-6002 ADX-6002 ADX-6001 ADX-9002 Picture 1 1.Control switchs 2. Front panel 3. Aluminum casette fitler (dishwasher safe) 4. Lighting 5. Body 6. Internal chimney 7. External chimney Figure 1... -
Page 5: Warnings And Safety Precautions
WARNINGS AND SAFETY PRECAUTIONS *This product is designed for usage at *Before you take pot, fry-pan etc. from the hob, home. put their lids on. *Your products usage voltage is 220-240 *Do not leave hot oil on the hob. Pots that have Volts~50Hz hot oil in them may cause selfignition. - Page 6 *Keep package materials away from *In case of flame, cut power of the cooker children as they may be dangerous for hood and the cooking appliances, cover the them. flame. Never use water in order to *Be sure that your child does not play with extinguish it.
- Page 7 Place of the Product: After installation of your product, distance between range hood and electrical hob should be at least 65 cm and gas hobs at least 75cm. Figure 2 Installation, taking off your product from its package: *Check if there is any deformation on your product. *Transportation damages and failures should immediately be reported to the transportation responsible.
- Page 8 A,B = Ø8 ELECTRICITY min.750-max.800mm min.650-max.750mm Nailing Dowels Nail the Ø10 mm dowels to the (A,B,C,D) holes for the hanging screws . For chimney part, fix 2x6 mm dowels to the holes drilled with Ø4 mm . Picture 2 Picture 2 Fixing of the Hanging Screws Fix the 5,5x45 screws to the Ø8 dowels (A,B) that you already fixed to the wall.
- Page 9 Fixing of the chimney hood This model is not available with hanging plate. Install your product from the slot on the backwards and then fix the screws. Figure 3-3a Figure 3a Figure 3 Fixing of the aluminium pipe Connect aluminum flexible pipe to outlets on the product and kitchen wall.
- Page 10 Flections and bends at the aluminium pipe reduce the air absorbtion power, because of that use less flections and bends as possible. Picture 4 False Correct Picture 4 Replacing the Lamps Cut off the connection of the cooker hood with electricity. Take off the aluminum cassette filter. Take off the failed lamp and replace it with a new one that is of the same rating.
- Page 11 Carbon Filter Usage Your product is compatible with one type of carbon filter. You may see following information on how to use carbon filters. Before installing or replacing carbon filter, first you should cut your product's power off. Carbon filters should be replaced with a new one each 3-5 months because it is used at kitchens that does not have chimney outlet.
-
Page 12: Maintenance
MAINTENANCE *Disconnect electricity connection before maintenance and cleaning process. *Aluminum cassette filter holds the dust and the oil in the air. *Metal filter should be washed once in a month with hot and soaped water or, if possible, at dishwasher (60C). *Take off aluminum cassette filter pressing on springy latches on end point. - Page 13 Usage of the Control Panel Speed Selection: Your product has 3 ventilation speed level. Depending on the cooking and frying steam , you may use your device with low- medium or high speed. To operate product, press on motor control buttons on the front panel. Press on OFF button on the control panel to switch the device off.
- Page 14 Cooker-hood does not work Illumination Lamp does not work Cooker-hoods air suction is weak Cooker-hood does not direct air out (at places without chimney) If the product does not work: Before you contact the technical service: Make sure that the product is plugged in and the electric fuse of the electric wiring is running. Do not take any action that will damage the product.
