Cobra CB6 Installation And Operation Manual

600mm gas barbeque
Hide thumbs Also See for CB6:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual
600mm Gas Barbeque
M o d e l C B 6
I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L
For use in GB, IE & DK
230582-8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CB6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cobra CB6

Summary of Contents for Cobra CB6

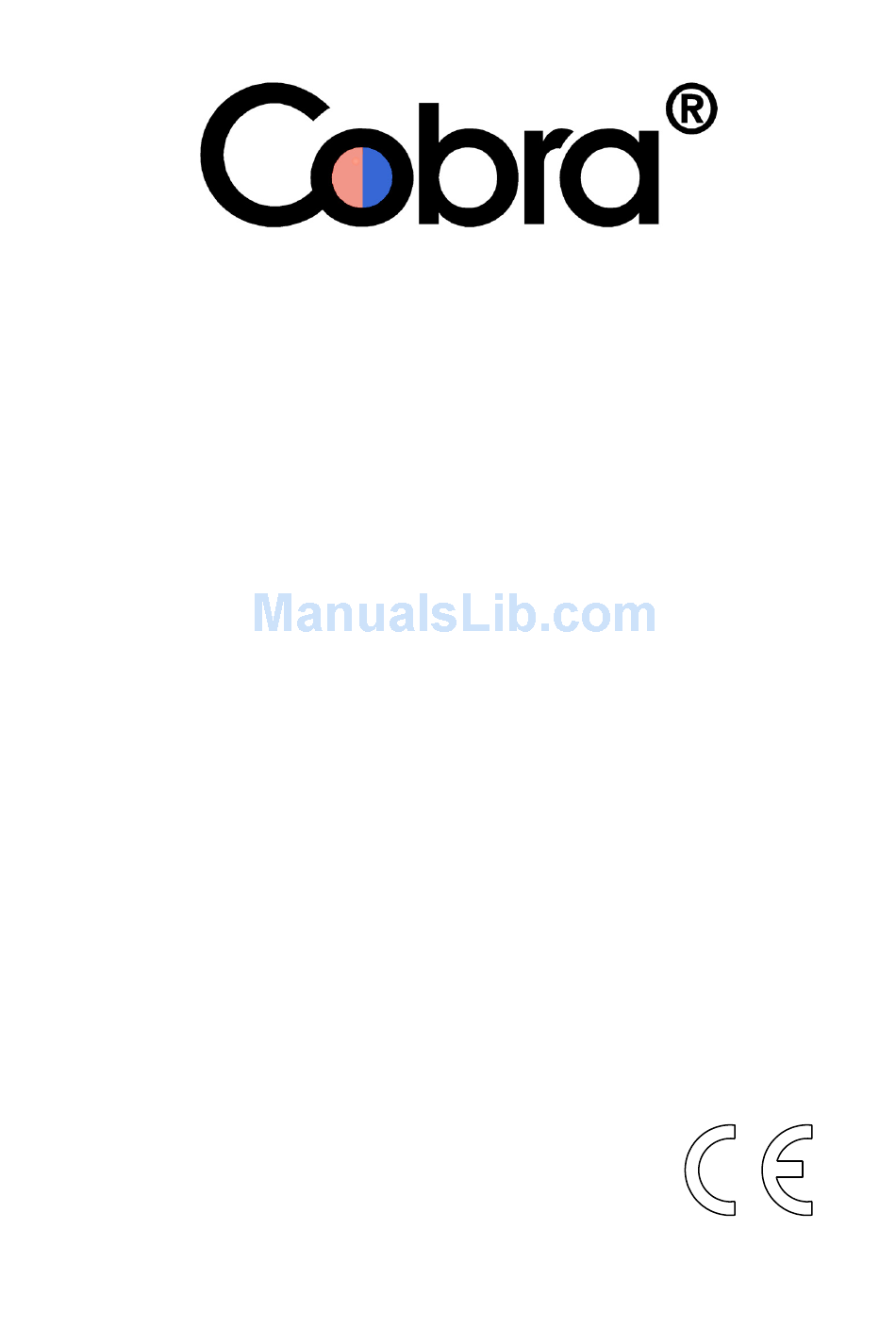

  • Page 1 600mm Gas Barbeque M o d e l C B 6 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L For use in GB, IE &...
  • Page 2 MANUFACTURED BY Moffat Limited Christchurch New Zealand INTERNATIONAL CONTACTS AUSTRALIA Moffat Pty Limited E.Mail: vsales@moffat.com.au Main Office: (tel): +61 (03) 9518 3888 (fax): +61 (03 9518 3833 Service: (tel): 1800 622 216 Spares: (tel): 1800 337 963 Customer Service: (tel): 1800 335 315 (fax): 1800 350 281 CANADA Serve Canada...

  • Page 3: Table Of Contents

    Contents CB6 Gas Barbeque Part 1 Introduction ..................2 Part 2 Specifications .................. 3 Part 3 Installation ..................4 Part 4 Operation ..................6 Part 5 Cleaning and Maintenance ............7 Part 6 Gas Conversion ................9 Part 7 Replacement Parts List ..............13...

  • Page 4: Part 1 Introduction

    Part 1 Introduction We are confident that you will be delighted with your Cobra Series Barbeque, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new Cobra Appliance, there are two important things you can do.

  • Page 5: Part 2 Specifications

    Part 2 Specifications Model Covered in this Specification - Gas Connection CB6 GAS BARBEQUE. Gas supply connection point is located at the rear of the appliance, approximately 215mm from the General left hand side and 535mm from the floor and is entered from beneath the appliance.

  • Page 6: Part 3 Installation

    18 m³/hr minimum. substances in the room, the appliance is installed in. LPG / Propane 18 m³/hr minimum. Cobra Series Barbeques are designed to provide 3. Position the appliance in its approximate years of satisfactory service and correct installation working position.

  • Page 7: Gas Connection

    5. Correctly locate the appliance into its final operating position and using a spirit level, adjust the legs so that the unit is level and at the 1. Cobra Model Barbeques do not require an correct height. electrical connection, they function totally on the gas supply only.

  • Page 8: Part 4 Operation

    Pilot ignition can be viewed through openings in the plastic surround fitted to the piezo igniter button. 1. The Cobra Barbeques have been designed to 3. Hold in the gas control knob for approximately provide simplicity of operation and 100% safety 10-15 seconds, then release.

  • Page 9: Part 5 Cleaning And Maintenance

    Part 5 Cleaning and Maintenance Weekly Cleaning AUTI ON NOTE: Always turn electrical supply at the mains supply before cleaning.  Barbeque usage very high, This appliance is not water proof. recommend that the weekly cleaning procedure Do not use water jet spray to clean interior is carried out on a more frequent basis.

  • Page 10: Periodic Maintenance

    Part 5 Cleaning and Maintenance c. To remove any discolouration, use an Periodic Maintenance approved stainless steel cleaner or stainless steel wool. Always rub in the direction of the NOTE: grain. All maintenance operations should only be carried out by a qualified service person. d.

  • Page 11: Part 6 Gas Conversion

    Part 6 Gas Conversion Gas Conversion Procedure 6. Unscrew the main burner injectors from the barbeque using a 13mm / " A/F spanner. AUTI ON Main Burner Injector Ensure that the Unit is isolated from the gas supply before commencing servicing. NOTE: ...
  • Page 12 Part 6 Gas Conversion 3. Determine the correct injector size for the Low Fire Adjustment (All Models) corresponding gas from the table shown in the 1. To set the burner low fire adjustment, the low fire 'Gas Specifications' section on page 3. adjustment screw on the gas control valve should be screwed fully in, then un-screwed by the measurement shown in the 'Gas...
  • Page 13 Part 6 Gas Conversion Gas Type Labels On completion of the gas conversion, replace gas type labels located at:- - The rear of the unit, above the gas connec- tion. - Beside the rating plate. Commissioning Before leaving the converted installation; 1.

  • Page 14: Gas Specifications

    Part 6 Gas Conversion Gas Specifications - Australia / New Zealand Only: Natural Gas LP Gas (Propane) Main Burner Injectors 2.70 mm 1.65 mm Pilot Burner Injectors 0.45 0.30 Low Fire Adjustment turns out (ccw) ½ turn out (ccw) Supply Pressure 1.13 - 3.40 kPa 2.75 - 4.50 kPa Operating Pressure...

  • Page 15: Part 7 Replacement Parts List

    Part 7 Replacement Parts List Replacement Parts List IMPORTANT: Only genuine qualified replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest qualified service branch (contact details are as shown on the reverse of the front cover of this manual).
