Hamlet HRDSL150W User Manual

Wireless adsl2+ router 802.11n 150 mbit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
+
Wireless ADSL2
Router
802.11n
150 Mbit
User Manual
HRDSL150W
www.hamletcom.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRDSL150W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hamlet HRDSL150W

Summary of Contents for Hamlet HRDSL150W

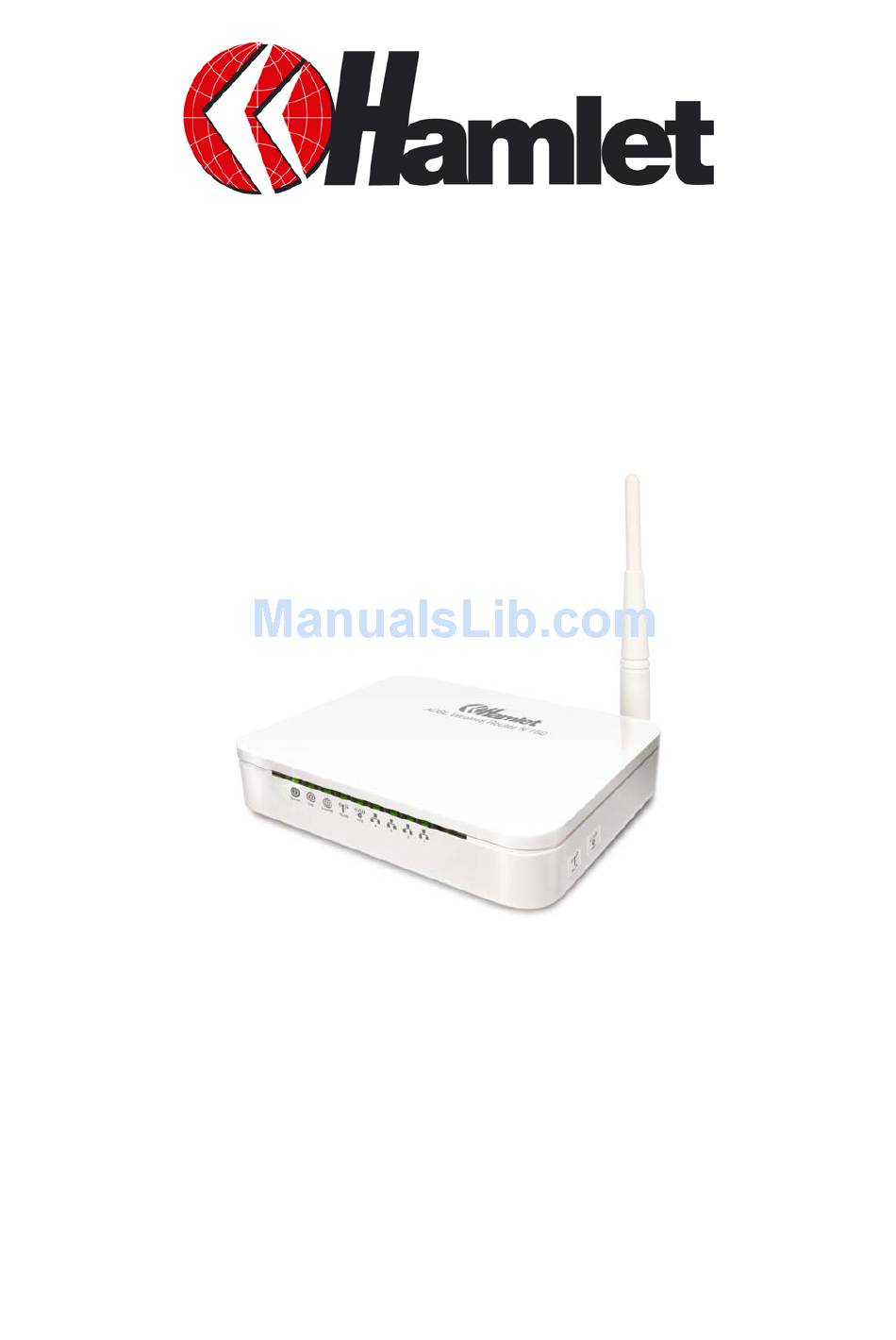

  • Page 1 Wireless ADSL2 Router 802.11n 150 Mbit User Manual HRDSL150W www.hamletcom.com...

  • Page 2: Table Of Contents

    Wireless ADSL2 Router HRDSL150W INDEX 1. Introduction..................4 1.1 System Requirements........................4 1.2 Package Contents ..........................4 2. Specification ..................5 2.1 LED Meaning ............................6 2.2 Connectors ............................7 2.3 Factory Default Settings ........................8 3. Installation & Setup ................9 3.1 Connection of Wireless ADSL2+ Router ..................9 4.
  • Page 3 The material in this document is for information only and subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, Hamlet assumes no liability resulting from errors or omissions in this document, or from the use of the information contained herein.

  • Page 4: Introduction

    HRDSL150W 1. Introduction The Hamlet Wireless ADSL2+ Router is a low cost, high performance and high-speed device based on 802.11n wireless technology that provides a full rate ADSL2+ Router with the superb reliability and a complete solution for home and office router. Hamlet HRDSL150W can have a maximum downstream data rate of up to 24Mbps and an upstream of up to 1Mbps.

  • Page 5: Specification

    (for example a public IP address used on the Internet). Universal Plug and Play (UPnP) Using the standard TCP/IP protocol, the Hamlet Wireless ADSL2+ Router and other UPnP enabled devices can dynamically join a network, obtain an IP address and convey its capabilities to other devices on the network.

  • Page 6: Led Meaning

    Wireless ADSL2 Router HRDSL150W 2.1 LED Meaning The Wireless ADSL2+ Router has indicator lights on the front side. Please see below for an explanation of the function of each indicator light. Power indicator Wireless Active indicator ADSL Link indicator WPS Active indicator...

  • Page 7: Connectors

    Wireless ADSL2 Router HRDSL150W 2.2 Connectors The below table shows the function of each connector and switch of the device. CONNECTOR DESCRIPTION POWER Input connector for the 12V power adaptor SWITCH ON/OFF Power Switch LAN1~4 Four Ethernet ports (RJ-45) LINE Connects to your ADSL2+ line –...

  • Page 8: Factory Default Settings

    Wireless ADSL2 Router HRDSL150W 2.3 Factory Default Settings Before configuration, please refer to following default settings. Web interface Username: admin Password: hamlet LAN IP Settings IP Address: 192.168.1.254 Subnet Mask: 255.255.255.0 DHCP DHCP Server: Enable User Manual...

  • Page 9: Installation & Setup

    Wireless ADSL2 Router HRDSL150W 3. Installation & Setup Follow each step carefully and only go to the next step once you have complete the previous one. Note! Be sure that you are well insulated from any power source to avoid electricity shock.

  • Page 10: Configuration Procedures

    Wireless ADSL2 Router HRDSL150W 4. Configuration Procedures Before starting the Wireless ADSL2+ Router configuration, please kindly configure the PC computer as below, to have automatic IP address / DNS Server. 4.1 Windows 98SE/ME/2000/XP 1. Click on “Start” > “Control Panel” (in Classic View). In the Control Panel; double click on “Network Connections”...
  • Page 11 Wireless ADSL2 Router HRDSL150W 3. Double click on “Internet Protocol (TCP/IP)”. 4. Check “Obtain an IP address automatically” and “Obtain DNS server address automatically” then click on “OK” to continue. 5. Click “Show icon in notification area when connected” (see screen image in 3. above) then click on “OK”...

  • Page 12: Windows Vista 32/64

    Wireless ADSL2 Router HRDSL150W 4.2 Windows Vista 32/64 1. Click on “Start” > “Control Panel” > “Network and Sharing Center”. 2. In the Manage network connections, click on “Manage network connections” to continue. User Manual...
  • Page 13 Wireless ADSL2 Router HRDSL150W 3. Single right click on “Local Area connection”, then click “Properties”. 4. The screen will display the information “User Account Control” and click “Continue” to continue. 5. Double click on “Internet Protocol Version 4 (TCP/IPv4)”. User Manual...
  • Page 14 Wireless ADSL2 Router HRDSL150W 6. Check “Obtain an IP address automatically” and “Obtain DNS server address automatically” then click on “OK” to continue. User Manual...

  • Page 15: Windows 7 32/64

    Wireless ADSL2 Router HRDSL150W 4.3 Windows 7 32/64 1. Click on “Start” > “Control Panel” (in Category View) > “View network status and tasks”. 2. In the Control Panel Home, click on “Change adapter settings” to continue. 3. Single right click on “Local Area Connection”, then click “Properties”.
  • Page 16 Wireless ADSL2 Router HRDSL150W 4. Double click on “Internet Protocol Version 4 (TCP/IPv4)”. 5. Check “Obtain an IP address automatically” and “Obtain DNS server address automatically” then click on “OK” to continue. User Manual...

  • Page 17: Router Configuration

    Wireless ADSL2 Router HRDSL150W 5. Router Configuration 1. Please insert the supplied CD into your CD-ROM drive. 2. The CD should auto-start, displaying the window shown in 3 below. If your CD does not start automatically, go to Windows Explorer, Select your CD drive and double click “autorun.exe”.
  • Page 18 5. Please enter the “ESSID” and Wireless “Default Channel” if you want to change (the default settings Network= Enable, ESSID = Hamlet, Default Channel=6). 6. Choose the Encryption type if necessary, as Off – No Encryption (Default) / 64 Bit Encryption / 128 Bit Encryption / Wi-Fi Protected Access (TKIP) / Wi-Fi Protected Access2 (AES-CCMP) and WPA Mixed Mode.
  • Page 19 Wireless ADSL2 Router HRDSL150W 9. Easy setup configuration completed. Click on "Exit" to exit this program. 10. Click on "Exit" to exit this program. Now, the Wireless ADSL2+ Router has been configured completely, and suitable for Wireless and Internet Connections.

  • Page 20: Connect Wirelessly

    Wireless ADSL2 Router HRDSL150W 6. Connect Wirelessly Now that the Easy configuration setup is completed, you can connect wirelessly to your Wireless ADSL2+ Router. Follow the steps below to create a new wireless connection to the Router. 1. Double click on the wireless icon on your computer and search for the wireless network that you enter ESSID name.
  • Page 21 Wireless ADSL2 Router HRDSL150W 4. If the wireless network is encrypted, enter the network key that belongs to your Encryption type and Passpharse. You can later change this network key via the wireless configuration menu. 5. Click on "Connect" or "Apply".

  • Page 22: Web Configuration

    3. Launch your web browser and type “192.168.1.254” in the address bar. 4. An Enter Network Password window displays. Enter the user name (“admin” is the default), password (“hamlet” is the default) and click OK. 5. You should now see the Status page of the Router.

  • Page 23: Quick Start

    Wireless ADSL2 Router HRDSL150W 7.2 Quick Start You can use “Quick Start” to setup the router as follows, and the router will connect to the Internet via ADSL line. 1. Click “RUN WIZARD” to start up this procedure. 2. Please click “NEXT” to setup your new administrator's password.
  • Page 24 Wireless ADSL2 Router HRDSL150W 3. Please click “NEXT” to setup your time zone. 4. Please click “NEXT” to setup your Internet connection type. You can have this information from your Internet Service Provider. 5. Enter the connection information provided by your ISP and click “NEXT”.
  • Page 25 Wireless ADSL2 Router HRDSL150W 6. Click “NEXT” to save the current settings. 7. Please click “CLOSE” to finish Quick Start. User Manual...

  • Page 26: Interface Setup

    Wireless ADSL2 Router HRDSL150W 7.3 Interface Setup Internet (VC Configuration) Go to Interface Setup > Internet to add or delete ADSL VC configuration. These information are provided by your ISP. ATM VC ATM settings are used to connect to your ISP. Your ISP provides VPI, VCI settings to you. In this Device, you can totally setup 8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP.
  • Page 27 Wireless ADSL2 Router HRDSL150W Encapsulation • ISP: Select the encapsulation type your ISP uses from the Encapsulation list. Choices vary depending on what you select in the Mode field. Dynamic IP: Select this option if your ISP provides you an IP address automatically. This option is typically used for Cable services.
  • Page 28 • Multicast: IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership in a Multicast group - it is not used to carry user data. The Hamlet HRDSL150W supports both IGMP version 1 (IGMP-v1) and IGMP-v2. Select None to disable it.
  • Page 29 • Multicast: IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership in a Multicast group - it is not used to carry user data. The Hamlet HRDSL150W supports both IGMP version 1 (IGMP-v1) and IGMP-v2. Select None to disable it •...
  • Page 30 Wireless ADSL2 Router HRDSL150W • IP Pool Count: This field specifies the size or count of the IP address pool. • Lease Time: The current lease time of client. • Primary DNS Server: Enter the IP addresses of the DNS servers. The DNS servers are passed to the DHCP clients along with the IP address and the subnet mask.
  • Page 31 Wireless ADSL2 Router HRDSL150W Wireless Settings This section introduces the Wireless LAN and some basic configurations. Go to Interface > Wireless to setup the wireless parameters. User Manual...
  • Page 32 Wireless ADSL2 Router HRDSL150W Access Point Settings • Access Point: Default setting is set to Activated. If you do not have any wireless, both 802.11g, 802.11b and 802.11n, device in your network, select Deactived. • Channel ID: The range of radio frequencies used by IEEE 802.11b/g/n wireless devices is called a channel.
  • Page 33 Wireless ADSL2 Router HRDSL150W SSIDs Settings • SSID Index: Default SSID index is “1”. • SSID: The SSID is the unique name of a wireless access point (AP) to be distinguished from another. For security propose, change the default wlan-ap to a unique ID name to the AP which is already built-in to the router’s wireless interface.
  • Page 34 Wireless ADSL2 Router HRDSL150W WDS Settings Wireless Distribution System uses wireless media to communicate with other APs, like the Ethernet does. To do this, you must set these APs in the same channel and set MAC address of other APs which you want to communicate with in the table and then enable the WDS.

  • Page 35: Advanced Setup

    Wireless ADSL2 Router HRDSL150W 7.4 Advanced Setup Firewall Go to Advanced Setup > Firewall to setup Firewall features. Select this option can automatically detect and block Denial of Service (DoS) attacks, such as Ping of Death, SYN Flood, Port Scan and Land Attack.
  • Page 36 Wireless ADSL2 Router HRDSL150W Static Route To add a new static route, press the ADD ROUTE button. The static routing function determines the path that router follows over your network before and after it passes through your router. You can use static routing to allow different IP domain users to access the Internet through this device.
  • Page 37 Wireless ADSL2 Router HRDSL150W Go to Advanced Setup >NAT > DMZ to set DMZ parameters. If you have a local client PC that cannot run an Internet application properly from behind the NAT firewall, you can open the client up to unrestricted two-way Internet access by defining a virtual DMZ Host.
  • Page 38 Wireless ADSL2 Router HRDSL150W IP Address Mapping (for Multiple IPs) • Address Mapping Rule: Shows the PVC where the rule will be applied to • Rule Index: Choose the rule number. • Rule Type: ! ! One-to-one: This is the mode maps one local IP address to one global IP address. Note that port numbers do not change for the One-to-one NAT mapping type.
  • Page 39 Wireless ADSL2 Router HRDSL150W Go to Advanced Setup > QoS to setup QoS features. Quality of Service (QoS) helps to prioritize data as it enters your router. By attaching special identification marks or headers to incoming packets, QoS determines which queue the packets enter, based on priority.
  • Page 40 Wireless ADSL2 Router HRDSL150W Rule • Rule Index: Select 16 different rules, each rule’s detail can be set and saved. • Active: Select QoS is activated or deactivated. • Application: Select 11 different applications: IGMP, SIP, H.323, MGCP, SNMP, DNS, DHCP, RIP, RSTP, RTCP, RTP.
  • Page 41 Wireless ADSL2 Router HRDSL150W VLAN Go to Advanced Setup > VLAN to enable VLAN features. Virtual LAN (VLAN) is a group of devices on one or more LANs that are configured so that they can communicate as if they were attached to the same wire, when in fact they are located on a number of different LAN segments.
  • Page 42 Wireless ADSL2 Router HRDSL150W VLAN Group Setting Go to Advanced Setup > VLAN > Define VLAN Group to setup VLAN group features. ADSL Go to Advanced Setup > ADSL to configure ADSL. • ADSL Mode: The default setting is Auto Sync-UP. This mode will automatically detect your ADSL, ADSL2, ADSL2+, G.dmt, G.lite, and T1.413.

  • Page 43: Access Management

    Router. Type an IP address to restrict access to a client with a matching IP address. • Application: Choose a service that you may use to remotely manage the Hamlet HRDSL150W. • Interface: Select the access interface. Choices are LAN, WAN and Both.
  • Page 44 Wireless ADSL2 Router HRDSL150W IP Filtering Go to Access Management > Filter to block some packets form WAN. The router provides extensive firewall protection by restricting connection parameters to limit the risk of intrusion and defending against a wide array of common hacker attacks. The user can set different IP filter rules of a given protocol (TCP, UDP or ICMP) and a specific direction (incoming, outgoing, or both) to filter the packets.
  • Page 45 Wireless ADSL2 Router HRDSL150W • Subnet Mask: It is the source IP addresses based on above source subnet IP. • Source Port Number: This Port or Port Ranges defines the port allowed to be used by the Remote/WAN to connect to the application. Default is set from range 0 ~ 65535. It is recommended that this option be configured by an advanced user.
  • Page 46 Wireless ADSL2 Router HRDSL150W URL Filter URL filtering is a feature that prevents users from accessing Websites based on information contained in a URL list. You can maintain a local URL list on the router. • Active: Select Yes to enable URL Filter.
  • Page 47 Wireless ADSL2 Router HRDSL150W SNMP Go to Access Management > SNMP to setup SNMP feature Simple Network Management Protocol is used for exchanging management information between network devices. • Get Community: Select to set the password for the incoming Get and GetNext requests from the management station.
  • Page 48 • Dynamic DNS: Select this check box to use Dynamic DNS. • Service Provider: www.dyndns.org • My Host Name: Type the domain name assigned to your Hamlet HRDSL150W by your Dynamic DNS provider. • E-mail Address: Type your e-mail address.
  • Page 49 Wireless ADSL2 Router HRDSL150W CWMP (TR-069 function) Go to Access Management > CWMP to setup CWMP parameters. TR-069 (short for Technical Report 069) is a technical specification entitled CPE WAN Management Protocol (CWMP). It defines an application layer protocol for remote management of end-user devices.

  • Page 50: Maintenance

    Administration Go to Maintenance > Administration to set a new username and password to restrict management access to the router. The default for Username and Password are admin and hamlet. • New Password: Type the new password in this field •...
  • Page 51 Wireless ADSL2 Router HRDSL150W Firmware Go to Maintenance > Firmware to upgrade the firmware. The new firmware for your router can improve functionality and performance. Enter the path and name of the upgrade file then click the UPGRADE button below. You will be prompted to confirm the upgrade.
  • Page 52 Wireless ADSL2 Router HRDSL150W SysRestart Go to Maintenance > SysRestart to restart your system. In the event that the router stops responding correctly or in some way stops functioning, you can perform a reset. Your settings will not be changed.

  • Page 53: Status

    Wireless ADSL2 Router HRDSL150W 7.7 Status System Status Go to Status > Device Info to see the router's information. The System Status page shows the WAN, LAN and the router's firmware version. Device Information • Firmware version: This is the Firmware version.
  • Page 54 Wireless ADSL2 Router HRDSL150W ADSL • ADSL firmware version: This is the DSL firmware version associated with your router • Line State: This is the status of your ADSL link. • Modulation: This field displays the ADSL modulation status for G.dmt or T1.413.
  • Page 55 Wireless ADSL2 Router HRDSL150W Statistics Go to Status > Statistics. In this page you can see the traffic statistics of Ethernet, ADSL and WLAN interface. Ethernet • Interface: This field displays the type of port • Transmit Frames: This field displays the number of frames transmitted in the last second.
  • Page 56 Wireless ADSL2 Router HRDSL150W WLAN • Tx Frames Count: This field displays the number of frames transmitted in the last second. • Tx Errors Count: This field displays the number of errors frames transmitted in the last second. • Tx Drops Count: This field displays the number of drops frames transmitted in the last second.

  • Page 57: Help

    Wireless ADSL2 Router HRDSL150W 7.8 Help This help page provides you some useful messages such as the introductions of some concepts and some guidance. When some problems are encountered, you can turn to this page for help. User Manual...

  • Page 58: Universal Plug-And-Play (Upnp)

    Wireless ADSL2 Router HRDSL150W 8. Universal Plug-and-Play (UPnP) 8.1 Universal Plug and Play Overview Universal Plug and Play (UPnP) is a distributed, open networking standard that uses TCP/IP for simple peer-to-peer network connectivity between devices. An UPnP device can dynamically join a network, obtain an IP address, convey its capabilities and learn about other devices on the network.

  • Page 59: Configuring Upnp

    Wireless ADSL2 Router HRDSL150W 8.5 Configuring UPnP From the Site Map in the main menu, click UPnP under Access Managemen to display the screen shown next. • UPnP: Select this checkbox to activate UPnP. Be aware that anyone could use a UPnP application to open the web configuration's login screen without entering Router's IP address (although you must still enter the password to access the web configuration).

  • Page 60: Installing Upnp In Windows Xp

    Wireless ADSL2 Router HRDSL150W 8.6 Installing UPnP in Windows XP Follow the steps below to install the UPnP in Windows XP. 1. Click Start and Control Panel. 2. Double-click Network Connections. 3. In the Network Connections window, click Advanced in the main menu and select Optional Networking Components.
  • Page 61 Wireless ADSL2 Router HRDSL150W 6. In the “Networking Services” window, select the “UPnP User Interface” check box. 7. Click OK to go back to the “Windows Optional Networking Component Wizard” window and click Next. Windows will complete the installation of the “UPnP User Interface” on your computer. Go to the next chapter to see an example of use of Universal Plug-and-Play feature.

  • Page 62: Using Upnp In Windows Xp

    Wireless ADSL2 Router HRDSL150W 8.7 Using UPnP in Windows XP This section shows you how to use the UPnP feature in Windows XP. You must already have UPnP installed in Windows XP and UPnP activated on the Wireleess ADSL2+ Router.
  • Page 63 Wireless ADSL2 Router HRDSL150W 4. You may edit or delete the port mappings or click Add to manually add port mappings. 5. Once back in the “Internet Connection Properties” window, select “Show icon in notification area when connected” option and click OK to display the status icon in the system tray.

  • Page 64: Web Configuration Easy Access

    Wireless ADSL2 Router HRDSL150W 9. Web Configuration Easy Access With UPnP, you can access the web-based configuration on Wireless ADSL2+ Router without finding out the IP address of Router first. This comes helpful if you do not know the IP address of the Router.

  • Page 65: Troubleshooting

    Wireless ADSL2 Router HRDSL150W 10. Troubleshooting Using LEDs to Diagnose Problems The LEDs are useful aides for finding possible problem causes. Power LED The PWR LED on the front panel does not light up. STEPS CORRECTIVE ACTION Make sure that Wireless ADSL2+ Router’s power adaptor is connected to Wireless ADSL2+ Router and plugged in to an appropriate power source.
  • Page 66 IP address on your computer, make sure that it is on the same subnet as Wireless ADSL2+ Router. Make sure you entered the correct password. The default password is “hamlet”. If these steps fail to correct the problem, contact the distributor.
  • Page 67 Wireless ADSL2 Router HRDSL150W LAN Interface I cannot access Wireless ADSL2+ Router from the LAN or ping any computer on the LAN. STEPS CORRECTIVE ACTION Check the Ethernet LEDs on the front panel. A LAN LED should be on if the port is connected to a computer or hub.
  • Page 68 Wireless ADSL2 Router HRDSL150W Remote Node Connection I cannot connect to a remote node or ISP. STEPS CORRECTIVE ACTION Check WAN screen to verify that the username and password are entered properly. Verify your login name and password for the remote node.

  • Page 69: Technology Glossary

    Wireless ADSL2 Router HRDSL150W 11. Technology Glossary 10Base-T An adaptation of the Ethernet standard for Local Area Network (LAN). 10Base-T uses a twisted pair cable with maximum length of 100 meters. ATM Adaptation Layer that defines the rules governing segmentation and reassembly of data into cells.
  • Page 70 Wireless ADSL2 Router HRDSL150W Local area network. A limited distance (typically under a few kilometers or a couple of miles) high-speed network (typically 4 to 100 Mbps) that supports many computers. Media Access Control Layer. A sub-layer of the Data Link Layer (Layer 2) of the ISO OSI Model responsible for media control.
  • Page 71 Wireless ADSL2 Router HRDSL150W TELNET The virtual terminal protocol in the Internet suite of protocols. Allows users of one host to log into a remote host and act as normal terminal users of that host. Virtual Circuit Identifier. Part of the ATM cell header, a VCI is a tag indicating the channel over which a cell will travel.
