Simple Audio Roomplayer I User Manual page 7

Roomplayer basics

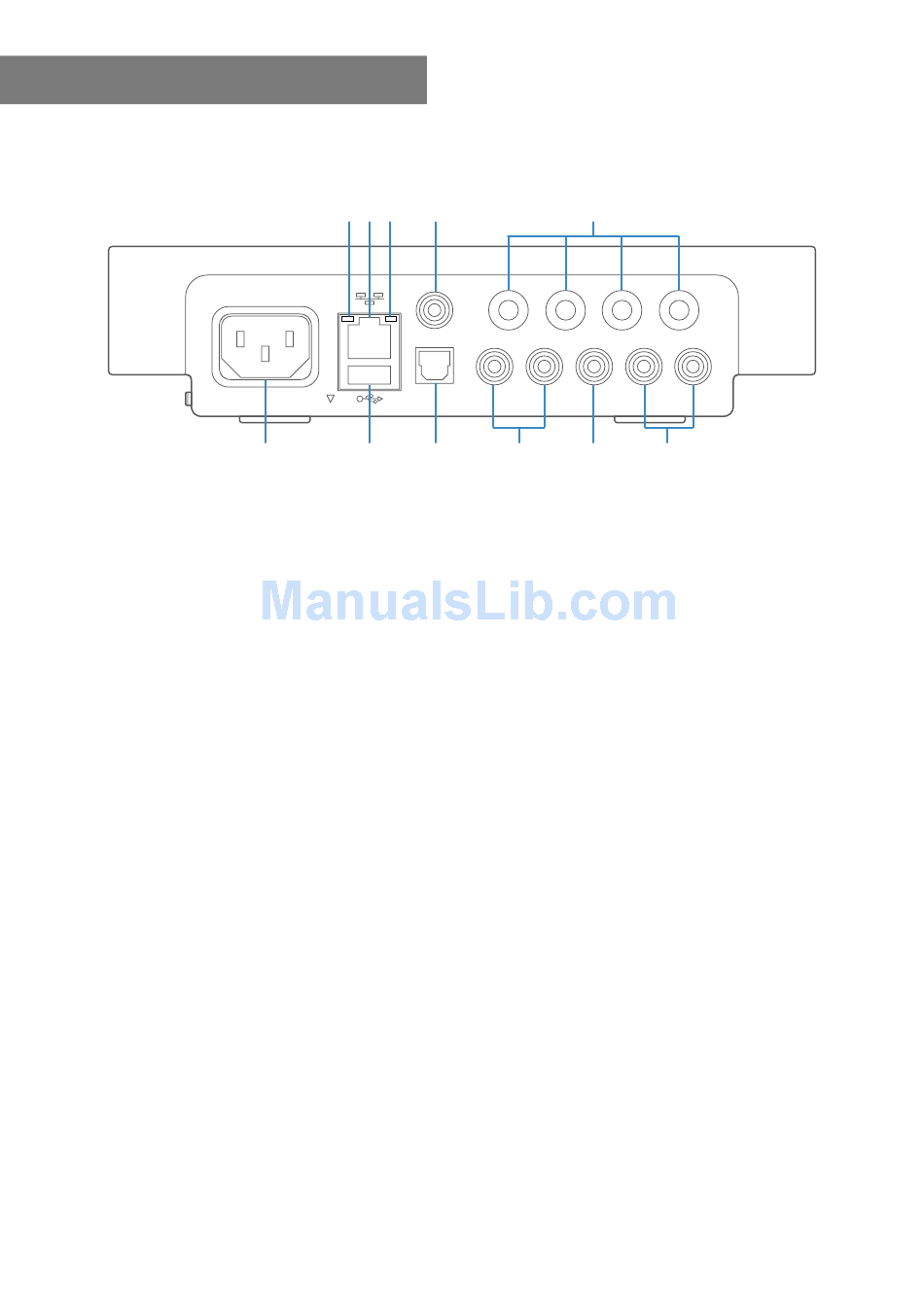

Rear view
SAFETY INFORMATION
8. Mains in
Connect the mains lead supplied. Check that the voltage
of your Roomplayer is suitable for your country. If in doubt,
contact your local retailer or refer to the safety instructions.
We recommend that you make all connections before
you apply power.
9. Orange activity LED
The orange activity LED will flicker to indicate network activity
over the PowerLine when a PowerLine connection is active.
10. Ethernet
If you are not using the built in PowerLine technology you can
connect to your network using the Ethernet cable provided.
Do not use this socket as a means to extending your
computer network.
11. Green activity LED
The green activity LED will flicker to indicate network
activity when connected directly to a router over wired
Ethernet.
12. USB
The USB port is for service use only. You should not connect
any devices here.
13. Opt out (Optical digital out)
Connect to an external DAC via the optical output using a
fibre optic cable. Using the digital optical output will disable
all analogue outputs. Your volume must be controlled via your
external device. Cable is not included.
9 10 11
MAINS IN
OPT OUT
8 12
14 15
DIG
OUT
R
AUDIO OUT SUB
13 16 17
14. Dig out (Digital out)
Connect to an external DAC via the digital output socket
using a phono cable. Using the digital output will disable all
analogue outputs. Your volume must be controlled via your
external device. Cable is not included.
15. Loudspeaker outputs
Connect to loudspeakers using the combination spring type
4mm sockets (for bare wire terminals) or 4.0mm plugs. Make
sure you match red (+) and black (-) to the terminals correctly.
If you want to use banana plugs see page 8. Loudspeaker
cables are not included.
Note: Roomplayer II has no loudspeaker outputs.
16. Audio out
Connect to an external power amplifier. If you already have
a hi-fi and speaker set up, connect it here using the phono
to phono cable. The red connector is right and the white
connector is left.
17. Sub (Subwoofer out)
Connect to an active subwoofer using a phono cable (not
included). This can be useful if you are using small bookshelf
type loudspeakers. Your subwoofer will have settings that
allow you to balance the sound correctly.
18. Audio in
Connect to a TV or CD player using the phono to phono
cable. The red connector is right and the white connector is
left.
L
AUDIO IN
18
7
