Summary of Contents for AXIOMTEK AX93501

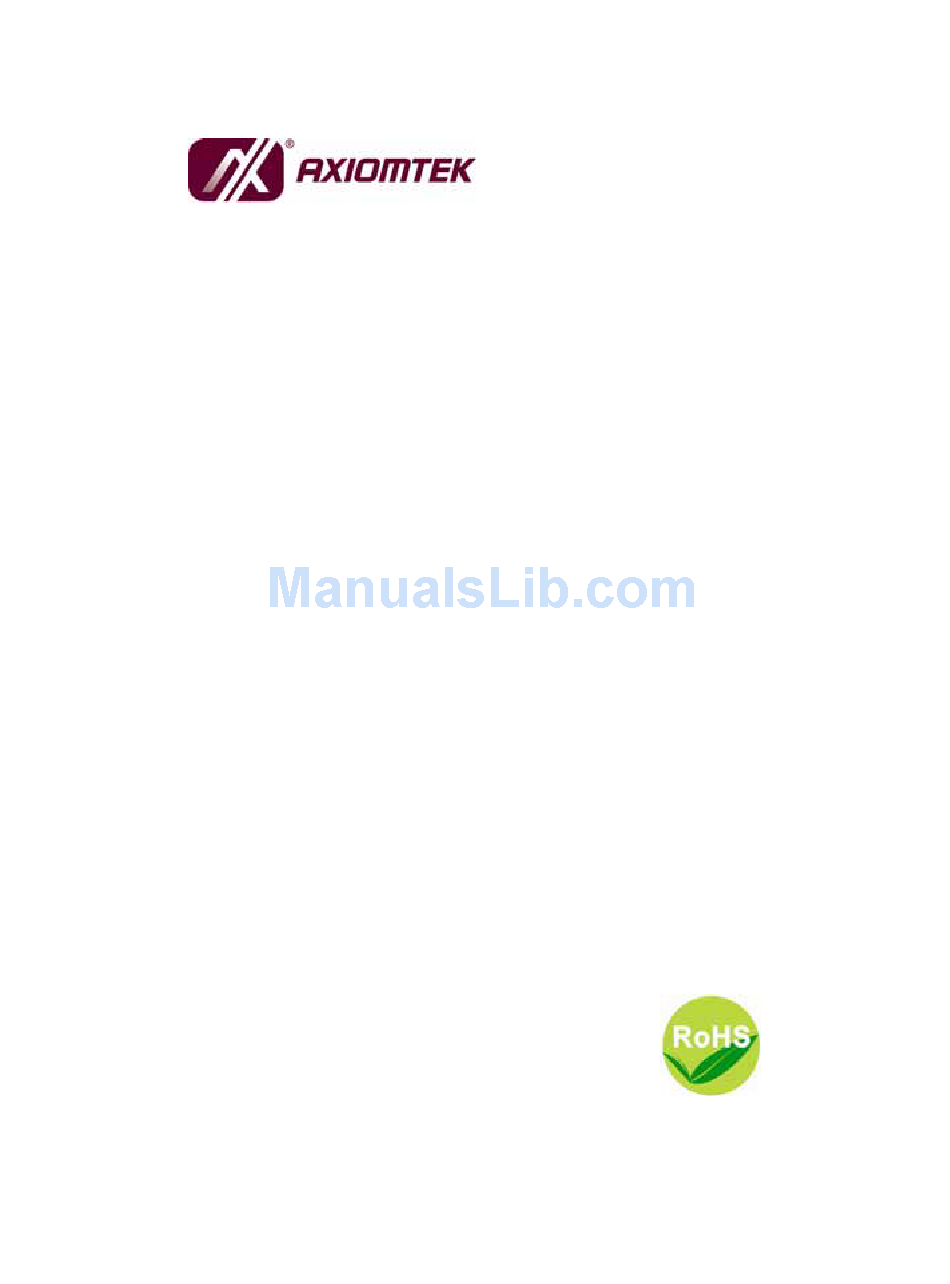

- Page 1 AX93501 2-channel IEEE-1394b PCI Express Card User’s Manual...
- Page 2 AXIOMTEK does not warrant or assume any legal liability or responsibility for the accuracy, completeness or usefulness of any information in this document. AXIOMTEK does not make any commitment to update the information in this manual.
-
Page 3: Esd Precautions
Wear a wrist-grounding strap, available from most electronic component stores, when handling cards and components. Trademarks Acknowledgments AXIOMTEK is a trademark of AXIOMTEK Co., Ltd. Product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies. -
Page 4: Table Of Contents
Table of Contents Disclaimers ......................ii ESD Precautions ....................iii CHAPTER 1 INTRODUCTION ..................1 Features ....................2 Specifications ..................2 CHAPTER 2 HARDWARE REFERENCE ..............3 Adapter Appearance ................3 Adapter Dimensions ................4 Hardware Installation................5 CHAPTER 3 INSTALLATION OF DRIVERS ............... 7... -
Page 5: Chapter 1 Introduction
1394b transfer rate is up to 800Mbps and device distances can now be up to 100 meters. The AX93501 supports two channel IEEE-1394b ports on a PCI express x1 card. The AX93501 provides IEEE 1394b bilingual connectors with locking screw for reliable connection between the AX93501 and devices, such as camera, hard drive, RAID, and complaint IEEE 1394a device. -
Page 6: Features
AX93501 User’s Manual Features 2-channel IEEE-1394b Fire Wire 800 PCI Express x1 compliant High-speed transfer rates up to 800Mbps Locking screw connector Supports Plug and Play Specifications PCI-Express X 1 lanes Connector Two 9 pin IEEE 1394b connectors with locking screw Operation Temperature 0°C ~ 60°C... -
Page 7: Chapter 2 Hardware Reference
AX93501 User’s Manual CHAPTER 2 HARDWARE REFERENCE Adapter Appearance 1394b Port 1 1394b Port 2 PCI Express x 1 interface Hardware Reference... -
Page 8: Adapter Dimensions
AX93501 User’s Manual Adapter Dimensions Hardware Reference... -
Page 9: Hardware Installation
Press the board firmly, but carefully into the connector. Anchor the board by replacing the screw. Connect device via 1394b connector. Turn on the computer. NOTE The AX93501 can be installed in a PCI express x1, x4, x8, and x16 slot. Hardware Reference... - Page 10 AX93501 User’s Manual MEMO Hardware Reference...
-
Page 11: Chapter 3 Installation Of Drivers
AX93501 User’s Manual CHAPTER 3 INSTALLATION OF DRIVERS Installing Chipset Driver 1. Please visit http://www.unibrain.com/download/download.asp download ubCore version x.xx for Windows driver. (Notice: don’t get ubCorePro verion driver) 2. Run the ubCore.EXE program. Installation of Drivers... - Page 12 AX93501 User’s Manual Click “Next” to next step. ® An Unibrain License Agreement appears to show you the important information. Click “Yes” to next step. Installation of Drivers...
- Page 13 AX93501 User’s Manual Please enter your information below: Select destination folder, click “Next” to next step. Installation of Drivers...
- Page 14 AX93501 User’s Manual Select setup type: Click “Finish” to complete the setup process. And restart your computer. Installation of Drivers...
