Spectra 1689 User Quick Reference Manual

1689 led keypad / 1641 lcd keypad
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
Arm Lights
(for Regular & Force arming)
ON
= area 1 or 2 armed
OFF
= area 1 or 2 disarmed
FLASH = area 1 or 2 in alarm
AC Light
(for Stay & Instant Arming)
ON
= AC power
OFF
= power failure

Status Light

Green
ON
= zones closed
OFF
= zone(s) open
FLASH = exit delay
Red (1641 only)
ON
= system armed
FLASH = stay armed
FAST FLASH = alarm

LCD Screen

Messages on the LCD screen
will guide you through the
operations.
Made a mistake?
Press [
] to delete an entry
CLEAR
or revert to last step.
User Quick Reference Guide
1689 LED Keypad / 1641 LCD Keypad

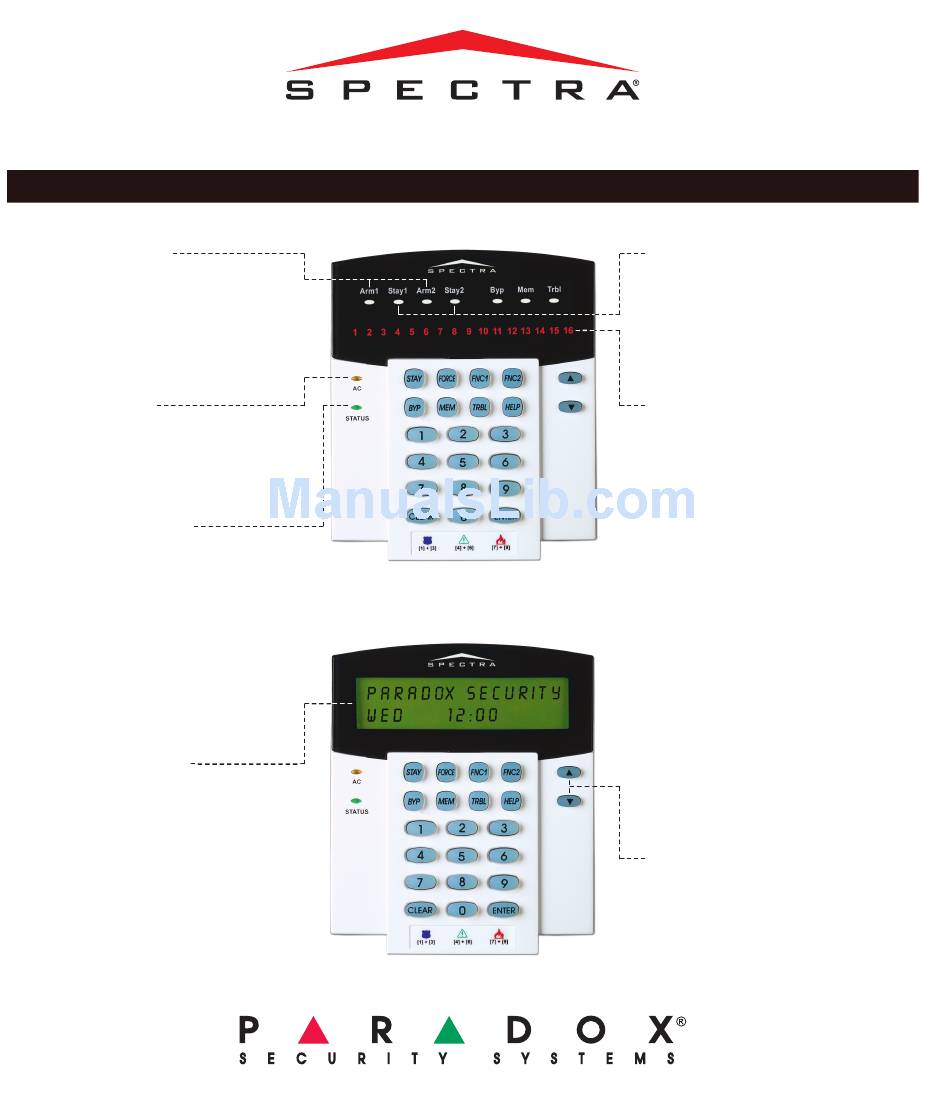

KEYPAD OVERVIEW
1689 LED Keypad
1641 LCD Keypad
Stay Lights
(for Stay & Instant arming)
ON
= area 1 or 2 armed
OFF
= area 1 or 2 disarmed
FLASH = area 1 or 2 in alarm

Zone Display

The numbers represent zones 1
to 16. When illuminated, the
zones are open or breached.
FNC1 Key
Your system may have one or
more home-automation options.
One of these options may be
triggered directly from the
keypad. Press and hold [
3 seconds to activate:
___________________________
(i.e. reset smoke detector,
activate lights, etc.)
Arrow Keys
Use the arrow keys to scroll
menu or choices.
1] for
FNC
