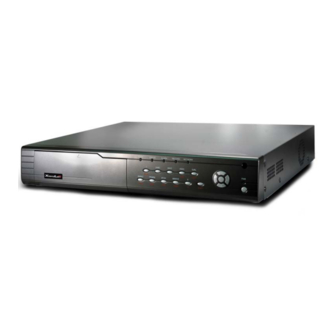

Net video digital recorder
Hide thumbs Also See for DVR-470B:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR

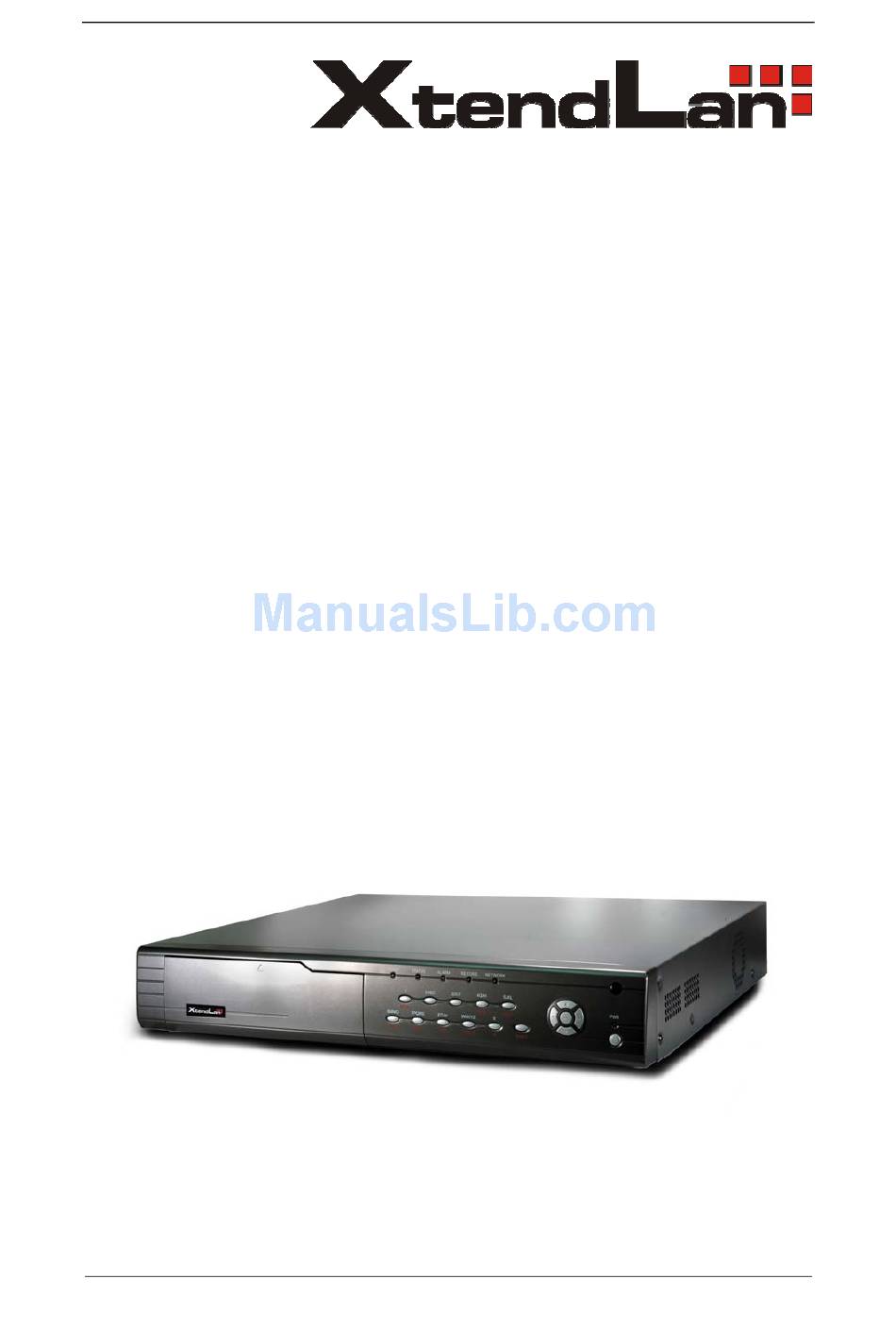

DVR‐470B / DVR‐870B / DVR‐1670B
Net Video Digital Recorder



User's Guide
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVR-470B and is the answer not in the manual?

Questions and answers

Related Manuals for XtendLan DVR-470B

Summary of Contents for XtendLan DVR-470B

  • Page 1 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR DVR‐470B / DVR‐870B / DVR‐1670B  Net Video Digital Recorder        User’s Guide Page 1...

  • Page 2: Table Of Contents

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Index Chapter1   Product Introduction ....................4   1.1   Summary ........................4   1.2   Features ........................4   Chapter2   Installation ......................... 6   2.1   Checking the DVR and Its Accessories ..............6  ...
  • Page 3 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR 5.18   Transaction Information ..................77   Chapter6   Utilities ........................81   6.1   Save Parameters ...................... 81   6.2   Restore Parameters ....................81   6.3   Upgrade ........................82  ...

  • Page 4: Chapter1 Product Introduction

    TCP/IP. The firmware is burned in the flash, more stable and reliable. DVR-470B / DVR-870B device has both the features of digital video recorder (DVR) and digital video server (DVS). It can work stand alone, also be used to build a powerful surveillance network, widely used in bank, telecommunication, transportation, factories, warehouse, irrigation, etc.
  • Page 5 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR CD-R/W, USB DVD-R/W, IDE CD-R/W and IDE DVD-R/W. Preview and playback Support analog moniotor and VGA output. Support multiple preview modes. Support sensitive area mask. Support camera spiteful block alarm.

  • Page 6: Chapter2 Installation

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Chapter2 Installation Warning: Before you install the DVR, please make sure the power of DVR is switched off. Checking the DVR and Its Accessories When you get the product, check that all the items are included in your product package.

  • Page 7: Rear Panel Description

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Rear Panel Description DVR-1670B Rear Panel DVR-870B Rear Panel DVR-470B Rear Panel Index Physical Interface Description Standard BNC. Video Input Connect monitor, output video and menu. Video Output Ω 1 channel RCA (1.0 Vp-p, 75 Audio Output Ω...

  • Page 8: External Alarm In/Out Connection

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Connect network devices. Refer to Appendix B for pin UTP Network Interface definition. PTZ connection. Refer to Appendix B for pin definition. RS-485 4/8 Alarm in. External Alarm Input 2/4 Alarm out...

  • Page 9: Chapter3 Operational Instructions

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Chapter3 Operational Instructions Front Panel Index Type Name Description State READY DVR is ready. Lamps STATUS Green means you can use IR remote control. ALARM Red means there is alarm.
  • Page 10 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Input switch (number, lower case, upper case and symbol); 【FOCUS+】in PTZ control; In preview mode, display or hide the channel status bar. SHIFT Switch between numeric keys and function keys...

  • Page 11: Ir Controller

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR IR Controller Index Name Description POWER Turnoff device. Enable/Disable IR remote control Numeric Keys Same as numeric keys of front panel. EDIT Same as EDIT key of front panel. Same as A key of front panel.
  • Page 12 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Reserved Same as【F1】key of front panel. IRIS, FOCUS ZOOM for lens Lens control control. Same as【F2】key of front panel. Loading the batteries into the IR controller Remove the battery cover.

  • Page 13: Menu Description

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Menu Description 3.3.1 Menu Items Menu Name Function Menu Name Function Camera name and position setup Unit name Adjust Brightness, Contrast, Hue Device ID and Saturation Require password OSD Display mode, position and...

  • Page 14: Menu Operation

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Restore parameters Upgrade firmware Text input mode HDD management ATM IP address Clear alarm output Transaction Utilities ATM type Reboot Text information Power off View log System information 3.3.2 Menu Operation How to enter into menu mode Press【MENU】key to enter into DVR main menu.
  • Page 15 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Each menu contains different kinds of items. There is a small rectangular frame named “Active Frame” which is pointing to the selected item. This “Active Frame” can be moved by 【...

  • Page 16: Character Input

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Character Input In the menu interface, if you enter into edit status (for example, in the “camera name” edit box), at the bottom of screen, the input status is appeared: Here it means you can press numeric keys to input digital number.

  • Page 17: Chapter4 Basic Operation Guide

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Chapter4 Basic Operation Guide Power on Note: Please make sure the power supply matches DVR and AC cable connected correctly. Before switch DVR on, please connect one monitor with VOUT or VGA interface.
  • Page 18 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Camera record status is following: Icon Icon Color Status Description White No video signal Yellow Vdieo input Pink Manual recording Green Real time recording Blue Motion detect recording External alarm recording...
  • Page 19 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Camera alarm status is following: Icon Icon Color Status Description White Video signal lost Yellow View tampering alarm Pink Motion&External alarm Green No alarm Blue Motion alarm External alarm Press numeric keys to switch over individual camera preview. If DVR has less than 10 channels, press one numeric key to switch corresponding channel.

  • Page 20: User Name And Password

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR User name and password Note: When DVR is delivered from factory, there is only one default administrator named “admin”, and password is “12345”. The administrator’s name can not be modified, while the password can be modified.
  • Page 21 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Setp 2: Enter into password modification menu Move the “Active Frame” to “Password” icon by using【 】/【 】keys. Press【ENTER】 key to enter into following password menu: Step 3: Input new password Press【EDIT】key to enter into edit box.

  • Page 22: Ptz Control

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR PTZ Control Note: The user must have the “PTZ control” right. PTZ control interface In preview mode, press【PTZ】key, in the login dialog, select one user name and input the correct password, you can enter into PTZ control interface.
  • Page 23 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Wiper control key: 【WIPER/MENU】; Light control key: 【LIGHT/F1】; Auxiliary device control key:【AUX/F2】 Adjust preset description In PTZ control mode, press【REC/SHOT】key, and press the preset number (three numeric keys), DVR will adjust the corresponding preset number. Repeat pressing【REC/SHOT】key, and press the preset number, DVR will adjust that preset number.

  • Page 24: Manual Record

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Manual Record Note: The user must have the corresponding right, DVR has HDD and HDD is formatted already. Manual record In preview mode, press【REC】key, in the pop-up login dialog, select the name and input the correct password, you can enter into the “Manual Record”...

  • Page 25: Playback

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Playback Note: The user must have “Playback” right. Playback interface In preview mode, press【PLAY】key, in the pop-up login dialog, select username and input correct password, you can enter into “Playback” interface.
  • Page 26 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Play by Time: Playback the recorded stream directly based on the time section. Select Page: In the file list box, each page will only display 8 files. If the matched files are more than 8, you can select page to list other files.
  • Page 27 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR section, move “Active Frame” to “Play” button, press【ENTER】key, DVR will start to playback based on time section. 3. Search by Card No and Playback file: In the playback interface, select channel number, record type, enable card No.
  • Page 28 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR play speed. Exit playback In playback interface, press【ESC】key to enter into preview mode. In playback interface, press 【MENU】 key to enter into main menu, press 【REC】 key to enter into manual record, and press【PTZ】key to enter into PTZ control mode.

  • Page 29: Backup Recorded Files

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Backup Recorded Files Note: The user must have “Playback” right. Please connect with backup devices before you start to backup. In the playback interface, you can backup the recorded files.
  • Page 30 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Step 2: Select the files that you want to backup In the file list box, use【↑】or【↓】keys to move the scroll bar. When the scroll bar stays at the file you wan to backup, press 【 EDIT】 key to select it. The symbol “ ” is the selection tag. You can use the same method to select other files you want to backup.

  • Page 31: Shut Down Dvr

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR You can use our file player software to playback the video segment in PC. You can find the player software in attached CD. Exit playback interface Please refer to chapter 4.6.
  • Page 32 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR When DVR is run, if you switch off the power, the HDD in DVR will be damaged. Please avoid such operation. Take away the power cable Please avoid taking away the power cable directly.

  • Page 33: Chapter5 Parameters Setup Guide

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Chapter5 Parameters Setup Guide Only the users that have “Parameters Setup” right need read this chapter. When the following parameters are modified and saved, you must reboot the DVR to make the new parameters take into effective.
  • Page 34 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR menu. In the user name list box, only “admin” is existed. You can use【→】key, move “Active Frame” to password edit box, and press 【 EDIT】 key to enter into edit status. Press numeric keys to input the new password.

  • Page 35: Add And Delete User

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Add and Delete User Enter into “User Management” interface. Add user The steps are following: Step 1: Enter into “User Management” menu Please refer to chapter 5.1 Step 2: Add new user name In the “User Management”...
  • Page 36 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Step 3: Setup the rights for new user The new added user has not any operational rights. You must setup rights for him. In the users list box of “User Management” menu, use【 】 【 】keys to select the new user name, then use 【...
  • Page 37 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Parameters Setup: Locally setup the DVR parameters; Log: Locally view the log on DVR; Utilities: Locally upgrade firmware, format HDD, reboot DVR and shut down DVR, etc. “Remote Rights”: PTZ Control: Remote control PTZ;...
  • Page 38 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Page 38...

  • Page 39: Unit Name And Device Id

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Unit Name and Device ID Unit name In the “Display” menu: There is an item named “Unit Name”. The default unit name is “Embedded Net DVR”. Move “Active Frame” to unit name edit box, press【EDIT】key to enter into edit status, you can modify the unit name.

  • Page 40: Video Output Standard And Vga Setup

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Video Output Standard and VGA Setup Video output standard There is one VOUT BNC connector at the rear panel of DVR. It is used to connect with analog monitor and can support PAL or NTSC video output. You can modify video output standard to match video input.
  • Page 41 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR System Time In “Display” menu, you can setup DVR system date and time. Display System Time You can setup display properties for each camera, including display status, position and format. Of course, you can copy the properties of one camera to all cameras.
  • Page 42 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Press【EDIT】key to select OSD format. There are following OSD formats: MM DD YYYY W hh:mm:ss (default) MM DD YYYY hh:mm: ss DD MM YYYY hh:mm:ss YYYY MM DD W hh:mm:ss...
  • Page 43 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Setup Camera Name Position If you do not want to display camera name, just disable the check box beside camer name edit box. The disable flag is “×”. If you enable the check box, you can setup the camera name position.

  • Page 44: Video Parameters Setup

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Video Parameters Setup For different camera and different background, in order to get the best video image, you need to adjust video parameters such as brightenss, saturation, contrast and hue, etc.

  • Page 45: Mask Area Setup

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Mask Area Setup In some cases, maybe you want mask the sensitive area. This area will not be preview and recorded. The mask area setup steps are following: Step 1: Enter into “Image Setup” menu: Step 2: Select one camera: You can use【...
  • Page 46 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR NTSC), you can use 【↑】 【↓】 【→】 【←】 keys to move the yellow pane to your hope position and press 【EDIT】 key, the yellow pane will be turned into red, then you can use 【↑】 【↓】 【→】 【←】...

  • Page 47: View Tampering Alarm

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR View Tampering Alarm If you enable this function, when someone blocks the camera spitefully, DVR will make warning alarm. Step 1: Enter into “Image Setup” memu: Step 2: Select camera: Please use【 】 【 】keys to select one camera.
  • Page 48 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Step 6: Alarm schedule setup: When there is view tampering alarm happened, DVR will handle the alarm based on the schedule. You can set 4 periods for each day one week. Also you can copy the schedule of one day to other days.

  • Page 49: Video Loss Alarm

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Video Loss Alarm When the video cable or camera has something wrong, the video image is lost. If you enable video loss alarm, in such case, DVR will make alarm.
  • Page 50 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Step 5: Setup alarm policy: You can select one or more response solutions, including “On Screen Warning”, “Audible Warning”, “Upload to Center” and “Trigger Alarm Output”. You can use 【↑】 【↓】and 【EDIT】key to enable or disable them. “×” is disable and “ ” is enable.

  • Page 51: Motion Detection Alarm

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR 5.10 Motion Detection Alarm If you enable this function, when there is motion detected, DVR will make alarm. Step 1: Enter into “Image Setup” menu: Step 2: Select camera: Use【 】 【 】key to select one camera.
  • Page 52 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR The whole screen is divided into 22*18 panes (NTSC: 22*15). There is one yellow panel on the upper left side. The motion area setup steps are the same as that of mask area setup (refer to chapter 5.7).
  • Page 53 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Step 5: Motion alarm policy: Move “Active Frame” to the corresponding “Policy” button of motion detection alarm, press【ENTER】key to enter into “Motiomn Alarm Handle” menu: Step 6: Motion alarm record channel setup: When there is motion alarm happened, you can trigger related camera to start recording.
  • Page 54 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Step 8: Motion alarm handle method setup: You can select one or more handle methods such as “On Screen Warning”, “Audible Warning”, “Upload to Center” and “Trigger Alarm Output”. Description: If “On Screen Warning” is enabled, when there is motion alarm happened and DVR is in preview mode, DVR will pop-up the related camera.

  • Page 55: Preview Properties

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR 5.11 Preview Properties In “Preview” menu, you can setup preview mode, screen switch time, enable or disable audio preview and preview layout. Step 1: Enter into “Preview” menu: In the main menu, move “Active Frame” to “Preview”...
  • Page 56 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR the preview order of all cameras. First select the biggest screen preview mode, for example, for 16-channel DVR, select “16 Screen” preview mode so that all windows are display in the square.

  • Page 57: Recording Setup

    Resolution: The higher resolution is, the clearer the image is. The resolution options from low to high are: QCIF, CIF, 2CIF, DCIF, 4CIF. DVR-470B and DVR-870B support QCIF and CIF. 100FPS (PAL) or 120FPS (NTSC) Note: If you change this resolution option, please reboot DVR to make it into effective.
  • Page 58 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR movement. When there is not much movement, DVR will use low bit rate, while there is much movement, DVR will use high bit rate. In this case, DVR can save HDD usage and network bandwidth.
  • Page 59 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Note: When the camera’s recording schedule is modified, you must reboot DVR to make it into effective. All day recording setup: Step 1: Enter into recording schedule menu In recording menu, use【ENTER】or【EDIT】key to enable record function (“ ” flag), press “Schedule”...
  • Page 60 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR In recording menu, use【ENTER】or【EDIT】key to enable record function (“ ” flag), press “Schedule” button to enter into recording schedule menu. Step 2: Select ond day and disable all day recording option For “Day”...

  • Page 61: External Alarm Input And Relay Output

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR 5.13 External Alarm Input and Relay Output For 4-channel DVR, there are 4 external alarm input and 2 relay output. For 8-channel DVR, there are 8 external alarm input and 4 relay output. For 16-channel DVR, there are 16 external alarm input and 4 relay output.
  • Page 62 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Step 4: Alarm trigger record channel setup You can select channels to record for each alarm input. In the sub menu, you can use 【ENTER】or【EDIT】key to enable record channel. “×” means disable and “ means enable.
  • Page 63 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR First select one camera, then select one of following PTZ linkage: Preset: Set the flag as “ ” to enable preset, in the preset number edit box and input one preset number that has been setup already.
  • Page 64 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Step 3: Enter into alarm out schedule You can set the schedule to make alarm output into effective. Move “Active Frame” to “Schedule” button on right side of “Alarm Out Time” item, press【ENTER】key to enter into the...

  • Page 65: Network Parameters

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR 5.14 Network Parameters If you want use network to access DVR, you must setup network parameters. Note: If any network parameter is modified, you must save and reboot DVR to make it into effective.
  • Page 66 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR DNS server with that fixed Internet IP can receive DVR information and used to resolve DVR dynamic IP. This DNS is special software, not the normal domain name server. You can use the provided SDK to develop this DNS software.

  • Page 67: Ptz

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR 5.15 PTZ There is one RS-485 port at DVR rear panel used for PTZ control. You can setup RS-485 parameters to match your PTZ protocol. In main menu, move “Active Frame” to PTZ icon and press【ENTER】key, you can enter into PTZ menu as following:...
  • Page 68 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR support preset function before you setup preset. Sequence setup: Each sequence is made up of several curise points. Each cruise point includes one preset number, dwell time and dwell speed. Please make sure the PTZ you are using can support sequence function before you start to setup.
  • Page 69 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR In “PTZ” menu, press “Setup” button on the right side of “Sequence No” item, you can enter into “Sequence” setup menu: In “Sequence” setup menu, first input the sequence number. The sequence is among 1 --- 16.
  • Page 70 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Press “RecCru” button, you will enter into “PTZ control” interface. You can start controlling PTZ with direction keys, press【ENTER】to save the operation track and return “Cruise” setup menu. Press “StartCru” button to repeat the PTZ track until you press “Stop” button.

  • Page 71: Rs232 Setup

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR 5.16 RS232 setup There is one RS-232 port at DVR rear panel. In main menu, move “Active Frame” to “RS232” icon and perss【ENTER】key, you enter into “RS232” setup menu: RS232 menu description RS-232 parameters: Including baud rate, data bit, stop bit, parity, flow control, etc.
  • Page 72 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR net. Username, password and Verify password: Only used when work mode is “PPP”. Used for login when remote PC dialup through PSTN. Phone: Only used when work mode is “PPP” and PPP mode is “Active”. It is the phone number of remote PC.
  • Page 73 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Step 3: Save setup In “Recording” menu, press “Confirm” button to save parameters. Step 4: Setup Modem used on DVR side Use DCE calbe to connect Modem with PC serial port.
  • Page 74 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Page 74...
  • Page 75 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Step 3: Establish the dialup connection Select the Modem connected with PC just like the dialup network connection, input the telephone number connected with DVR’s modem. Input the username, password. They must be the same as that DVR PPP setup.

  • Page 76: Exceptions

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR 5.17 Exceptions The exceptions can be handled at present include: hard disk full, hard disk error, illegal access, IP address conflict, network failure, and NTSC/PAL differ. Enter into “Exceptions” menu: Including the following handle methods: Audible Warning: DVR beep warning.

  • Page 77: Transaction Information

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR 5.18 Transaction Information The DVR can actively obtain or passively receive the credit card number from ATM machine linked through network or serial port, and credit card number can be overlay on live video, recorded and playback.
  • Page 78 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Start & end position and length of transaction type Transaction type and code When the ATM machine is sending transaction information to bank center, DVR will capture the data package through network, and analyse the data according to the format. Then DVR will overlay the correspond text on live video.
  • Page 79 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR In the case, you must set the RS-232 of DVR as transparent channel mode as following: A software must be run in the ATM machine, and send the credit card number, transaction code to DVR through RS-232 port.
  • Page 80 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR In the case, you must set the RS-232 of DVR as transparent channel mode as following: Also, a software must be run in ATM machine, and send command to DVR through RS-232 port based on special communication protocol.

  • Page 81: Chapter6 Utilities

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Chapter6 Utilities There are many tools in “Utilities” menu. Including “SavePara”, “RestorePara”, “Upgrade”, “Hard Disk”, “Stop Alarm Out”, “Reboot”, “Power Off”, “View Log” and “System Info”. Enter into “Utilities” menu: Save Parameters Save factory default parameters into FLASH memory.

  • Page 82: Upgrade

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Upgrade You can use this function to upgrade the firmware. Please confirm the language is matched. Press “Upgrade” icon, in the pop-up dialog, you can select either “FTP” or “USB” upgrade mode.

  • Page 83: Hard Disk Management

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Hard Disk Management Check HDD work status Capacity, Free space, Stand by or not, Normal status or not. Format HDD Before formatting stop all recording. After formatting, you must reboot DVR, otherwise DVR will not work normally.
  • Page 84 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR If you want to view the log based on default option, just press 【 ENTER】 key. DVR will list all matched information. Also you can select options to search (By Type, By Date, By Type&Date).
  • Page 85 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Step 4: When searching is finished, DVR will list all matched alarm information. In the list box, the information includes: Index, Occur Time, Major Type, Minor Type, Panel User, Net User, Host Address, Para.

  • Page 86: System Information

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR System Information Press “System Info” icon in “Utilities” menu, you can get DVR system information: Page 86...

  • Page 87: Chapter7 Firmware Upgrade

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Chapter7 Firmware Upgrade The DVR firmware is stored in FLASH ROM. You can use DVR upgrade function to write the firmware file (digicap) into FLASH. There are two cases that you need to upgrade DVR firmware. One is update old firmware.
  • Page 88 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Select “Users/rights” under “Security” menu item. The following dialog box will be pop-up. Create new user. Click “new user’. New user dialog pops up. Input user name “target”. Click “OK”.
  • Page 89 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR 7. Next time, you need not setup again, just double click and open “wftpd32.exe” to upgrade the DVR/DVS firmware. Page 89...

  • Page 90: Upgrade Mode

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Upgrade Mode Use client software to upgrade the firmware file. You do not need to use ftp server software. Please refer to the client software user manual for detail information.

  • Page 91: Appendix A Hdd Capacity Calculation

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Appendix A HDD Capacity Calculation Calculate total capacity needed by each DVR according to video recording (video recording type and video file storage time). Step 1: According to Formula (1) to calculate storage capacity that is the capacity of each channel needed for every hour, unit Mbyte.

  • Page 92: Appendix B   Dvr Connect Cable Definition

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Appendix B DVR Connect Cable Definition 1 UTP network connect cable made method Material and tool One twist cable (8 pin, the length can be defined as to the actual demand, but must be within 100m), 2 standard RJ45 head, one tool for RJ45.

  • Page 93: Connect Cable Made Method

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR The corresponding relationship of cross cable 2 RS-232 connect cable made method DVR-470B / DVR-870B has standard DB9 RS-232 interface, like PC COM port. Pin definition I means DVR input and O means DVR output.

  • Page 94: Appendix C Specifications

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Appendix C Specifications Model name DVR-470B DVR-870B DVR-1670B Video H.264 compression Preview PAL: 704*576 (4CIF), NTSC: 704*480 (4CIF) resolution Playback CIF/QCIF resolution Video input Video input BNC (Electrical Level: 1.0Vp-p, resistance: 75Ω)
  • Page 95 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Power 20--42W (without HDD) consumption Working -10℃--＋55℃ temperature Working 10％--90％ humidity Size 14.25 inch standard (440mm*390mm*70mm) Weight ≤8Kg (without HDD and CD-R/W) PAL: 176*144(QCIF), 352*288(CIF), 704*288(2CIF), 528*384(DCIF), 704*576(4CIF); NTSC: 176*120(QCIF), 352*240(CIF), 704*240(2CIF), 528*320(DCIF), 704*480(4CIF).

  • Page 96: Appendix D   List Of Recommended Dvr Peripherals

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Appendix D List of Recommended DVR Peripherals USB DVD-R/W: LG GSA-E10L 2. BENQ EW164B USB CD-R/W: 1. BENQ external 5232WI-ok2 2. ASUS CRW-4824A + USB Convertor case 3. SONY CD-R/RW CRX230AD + Convertor cable 4.
  • Page 97 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR West Digital: 1. WD Caviar WD400BB 2. WD Caviar WD800BB 3. WD Caviar WD1200BB 4. WD Caviar WD2000BB 5. WD Caviar WD2500BB 6. WD Caviar SE WD1600BB 7. WD Caviar SE WD2000JB 8.

  • Page 98: Appendix E Quick Search Function Table

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Appendix E Quick Search Function Table Type Name Description Index User Create and delete users. System has one default management administrator. The administrator can create 15 users Safety and define their rights.
  • Page 99 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Remote Remote record real time stream. record Remote Remote playback the recorded files in DVR playback Download Download recorded files in DVR. Remote Remote upgrade firmware. upgrade Transparent Remote control serial device connected with serial 5.16...

  • Page 100: Appendix F Troubleshooting

    User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Appendix F Troubleshooting Failure Possible reasons After plugging in power, turning on the power switch, Power cable is broken. “POWER” light in front Panel does not turn on, and fan Power supply is broken.
  • Page 101 User Manual of DVR-470B / DVR-870B / DVR-1670B Net DVR Old player SDK (playm4.dll) Notes: Place the DVR in well ventilated space so that it operates within the allowed range of temperature and humidity as in specification. If the circuit board is wet, dust on circuit board can cause a short circuit. The circuit board, plug and socket, housing fan and housing should be cleaned by brushing regularly.
