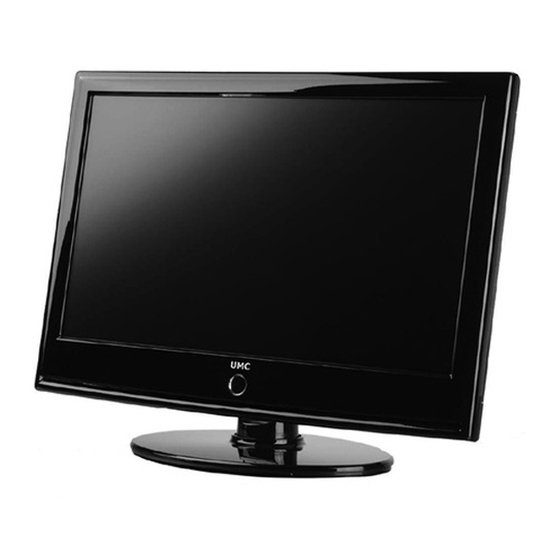

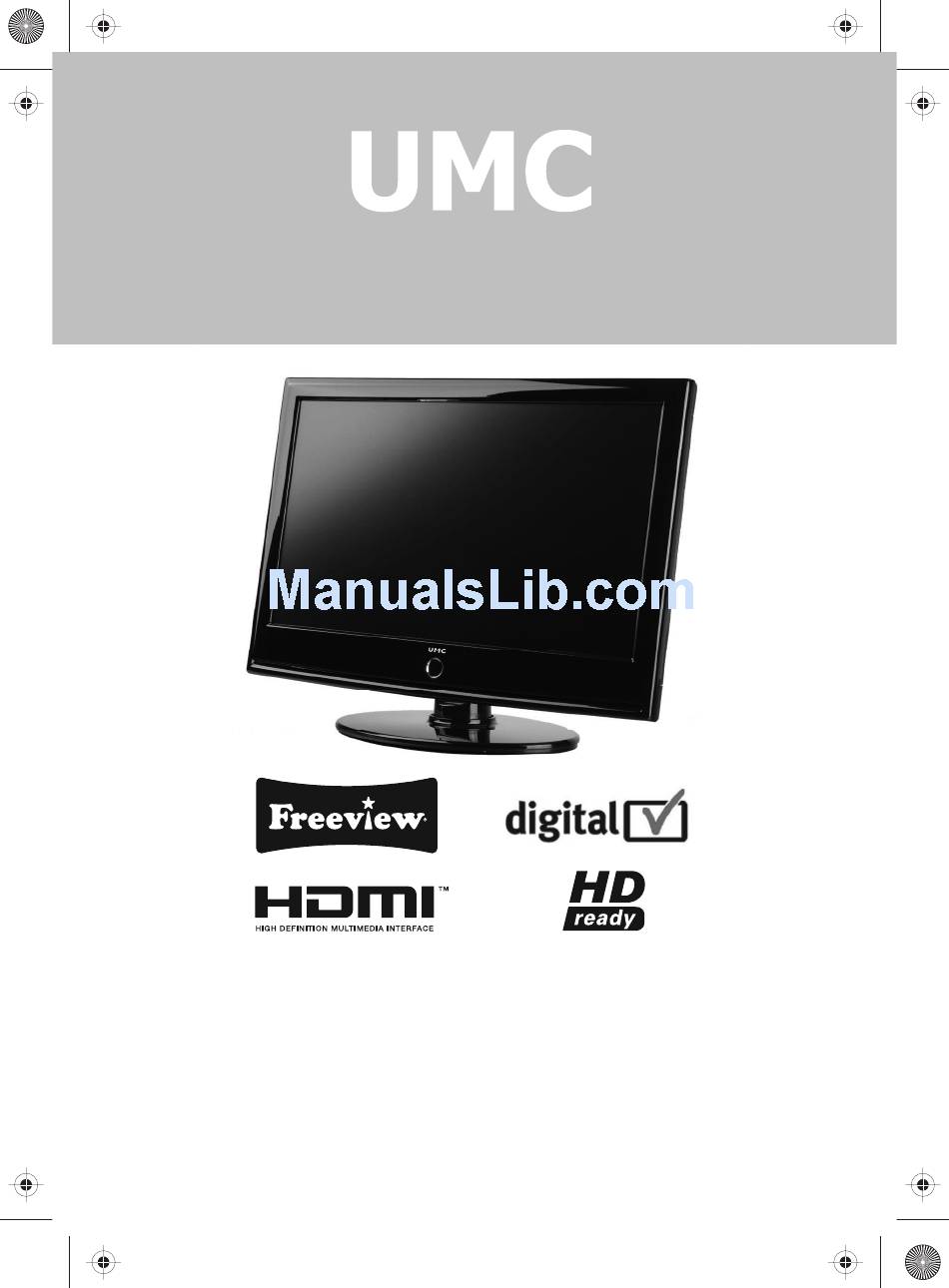

- Page 1 216_17 wo DVD english manual maiPage 1 7. 11. 2008 8:32:59 HD DIGITAL LCD TV USER GUIDE 21.6” Model L216/17B-GB-TC-F-UK...
- Page 2 blank.pdf 10. 10. 2008 13:49:40...
- Page 3 216_17 english manual 01 new.pdfPage 1 3. 11. 2008 15:22:42 Important Guarantee Information. Congratulations on purchasing this television. We hope you have many years of trouble free enjoyment from your purchase. Your product is covered under the manufacturers guarantee for 12 months from date of purchase.
- Page 4 216_17 english manual 02.pdf 3. 11. 2008 13:57:03...
- Page 5 216_17 english manual 03 new.pdfPage 1 3. 11. 2008 14:03:08 Important information regarding the digital TV switchover Television in the UK is going digital, bringing us all more choice and new services. Starting late 2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region. How the switchover affects your TV equipment.
- Page 6 216_17 english manual 04 new.pdfPage 1 3. 11. 2008 15:26:23 WARNINGS Caution This television contains no user serviceable parts. Please refer to the manufacturer or authorised repair agent in the event of malfunction. Do not remove the back cover from the television. Warning To reduce the risk of fire, electric shock or damage to the television, do not expose it to dust, rain or moisture, or place any objects filled with liquids on or near the television.
- Page 7 216_17 english manual 05 new.pdfPage 1 5. 11. 2008 10:12:06...
- Page 8 216_17 english manual 06 new.pdfPage 1 3. 11. 2008 14:10:10...
-
Page 9: Table Of Contents
216_17 wo DVD english manual conPage 1 6. 11. 2008 10:08:48 CONTENTS CHANNEL SERVICES SETTING UP YOUR TV - What is included in the box - Using Electronic Program Guide - Using Digital TV teletext - Attaching the stand - Tuning in TV - Using Analogue TV teletext - Digital Switchover Re-Tune - Remote control buttons and their... -
Page 10: What Is Included In The Box
216_17 wo DVD english manual 08.Page 1 7. 11. 2008 8:34:04 WHAT IS INCLUDED IN THE BOX Accessories Included with this TV are the following accessories: 1x - User Guide Book 1x - Remote control DISPLAY LANG HOLD EXIT NICAM REVEAL S U BP A GE S U BT I TL E... -
Page 11: Attaching The Stand
216_17 wo DVD english manual 09.Page 1 6. 11. 2008 9:28:40 ATTACHING THE STAND Fig 1 Fig 2 Fig 3 Push down firmly Fig 4... -
Page 12: Tuning In Tv
216_17 wo DVD english manual 10.Page 1 6. 11. 2008 9:29:36 GETTING STARTED - INITIAL SET UP IMPORTANT - AFTER TUNING DO NOT PRESS ANY BUTTONS FOR 20 SECONDS SO THE CHANNEL INFORMATION CAN BE STORED. TUNING IN IMPORTANT — Please ensure the TV has If no channels are found the following screen will appear, reached room temperature before please refer to additional information below. -
Page 13: Functions
216_17 wo DVD english manual 11.Page 1 6. 11. 2008 9:30:34 REMOTE CONTROL BUTTONS DISPLAY DISPLAY Digital mode: Exit the Digital menu. Digital mode: press to select NICAM. LANG VOL +/- Teletext mode: press to enter the teletext mode. Digital mode: press to display favourites list Digital mode: decrease fav channel Digital mode: increase fav channel. -
Page 14: Tv Buttons And Their Functions
216_17 wo DVD english manual 12.Page 1 6. 11. 2008 9:35:01 TV BUTTONS & THEIR FUNCTIONS SIDE PANEL BUTTONS Displays Menu/OSD Program/Channel down and menu down Program/Channel up and menu up Volume down and menu down Volume up and menu up Select the input source Power On/Off MENU... -
Page 15: Inputs And Connections
216_17 wo DVD english manual 13.Page 1 6. 11. 2008 12:19:31 INPUTS & CONNECTIONS REAR CONNECTIONS CI Port HDMI input HDMI VGA-PC input SCART SCART input S-Video input S-VIDEO Component input YPbPr VGA-PC Audio input PC AUDIO YPbPr/S-VIDEO Component/S-Video Audio input AUDIO RF input HDMI... -
Page 16: Tv Menu Operation
216_17 wo DVD english manual 14.Page 1 6. 11. 2008 9:55:09 TV MENU OPERATION PICTURE SETTINGS MENU Adjusting Contrast (Only available when Picture Mode is set to Personal) Switch the balance between black Lets you adjust picture mode, contrast, and white brightness, colour, tint and sharpness to enhance the viewing experience. -
Page 17: Adjusting Tint
216_17 wo DVD english manual 15.Page 1 6. 11. 2008 9:55:27 TV MENU OPERATION PICTURE SETTINGS MENU Adjusting Colour Temperature There are 3 presets for colour temperature Adjusting Tint Normal Standard setting Lets you increase or decrease the level Warm Increased red within the picture of tint within the picture Cold... -
Page 18: Sound Settings Menu
216_17 wo DVD english manual 16.Page 1 6. 11. 2008 9:55:44 TV MENU OPERATION SOUND SETTINGS MENU Adjusting Bass To adjust the amount of bass within the sound Adjusting Volume 1) Press [LCD-MENU] to enter menu Lets you adjust the volume 2) Press [>] to move to Sound Settings Menu of the television 3) Press [\/] to highlight Bass... -
Page 19: Tuning Settings Menu
216_17 wo DVD english manual 17.Page 1 6. 11. 2008 9:56:02 TV MENU OPERATION TUNING SETTINGS MENU (Only Freeview & Analogue TV modes) Adjusting Country If you are moving country you may wish to change the Country Settings 1) Press [LCD-MENU] to enter menu 2) Press [>] to move to Tuning Settings Menu 3) Press [\/] to highlight Country 4) Press [>] to alter the chosen country... -
Page 20: Common Inferface Slot
216_17 wo DVD english manual 18.Page 1 6. 11. 2008 9:56:20 TV MENU OPERATION Common Interface Slot (Only in Freeview Mode) On Screen Display Timer Lets you adjust the amount of time the On Pay per view services require a “smartcard” to Screen Menu stays on the screen before be inserted into the TV. -
Page 21: General Settings Menu
216_17 wo DVD english manual 19.Page 1 6. 11. 2008 9:56:40 TV MENU OPERATION 4) To switch on child lock or key lock press [>] GENERAL SETTINGS MENU Lets you adjust the language, picture size, blue screen, add child lock, complete first time installation and reset the television. -
Page 22: Using Digital Tv Teletext
216_17 wo DVD english manual 20.Page 1 6. 11. 2008 9:57:20 ELECTRONIC PROGRAM GUIDE & DIGITAL TELETEXT Electronic Program Guide (EPG) Digital TV Teletext The Electronic Program Guide (EPG) is With Digital TV (Freeview) there is also available in Digital TV mode. It is a 7 day digital teletext available on some TV guide and provides information channels. -
Page 23: Using Analogue Tv Teletext
216_17 wo DVD english manual 21.Page 1 6. 11. 2008 9:58:10 TELETEXT OPERATION (ANALOGUE TV ONLY) Teletext is a service offered by some broadcasters. Teletext Operation 1) Press [TEXT], after a few seconds teletext page 100 should appear. Here is an example of BBC1 2) You can now navigate to the page you require in a number of ways: a) Press the page you require using... -
Page 24: Connecting To A Pc
216_17 wo DVD english manual 22.Page 1 6. 11. 2008 12:01:09 CONNECTING TO A PC - WINDOWS XP 4) Left click your mouse on Settings, this screen will appear. Check the screen resolution is set to what IMPORTANT— Before connecting to is shown in the technical specifications section. -
Page 25: Auto Configuration Of Screen
216_17 wo DVD english manual 23.Page 1 6. 11. 2008 9:59:26 PC MENU OPERATION (VGA) VGA MENU Horizontal Position Auto Configuration of Screen Changes the horizontal position of the picture Lets you automatically configure the television to be used as a computer monitor 1) Press [LCD-MENU] to enter menu 2) Press [>] to select PC settings 1) Press [LCD-MENU] to enter menu... -
Page 26: Wall Mounting The Tv
216_17 wo DVD english manual 24.Page 1 6. 11. 2008 10:00:58 WALL MOUNTING IMPORTANT— BEFORE DRILLING ANY HOLES IN THE Wall Mounting the TV. WALL ENSURE YOU ARE NOT DRILLING WHERE THERE 1) Remove the four screws highlighted below. COULD BE ANY ELECTRIC WIRES, WATER OR GAS PIPES 2) The wall mount can now be easily attached to the mounting holes on the rear of the TV. -
Page 27: Using With Sky Digital
216_17 wo DVD english manual 25.Page 1 6. 11. 2008 10:01:46 USING WITH SKY DIGITAL USING WITH SKY DIGITAL REMOTE CONTROLS You may wish to use your TV with Sky (BSKYB) OR UNIVERSAL REMOTE CONTROL Digital. You may wish to use your Sky Digital or a universal There are a number of connection options, remote control to operate some of the functions of this TV. -
Page 28: Frequently Asked Questions
216_17 wo DVD english manual 26.Page 1 7. 11. 2008 8:34:26 FREQUENTLY ASKED QUESTIONS Solution: Question: I have tuned in Digital TV but 1) Check you are in an area that can I am not receiving any or all of the receive Freeview. -
Page 29: Technical Specifications
216_17 wo DVD english manual 27.Page 1 6. 11. 2008 12:01:50 TECHNICAL SPECIFICATION L216/17 ’ ‘ 6 Panel 1000 : 1 Contrast Ratio Brightness cd/m 75 ohm Antenna / PAL-SECAM 1 x SCART, 1 x S-Video, 1 x Component (YPbPr - Input Signal Video 1080i) -
Page 30: Index
216_17 wo DVD english manual 28.Page 1 6. 11. 2008 12:02:09 INDEX Mode/Source Analogue TV teletext On Screen Display Timer Auto Configuration of Screen On Screen Menu Language Auto Tuning Attaching the stand Phase Balance Picture Format Bass Picture Mode Preset Blue Screen Position Reset Program Edir / Changing Channel... - Page 31 blank.pdf 10. 10. 2008 13:49:40...
- Page 32 last.pdf 6. 11. 2008 10:14:27 L21/MAN/0006...
