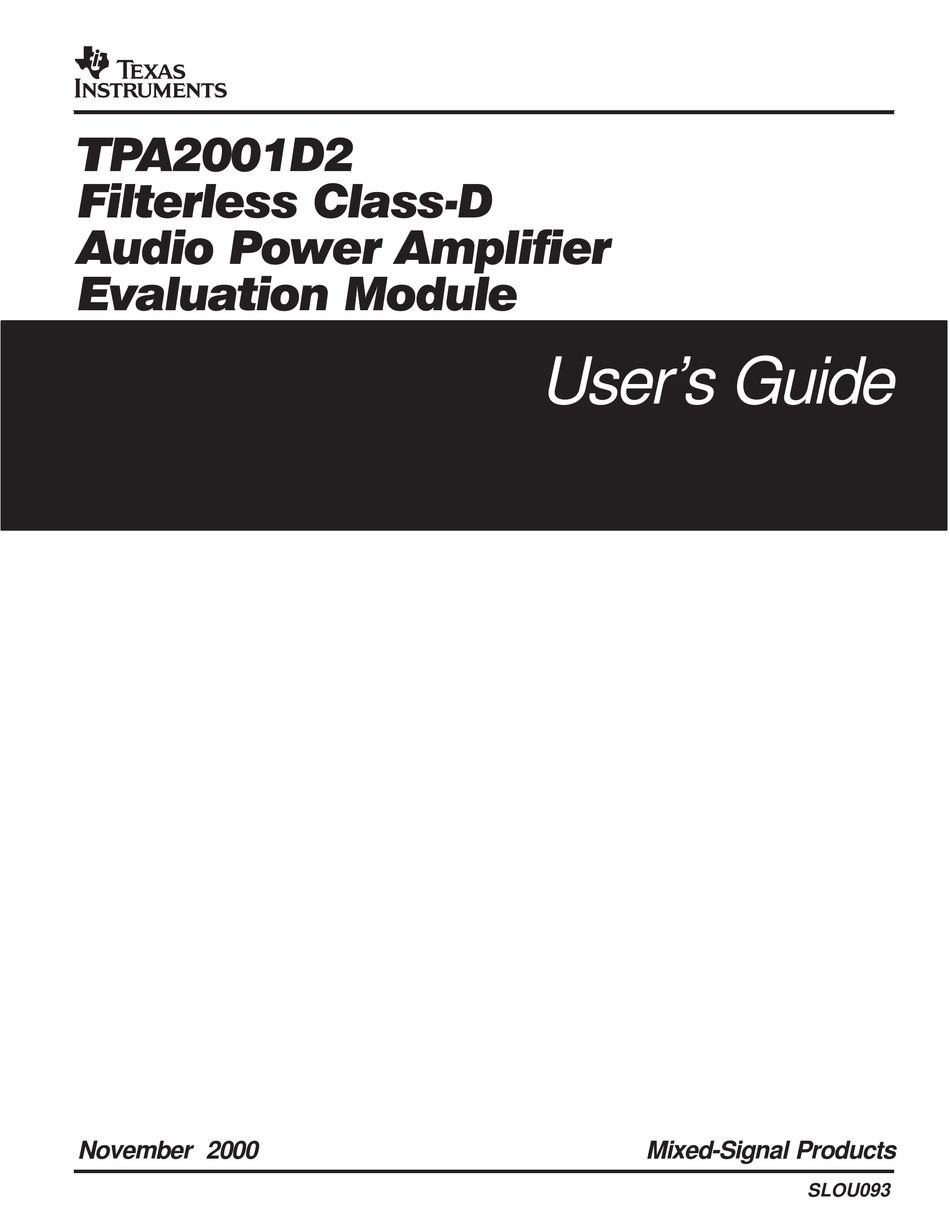

- Page 1 TPA2001D2 Filterless Class D Audio Power Amplifier Evaluation Module User’s Guide November 2000 Mixed-Signal Products SLOU093...
- Page 2 IMPORTANT NOTICE Texas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue any product or service without notice, and advise customers to obtain the latest version of relevant information to verify, before placing orders, that information being relied on is current and complete. All products are sold subject to the terms and conditions of sale supplied at the time of order acknowledgment, including those pertaining to warranty, patent infringement, and limitation of liability.
-
Page 3: Read This First
TI audio evaluation modules. TPA2001D2 1-W STEREO CLASS-D AUDIO POWER AMPLIFIER (literature number SLOS292) This is the data sheet for the TPA2001D2 audio amplifier integrated circuit. FCC Warning This equipment is intended for use in a laboratory test environment only. It... -
Page 5: Table Of Contents
......2.4.2 TPA2001D2 Audio Power Amplifier Evaluation Module Parts List .. - Page 6 ....... 2-10 Tables 2–1 Typical TI Plug-N-Play Platform Jumper and Switch Settings for the TPA2001D2 ..2–2 Typical TPA2001D2 EVM Jumper Settings .
-
Page 7: Introduction
Chapter 1 Introduction This chapter provides an overview of the Texas Instruments (TI) TPA2001D2 filterless class-D audio amplifier evaluation module (SLOP315). It includes a list of EVM features, a brief description of the module illustrated with a pictorial diagram, and a list of EVM specifications. -
Page 8: Feature Highlights
Feature Highlights 1.1 Feature Highlights The TI TPA2001D2 audio amplifier evaluation module and the TI plug-n-play audio amplifier evaluation platform include the following features: TPA2001D2 Stereo 1-W Filterless Class-D Audio Power Amplifier Evaluation Module Class-D without output filter Internal depop circuitry to minimize transients in outputs... -
Page 9: Description

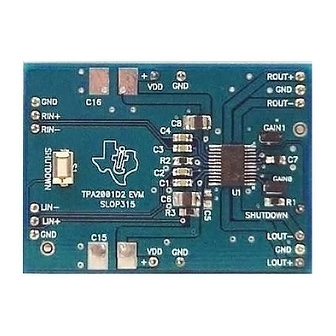

The TPA2001D2 filterless class-D stereo audio power amplifier evaluation module is a complete, 1-W per channel class-D stereo audio power amplifier that can operate without an output filter. It consists of the TI TPA2001D2 class-D stereo 1-W audio power amplifier IC along with a small number of other parts mounted on a circuit board that measures approximately 2-1/4 inches by 1-1/2 inches (Figure 1–1 and Figure 1–2). -
Page 10: Tpa2001D2 Evm Specifications
TPA2001D2 EVM Specifications The platform has room for a single TPA2001D2 evaluation module and is a convenient vehicle for demonstrating TI’s audio power amplifier and related evaluation modules. The EVMs simply plug into the platform, which automatically provides power to the modules, interconnects them correctly, and connects them to a versatile array of standard audio input and output jacks and connectors. -
Page 11: Operation
Chapter 2 Operation The steps in this chapter can be followed to quickly prepare the TPA2001D2 filterless class-D audio amplifier EVM for use. Using the TPA2001D2 with the TI plug-n-play audio amplifier evaluation platform is a quick and easy way to connect power, signal and control inputs, and signal outputs to the EVM using standard connectors. -
Page 12: Precautions
Precautions 2.1 Precautions Power Supply Input Polarity and Maximum Voltage Always ensure that the polarity and voltage of the external power connected to V power input connector J1, J2, and/or V power input connector J6 are correct. Overvoltage or reverse-polarity power applied to these terminals can open onboard soldered-in fuses and cause other damage to the platform, installed evaluation modules, and/or the power source. -
Page 13: Quick Start List For Platform
1) Ensure that all external power sources are set to OFF and that the platform power switch S1 is set to OFF. 2) Install a TPA2001D2 module in platform socket U2, taking care to align the module pins correctly. 3) Use switch S2 to select or bypass the signal conditioning EVM (U1). -
Page 14: Module Preparation
2000 GAIN0 TPA2001D2 EVM SLOP315 SHUTDOWN LIN– LIN+ LOUT– LOUT+ Table 2–4. Typical TPA2001D2 EVM Jumper Settings GAIN1 GAIN0 GAIN (dB) 17.5 23.5 Note: ON = Jumper installed, OFF = Open, X = Don’t care Power Up 12) Verify correct voltage and input polarity and set the external power supply to ON. -
Page 15: Quick Start List For Stand-Alone
Quick Start List for Stand-Alone 2.3 Quick Start List for Stand-Alone Follow these steps to use the TPA2001D2 EVM stand-alone or when connecting it into existing circuits or equipment. Connections to the TPA2001D2 module header pins can be made via individual sockets, wire-wrapping, or soldering to the pins, either on the top or the bottom of the module circuit board. -
Page 16: Reference
9) Verify correct voltage and input polarity and set the external power supply to ON. The EVM should begin operation. 10) Adjust the signal source level as needed. 2.4 Reference 2.4.1 TPA2001D2 EVM Connected for Stereo Output Figure 2–4. TPA2001D2 EVM Connected for Stereo Output ROUT+ Right Audio ROUT– RIN+ Input RIN–... -
Page 17: Tpa2001D2 Audio Power Amplifier Evaluation Module Parts List
TPA2001D2 Audio Power Amplifier Evaluation Module Parts List 2.4.2 TPA2001D2 Audio Power Amplifier Evaluation Module Parts List Table 2–6. TPA2001D2 EVM Parts List Manufacturer/ Reference Description Size Qty. Part Number Capacitor, ceramic chip, 0.1 µF, C1–4, 0805 Kemet C17–21 10%, X7R, 50 V C0805C104K5RAC Capacitor, ceramic, 1.0 µF,... -
Page 18: Tpa2001D2 Filterless Class-D Evm Schematic
TPA2001D2 Filterless Class-D EVM Schematic 2.4.3 TPA2001D2 Filterless Class-D EVM Schematic The TPA2001D2 filterless class-D EVM schematic is shown in Figure 2–5. Figure 2–5. TPA2001D2 Class-D EVM Schematic Diagram LOUT– 0.1 µF TPA2001D2 LIN+ PGND PGND C9 † C10 †... -
Page 19: Tpa2001D2 Filterless Class-D Evm Pcb Layers
TPA2001D2 Filterless Class-D EVM PCB Layers 2.4.4 TPA2001D2 Filterless Class-D EVM PCB Layers The following illustrations depict the TPA2001D2 filterless class-D EVM PCB assembly and layers. These drawings are not to scale. Gerber plots can be obtained from any TI Sales Office. -
Page 20: Tpa2001D2 Filterless Class-D Evm Top Layer
TPA2001D2 Filterless Class-D EVM PCB Layers Figure 2–8. TPA2001D2 Filterless Class-D EVM Top Layer Figure 2–9. TPA2001D2 Filterless Class-D EVM Bottom Layer 2-10 Operation...
