User's Guide
Performa
24i HE
This is a Wall Mounted Powered Flue Condensing Combination Boiler Gas Fired Central Heating Unit.
The boiler meets the requirements of Statutory Instrument " The Boiler (Efficiency) Regulations 1993 N
o
3083" and is
deemed to meet the requirements of Directive 92/42/EEC on the energy efficiency requirements for new hot water
boilers fired with liquid or gaseous fuels:-
Type test for purpose of Regulation 5 certified by:
Notified Body 0051.
Product/Production certified by:
Notified Body 0051.
For use in GB/IE only.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Potterton Performa 24i HE
Summary of Contents for Potterton Performa 24i HE

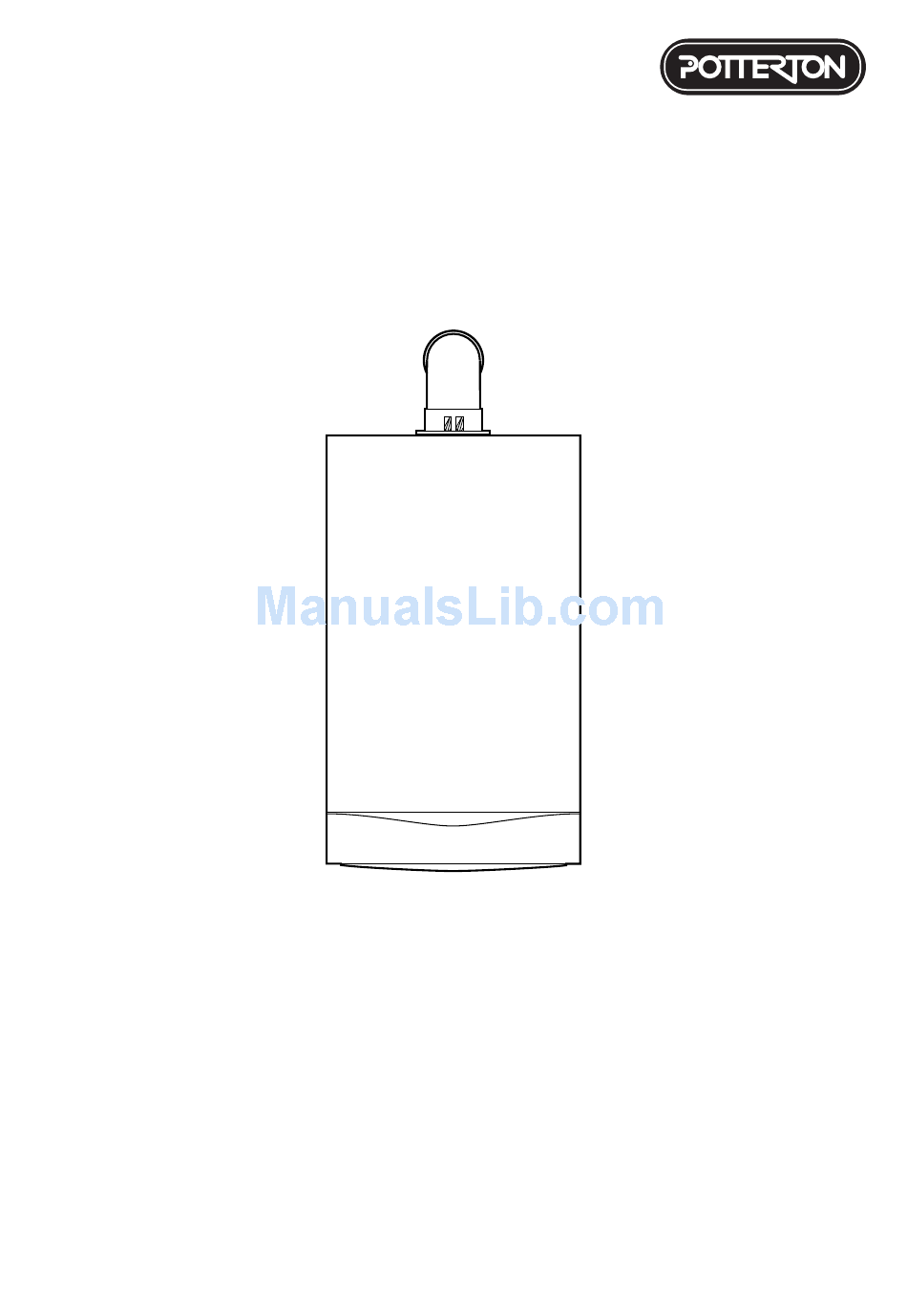

- Page 1 User’s Guide Performa 24i HE This is a Wall Mounted Powered Flue Condensing Combination Boiler Gas Fired Central Heating Unit. The boiler meets the requirements of Statutory Instrument “ The Boiler (Efficiency) Regulations 1993 N 3083” and is deemed to meet the requirements of Directive 92/42/EEC on the energy efficiency requirements for new hot water boilers fired with liquid or gaseous fuels:- Type test for purpose of Regulation 5 certified by: Notified Body 0051.
-
Page 2: Natural Gas
Warning - Check the information on the data plate is compatible with local supply conditions. “Benchmark” Log Book As part of the industry-wide “Benchmark” initiative all Potterton boilers now include an Installation, Commissioning and Service Record Log Book. Please read the Log Book carefully and complete all sections relevant to the appliance and installation. -
Page 3: This Appliance Must Be Earthed
In an Emergency If a water or gas leak occurs or is suspected, the boiler can be isolated at the inlet valves as follows; 1. Turn off the electrical supply and turn the selector switch on the facia box to the OFF position. 2. - Page 4 Introduction 1. Your Potterton Performa 24i HE is a gas fired, room sealed, powered flue condensing combination boiler, providing central heating for your home and mains fed domestic hot water to taps and shower. It is fully automatic and does not have a pilot light.
- Page 5 Operating the Boiler 1. Ensure that the electricity and gas supplies are turned on. Check that the central heating pressure is between 0.5 and 1.0 bar (Fig. 4). 2. Turn the On/Off/Reset selector switch either anti- clockwise from the off position (Fig. 6) to both central heating and domestic hot water or clockwise to domestic hot water only.
- Page 6 Temperature Control 1. Central Heating: The central heating hot water flow temperature can be adjusted between 30° C (± 5° C) minimum and 85° C (± 5° C) maximum. 2. Turn the control knob clockwise to increase the temperature (Fig. 9). 3.
- Page 7 Safety Thermostat Pump/Low 1. Your Potterton Performa 24i HE is fitted with Pressure Neon Air Flow additional safety devices, which shut down the boiler Monitor Neon Sensor Fault in the event of the system, the boiler or the flue Neons Safety overheating.
- Page 8 Central Heating System Pressure Pressure Gauge 1. The water pressure in the central heating system is indicated by the pressure gauge. 2. With the system cold and the boiler not operating the pressure should be between 0.5 and 1.0 bar. During operation the pressure should not exceed 2.5 bar, and will normally be between 1.0 and 2.0 (Figs.
- Page 9 Clearances around the Boiler (Figs. 23 & 24) 20mm/5mm Min see *NOTE: 5mm Min 450mm 1. The minimum clear spaces needed around the boiler measured from the casing are as follows: 200mm Bottom 200mm 200mm Min Left Side Right Side - 20mm/5mm Front (In Operation)
- Page 10 1. Any repairs to the boiler will usually be the responsibility of the Installer during the guarantee period after which spare parts may be obtained through approved Potterton stockists if required. 2. Quote the appliance name, model number and where possible the part number when ordering spares.
- Page 11 Legislation Potterton declare that no substances harmful to health are contained in the appliance or used during appliance manufacture. The appliance is suitable only for installation in GB Codes of Practice, most recent version should and IE and should be installed in accordance with...
- Page 12 5111814 - Iss. 1 Publication No. (06/2004) When contacting Baxi Potterton please have the General Enquiries (GB) following information to hand: 08706 060 780 Tel. Appliance Name Model Number Serial Number Technical (GB) 08706 049 049 A label giving these details is situated on the rear Tel.
