Summary of Contents for NUUO SCB-C31A

  • Page 1: User Manual

    The Intelligent Surveillance Solution SCB-C31A User Manual Ver. 1.0.130726.00...
  • Page 2: Table Of Contents

    The Intelligent Surveillance Solution NUUO NVR/DVR/Hybrid NDVR System TABLE OF CONTENTS TABLE OF CONTENTS ..........................1 1. SPECIFICATIONS ..........................3 2. NETWORK DEPLOYMENT DIAGRAM ....................3 3. HARDWARE SETUP ..........................4 3.1 Connect C31A to NVRmini2 ........................... 4 3.2 Setup POS .................................. 6...

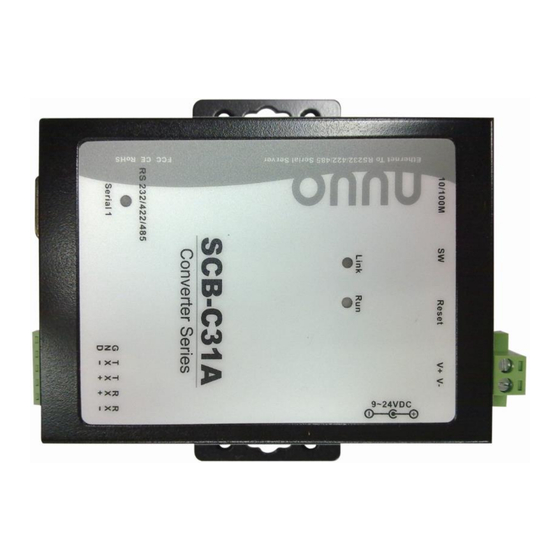

  • Page 3 The Intelligent Surveillance Solution NUUO NVR/DVR/Hybrid NDVR System Introduction C31A is an I/O converter to intermediate the communication between a surveillance server and multiple peripherals. It joins up all the major components in your surveillance network to deliver your prospective management and protection over your property.
  • Page 4: Specifications

    The Intelligent Surveillance Solution NUUO NVR/DVR/Hybrid NDVR System 1. Specifications To apply C31A to your surveillance system, get to know it first. C31A is Ethernet-RS485 converter. Further, the C31A box can not be used for POS and converter at the same time.
  • Page 5: Hardware Setup

    Windows-based server PC. 3.1 Connect C31A to NVRmini2 Here take C31A and NVRmini2 as example: Step 1: Connect SCB-C31A with power source and with internet by RJ45 LAN cable. Step 2: Connect I/O Box with power source. Step 3: Connect SCB-C31 and I/O Box with cable, positive connection (TX+/D+ and DATA+) and negative connection (TX-/D- and DATA-).
  • Page 6 The Intelligent Surveillance Solution NUUO NVR/DVR/Hybrid NDVR System Note: If the IP has been changed, use TRP-C3X manager tool to search the device. To change the IP address or port…etc, double click on the device found and configure. The serial port mode must be RS485H - C31A search tool is downloadable at www.nuuo.com...
  • Page 7: Setup Pos

    NUUO NVR/DVR/Hybrid NDVR System Execute C31A Config tool (IOConfig.exe), type in the IP address and port of SCB-C31A, and click the Scan button. When the I/O Box is discovered, click on the item and change the ID from the New Address field.
  • Page 8 There are two kinds of serial cable: Straight pass-through and Null-Modem. The connection between SCB-C31 POS Data capture box and Y-cable must be null modem (in package). Step 4: Check the system switch of the SCB-C31A is switched to OFF-OFF position. Step 5: Connect SCB-C31A with power source. Step 6: Connect SCB-C31A with internet port by RJ45 LAN cable.
  • Page 9 Step 1: Open Main Console -> General Settings -> Metadata Application -> Insert a new Metadata Type as POS and select the Source Type as SCB-C31A. Step 2: Input the IP address (as same as the IP of Main console, local server) and the POS port.
  • Page 10 The Intelligent Surveillance Solution NUUO NVR/DVR/Hybrid NDVR System Step 5: Press connect and press disconnect once to receive the transaction data as a template from POS. (we need to make a tag filer according to the template transaction data) Step 6: Create the tags according to the below setting.
  • Page 11 The Intelligent Surveillance Solution NUUO NVR/DVR/Hybrid NDVR System Step 9: Then you should be able to see POS data on associated camera channel. 10 -...
