SCB-C24/C26/C28
NUUO NVRmini_100903

Contents

Contents ........................................................................................................................... 1
Introduction ....................................................................................................................... 1
System Introduction ................................................................................................... 1
HW Installation ........................................................................................................... 1
Software Installation - SCB-C31 ............................................................................... 2
Software Installation - SCB-C24/26/28...................................................................... 3
Software Setup ................................................................................................................. 5
Add I/O Box ............................................................................................................... 5

Introduction

System Introduction

NUUO provides remote I/O solution for NVRmini by connecting SCB-C31 with NUUO I/O

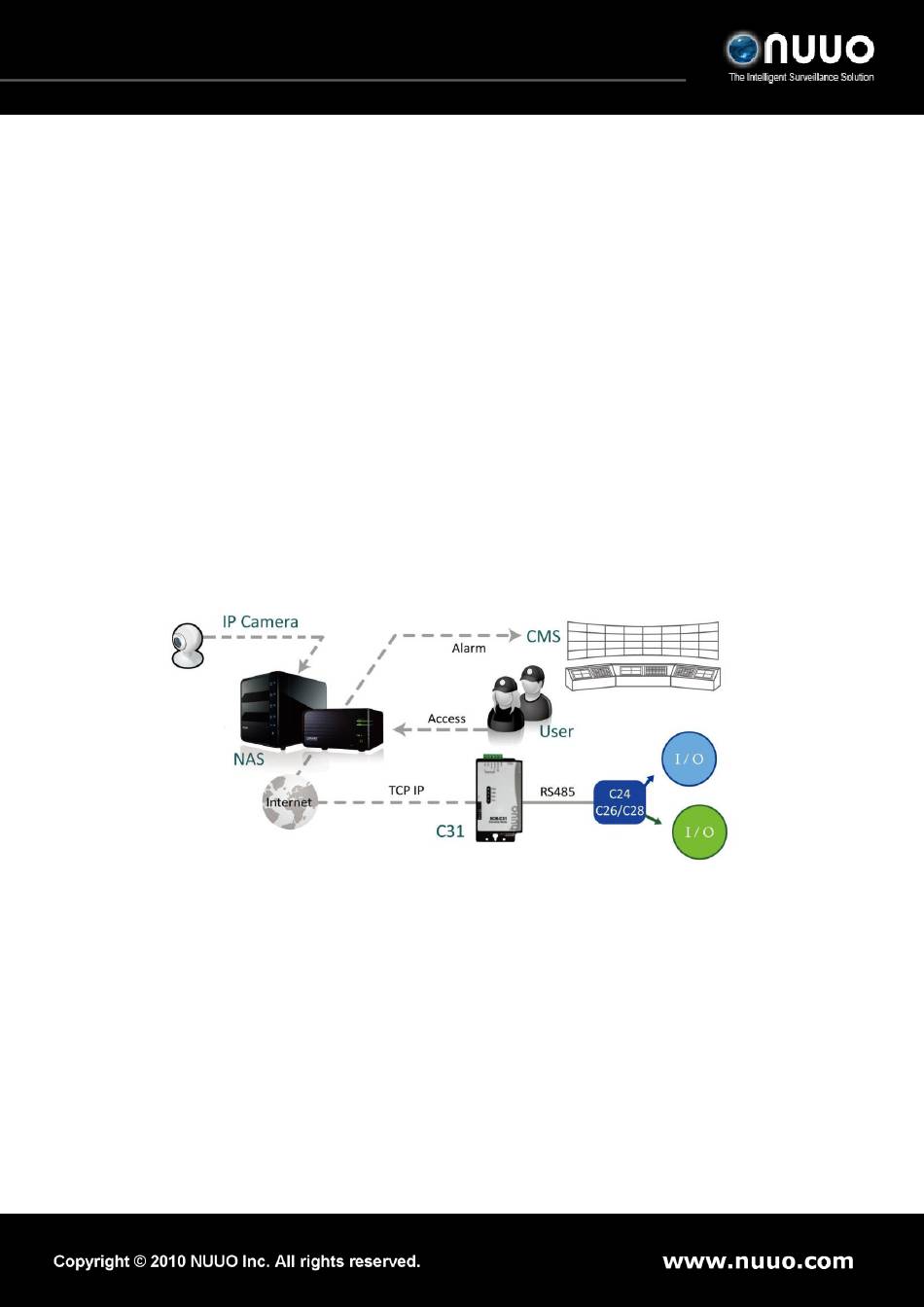

Box SCB-C24/26/28. Refer to the below architecture, I/O device is connected directly with
I/O Box, and input/output signal delivered in RS485 format are converted to Ethernet
through SCB-C31. NVRmini can use the signals to do more sophisticated setup, such as
starting recording when input triggered, triggering output as an event happened, and much
more.

HW Installation

SCB-C24/26/28 must work with SCB-C31 (Ethernet-RS485 converter). Further, the C31
Box cannot be used for POS and converter at the same time, and one C31 Box can
be paired with one NAS unit only. Please follow the steps below to configure the
devices.
Step 1: Check the system switch of SCB-C31 is switched to OFF-OFF position.
Step 2: Connect SCB-C31 with power source.
Step 3: Connect SCB-C31 with internet by RJ45 LAN cable.
Step 4: Connect I/O Box with power source.
Step 5: Connect SCB-C31 and I/O Box with cable, positive connection
DATA+) and negative connection
SCB-C24 for example as below.
(TX-/D- and
DATA-). Take SCB-C31 with I/O Box
(TX+/D+ and
1 / 5
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCB-C24 and is the answer not in the manual?

Questions and answers

Summary of Contents for NUUO SCB-C24

  • Page 1 System Introduction NUUO provides remote I/O solution for NVRmini by connecting SCB-C31 with NUUO I/O Box SCB-C24/26/28. Refer to the below architecture, I/O device is connected directly with I/O Box, and input/output signal delivered in RS485 format are converted to Ethernet through SCB-C31.
  • Page 2 SCB-C24/C26/C28 NUUO NVRmini_100903 RS485 RJ-45 RS485 Reset Switch Switch Power Power Important Multiple I/O Boxes can be connected to a single SCB-C31. However, series connection of I/O boxes is forbidden. Furthermore, the default ID for each I/O Box is the same. Please follow the direction to setup I/O Box one by one.
  • Page 3 Due to the stability of data transmission, one SCB-C31 can be paired with one NAS unit only. Software Installation – SCB-C24/26/28 The default ID of I/O Box is identical. To avoid the conflict between Boxes, please connect only one Box with SCB-C31 and execute the setup application to change the ID from the default value (1).
  • Page 4 SCB-C24/C26/C28 NUUO NVRmini_100903 Note IOConfig.exe starts scanning the ID from 0 to 255, and it may take around a minute to finish scan. 2. When the I/O Box is discovered, click on the item and change the ID from the New Address field.
  • Page 5 No: The unique ID system distributes in sequence automatically.  Device Name: The name of the I/O box.  Device Type: The types of I/O box, including SCB-C24, SCB-C26, and SCB-C28.  Address: The IP Address of SCB-C31.  Port: The transmission port of SCB-C31. ...
