- Page 1 Host Cable Adapter User Manual OSS-PCIe-HIB5-x4 2235 Enterprise Street, Suite 110 Escondido, CA 92029 Phone: (760) 745-9883 Fax: (760) 745-9824 www.onestopsystems.com One Stop Systems, Inc. Host Cable Adapter User Manual Rev. A...
- Page 2 A HIB in the host system communicates through an external 1U 8 port PCI Express switch to be any combination of processors, or end points such as a PCIe device, SHB-ELB, Host Cable Adapter, ECA, CPCI HEB or CPCIe ELB One Stop Systems, Inc. Host Cable Adapter User Manual...
-
Page 3: Unpacking Instructions

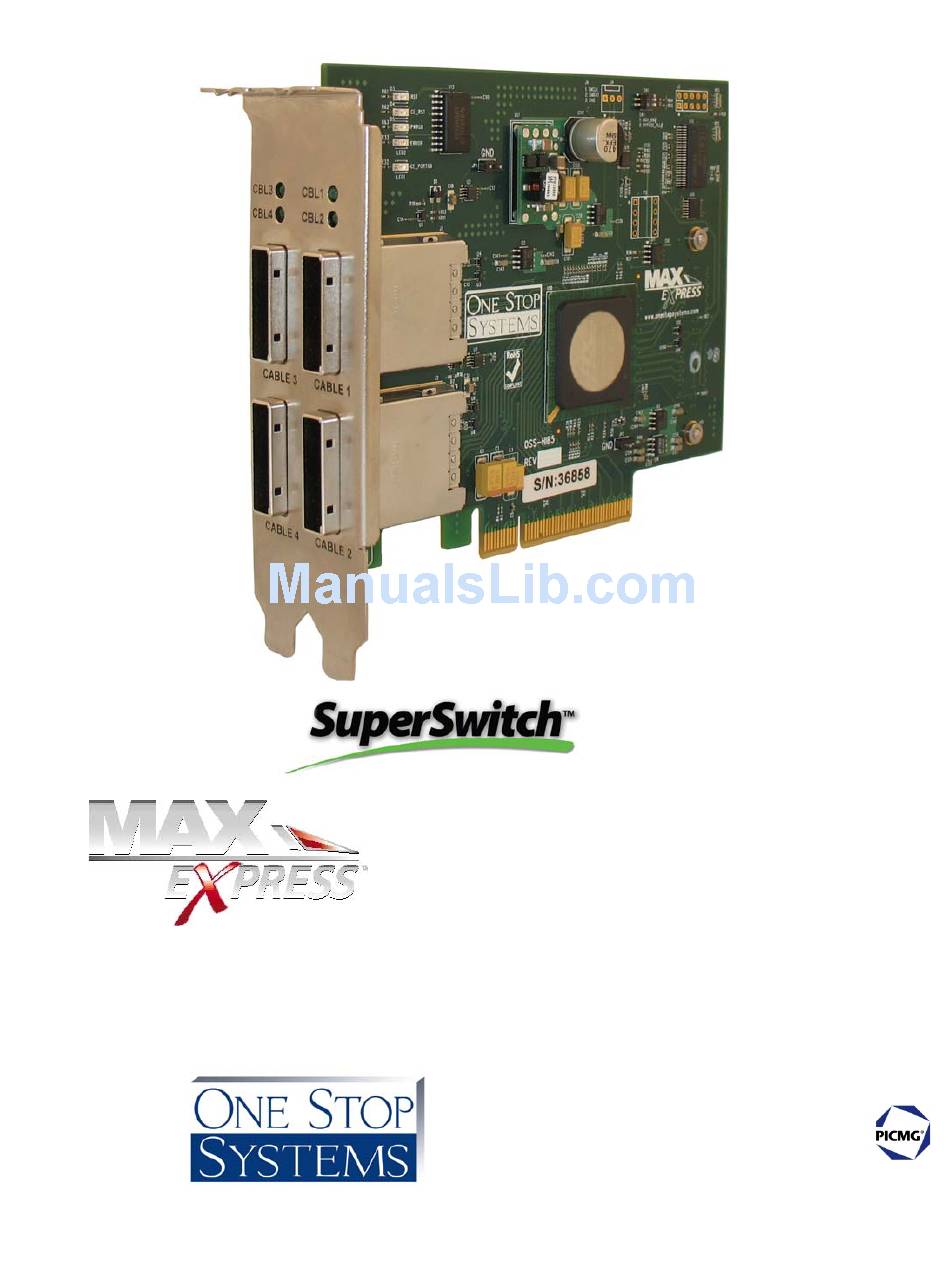

Description The Host Cable Adapter (Part # OSS-PCIe-HIB5-x4) is a PCIe x4 board that provides 2 or 4 (with optional mezzanine card) downstream PCIe x4 links for SuperSwitch 2 configurations using ExpressNet software. It can also be used as a standalone PCI Express expansion board to connect to 4 downstream PCIe devices with no software required. -
Page 4: Installing The Host Cable Adapter
Vibration: 5-17 Hz 0.5” double amplitude displacement; 7-2000Hz, 1.5g acceleration. PCI Express Switches PLX PEX8525 Agency Compliance Designed to meet, but not tested UL60950, FCC Class B, CE safety and emissions One Stop Systems, Inc. Host Cable Adapter User Manual Rev. A... -
Page 5: Block Diagram
Switches The Host Cable Adapter contains one x2 dip switch. Both switches are factory configured to the “ON” position for proper operation. These switches should not be changed. . One Stop Systems, Inc. Host Cable Adapter User Manual Rev. A... - Page 6 1. PCIe X8 Card Edge Connector per PCI Express Card Electromechanical Specification Revision 1.1 (March 28, 2005) 2. PCIe X4 Cable connector per PCI Express External Cabling Specification Revision 1.0 (January 4, 2007) One Stop Systems, Inc. Host Cable Adapter User Manual...
- Page 7 The following information was correct at the time this manual was published. Please read the readme.html on the CD for the most up to date requirements and installation procedures. One Stop Systems, Inc. Host Cable Adapter User Manual Rev. A...
- Page 8 PCIe cables and ExpressNet software suite. • Enables data transfers at speeds up to 20Gb/s. • ExpressNet software supports 64 bit CPUs as well as multithreaded environments. Part #: OSS-SS3-X-XM One Stop Systems, Inc. Host Cable Adapter User Manual Rev. A...
-
Page 9: Limited Warranty
One Stop Systems will, at its option, repair or replace this product at no additional charge to the purchaser, if the defect is related to the One Stop Systems manufactured product, such as a power supply, backplane, other chassis components or CPUs. One Stop Systems is not liable for any defects in material or workmanship of any peripherals, products or parts, which One Stop Systems does not design or manufacture.
