EXPANDER

��

�

��

�

��

�

��

Program Up/Down Switch *optional*

Drill a 1/4" hole in the pick guard or guitar top and mount

the switch using the nuts and washers supplied. Orient the

switch as desired: pushing the toggle towards the violet

wire scrolls up, and towards the yellow wire scrolls down.

Plug the connector into the Hexpander on the rows marked

S1 and S2 with only the black wire on the ground row.

��

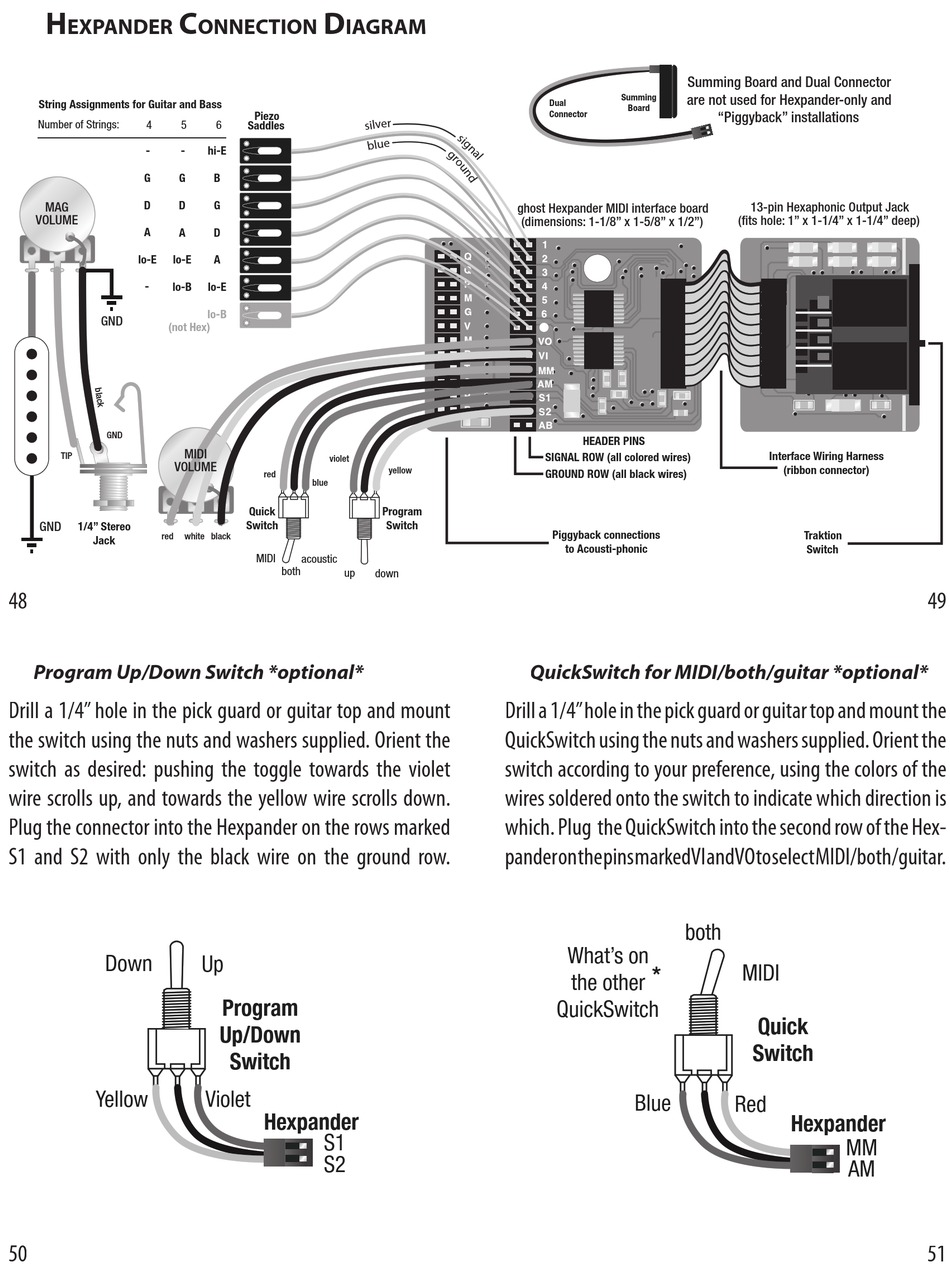

ONNECTION

IAGRAM

��

�

��

�

��

QuickSwitch for MIDI/both/guitar *optional*

Drill a 1/4" hole in the pick guard or guitar top and mount the

QuickSwitch using the nuts and washers supplied. Orient the

switch according to your preference, using the colors of the

wires soldered onto the switch to indicate which direction is

which. Plug the QuickSwitch into the second row of the Hex-

pander on the pins marked VI and VO to select MIDI/both/guitar.

��

�

��
