INTRODUCTION AND DESCRIPTION

1-1 INTRODUCTION

We are pleased to have you as a Bush Hog cus-
tomer. Your Razorback Rotary Cutter has been
carefully designed to give maximum service with
minimum down time. This manual is provided to give
you the necessary operating and maintenance
instructions for keeping your rotary cutter in top
operating condition. Please read this manual thor-
oughly. Understand what each control is for and how
to use it. Observe all safety precautions decaled on
the machine and noted throughout the manual for
safe operation of implement. If any assistance or
additional information is needed, contact your autho-
rized Bush Hog dealer.
Tailwheel
Rear Chains
SECTION I

1-2 DESCRIPTION

The Razorback Rotary Cutters (Figure 1-1) are light
duty cutters intended for cutting grass and small
brush up to 1" diameter. Each cutter has two 3/8 x 3"
blades that are free-swinging to reduce the shock of
impact when a stationary object is hit. A 1/2 x 3"
Grade 2 shear bolt protects the gearbox and drive-
line from damage. The 40 HP gearbox is designed
for 540 RPM input speed giving the blades a 12,468
ft./min. tip speed. Front and rear discharge shields
are included as standard equipment. (Note: Dealer
or purchaser may elect to delete at their option)
Total weight of the machine is 450 lbs.

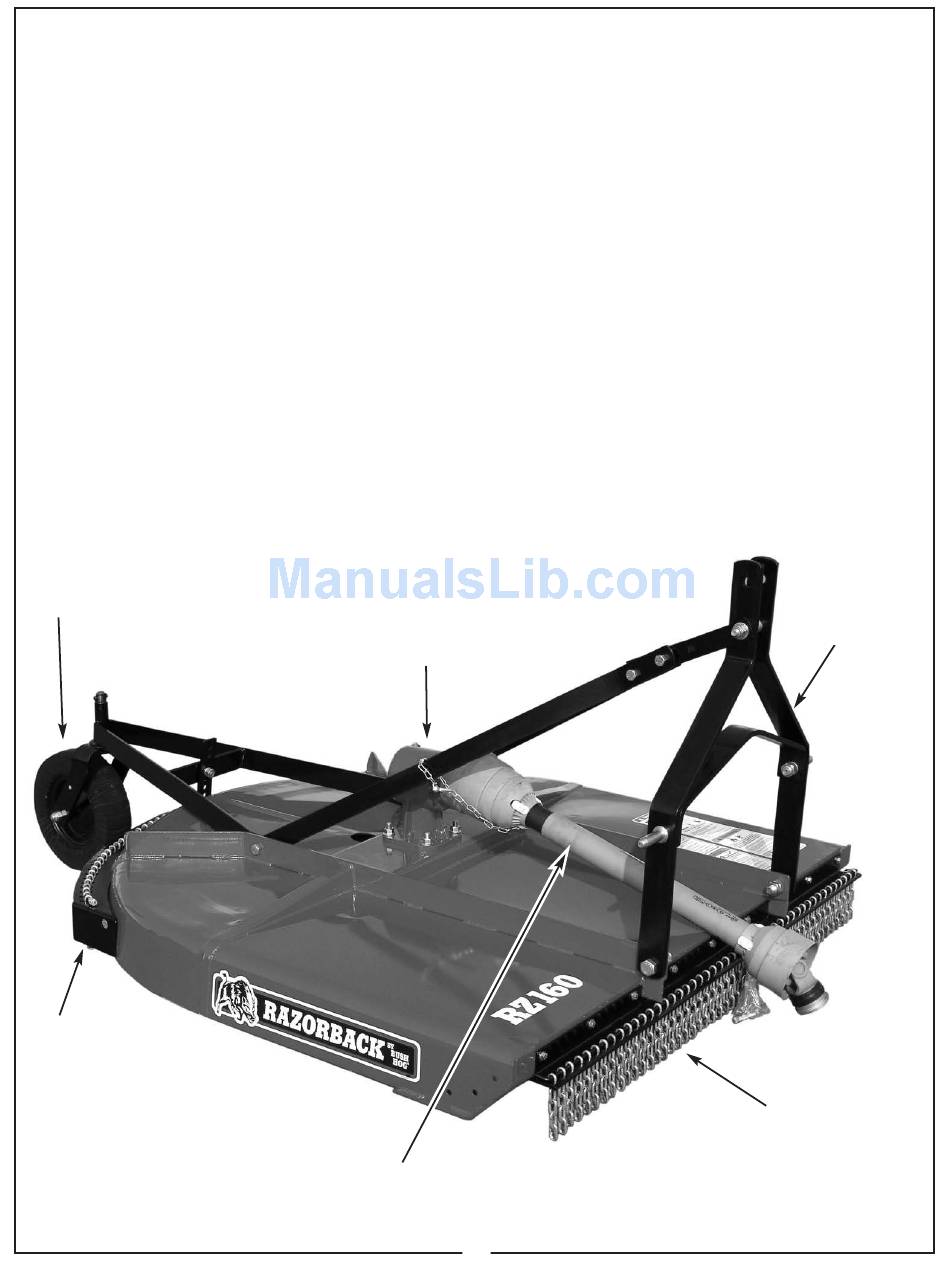

Figure 1-1 Major Components
Gearbox
Driveline
8
NOTE
All references made in this manual to right,
left, front, rear, top, and bottom are as viewed
as facing the direction of forward travel with
implement properly attached to tractor.
A-Frame
Front Chains
