Scion PT546-18130 Owner's Manual
  1. Manuals
  2. Brands
  3. Scion Manuals
  4. Car Receiver
  5. PT546-18130
  6. Owner's manual

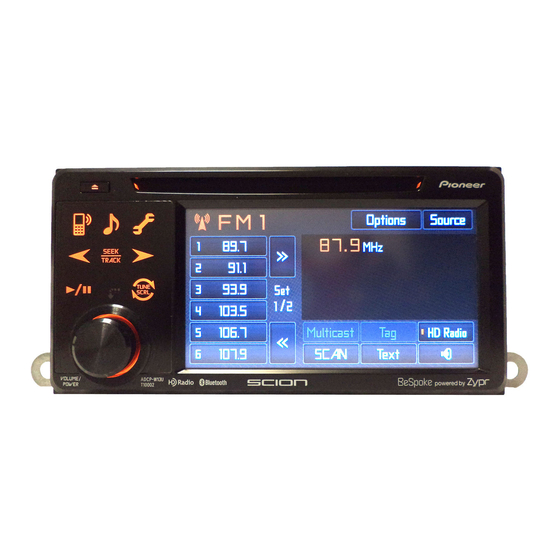

Scion PT546-18130 Owner's Manual

Audio system for am/fm//hd radio broadcast/cd player with ipod/usb/bluetooth audio/pandora/bespoke
Hide thumbs Also See for PT546-18130:
Table of Contents

Advertisement

Quick Links

Audio System

PT546-18130
TOYOTA PART NO.
Owner's Manual
for AM/FM/HD Radio broadcast/CD Player with iPod/
USB/Bluetooth Audio/Pandora/BeSpoke
CRB3839AS_ZJ029.indd 1
2012/03/05 9:31:10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT546-18130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Scion PT546-18130

Summary of Contents for Scion PT546-18130

  • Page 1: Audio System

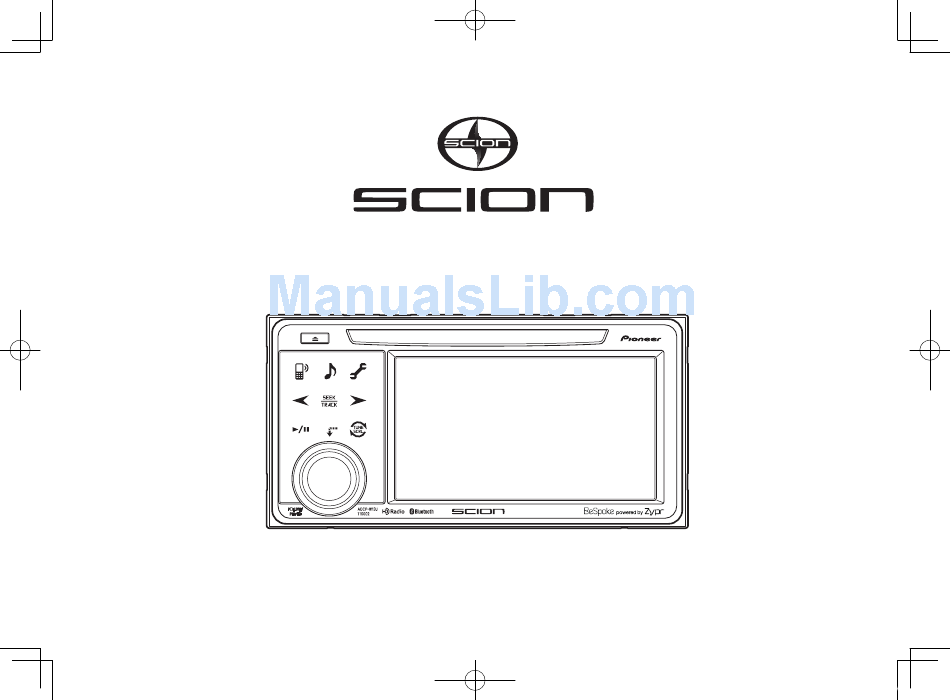

    Audio System PT546-18130 TOYOTA PART NO. Owner’s Manual for AM/FM/HD Radio broadcast/CD Player with iPod/ USB/Bluetooth Audio/Pandora/BeSpoke CRB3839AS_ZJ029.indd 1 2012/03/05 9:31:10...
  • Page 2 Alteration or modifications The antenna for Bluetooth This equipment generates, uses carried out without appropriate and can radiate radio frequency cannot be removed (or authorization may invalidate energy and, if not installed replaced) by user. the user’s right to operate the and used in accordance with equipment.

  • Page 3: Features

    Features WMA file playback WARNING You can playback WMA files Handling the cord on this recorded on CD-ROM/CD-R/CD-RW CD playback product or cords associated (ISO9660 Level 1/Level  standard Music CD/CD-R/CD-RW playback is with accessories sold with recordings) or USB portable audio possible.

  • Page 4: About Ipod

    About iPod About HD Radio™ • Apple is not responsible for the operation of this device or Technology • Reproducing and playing back its compliance with safety and non-copyrighted material and regulatory standards. material that can legally be reproduced and played back for private use is permitted with the iPod.

  • Page 5: Important Information About This Manual

    Important information To ensure the correct higher volumes of sound, so what sounds “normal” can actually be about this manual audio system operation loud and harmful to your hearing. Guard against this by setting your For safety reasons, this manual •...

  • Page 6: Table Of Contents

    Contents Features ..................... . .3 About WMA.

  • Page 7: Basic Operation

    Basic Operation Your audio system works when the ignition switch is in the “ACC” or “ON” position. If the Audio screen does not display, press [POWER]. (Refer to page 8.) NOTICE To avoid draining the battery, do not leave the car audio on longer than necessary when the engine is not running.
  • Page 8 • The Operations of the Keys Near 4 Display Touch this button to pause Information and images regarding the Display playback and to mute the the source being played back are dis- sound. Touch it again to 1 Touch buttons played here.
  • Page 9 • Steering Switch Operations If the MODE button is kept pressed 2 [Λ] down for one second or more, a This section explains audio-related Actions vary depending on the beep is emitted and the following operations using the steering switch. source that is being selected and the actions are performed.
  • Page 10 Switches If you remove Play is If you remove If you press this button Satellite over to your hand from switched your hand from HD Radio Radio the next the button over to the button down on for broadcast broadcast preset for less than the next...
  • Page 11 3 [∨] Switches If you remove If you press this button HD Radio over to your hand from Source Actions Actions when broadcast the next the button down for 1.5 when the button is preset for less than seconds or pressed kept pressed longer, even...
  • Page 12 iPod Playback Nothing Playback The first song When If you press the SEEK down and hold is returned happens. is returned in the previous function is this button to the to the folder is played in effect, for over one beginning beginning back.
  • Page 13 If you press If you press 5 [ ]/[ down on this and hold down Use these buttons with hands-free button for 1.5 this button phoning. Depending on the model, some vehicles are not equipped with seconds or longer than one these buttons.

  • Page 14: Common Operation

    Common Operation Although the keys displayed for BeSpoke each source vary, the common functions for each source are indicated below. Refer to Sound Quality Settings (Setting Up the Sound Quality) (page 53) to find out more about establishing the sound quality. •...

  • Page 15: Adjusting The Volume

    Refer to Listening to the RADIO (page • Setting up the audio 16) for details on using FM/HD Radio Touch on [ ] to display the SOUND broadcast/XM Satellite Radio. SETTINGS MENU. (Refer to page Refer to Listening to the HD Radio 53).

  • Page 16: Listening To The Radio

    Listening to the RADIO Listen to the AM and FM radio, HD Radio and XM Satellite Radio by following the instructions below. Refer to Listening to the HD Radio broadcast (page 20) for details regarding the unique features of the HD Radio receiver.
  • Page 17 • Changing the Frequency • Listening to Preset Channels • Searching for Frequencies That Manually Touch [Presets] to display the Preset Can be Tuned In (Only for FM/ screen. Touch on any channel Touch [ ] and then, after chang- HD Radio / XM Satellite Radio) from 1 to 6 on the Preset screen.
  • Page 18 • Searching for, and listening to broadcasts of preferred genres (Only for FM/HD Radio) Each time you touch [Options] d [<TYPE] or [TYPE>], the various PTY genres will flash on and off. If you touch on the genre that you want to listen to while the PTY genres are flashing on and off, the system will search stations that can be tuned in...
  • Page 19 <CRB3839-A/S>19 CRB3839AS_ZJ029.indd 19 2012/03/05 9:31:11...

  • Page 20: Listening To The Hd Radio Broadcast

    Listening to the HD Radio broadcast HD Radio™ Technology is a terrestrial digital radio broadcast that utilizes AM/FM analog broadcasting frequencies to transmit digital signals. For information regarding viewing methods, refer to Listening to the RADIO (page 16). This section contains explanations solely regarding HD Radio broadcast functions.
  • Page 21 • Storing Song Information that cast in something other than analog, the following actions will occur each is Being Tuned In on HD Radio time you touch on [Multicast]. Broadcast When receiving The next SPS is If you touch [Tag] while the HD Radio (MPS) MPS signal tuned in.

  • Page 22: Listening To A Xm Satellite Radio Broadcast

    Listening to a XM Satellite Radio broadcast A satellite radio channel, XM Satellite Radio is immensely popular in the United States. Because the entire US is covered as far as signal reception goes, one can cross the entire country without losing a signal, and thus a user can continue to listen to the same program without interruption the entire way.

  • Page 23: How To Subscribe To Xm Satellite Radio

    • Display the RADIO ID NOTICE CAUTION Each XM tuner is identified with a • This XM tuner is awarded unique RADIO ID. You will need the An additional Genuine Toyota Radio ID when activating XM service a Type Approval Certificate satellite receiver and antenna or when reporting a problem.

  • Page 24: Listening To A Cd

    Listening to a CD You can listen to CDs using the methods explained below. CAUTION Compact disc players use an invisible laser beam which could cause hazardous radiation exposure if directed outside the unit. Be sure to operate the player correctly. NOTICE •...
  • Page 25 • Loading the CD A quick method for selecting the • If the volume changes when you turn the MULTI KNOB, touch [ ] and previous or next song Load a CD in the disc slot. then go through the same proce- Touch [ ] to change the MULTI dures.

  • Page 26: Listening To A Mp3/Wma Disc And Usb Portable Audio Player/Usb Memory

    Listening to a MP3/ WMA Disc and USB Portable Audio Player/USB Memory Explanations regarding how to use your MP3/WMA disc and USB PORTABLE Audio Player/USB Memory are contained below. Details regarding MP3 and WMA files (page 6). CAUTION Compact disc players use an invisible laser beam which could cause hazardous radiation exposure if directed outside...
  • Page 27 • Handling MP3/WMA discs • Connecting the USB portable A quick method for selecting the previous/next file Load a MP3/WMA disc in the disc audio player/USB memory Touch [ ] to change the MULTI slot. • Connect the USB portable audio KNOB to Tune/Scroll mode, then The MP3/WMA disc will begin to player/USB memory to the USB...
  • Page 28 • Playing MP3, WMA Disc and Touch [ ] while the list is being displayed and then after setting USB Portable Audio Player and the MULTI KNOB to Tune/Scroll USB Memory Files in Random mode, turn MULTI KNOB to the left Order to move the cursor to the previous Each time you touch [RAND], MP3,...
  • Page 29 <CRB3839-A/S>9 CRB3839AS_ZJ029.indd 29 2012/03/05 9:31:12...

  • Page 30: About Handling The Ipod

    About handling the Made for CAUTION iPod (5th generation) ver. 1.3 iPod • Store the data into another iPod classic ver. 1.1.2 media, to avoid losing the iPod classic 120 GB ver. 2.0.1 • This unit supports only an iPod fea- data during iPod operation iPod classic 160 GB ver.

  • Page 31: Connecting The Ipod (Iphone)

    If it near the shift knob. when using your iPod with does not go in smoothly, it may be the Scion Audio system, Connect to the connector upside down so do not force it in disconnect your iPod from the near the parking brake.

  • Page 32: Disconnecting The Ipod (Iphone)

    NOTICE (iPhone) • If you install an audio system If this product does not recognize other than a Scion Genuine or otherwise behaves erratically Remove the connector. Audio, you will not be able to when an iPod/iPhone that has use the USB connector.

  • Page 33: Listening To The Ipod

    Listening to the iPod An explanation regarding how to listen to your iPod is contained below. • Selecting Songs You can use any of the methods below to select songs from your iPod. Selecting the previous/next song Touch [ ] to return to the begin- ning of the song that is being played.
  • Page 34 Selecting songs from the playlist Action when selected [Albums] Switches over to the Touch [Browse] to display the playlist screen for searching [Playlists] Switches over to table. for albums the screen used for Touch on the playlist using any of Touch [Album Name] searching for playlists tabs indicated below and then select...
  • Page 35 Returning from the list display to • Shuffling Playback of iPod Files [Genres] Switches over to the the display for the file that is being Each time you touch [ ], iPod tracks screen for searching played back are played back as indicated below. for genres Touch [ Normal playback d Shuffle playback of...

  • Page 36: Listening To The Bluetooth Audio

    Listening to the Bluetooth Audio In order to listen to Bluetooth audio on this unit, you must first hook Bluetooth audio up to the system. An explanation regarding how to listen to Bluetooth audio is contained below. • Bluetooth audio that can be hooked up to the system These are the requirements for Bluetooth audio:...
  • Page 37 • Registering Bluetooth Audio Registering via SSP (Secure Simple • Selecting Files Pairing) Device Any of the methods used below can ] d [Bluetooth] d 1. Touch [ be used to select Bluetooth audio There are two methods for register- [Connect Audio Player] d [Add files.
  • Page 38 Selecting tracks from the tracklist • Playing Bluetooth Audio Files in NOTE Touch [Track List] and then touch on Random Order the file that you want to listen to. Each time you touch [RAND], You cannot change to hands- [Tracks] and [Browse] only display Bluetooth audio files are played as free phoning by touching when AVRCP Ver.
  • Page 39 <CRB3839-A/S>39 CRB3839AS_ZJ029.indd 39 2012/03/05 9:31:13...

  • Page 40: Listening To Pandora

    Listening to Pandora ® internet radio Pandora is an internet radio ® service that utilizes an extensive music database and song- matching algorithms to provide personalized radio. To use this system to listen to Pandora, first download the Pandora application on your iPhone and create a registered Pandora account, then connect the iPhone to this system (see detailed information below):...
  • Page 41 ® radio will depend on the service not affiliated with Pioneer and availability of a cellular and/or SCION. More information is available WiFi network for purposes of at http://www.pandora.com. Pandora, allowing your iPhone to connect the Pandora logo, and the Pandora to the Internet.
  • Page 42 • Skipping to the Next Track • Calling Up Stations Created on Gives the song being Touch [ a PC played back a Thumbs The next track will be determined by DOWN, which is Touch [Station] to display the Select the server.
  • Page 43 Scrolling through the pages of the list Touch [ ] while the list is being dis- played to display the previous page. Touch [ ] while the list is being dis- played to display the next page. <CRB3839-A/S>3 CRB3839AS_ZJ029.indd 43 2012/03/05 9:31:14...

  • Page 44: Using Bespoke

    Using BeSpoke BeSpoke is an application that enables you to check SNS (Twitter, Facebook) or search for routes easily using your voice. BeSpoke provides functions that allow you to do the following and more: • Listen to Internet Radio and share your favorite stations with friends •...

  • Page 45: Internet Radio

    • Using Voice Routing regarding how to connect an tion to play to enjoy Scion Audio Touch [ ] on the right side of the iPhone. Visual programming. screen to pull up a map and direction list.
  • Page 46 * For more details, please visit our Recognition website at Touch [ ] to activate function con- www.Scion.com/BeSpoke. trol using your voice. * Functions and operation Start talking after the beep stops. procedures may differ depending on the version of the application The following voice commands are being used.
  • Page 47 <CRB3839-A/S>7 CRB3839AS_ZJ029.indd 47 2012/03/05 9:31:14...

  • Page 48: Connecting An External Amplifier

    Connecting an NOTICE CAUTION external amplifier • A standard speaker's • The output of an internal input is rated 17.5 W input amplifier will not stop even When you connect an external (largest 0 W input). when an external amplifier amplifier to RCA connectors, When an amplifier is is connected to the RCA...

  • Page 49: Setting Up Audio-Visual

    Setting Up Audio-Visual Touch [ ] to display the Setup menu. You can then establish various settings using the Setup menu. • Setting Up the Display Touch [Display] on the Setup menu to display the Display Settings menu. Next touch on the settings that fol- low to set them up.
  • Page 50 Adjusting the Image Quality of the • Establishing General Settings Displaying/not displaying each Display source’s capture screen on the Touch on [General] on the Setup After touching [General], touch either Audio Source Selection screen menu to display the General Settings of the settings below to establish After touching [Display Album Art], menu.
  • Page 51 Formatting/not formatting personal • Setting Up Voice Guidance • Setting Up Bluetooth data recorded on the system (For Phone) Touch on [Bluetooth] on the Setup After touching [Delete Personal menu to display the Bluetooth Touch on [Voice] on the Setup menu Data], touch either [Delete] or [Do Settings menu.
  • Page 52 Bluetooth Audio Player • Setting Up the System [Display [ON] With this setting, Touch on [Connect Audio Player] to Touch [System] on the Setup menu Audio the current status display a list of the Bluetooth audio to display the SYSTEM Settings Player of the Bluetooth players that have been registered.

  • Page 53: Setting Up The Sound Quality

    Setting Up the Sound • Setting Up Digital Sound [BASS] Used to adjust low- pitched tones. Processing Quality [–] or [+] Each time you touch Touch [DSP] on the Sound Settings [+], the bass level menu to display the DSP Settings Touch on [ ] for each mode increases up to a...
  • Page 54 • Setting Up the Subwoofer [Advanced The Sound Retriever NOTICE Touch [Sub-W] on the Sound Sound function provides a • The Sound Retriever function Settings menu to display the Retriever] wide, deep and rich Subwoofer Settings Menu and then can only be selected when quality to CD/MP3/ touch on the settings that follow to playing MP3/WMA from CD...

  • Page 55: Connecting A Bluetooth Cell Phone

    Connecting a • Establishing the SSP (Scion NOTICE Sound Processing) Mode Bluetooth Cell Phone SSP is a modified DSP (Digital Signal • A Bluetooth enabled cell Processing) system that provides a phone that supports the HFP You can connect a Bluetooth customized sound for your vehicle.
  • Page 56 For the most part, you will be using 3. Forward the passcode that 2. Using the Bluetooth cell phone, your Bluetooth cell phone to register search for the Bluetooth enabled appears on the screen from your the cell phone to the system. For device and then select this unit cell phone.

  • Page 57: Using Hands-Free Phoning

    Using Hands-Free Phoning Explanations regarding how to use hands-free phoning appear below. You will be able to maintain direct control of your cell phone even when using hands-free phoning. • Making Calls Touch [ ] to display the Phone screen. You can make outgoing calls using the PHONE screen.
  • Page 58 Making calls to selected contacts Making calls to selected Speed Making calls to numbers selected Contacts includes data such as Dial numbers from the call history phone numbers and names that are The Speed Dial function allows you You can make calls by selecting imported from the address book of to quickly call up frequently dialed phone numbers from the call history.
  • Page 59 Taking Phone Calls • The Steering Switch (On Hook/ • Settings You Can Establish The following screen appears when Off Hook) and Microphone While Using the Phone a call comes in. After connecting the hands-free When you are on the phone, the fol- device, you can use the steering lowing screen appears.

  • Page 60: Setting Up The Phone

    Setting Up the Phone [0-9] Use this to forward the [Ring Tone Touch [+] to increase tone data. Input the Volume] the ring tone volume An explanation regarding how to tone data and touch incrementally; touch [Send]. set up hands-free phoning follows. [–] to decrease the ring tone volume [Mute]...

  • Page 61: Using The Phonebook

    Using the Phonebook 2. For OPP-enabled phones ] d [Phone] d [Phone Touch [ Touch [Manage Contacts] d book] to display the [Phonebook [Transfer Contacts]. In this manual, Phonebook is an Settings] screen. This is the same as touching all-inclusive term that refers to the [Phone] d [Contacts] d [Transfer] following components.
  • Page 62 • Editing Speed Dial Entries 2. Touch the location you want to • Deleting Call Histories register on the Select Speed Dial The Speed Dial function allows you You can select the histories of recent calls, missed calls and outgoing calls Location screen.

  • Page 63: Using Voice Recognition

    Using Voice Recognition 2. Following the screen display Dial Number Dial Number prompts, give the voice Call Number screen will commands in a clear voice. With the voice recognition Dial by number appear. (For example, say “Dial 0123456789” function, you can control the Phone Number to dial the number 0123456789.) Dial <phone...

  • Page 64: Mp3 And Wma Files

    MP3 and WMA files MP3 additional • The folder selection sequence for playback and other operations becomes the writing information sequence used by the writing software. • MP3 is short for MPEG Audio Layer 3 and For this reason, the expected sequence at refers to an audio compression technology the time of playback may not coincide with •...

  • Page 65: Wma Additional Information

    WMA additional About folders and NOTES information MP3/WMA files • This unit assigns folder • This unit plays back WMA files encoded by • An outline of a CD-ROM and USB portable number. The user can not Windows Media Player. audio player/USB memory with MP3/WMA assign folder numbers.

  • Page 66: Usb Portable Audio Player/ Usb Memory Compatibility

    USB portable audio • This unit can playback • It is not possible to check files in the USB portable player/ USB memory folders that do not include audio player/USB memory MP3/WMA files. (These compatibility that is USB Mass Storage folders will be skipped Class.

  • Page 67: Terms

    Terms ID3 Tag Romeo: File names can have up to 128 This is a method of embedding track- related information in a MP3 file. This charac ters. Packet write embedded information can include This is a general term for a method the track title, the artist's name, the of writing on CD-R, etc.

  • Page 68: Cd Player And Care

    CD player and care CD-R and CD-RW • If the heater is used in cold weather, moisture may form on components discs inside the CD player. Condensation • Use only CDs that have either of the may cause the CD player to malfunc- two Compact Disc Digital Audio marks tion.

  • Page 69: Dualdiscs

    DualDiscs • Playback of CD-R/CD-RW discs may become impossible in case of direct exposure to sunlight, high tempera- • DualDiscs are two-sided discs that tures, or the storage conditions in the have a recordable CD for audio on one car. side and a recordable DVD for video on •...

  • Page 70: Bespoke Troubleshooting

    Is the Bluetooth connected? Are you in the coverage area? * Touch [ ] on your iPhone and then use [Help] to check the operating procedures for each icon. * For more details, please visit our website at www.Scion.com/BeSpoke. <CRB3839-A/S>70 CRB3839AS_ZJ029.indd 70...

  • Page 71: Error Indications

    There is probably an electrical or mechanical fault in the CD player. DISC Error Contact your Scion dealer and ask for repair. This appears when an MP3/WMA file format is unusual and not supported by this unit No music files found.
  • Page 72 When problems occur while the iPod is connected to this unit, a message will appear on the display. Refer to the table below to identify the problem, then take the suggested corrective action. Please check the iPod firmware This appears when an iPod software version is unusual and not supported by this unit. Please check the iPod software version.
  • Page 73 When problems occur with the USB portable audio player/USB memory is connected to this unit, a message will appear on the display. Refer to the table below to identify the problem, then take the suggested corrective action. No compatible audio files This appears when an MP3/WMA file format is unusual and not supported by this unit like WAV format recordings.
  • Page 74 When problems occur with the XM tuner or HD Radio broadcast, a message will appear on the display. Refer to the table below to identify the problem, then take the suggested corrective action. The XM antenna is not connected. Check whether the XM antenna cable is attached securely. Check Antenna A short-circuit occurring in the antenna or the surrounding antenna cable.

  • Page 75: Changing Or Disconnecting Your Battery

    Changing or Specifications Specification..USB .0 High speed disconnecting your Supply current ....1 A General Maximum amount of memory . .50 GB Power source .
  • Page 76 <KOKZX> <1C00000> <CVH-3918ZT> <CRB3839-A/S> US <CRB3839-A/S>76 CRB3839AS_ZJ029.indd 76 2012/03/05 9:31:17...
