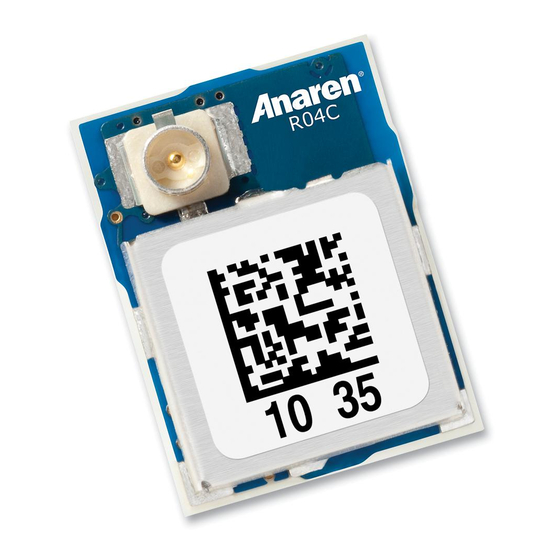

Anaren A1101R04C User Manual

Integrated radio
Hide thumbs Also See for A1101R04C:
Table of Contents

Advertisement

Quick Links

Download this manual
Anaren Integrated Radio
A1101R04C User's Manual
Release Date 02/20/12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A1101R04C and is the answer not in the manual?

Questions and answers

Related Manuals for Anaren A1101R04C

Summary of Contents for Anaren A1101R04C

  • Page 1 Anaren Integrated Radio A1101R04C User’s Manual Release Date 02/20/12...
  • Page 2 THIS PAGE LEFT INTENTIONALLY BLANK...

  • Page 3: Table Of Contents

    3.5. Power Supply Considerations ....................... 19 Mechanical and Process ..........................20 4.1. Radio Module Details (Dimensions in mm) ..................20 4.1.1. A1101R04C ............................20 4.2. Packaging Details (Dimensions in mm) ....................21 4.2.1. Matrix Tray Packaging ........................21 4.2.2. Tape-Reel Packaging ......................... 21 4.3.
  • Page 4 THIS PAGE LEFT INTENTIONALLY BLANK...

  • Page 5: Overview

    The A1101R04C has received regulatory approvals for modular devices in Europe (ETSI). The modular approval allows the OEM or end user to place A1101R04C with an approved antenna inside a finished product without having to perform costly regulatory testing for an intentional radiator.

  • Page 6: Features

    1.2. Theory of Operation The A1101R04C is designed for low power wireless applications in the European band of 433.05 MHz to 434.79 MHz. It can be used to implement a variety of networks, including point to point, point to multipoint, peer to peer and mesh networks.
  • Page 7 Idle mode, from which it can quickly re- enter receive or transmit mode, or a low power sleep mode, from which a crystal startup is also required prior to transmit or receive operation. Below a block diagram is given for the A1101R04C module.  Antenna o The antenna couples energy between the air and the AIR module.

  • Page 8: Typical Flow

    Page 8 of 26 A1101R04C – User’s Manual Release Date 02/20/12 Figure 1 The functionality of the A1101R04C, using an external antenna. Figure 2 Transceiver IC block diagram. 1.2.1. Typical Flow After initial setup of registers for desired behavior, the normal operation flow diagram is shown in Figure 3 .
  • Page 9 A1101R04C – User’s Manual Page 9 of 26 Release Date 02/20/12 A data frame is loaded into the transmit FIFO and the “TX” mode is entered. The transceiver will transmit the data and enter “idle” mode after completion. When transmit is complete “RX” mode is entered to wait for the acknowledge frame.

  • Page 10: Configuration

    Page 10 of 26 A1101R04C – User’s Manual Release Date 02/20/12 1.3. Configuration Table 2 lists the radio module configuration parameters, and the level of configurability by the user. Legend: Certification is valid for any value choosen Use the provided certified settings as other may degrade performance...
  • Page 11 A1101R04C – User’s Manual Page 11 of 26 Release Date 02/20/12 Table 2 Configuration Parameters Bit Fields Within Register Register Retained Address during Register Name (Hex) sleep IOCFG2 GDO2_INV GDO2_CFG IOCFG1 GDO_DS GDO1_INV GDO1_CFG IOCFG0 GDO0_INV GDO0_CFG GDO0_TEMP_SENSOR_ENABLE FIFOTHR Reserved...

  • Page 12: Approvals And Usage

    In particular the radio modules have been certified to the following standards. 2.1. Product Approvals 2.1.1. Europe (Conformité Européenne, The A1101R04C module has been certified for use in European countries. The following testing has been completed: Test standard ETSI EN 300 220-2 V2.3.1 (2010-02) ...

  • Page 13: Potential Interference Sources

    A1101R04C – User’s Manual Page 13 of 26 Release Date 02/20/12 2.2. Potential Interference Sources Systems similar to the user’s system may also exist within range and may also be a source of interference; some typical applications to consider are: ...
  • Page 14 Page 14 of 26 A1101R04C – User’s Manual Release Date 02/20/12 Table 3 Approved European configurations Code Modulation Type Datarate(kbps) Deviation(kHz)/ PhaseTransition Time (Tb) 5/8 Tb 5/8 Tb 5/8 Tb 2-FSK 25.4 2-FSK 34.9 GFSK 12.7 GFSK 17.5 GFSK 44.4 4-FSK 114.3...
  • Page 15 Page 15 of 26 Release Date 02/20/12 The A1101R04C output power changes with ambient temperature. To obtain best possible range and at the same time maintain certification compliance it is possible to trim the output power as a function of temperature to maintain an approximate constant output power over temperature.

  • Page 16: Electrical Characteristics

    Page 16 of 26 A1101R04C – User’s Manual Release Date 02/20/12 3. Electrical Characteristics 3.1. Absolute Maximum Ratings Under no circumstances must the absolute maximum ratings given in Table 7 be violated. Stress exceeding one or more of the limiting values may cause permanent damage to the device.

  • Page 17: Operating Conditions

    3.3. Pin Out The A1101R04C radio module shares a common pin-out and foot print with other Anaren modules using different frequencies, thus enabling easy changeover from one to another, e.g. if changing the frequency, antenna scheme, or adaptive antenna tuning is desired. Below the common footprint is shown.
  • Page 18 Page 18 of 26 A1101R04C – User’s Manual Release Date 02/20/12 Table 9 Pin descriptions Pin # Pin Name Pin Type Description Internal GND connection used during testing, not recommended to connect to main GND. Internal RF output connection used during test. Connecting this pin to anything will require recertification for intentional radiators.

  • Page 19: Recommended Layout (Dimensions In Mm)

    The A1101R04C radio module has an integral ferrite bead in the supply line from pin 18 (Vdd) and a decoupling capacitance to reduce any noise on the incoming power supply line. This arrangement will eliminate most supply voltage noise.

  • Page 20: Mechanical And Process

    Page 20 of 26 A1101R04C – User’s Manual Release Date 02/20/12 4. Mechanical and Process 4.1. Radio Module Details (Dimensions in mm) 4.1.1. A1101R04C Figure 7 A1101R04C dimensions...

  • Page 21: Packaging Details (Dimensions In Mm)

    A1101R04C – User’s Manual Page 21 of 26 Release Date 02/20/12 4.2. Packaging Details (Dimensions in mm) AIR modules are available in Matrix Tray and Tape & Reel packaging for high-volume assembly. Details of packaging provided below: 4.2.1. Matrix Tray Packaging Figure 8 A1101R04C00GM Matrix Tray Packaging Detail (40/Tray) 4.2.2.

  • Page 22: Soldering

    Page 22 of 26 A1101R04C – User’s Manual Release Date 02/20/12 4.3. Soldering AIR Modules may be mounted either manually (for prototyping or low volume production), or automatically for high-volume production. A no-clean tin/silver/copper (SAC) solder is recommended, however lead based no-clean pastes may also be used.

  • Page 23: Automated Mounting Procedure

    A1101R04C – User’s Manual Page 23 of 26 Release Date 02/20/12 4.3.2. Automated Mounting Procedure The AIR Radio Module recommended solder reflow profile is based on IPC/JEDEC J-STD-020.
  • Page 24 Page 24 of 26 A1101R04C – User’s Manual Release Date 02/20/12...
  • Page 25 A1101R04C – User’s Manual Page 25 of 26 Release Date 02/20/12 DOCUMENT HISTORY Date Author Change Note No./Notes 07/21/11 Sula Initial Draft 02/20/12 Richardson Initial Release...
  • Page 26 For a full list of our franchised distributors, please visit our website: http://www.anaren.com/air/ Anaren Microwave, Inc. Anaren Microwave (Europe), Inc. Anaren Communication Suzhou Co. Ltd. 6635 Kirkville Road 12 Somerset House, Suite 16 & 17 No. 5 Chun Hui Road...
