Summary of Contents for Revo pico+

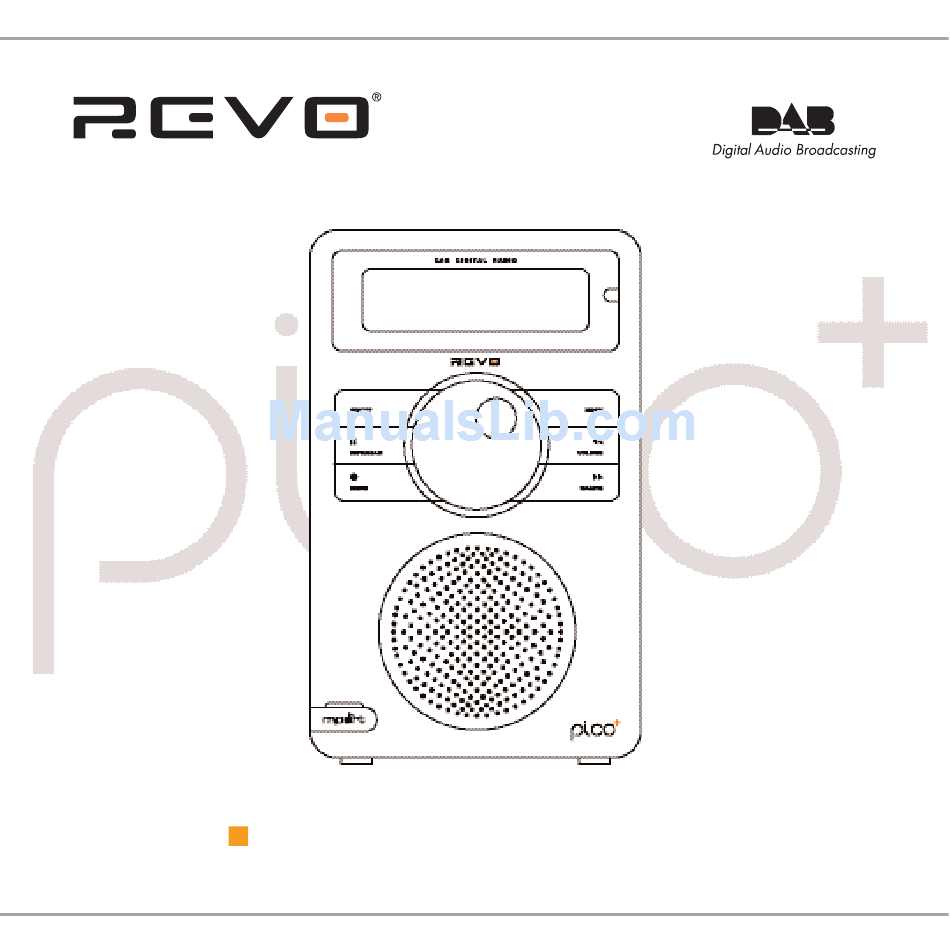

- Page 1 D A B D I G I T A L R A D I O Operating Guide w w w . r e v o . c o . u k...
-
Page 2: Safety Warnings
However, our policy is one of continuous Should you encounter any difficulties with development and so the information is the operation of your Revo Pico+™, or subject to change without notice. should you suspect that it may be faulty in some way, please call our technical support Revo™, Pico+™... -
Page 3: Table Of Contents
Contents Welcome to Revo Manual Tuning Benefits of DAB radio Set DRC Pico+™ overview and key features Display software version Warranty TimeShift™ Features Warranty registration Pausing Live Radio Controls and Connections Rewind/Forward Live Radio Powering Pico+™ Recording Live Radio DAB Operation... -
Page 4: Welcome To Revo
DAB digital radio, offer guidance on the more complex features of this product and provide information on safety, warranty and registration. Benefits of DAB Radio Warranty Revo Technologies Ltd warrants to the Clear, interference free digital sound purchaser that this product will be free Many more stations, much more choice... -
Page 5: Controls And Connections
To power from the mains, insert the power adaptor plug into the DC power socket on the rear of Pico+™. Pressing the button will switch Pico+™ on. Only use the power adaptor supplied. Replacements can be purchased from our website www.revo.co.uk, or alternatively call us on 01555 666 161. -
Page 6: Dab Operation
DAB Operation Extend the telescopic antenna found on the rear of Pico+™. Press the ON/OFF button to switch on your radio. If this is the first time Pico+™ has been used, press and hold the SCAN button. Pico+™ will now scan for DAB stations in your area and store them in memory. -
Page 7: Change Display Mode
To Change the Display Mode To Show the Signal Strength Press the scroll wheel. Pico+™ has seven different display modes. The display shows a signal bar with the Press the INFO/SCAN button to cycle strength of the current station: through each mode. These display modes are explained in the table below: Display option... -
Page 8: Menu Options
Menu Options Pico+™ has a number of functions that are accessed through the MENU button. To change station order The following table describes the options Press MENU, then turn Pico+’s scroll wheel available under the ‘Station Order’ menu: until the name of the option is displayed: Station order Description Fav station... -
Page 9: Memory Card Management
Memory Card Management Press MENU, then turn Pico+’s scroll On an Apple Mac computer the procedure wheel until ‘Memory Card’ is displayed. is the same, though Pico+’s SD card will appear on your desktop as “Untitled”. Please remember that in order to access Pico+’s SD card for any reason, Pico+™... -
Page 10: Manual Tuning
VERSION. The software version number is displayed on the top line of the display. You should specify this when speaking to Revo Technical Support. To set the dynamic range control Pico+™ includes a dynamic range control that automatically boosts the volume of quieter sounds for listening in noisy environments. -
Page 11: Timeshift™ Features
TimeShift Features ™ Pico+™ incorporates our advanced Pico+’s display will tell you how far behind TimeShift™ system. the live broadcast you are. TimeShift™ allows the user to pause, rewind and record live radio - simply, and at the touch of a button. REWIND/FORWARD live radio TimeShift™... -
Page 12: Fm Operation
FM Operation To select FM radio, press the ON/OFF button to switch Pico+™ on, then press DAB/FM /MP3 the DAB/FM/MP3 button. If this is the first time Pico+™ has been in FM mode, it will start at the beginning of the FM frequency range. -
Page 13: M-Port
M-Port ™ Using M-Port™ Revo’s M-Port™ technology allows for quick and easy connection of an iPod® (or other MP3 player or external sound sources). Using the connection lead supplied, Pico+™ is transformed into a high quality digital audio speaker system. -
Page 14: Charging + Weatherproofing
Charging + Weatherproofing Pico+™ Battery Information Pico+’s Splashproof Design Inside Pico+™ there is a rechargeable Pico+’s case is sealed against the Nickel Metal Hydride battery pack. Out-of- elements, allowing Pico+™ to be used the-box this may carry a small amount of outdoors, or in places where there is charge, but it is suggested that you perform moisture, such as a bathroom. -
Page 15: Trouble-Shooting
Trouble-Shooting Q. I hear a ‘burbling’ noise on some Q. Sometimes when I’m listening to Pico+™ stations. the volume dips slightly and the sound becomes distorted. A. If the signal strength is too low, a break- up in reception can occur. This sound is A. -
Page 16: Technical Specification
Technical Specification General: Mono DAB and FM radio with Band III reception, pause, rewind (30 minutes) and record live radio. Storage and playback of MP3 files. Speaker: 2” Weatherproof, full-range neodymium, 8W power handling. Audio Power Output: Frequency Ranges: DAB Band III (174 - 240 MHz) - FM (87.5 - 108 MHz) Antenna: Integral telescopic aerial. -
Page 17: Accessories And Spares
The following optional accessories and spare parts are available for Pico+™. Please contact your local retailer or alternatively call us on 01555 666 161. Accessories and spare parts can also be purchased online at www.revo.co.uk Remote Control: Control Pico+™ with our compact infra-red remote control. - Page 18 Notes...
- Page 19 Notes...
- Page 20 D A B D I G I T A L R A D I O Revo Technologies Ltd The Inox Building Caldwellside Lanark Scotland United Kingdom ML11 7SR Telephone Support 01555 666 161 Online Support www.revo.co.uk/support support@revo.co.uk...
