Connections

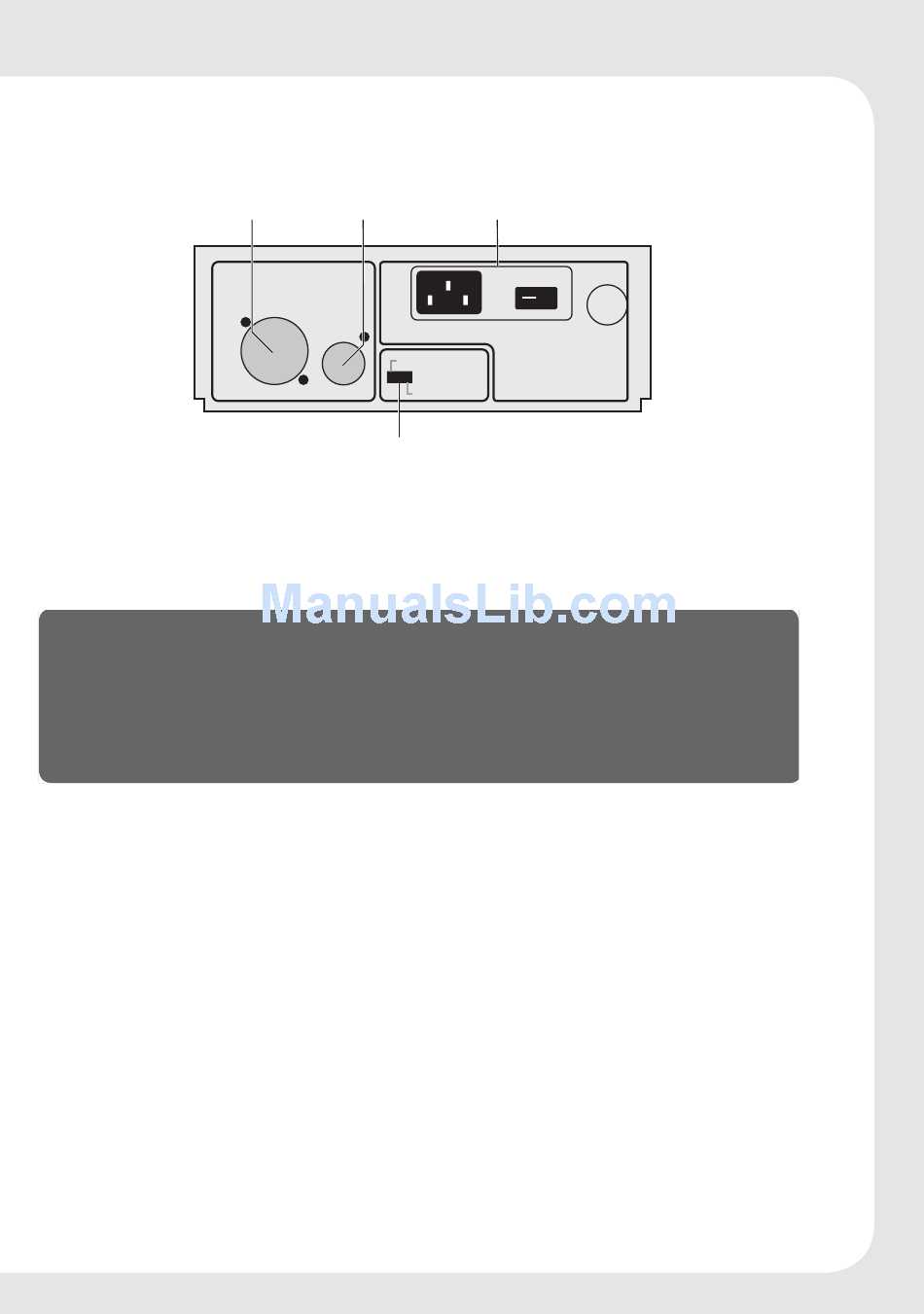

The following diagram gives details of the back panel connections:
See overleaf for pictures of sample confi gurations.

Audio connections

The following table gives details of the audio connections:
Use this connection
BALANCED
UNBALANCED
The balanced connection should be made with a high-quality XLR lead. The
unbalanced connection should be made with a shielded audio phono lead,
preferably with a double-screen copper lap construction.
Balanced
Unbalanced
input
input
INPUTS
BALANCED UNBALANCED
Input
selector
To connect to this
The balanced analogue output of a preamplifi er or digital
surround controller. Set the input selector switch to BALANCED.
The unbalanced analogue output of a preamplifi er or digital
surround controller. Set the input selector switch to
UNBALANCED.
Power
POWER
OFF
ON
BALANCED
UNBALANCED
FUSE
