CONSOLE SWITCHES AND INDICATOR TEST

To start the test press the following touchpad sequence within five (5) seconds:
WASH/RINSE > ACCUWASH > WASH/RINSE > ACCUWASH
• Press the START pad. All LEDS should light and the display should show "88
• Each touchpad controls the LED next to it.

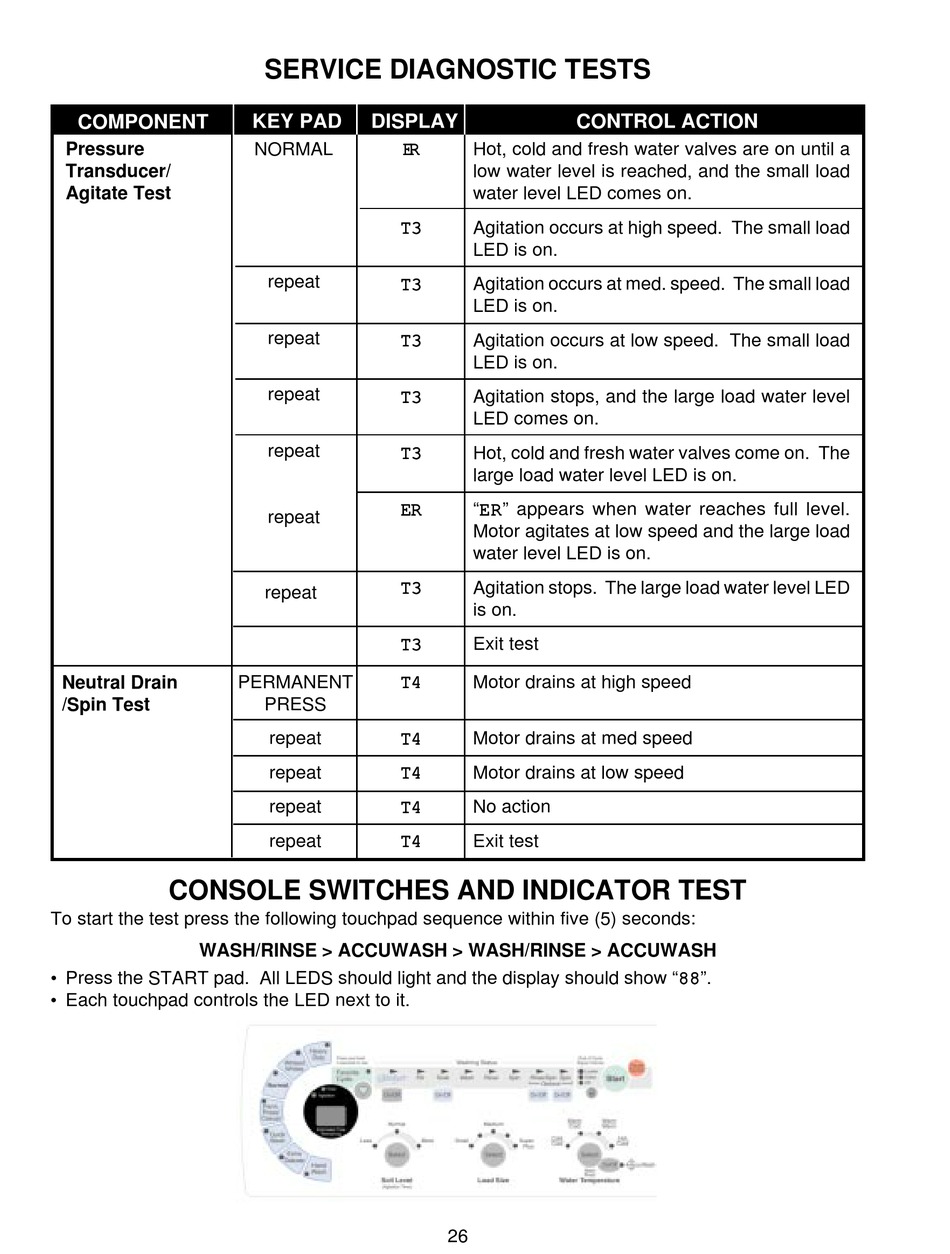

SERVICE DIAGNOSTIC TESTS
KEY PAD DISPLAY
NORMAL
E R E R E R E R E R
T 3 T 3 T 3
T 3 T 3
repeat
T 3 T 3 T 3 T 3 T 3
repeat
T 3 T 3
T 3 T 3 T 3
repeat
T 3 T 3 T 3
T 3 T 3
repeat
T 3 T 3 T 3 T 3 T 3
E R E R
E R E R E R
repeat
T 3 T 3
T 3 T 3 T 3
repeat
T 3 T 3 T 3
T 3 T 3
PERMANENT
T 4 T 4
T 4 T 4 T 4
PRESS
repeat
T 4 T 4 T 4
T 4 T 4
repeat
T 4 T 4 T 4 T 4 T 4
repeat
T 4 T 4 T 4 T 4 T 4
repeat
T 4 T 4
T 4 T 4 T 4
CONTROL ACTION
Hot, cold and fresh water valves are on until a
low water level is reached, and the small load
water level LED comes on.
Agitation occurs at high speed. The small load
LED is on.
Agitation occurs at med. speed. The small load
LED is on.
Agitation occurs at low speed. The small load
LED is on.
Agitation stops, and the large load water level
LED comes on.
Hot, cold and fresh water valves come on. The
large load water level LED is on.
"ER ER" appears when water reaches full level.
ER ER
ER
Motor agitates at low speed and the large load
water level LED is on.
Agitation stops. The large load water level LED
is on.
Exit test
Motor drains at high speed
Motor drains at med speed
Motor drains at low speed
No action
Exit test
26
88". 88 88
88
