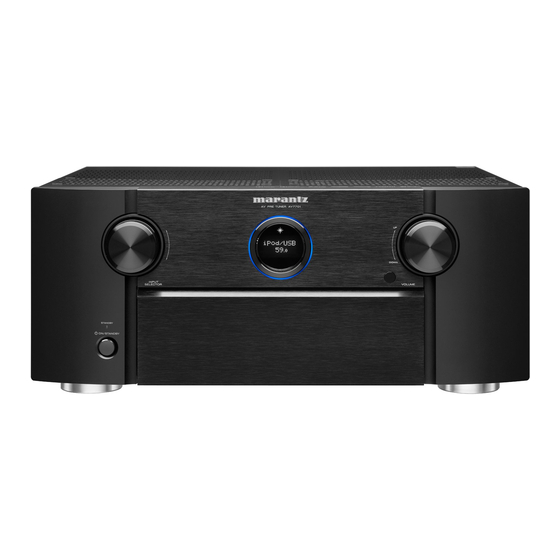

Marantz AV7701 Specifications

AV7701
7ch AV Pre-Amplifier
7.2 Channel 4K & 3D Video Pass Through,
Networking A/V Pre-amplifier with Apple AirPlay
Designed to be the heart of the ultimate music and home theater system, the Marantz AV7701 A/V pre-amplifier is packed with
the latest digital audio, digital video and networking technologies that will open up new heights in music and movie surround en-
joyment. Equipped with the latest high resolution decoders, including Dolby TrueHD and DTS HD-Master Audio, the AV7701 also
includes high resolution decoding (up to 192 kHz/24 bit) for high definition audio files such as FLAC and WAV, along with internet
radio services including SiriusXM Internet Radio and Pandora. For optimum sound quality, Audyssey MultEQ XT room acoustic
correction precisely tailors the audio to match your speakers and your room, and the AV7701 features Audyssey DSX processing
for expanded front height or front width reproduction. Apple AirPlay function provides wireless streaming of your music from your
® ®
iPod touch , iPhone , iPad
through and graphic user interface overlay. Connectivity options abound, including seven HDMI inputs and three HDMI outputs,
making the AV7701 a perfect choice for your dream music and home theater system.
Audio/Video Quality
7.2 channel dedicated pre-amplifier
n
Current feedback & HDAM pre-amplifier circuitry
n
4K video support (path through and GUI overlay)
n
4K (3840 × 2160) upscaling via HDMI
n
1080 p/24 Hz upscaling via HDMI
n
3D pass through technology for enjoying 3D
n
video entertainment with dynamic surround sound
Audyssey DSX for front height or front wide ef-
n
fects channels for a more immersive surround ex-
perience
Connectivity, Flexibility
& Expandability
Airplay: Stream music from your iPad, iPhone or
n
iPod touch or from your iTunes music library
Networking: Stream internet radio, Pandra, SIRI-
n
US XM, as well as music and photos over the home
network
Bluetooth wireless connectivity (M-XPort) via
n
optional RX-101 adaptor
7.2 channel XLR balanced pre-outputs
n
Gold plated 7.2 channel unbalanced pre-outputs
n
Front Panel USB Input Direct digital play for iPod,
n
iPhone and USB drives
® ®
or iTunes library. The advanced video processor supports 4K (3840 x 2160) upconversion, video pass
7 (front: 1) /3 HDMI In/Out
n
-Simultaneous dual outputs allows two video
devices connected and output same source
simultaneously
-CEC (Control)
-ARC (Audio Return Channel)
-Standby source setting via HDMI control
-Auto Lip Sync.
-Deep Color,"x.v.Color"
-Pass through in standby mode
-Zone2 HDMI output allows different source
for zone2
Audyssey MultEQ XT room acoustic correction
n
Audyssey Dynamic EQ & Dynamic Volume
n
3/1 (gold plated) Component In/Out
n
4 (front: 1) / 3 (gold plated) Composite In/Out
n
2/2 Optical/Coaxial (gold plated) Digital In
n
Headphone output
n
HD Radio (AM/FM) and FM Tuner
n
56 Tuner Presets
n
6 Audio inputs (incl. front input) and
n
an output (gold plated)
Phono input (gold plated)
n
7.1 ch Input (gold plated)
n
Ease of Use
Improved System Setup with menu assist
n
Rich overlay GUI with English, French, or Spanish
n
New LCD Learning Remote control
n
®
Auto Power Off
n
Mobile App control with advanced media browsing.
n
(iOS & Android)

Additional Features

Amplifier assignment for 7.2 ch (SB ch), 5.2 ch +
n
Front Height, 5.2 ch + Front Wide, 5.2 ch + Bi-Amp,
5.2 ch + zone, or 5.2 ch + Front B
Selectable zone component monitor, Zone 2
n
composite monitor, and Zone 2 HDMI monitor
3 source Zone 3 capability
n
IR Flasher In
n
RS232C control (AMX/Crestron command)
n
C4 certified (IP)
n
Assignable DC trigger (+12 V, 150 mA x 2)
n
Audyssey Installer Ready
n
Aluminum front panel with trap door and
n
aluminum knobs
Marantz Audio Advantage
Hybrid PLL jitter remover for accurate audio clock
n
generator
Pure Direct / Source Direct
n
M-DAX (Marantz Dynamic Audio eXpander)
n
192 kHz/24-bit Audio DACs
n
DSD to PCM conversion playback capability
n
