Waterwise 1600 Use & Care Manual

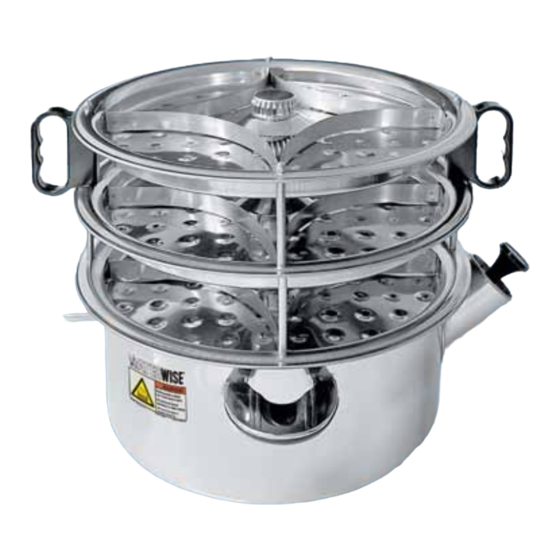

Non-electric steam distiller/purifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
U S E & C A R E G U I D E
Waterwise 1600
Non-Electric Steam Distiller/Purifier
See important safeguards on pages 2 and 3
An exclamation point within an equilateral triangle
is intended to alert user to the presence of important
operating and maintenance instructions in the literature
accompanying the appliance.
Water and steam vapor within an equilateral triangle
is intended to alert user to risk of injury from boiling
water and/or escaping steam.
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Waterwise 1600 and is the answer not in the manual?

Questions and answers

Related Manuals for Waterwise Waterwise 1600

Summary of Contents for Waterwise Waterwise 1600

  • Page 1 U S E & C A R E G U I D E Waterwise 1600 ™ Non-Electric Steam Distiller/Purifier See important safeguards on pages 2 and 3 An exclamation point within an equilateral triangle is intended to alert user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

  • Page 2: Important Safeguards

    Use potholder or insulated oven mitt to remove this cap. 8. Allow Distiller to cool at least one hour after a cycle is finished or interrupted. Boiling water or steam can cause severe burns. Waterwise 1600 Steam Distiller/Purifier Use & Care Guide...
  • Page 3 17. For best water quality, DO NOT FILL BOILER ABOVE THE “MAXIMUM FILL” LEVEL (fig. C). 18. DO NOT OPERATE DISTILLER IF WARNING LABELS ARE NOT AFFIXED (fig. A). Figure A SAVE THESE INSTRUCTIONS Waterwise 1600 Steam Distiller/Purifier Use & Care Guide...

  • Page 4: Preparing For First Time Use

    Distiller and quality of distillate. Tray Baffle Vent Cap Water Coolant Coolant Figure B Tray Assembly Tray Handle Fill Spout Distillate Tubing Distillate Outlet Fill Spout and “Maximum Fill” Level Boiler Assembly Boiler Handle Waterwise 1600 Steam Distiller/Purifier Use & Care Guide...
  • Page 5 Container water coolant trays is evaporated (about 72 minutes using a 2600 watt electric stovetop burner or 8900 Btu/ Collection Cup hr gas burner). This Assembly is the cycle time. Waterwise 1600 Steam Distiller/Purifier Use & Care Guide...
  • Page 6 NOT remove collection cup assembly from boiler as this may cause the grommet to become damaged, or it may cause the collection cup assem bly to become bent so that distillate will not flow into the collection/ storage container. Waterwise 1600 Steam Distiller/Purifier Use & Care Guide...

  • Page 7: Level Test

    Collection cup assembly MUST REMAIN LEVEL and distillate tubing must run at a downward slope into the container container (fig. F). DO NOT remove collec- Level Figure F Distillate Tubing (ensure downward slope) Collection Cup Waterwise 1600 Steam Distiller/Purifier Use & Care Guide...

  • Page 8: Maintenance

    Rinse thoroughly with 6 ounces (180 ml) of 3 percent hydrogen peroxide added to 1 gallon purified water (see page 4). Operational maintenance is essential for this product to perform as advertised. Waterwise 1600 Steam Distiller/Purifier Use & Care Guide...
  • Page 9 (fig. B) while Distiller is operating or cooling. Boiling water or steam can cause severe burns. Let cool at least one hour after a cycle is finished or interrupted before removing water coolant tray assembly. Waterwise 1600 Steam Distiller/Purifier Use & Care Guide...

  • Page 10: Helpful Tips

    • This Distiller is a precision built instrument and should be treated as such. DO NOT stack heavy weights on it, or otherwise bend or distort any of the components. All parts must be in place for maximum operat- ing efficiency and performance. Waterwise 1600 Steam Distiller/Purifier Use & Care Guide...

  • Page 11: Troubleshooting

    When unit has between water coolant tightly onto top of water cooled, remove vent cap trays. and replace it loosely. coolant tray assembly. Contact qualified service personnel for repair if above troubleshooting tips fail. Waterwise 1600 Steam Distiller/Purifier Use & Care Guide...

  • Page 12: Warranty Registration Card

    Please fill out and return the enclosed registration card or register online at http://www.waterwise.com/warranty Registration will not affect warranty coverage, but may expedite processing of your warranty. Registration is the only way to guarantee you will be notified by Waterwise of any issues that arise concerning this product. OWNER’S LIMITED WARRANTY Waterwise warrants, to the original purchaser, all stainless steel parts against defects in materials and workmanship, for a period of two (2) years from the date of purchase.
