6. Configuring The XL48

Selecting the sample frequency and sync
96k/ 88.2k/
int sync int sync

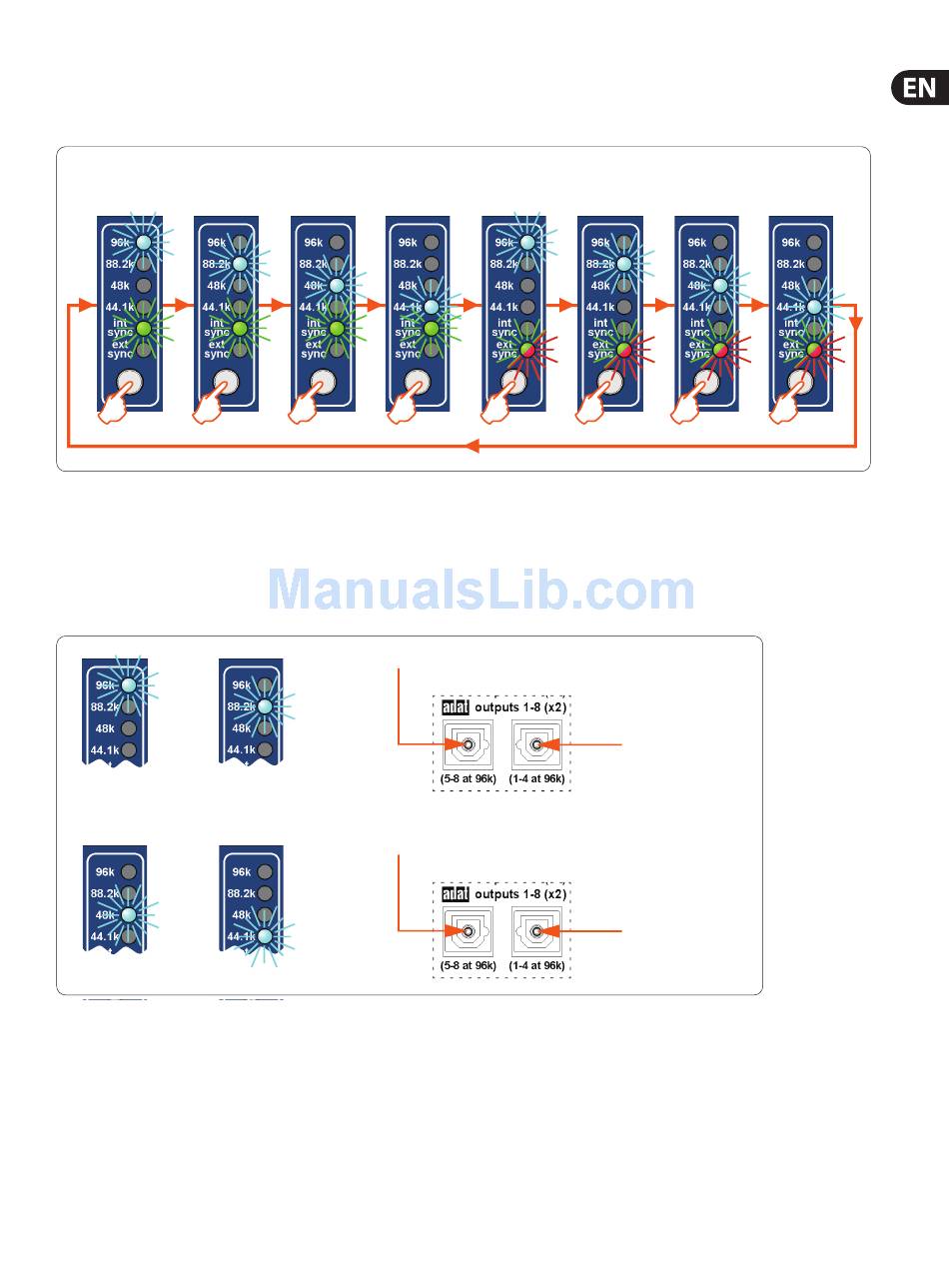

Figure 3: Scrolling through the sample rate/sync options.
When using an external clock source the dual coloured ext sync LED will
illuminate red until the unit recognises a valid clock, at which point the ext sync
LED will turn green to indicate that the incoming clock is locked.
Holding down the button at power on resets the unit to its default settings
(internal clock = 96kHz).
or
or
Figure 4: Available ADAT output channels per sample rate.
48k/ 44.1k/
int sync int sync
Channels 5 to 8 only
=
Channels 1 to 8
=
96k/ 88.2k/
ext sync ext sync
Channels 1 to 4 only
Channels 1 to 8
