Operator Manual
19

5. Connections

1
2
3
5
6
7
4

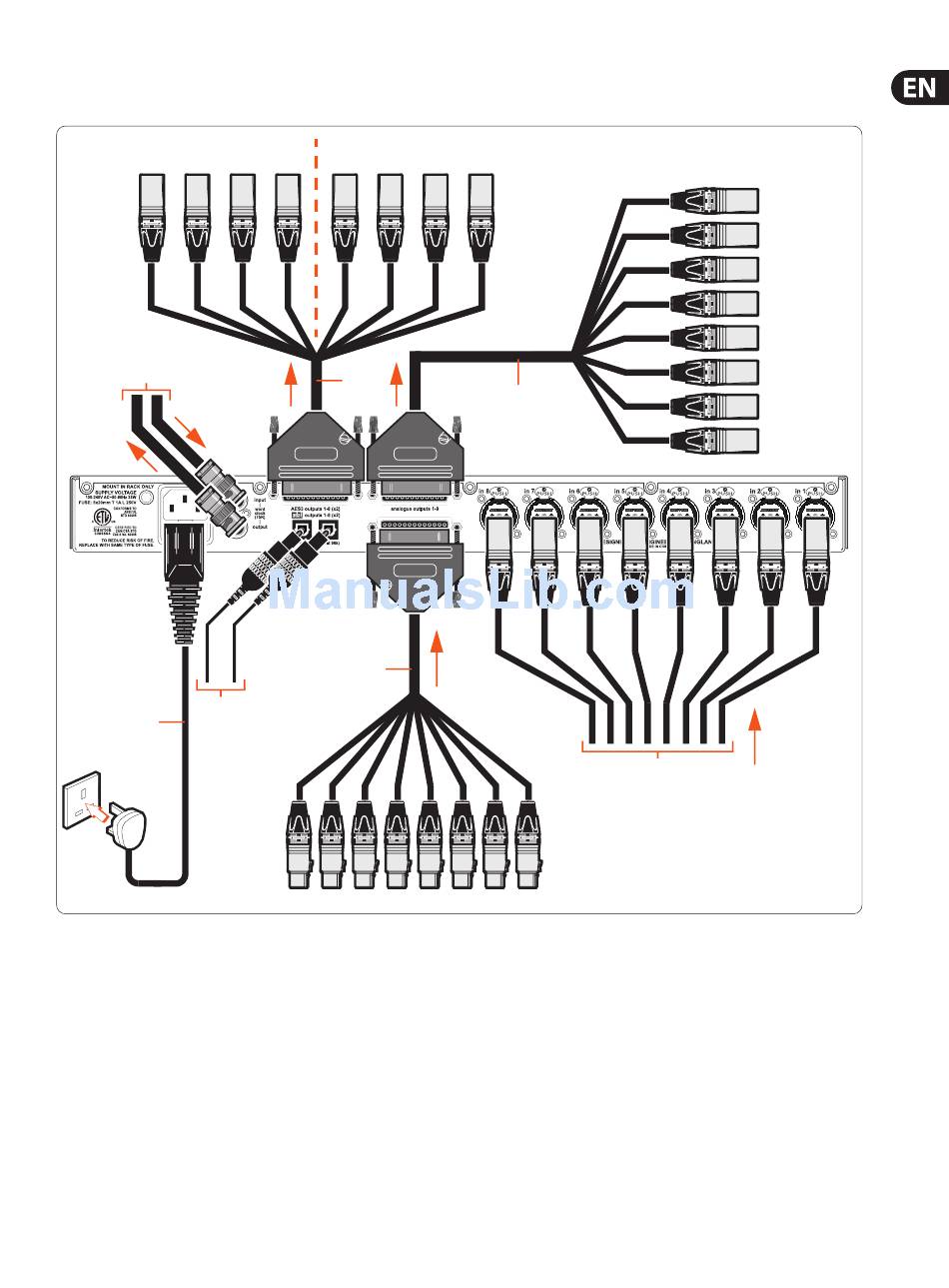

Examples of rear panel connections.
(1) Word clock cables
(2) AES3 output cable loom
(3) Analogue output cable loom
(4) XLR inputs
(5) Analogue input cable loom
(6) ADAT optical cables
(7) Mains power cable
