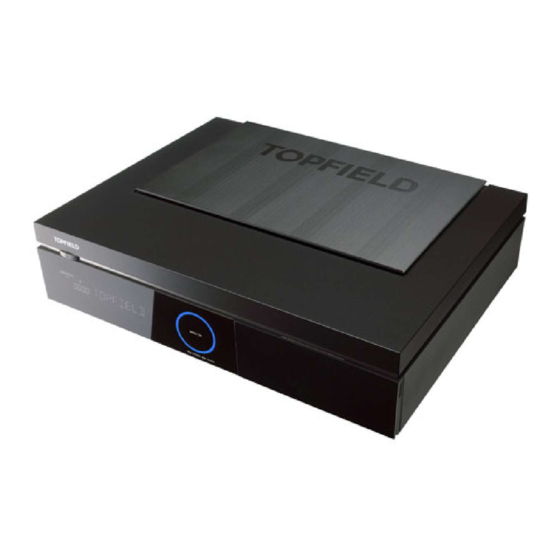

TOPFIELD
SRP-2100
User Guide
High Definition
Digital Satellite Receiver
Personal Video Recorder
Common Interface

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRP-2100 and is the answer not in the manual?

Questions and answers

Related Manuals for Topfield SRP-2100

Summary of Contents for Topfield SRP-2100

  • Page 1 TOPFIELD SRP-2100 User Guide High Definition Digital Satellite Receiver Personal Video Recorder Common Interface...

  • Page 2: Table Of Contents

    ii CONTENTS Contents Contents 1 Introduction Features ......Controlling the digital receiver .
  • Page 3 CONTENTS iii 3.1.4 Searching for services ....Copying services ......Editing the transponder list .
  • Page 4 iv CONTENTS 5.2.4 Selecting audio tracks ....5.2.5 Selecting subtitle tracks ....5.2.6 Viewing teletext .
  • Page 5 CONTENTS v Copying a recording ..... . . Formatting the hard disk ..... 8 Entertainment Copying files .
  • Page 6 vi CONTENTS Index...

  • Page 7: Introduction

    Chapter 1 Introduction The SRP-2100 digital receiver is fully compliant with the inter- national Digital Video Broadcasting (DVB) standard, and thus is able to receive digital broadcasts of that standard. For its operation you need an antenna, which must be installed ap- propriately.

  • Page 8: Controlling The Digital Receiver

    2 Introduction • Can store up to 10,000 television and radio services. • You can edit the services list. • Can create lists of your favourite services. • Can view information about the current television or ra- dio programme. • Has an electronic programme guide that provides an overview of scheduled programmes.

  • Page 9: Front Panel

    1.2 Controlling the digital receiver 3 using the digital receiver, you should keep it plugged into a wall socket to be in standby mode so that it can run timer events at any time. 1.2.1 Front panel The front panel of the digital receiver has buttons to control the digital receiver, specific lights and a display to indicate its status.
  • Page 10 4 Introduction There is a USB port on the front panel for firmware update and data transfer.

  • Page 11: Remote Control

    1.2 Controlling the digital receiver 5 1.2.2 Remote control button switches the digital receiver between standby mode and active mode. mutes the sound. Press again to switch it back on. £ ¢ ¡ switches the remote control to television mode to operate your television.
  • Page 12 6 Introduction next service. £ ¢ ¡ displays the services list. See §5.2.1 for more details. It is also used to select a menu item. Navigation buttons are used to navigate in menus or to change values for menu options. £...

  • Page 13: Wireless Keyboard

    1.2 Controlling the digital receiver 7 £ ¢ ¡ switches the output of the TV SCART socket over be- tween the digital receiver and the device connected to the VCR SCART socket. See §4.2.4 for more details. £ ¢ ¡ displays the satellites list with their services list.
  • Page 14 8 Introduction You can operate the digital receiver with the wire- less keyboard as well as the remote control. To be able to use the keyboard, you should plug the keyobard receiver into a USB port on the digital receiver. To see the keyboard map, press the F10 key on the keyboard on the live television screen.

  • Page 15: Common Interface

    1.3 Common Interface 9 1.3 Common Interface There are pay TV services available; these are accessible with the use of a Conditional Access Module (CAM) and a subscription card. A Common Interface (CI) is the slot into which you can insert a CAM. The front of the digital receiver has two common interface slots.
  • Page 16 10 Introduction that is able to descramble two pay services simultaneously. §5.6 for the picture-in-picture feature.

  • Page 17: Setup

    Chapter 2 Setup 2.1 Unpacking Before going any further, check that you have received the fol- lowing items with the digital receiver. • Remote control • Wireless keyboard with USB receiver • Four batteries for the remote control and wireless key- board (AAA 1.5 V) •...
  • Page 18 12 Setup socket. For the power consumption of the digital re- ceiver, refer to Table 2.1. • The wall socket should be near the equipment. Do not run an extension lead to the unit. • The mains plug shall remain readily operable so that it can be removed easily to disconnect the power.

  • Page 19: Rear Panel Connections

    firmly fixed. 3. Turn upside down the digital receiver. 4. Do it with the bottom cover in the same way. 2.3 Rear panel connections The SRP-2100 has a wide range of connections on the back.
  • Page 20 14 Setup Check what connections your television set has in comparison with the digital receiver. LNB 1 IN Satellite broadcasting signal input socket for the first tuner (Current: Max.500mA with overload pro- tection) LNB 1 OUT Satellite broadcasting signal output socket through the first tuner LNB 2 IN Satellite broadcasting signal input socket...

  • Page 21: Connecting Up Your Digital Receiver

    2.4 Connecting up your digital receiver 15 USB port for firmware update and data trans- ON/OFF Power switch (You have to turn on this switch first to use this digital receiver.) Table 2.3: Connectors specifications HDMI High definition video output Left &...

  • Page 22: Connecting To The Antenna

    16 Setup 2.4.1 Connecting to the antenna Whatever sort of connection you have be- tween the digital receiver and the television, you need to connect the digital receiver to the antenna so that it can receive digital televi- sion broadcasts. Connect the antenna ca- ble to the LNB 1 IN connector on the back panel of the digital receiver.

  • Page 23: Connecting To Your Television Set

    2.4 Connecting up your digital receiver 17 and send them to the digital receiver. However, the satellite antenna only sends the frequencies that it can catch with the LNB frequency and polarisation specified by the digital re- ceiver. So if you have linked from the LNB 1 OUT connector to the LNB 2 IN connector, you would have some limitations in using some features such as dual recording.
  • Page 24 18 Setup To use the SCART output For best results with a standard television set, you should use a SCART cable. Plug one end of the cable into the TV socket on the digital receiver, and plug the other end into a free SCART socket on your television.
  • Page 25 2.4 Connecting up your digital receiver 19 To use the Composite video output You need to obtain a Composite video cable (RCA cable) to use the Composite video out- put. Plug one end of the cable into the VIDEO (yellow) socket on the digital receiver, and plug the other end into the matching socket on your television.

  • Page 26: Connecting To Your Video Recorder

    20 Setup 2.4.3 Connecting to your video recorder The digital receiver can also output video through an auxiliary SCART connector to another device such as a video recorder. You need to obtain a SCART cable to link the auxiliary SCART connector. Plug one end of the cable into the VCR socket on the digi- tal receiver, and plug the other end into the matching socket on your video recorder or...
  • Page 27 2.5 Switching on for the first time 21 CAUTION If the digital receiver no longer reacts properly to the remote control commands, the batteries may be flat. Be sure to re- place only with 1.5 V AAA size batteries, and observe the following precautions.

  • Page 28: Service Search

    22 Service Search Chapter 3 Service Search After connecting up the digital receiver, you will need to per- form a service search. NOTE If there is no service stored, you will be not able to access all menus. A  is another name for a . 3.1 Searching for broadcasting services This digital receiver can be operated with both fixed antenna and motorized antenna.

  • Page 29: Configuring Lnb Settings

    3.1 Searching for broadcasting services 23 3.1.1 Configuring LNB settings There are two large frequency bands for satellite broadcasts. One is C band which ranges approximately from 4 to 6 GHz. The other is K band which ranges approximately from 12 to 18 GHz.
  • Page 30 24 Service Search 1; otherwise, set it to Tuner 2. If you have connected the LNB 1 OUT and LNB 2 IN with a loop-through cable, then set the Connection Type option to Loop Through; otherwise, set it to Separated. NOTE Both the LNB 1 IN and LNB 2 IN sockets should be connected to your antennas either directly or via the loop-through ca-...

  • Page 31: Configuring Diseqc 1.2 Settings

    3.1 Searching for broadcasting services 25 Set the DiSEqC 1.0 option and the DiSEqC 1.1 option accord- ing to your antenna configuration. For example, to select the antenna con- nected to the A5 input in the left figure, set the DiSEqC 1.1 option to 2 of 4 and the DiS- EqC 1.0 option to 1 of 4.

  • Page 32: Configuring Usals Settings

    26 Service Search following steps: 1. Choose your desired satellite at the Satellite Name op- tion. 2. Select the tuner that is connected to the motorized an- tenna at the Tuner Select option. 3. Set the DiSEqC Command Mode option to User. 4.
  • Page 33 3.1 Searching for broadcasting services 27 To use the USALS protocol, se- lect the Installation > USALS Setting menu. You should see a screen like the left figure. At first you have to set the Motor- ized DiSEqC 1.3 option to En- able.

  • Page 34: Searching For Services

    28 Service Search 3.1.4 Searching for services To perform a service search, se- lect the Installation > Searching menu. You should see a screen like the left figure. There are in general four service search methods: • searching every service of a satellite, •...
  • Page 35 3.1 Searching for broadcasting services 29 Searching every service of a transponder To search every service of a transponder, take the following steps: 1. Choose your desired satellite at the Satellite Name op- tion. 2. Set the Search Mode option to Manual, and then press £...
  • Page 36 30 Service Search 2. Set the Search Mode option to Advanced, and then press £ ¢ ¡ button to diaply additional options. 3. Choose your desired transponder at the Frequency op- tion or enter it with the numeric buttons. 4. Enter the symbol rate of your desired transponder to the Symbol Rate option with the numeric buttons.

  • Page 37: Copying Services

    3.2 Copying services 31 • To search both free services and pay services, set it to FTA + CAS. To start service search, move down to the Start Search item, £ ¢ ¡ and press the button. The digital receiver will start to search for services and display a list of television and radio services as they are found.

  • Page 38: Editing The Transponder List

    32 Service Search 3.3 Editing the transponder list If you failed to receive services of a transponder because it consists of wrong data, you can solve it by correcting the data. Select the Installation > SAT/TP Edit menu. To change the data of a trans- ponder, take the following steps: 1.

  • Page 39: Resetting To Factory Settings

    3.4 Resetting to factory settings 33 3.4 Resetting to factory settings The digital receiver maintains the following data: • Satellite list • Services list • Favourite list • Timer list • Preference settings You can reset all data of the digital receiver. Select the Instal- lation >...
  • Page 40 You can edit the channel data on your computer by using a channel editor software, Vega, which is available from Top- http://www.i-topfield.com/eng/download/ field’s website, utility_list.asp. With Vega you can do the following:...

  • Page 41: Clearing The Services List

    3.6 Clearing the services list 35 • Adding, deleting or modifying transponder entries • Deleting or modifying service entries • Adding, deleting or modifying favourite groups As to how to use Vega, refer to its user guide, which is accom- panied by the software.

  • Page 42: Preference Settings

    36 Preference Settings Chapter 4 Preference Settings 4.1 Language settings You can select the language in which the menu will be dis- played. In addition to that, you can select the language of audio track and of subtitle track. Select the Settings >...

  • Page 43: Subtitle Language

    4.1 Language settings 37 4.1.2 Subtitle language Set the 1st Subtitle Language option and the 2nd Subtitle Lan- guage option to your desired languages. When you watch a programme, if the programme has a subtitle track of the lan- guage that is specified for the 1st Subtitle Language, it will be displayed.

  • Page 44: Video And Audio Settings

    38 Preference Settings 4.2 Video and audio settings You have to configure the video and audio settings appropriately for your television set and other devices. Select the Settings > A/V Output menu. You should see a screen like the left figure. 4.2.1 High definition television The digital receiver supports various video resolutions from 576 to 1080.

  • Page 45: Television Aspect Ratio

    4.2 Video and audio settings 39 button. Whenever you press it, the video resolution is changed in turn. NOTE You can enjoy only standard definition video with the fol- lowing video outputs: • Composite video output (VIDEO) • SCART output (TV) 4.2.2 Television aspect ratio If you have a wide-screen television, set the TV Aspect Ratio option to 16:9.

  • Page 46: Colour Format

    40 Preference Settings You cannot fully enjoy wide-screen programmes with your normal-screen television as the above figures show. The left figure shows a normal picture displayed in the normal screen. To watch wide-screen programmes in the shape like the cen- tre figure, set the Display Format option to Letter Box.

  • Page 47: Audio Mode

    4.3 Local time setting 41 device since the digital receiver is just a bypass for the video recorder. 4.2.5 Audio mode Basically, there are two audio sources as you can find two audio sockets on the back panel of the digital receiver. You can enjoy only one source or both of them in either stereo or mono.
  • Page 48 42 Preference Settings Settings > Time Select the menu. You should see a screen like the left figure. You can set the clock manually or use the time signal, Greenwich Mean Time (GMT), carried as part of the digital television broadcast. To use Greenwich Mean Time, take the following steps: 1.
  • Page 49 4.3 Local time setting 43 NOTE Daylight saving time adds one hour to the time when the op- tion is set to On. When setting the time offset from Green- wich Mean Time, make sure that time offset does not include daylight saving time.

  • Page 50: Parental Control

    44 Preference Settings 4.4 Parental control In general, television programmes are classified according to the level of violence, nudity and language of their content. When you are watching a programme, you can check its pro- gramme classification on the information box. For the infor- mation box, see §5.2.3.

  • Page 51: To Use Mediahighway Programme Guide

    4.5 To use MediaHighway programme guide 45 Time item is set to Locked, you have to enter the PIN when accessing the Time menu. If you enter a wrong number, you cannot use the menu. To release a locked item, set it to Un- locked.

  • Page 52: Options For Recording

    46 Preference Settings 4.6 Options for recording To set the options for recording, select the Settings > Recording menu. You should see a screen like the left figure. To enable the time-shift function, you should set the Time Shift- ing option to anything other than Disable. The available range for this option is 30 minutes to 5 hours.

  • Page 53: Options For Playback

    4.7 Options for playback 47 4.7 Options for playback To set the options for playback, select the Settings > Playback menu. You should see a screen like the left figure. If you want to play back a recorded file from beginning, set Starting Position option to Beginning.

  • Page 54: Options For On-Screen Display

    48 Preference Settings 4.8 Options for on-screen display To set the options for the on- screen display (OSD), select the Settings > OSD menu. should see a screen like the left figure. To adjust the transparency level of the OSD, set the OSD Trans- parency option as you desire.

  • Page 55: Options For The Front Display

    4.9 Options for the front display 49 only to its end. 4.9 Options for the front display To set the options for the front display, select the Settings > Front Display menu. You should see a screen like the left figure. The front display shows the currently viewed service’s number and name.

  • Page 56: Options For Photo Album

    50 Preference Settings 4.11 Options for Photo Album You can change a time interval and effect of slideshow in the photo album. For the photo album feature, see §8.3. To change the time interval of slideshow, select the Settings > Miscellaneous menu, and then set the Slideshow Time Interval option as you desire.

  • Page 57: Every Day Use

    Chapter 5 Every Day Use 5.1 Volume control £ £ ¢ ¡ ¢ ¡ Use the buttons to alter the volume VOLUME VOLUME to a comfortable level. You may need to adjust the volume on your television set too. To temporarily switch off the sound, press the button.
  • Page 58 52 Every Day Use On the services list, you can see the service information as fol- lows: • Service number and name • Transmitting satellite • Receiving tuner: T1 stands for the first tuner; T2 stands for the second tuner. •...

  • Page 59: The Favourite Service Lists

    5.2 Watching television 53 • By setting the Show Provider option to On, you can view service entries by groups of broadcasters. • To change the name of the highlighted service, select the Rename option, then appears the on-screen keyboard with which you can enter a new name.

  • Page 60: Viewing Programme Information

    54 Every Day Use To display the favourite lists, £ ¢ ¡ press the button at the ser- vices list screen. For the services list, see §5.2.1. To select a favourite list, put the highlight bar on a desired favourite group list and press £...
  • Page 61 5.2 Watching television 55 • Service number and name • Transmitting satellite • Receiving tuner • Transponder information • Signal level and quality • Programme name • Programme classification sign • Programme summary • Broadcasting time • Current time In addition, you might see the following symbols: •...

  • Page 62: Selecting Audio Tracks

    56 Every Day Use 5.2.4 Selecting audio tracks Some programmes are provided with audio tracks in one or more languages. Pressing the button displays available au- dio tracks. Once you select an audio track, that track will be heard. In addition, you can enjoy audio tracks in four sound modes: Stereo, Mono, Left or Right.

  • Page 63: Watching Multifeed Programme

    5.4 Watching multifeed programme 57 £ ¢ ¡ Pressing the button dis- GUIDE plays the electronic programme guide, on which you can see the following: • Scheduled programmes • programme summary • Broadcasting date • Broadcasting time To see detailed information of a desired programme, put the highlight bar on the programme with the button and press the...

  • Page 64: Using Time-Shift

    58 Every Day Use you have to press the button once more to select audio tracks. 5.5 Using time-shift You can pause and resume a live television programme, and even rewind and replay it. When you are watching a pro- gramme and you miss something, you can rewind and replay it.

  • Page 65: Viewing In The Picture-In-Picture Screen Mode

    5.6 Viewing in the picture-in-picture screen mode 59 £ ¢ ¡ • You can jump backward and forward by pressing the £ ¢ ¡ buttons. You can change the jump time at the Jump Time Interval option. See §4.7. • You can change playback speed. See §7.3.2 for slow mo- tion.
  • Page 66 60 Every Day Use £ 2. Pressing the ¢ ¡ button once more minifies the sub- picture, and pressing it once again hides the sub-picture. 3. To display the services list for the sub-picture, press the button. NOTE When a recording is in progress, the available services in the services list may be limited.

  • Page 67: Organising Services

    Chapter 6 Organising Services 6.1 Editing the services list You would have got the services list after service search. You can rename, move, lock or delete service entries on the services list. Select the installation > Edit Ser- vices > Edit Service List menu. You should see a screen like the left figure.
  • Page 68 62 Organising Services service entries will be listed on the right column. To switch back to the television services list, press it again. To change the name of a service, select the Rename and select a desired service; then the on-screen keyboard appears. See §6.3 as to how to use the on-screen keyboard.

  • Page 69: Editing The Favourite Lists

    6.2 Editing the favourite lists 63 Fav–NoFav from favourite services to unfavourite services Provider by broadcaster Transponder by transponder 6.2 Editing the favourite lists You can make your own favourite service lists. In fact, you can define multiple favourite service lists, each being a ‘group’ of chosen services.
  • Page 70 64 Organising Services You can add a favourite service to a group by taking the fol- lowing steps: 1. Put the highlight bar on a desired group entry in the £ ¢ ¡ group list and press the button to select it. The high- light bar then moves to the services list.

  • Page 71: How To Use On-Screen Keyboard

    6.3 How to use on-screen keyboard 65 6.3 How to use on-screen keyboard You can move the highlight key horizontally with the buttons and vertically with the buttons. Pressing the £ ¢ ¡ button on a key enters its let- ter in the input line.

  • Page 72: Recording And Playback

    66 Recording and Playback Chapter 7 Recording and Playback You can record TV programmes into an external hard drive as well as the built-in hard drive. NOTE To use an external hard drive, you must connect the external hard drive to the USB port or the eSATA port of the digital receiver.

  • Page 73: Recording A Programme

    7.1 Recording a programme 67 watching another one only if two among the services are pro- vided through the same transponder. The digital receiver has two tuners so that you can enjoy the following: • While playing a recording back, you can watch a service in the sub-picture using the picture-in-picture feature.

  • Page 74: Instant Recording

    68 Recording and Playback programmes. Topfield is not responsible for damages in- flicted on files that are stored on the hard drive. 7.1.1 Instant recording To instantly record a programme you are watching at present, press the button. Pressing the button will not pause the current recording like it does with a video recorder.

  • Page 75: Timer Recording

    7.1 Recording a programme 69 To stop recording, press the button; then a box like the left figure appears, which shows the programmes currently be- ing recorded. Select record- ing by using navigation buttons £ ¢ ¡ then press button to stop the recording.
  • Page 76 70 Recording and Playback To add a timer recording, se- lect the Recording > Reserva- tion menu, then the timer list will be displayed. To add a new timer £ event, press the ¢ ¡ button, and a box like the left figure appears. Take the following steps: 1.
  • Page 77 7.1 Recording a programme 71 If your favourite programme is broadcast at weekends and you wish to record every episode of the programme, set the Mode option to Every Weekend. 6. Set the Date option to a desired date, on which the digital receiver will turn on.

  • Page 78: Scheduling Recordings Using The Programme Guide

    72 Recording and Playback 7.1.3 Scheduling recordings using the programme guide If the electronic programme guide is properly provided, you can make timer events on it. The instructions on how to make timer recordings using the electronic programme guide are as follows: £...

  • Page 79: Recording A Pay Service Programme

    7.2 File archive 73 7.1.5 Recording a pay service programme You can record a pay service programme without the subscrip- tion card. However, you need the subscription card to play it back because it has not been descrambled. So it is recom- mended to record pay service programmes with a proper sub- scription card so that they can be descrambled and recorded.

  • Page 80: To Delete A Recording

    74 Recording and Playback Recording Select > Recorded Program menu or alternatively press the but- ton to display the recorded programme list. The file in- formation is comprised of the following elements: file num- ber, file name, recording time, running time, file size and so on. You can play, move, delete, rename and lock a recording file.

  • Page 81: To Rename A Recording

    7.3 Playing back a recording 75 3. Set the Lock option to Locked. £ ¢ ¡ 4. Press the button. EXIT 5. The lock symbol ( ) is displayed on it. If you select a locked recording to play it back, you will be asked for your personal identification number.

  • Page 82: To Navigate Using The Progress Bar

    76 Recording and Playback 1. Select the Recording > Recorded Program menu or alternatively press the button to display the list of recorded programmes. 2. Put the highlight bar on a desired recording and press £ ¢ ¡ button, then an option box pops up. 3.

  • Page 83: To Play In Slow Motion

    7.3 Playing back a recording 77 • To jump to the end, press the button. • To hide the progress bar, press the button again. 7.3.2 To play in slow motion To watch in slow motion during a playback, press the but- ton.

  • Page 84: To Play Back A Recording Repeatedly

    78 Recording and Playback £ 2. To add a bookmark, press the ¢ ¡ button at a desired scene, then you will see a small pointer appear above the progress bar like in the picture above. £ 3. To jump forward to the next bookmark, press the ¢...

  • Page 85: To Play Back A Scrambled Recording

    7.3 Playing back a recording 79 4. The selected recordings are played in the sequence that they are numbered. 5. To jump to the beginning of the next recording in the queue, press the button to display the progress bar, then press the button.

  • Page 86: Editing A Recording

    80 Recording and Playback In the same manner as making a timer recording, you can make a timer descrambling. See §7.1.2 for timer recording. begin with, you should move recordings you want to de- scramble to the AutoDescramble folder. Press the button in the timer list to launch the auto-descrambling option box.

  • Page 87: Copying A Recording

    7.5 Copying a recording 81 £ ¢ ¡ 5. Press the button, then the edit options are displayed. 6. If you choose the Cut option, it will be removed from the original recording and discarded. 7. If you choose the Save option, the cut will be saved in a new file which is named after the original recording with a suffix of ‘CUT’...
  • Page 88 82 Recording and Playback which is connected to the digital receiver, select the option to £ ¢ ¡ External. With pressing the button, you get asked for con- firmation. Formatting will start with the choice of Yes. NOTE The hard drive on the digital receiver will be formatted in the JFS file system.

  • Page 89: Entertainment

    Chapter 8 Entertainment This digital receiver provides several special features for enter- tainment. NOTE To fully enjoy all of the features described in this chapter, you had better configure the network settings properly. As to how to configure the network settings, refer to §9.2. 8.1 Copying files NOTE If your external hard drive is formatted in the FAT16/32 or...
  • Page 90 84 Entertainment To copy from the internal to the external hard drive take the following steps: 1. Connect an external hard drive to the digital receiver. 2. Press the button and then press the button to select a desired file list except the External list. £...

  • Page 91: Playing Back Mp3 Files

    8.2 Playing back MP3 files 85 8.2 Playing back MP3 files You can enjoy music or audio books in MP3 format on the dig- ital receiver. Refer to §8.1 as to how to copy a file from an ex- ternal hard drive into the built-in hard drive of the digital receiver.

  • Page 92: Viewing Image Files

    86 Entertainment 8.3 Viewing image files You can view image files in jpg format by performing the fol- lowing steps: 1. Select the Entertainment > Photo Album menu, and then press the button to display the list of image files. £...

  • Page 93: Playing Back Youtube Contents

    This digital receiver supports only version 3.x, 4.x, 5.x, and 6.x of the Divx format. 8.5 Playing back YouTube contents YouTube is a video sharing website where users can upload, view and share video files. With the SRP-2100, you can access YouTube and play back various contents.

  • Page 94: Sharing Image Files By Yahoo Flickr

    88 Entertainment When you select the Entertain- ment > YouTube, you should see a screen like the left figure. To play back a YouTube content, select a content with the £ ¢ ¡ buttons and press the button. To play back the content £...
  • Page 95 8.6 Sharing image files by Yahoo Flickr 89 To use this function, select the Entertainment > Flickr. You can see image files which be- long to a specific user by adding a user. To add a user, take the following steps: £...

  • Page 96: Shoutcast Internet Radio

    90 Entertainment 8.7 SHOUTcast Internet radio SHOUTcast™ Radio is one of the largest directories of profes- sionally and community programmed online radio stations in the world. Today SHOUTcast Radio features over 25,000 sta- tions from around the globe. If you are into pop or rock music, want to check out local or world programming, you’re sure to find something you like on SHOUTcast Radio.

  • Page 97: Google Weather Forecast

    8.8 Google weather forecast 91 8.8 Google weather forecast You can view the weather of your city or other cities. To view the weather, select the Entertainment > Weather, then you should see a screen like the left figure. To change a city, take the following steps: £...
  • Page 98 92 Entertainment Entertainment > Select the Home Media menu, then you should see a screen like the left figure. The name, [DLNA] Topfield PVR, specified at the DMS Name option is used as an identifier for other DLNA de- vices. Of course you can change that name as you pleased.

  • Page 99: Network Game

    8.10 Network game 93 3. Select a media file you want to play, then the digital re- ceiver would pull and play the selected media file if it can play back. 4. If you want to make any other DLNA device play your £...
  • Page 100 94 Entertainment Selecting game mode When you select the Entertain- ment > Game > Battle Tank (Sin- gle), you should see a screen like the left figure. You can select game mode as you desire. If you want to out of the game, select the EXIT option.
  • Page 101 8.10 Network game 95 Table 8.1: Buttons for selection Remote Control Keyboard Action 1 Player 2 Player 1 Player 2 Player Left Left arrow Right Right arrow Up arrow Down Down arrow £ £ ¢ ¡ ¢ ¡ Select Space bar Enter You can see the selected character’s information of the 1 Player on the left bottom of the screen.
  • Page 102 96 Entertainment Selecting a map After buying items, you should see a screen like the left figure. Select a map with the buttons. After selecting a map, select the START on the screen. £ £ ¢ ¡ ¢ ¡ Select the START using the button and press the MENU button.

  • Page 103: Network Mode

    8.10 Network game 97 You can see the direction and speed of wind. You can see the information of the character as follows: ENERGY displays the character’s energy. POWER displays the power of shot. MOVE displays the movement bar. You can check your position and enemy’s position on this mini-map.
  • Page 104 98 Entertainment NOTE Refer to the Battle Tank user guide as to how to play Battle Tank in network mode. You can download it from the Top- field website, http://www.i-topfield.com.

  • Page 105: Accessing Via Network

    Chapter 9 Accessing via Network NOTE The following section describes complex functions that should only be used by owners with advanced computer knowledge. This digital receiver provides features of web service and FTP service, by which through the network you can make sched- uled recordings, or transfer recording files to your computer.

  • Page 106: Configuring The Router

    100 Accessing via Network NOTE The web server and FTP server of the digital receiver do not work in standby mode. So it must be powered up at all times if you wish to use the web service at any time. 9.1 Configuring the router In this section, the setup program of WRT54G, which is a router manufactured by Linksys, will be referred to as an example of...

  • Page 107: To Access Over The Internet

    9.1 Configuring the router 101 9.1.2 To access over the Internet When you are away from home, you can access the digital re- ceiver inside your home if your router is configured to route access to the digital receiver by means of port forwarding. Via this feature, your router will lead you to the digital receiver when you access your router with its IP address.

  • Page 108: Configuring The Network Setting On The Digital Receiver

    102 Accessing via Network which should be supported by your router. 2. Configure your router with the account so that it can communicate with the web site. Whenever a new dynamic IP address is assigned to the router, it will inform the DDNS service provider of the new IP ad- dress.

  • Page 109: Accessing The Web Server

    9.3 Accessing the web server 103 cumbersome thing, you had better assign a static IP address rather than dynamic one. To assign a static IP address, set the Connection Type option to Static, then the IP Address, Subnet Mask, Gateway, Primary DNS and Secondary DNS options become enabled.
  • Page 110 104 Accessing via Network You cannot only download but also upload recording files or MP3 files in the File Management page. However, if you wish to download or upload a file of which size is 2 gigabyte or more, it is recommended using the FTP server rather than the web server.

  • Page 111: Accessing The Ftp Server

    9.4 Accessing the FTP server 105 NOTE The maximum number of user connections is one. This means that you cannot access the web server while someone else is occupying it. 9.4 Accessing the FTP server To Access to the FTP server, set the Installation > Network Set- ting >...
  • Page 112 106 Accessing via Network You can log into the FTP server with the user name and pass- word specified in the Installation > Network Setting > User Info menu. NOTE The maximum number of user connections is one. This means that you cannot access the FTP server while someone...
  • Page 113 9.4 Accessing the FTP server 107 else is occupying it.

  • Page 114: Topfield Application Program

    Interface) libraries that available http: from Topfield’s website, //www.i-topfield.com/eng/ download/utility_list.asp. One is Linux version, and the other is Cygwin version. Cygwin is a Unix-like environment and command-line inter- face for Microsoft Windows. Your TAPs will be run with the following conditions: •...
  • Page 115 • TAPs must be situated in the Program Files folder; if they are placed in any other folder, they will be ignored. As to how to transfer your TAPs to the digital receiver, refer to §8.1 or Chapter 9. To run a TAP in the digital receiver, take the following steps: 1.
  • Page 116 110 Topfield Application Program toStart folder. If you want to abort the execution of it, press £ ¢ ¡ button at start-up.

  • Page 117: Firmware Update

    firmware and the firmware update tool, which runs on http: most versions of Windows, from the Topfield website, //www.i-topfield.com. 11.1 From a memory stick If you have a USB memory stick, you can update the firmware from it by taking the following steps: 1.

  • Page 118: From The Firmware Server Via The Internet

    112 Firmware Update 5. Place the highlight bar on the right firmware file and £ ¢ ¡ press the button, and a countdown will be displayed on the front display of the digital receiver. 6. When the message of ‘END’ appears, restart the digital receiver.

  • Page 119: Over The Air

    Frequency 12603 MHz appointed by the manufac- Symbol Rate 22000 KS/s turer, Topfield, for firmware Polarisation Horizontal update. This transponder information can be changed. You can get the information from the website, http://www.i-topfield.com. Selecting the Start command starts firmware update.

  • Page 120: A Universal Remote Control

    114 Universal Remote Control Appendix A Universal Remote Control The universal remote control allows you to operate the most important functions such as power on/off and volume control on your television, audio-video receiver, or DVD player. For the use of buttons, refer to Table A.1. To be able to control the device, you must adapt the remote control to the device first.
  • Page 121 1. Turn on the device you want to operate. 2. Point the remote control at the remote sensor on the de- vice. £ ¢ ¡ 3. Hold down the and device button simultaneously for two seconds until the light flashes on. For example, if you want to operate your television with the remote £...
  • Page 122 116 Universal Remote Control Table A.1: Operating buttons Power on/off Power on/off Power on/off £ ¢ ¡ Volume up Volume up Volume up VOLUME + £ ¢ ¡ Volume down Volume down Volume down VOLUME Mute Mute £ ¢ ¡ Channel up CHANNEL + £...

  • Page 123: Code List For Television Sets

    A.1 Code list for television sets 117 A.1 Code list for television sets ANITECH 049, 063, 076, 195, 407 ANSONIC 045, 049, 063, 107, 112, ACCENT 049, 063 195, 210, 242, 391, 413, ACEC ACURA APOLLO ADMIRAL 065, 076, 163, 171, 190, ARC EN CIEL 029, 034, 074, 182, 186, 307, 324, 369...
  • Page 124 118 Universal Remote Control BARCO BUSH 107, 355, 371, 372, 422 006, 018, 049, 076, 094, 106, 107, 123, 134, 139, BASIC LINE 006, 031, 049, 107, 123, 142, 143, 172, 179, 195, 159, 195, 207, 226 209, 223, 225, 226, 232, BASTIDE 239, 307, 379, 416 BAUR...
  • Page 125 A.1 Code list for television sets 119 CROSLEY 054, 065, 090, 093, 094, 104, 107, 139, 324, 407, DUAL 049, 050, 063, 095, 107, 139, 156, 168, 182, 242, 243, 379, 414, 416, 423, CROWN 049, 063, 154, 163, 170, 195, 209, 232, 372, 407, DUAL-TEC 195, 168, 050, 040...
  • Page 126 120 Universal Remote Control EUROPHON FORMENTI 044, 045, 046, 049, 050, 090, 107, 113, 139, 307, 063, 068, 107, 120, 168, 324, 379, 407 318, 336, 379, 413 FORMENTI-PHOENIX 050, 075, 104, 113, 148, EXPERT 107, 236, 242, 425 FORTRESS EXQUISIT 190, 324 049, 063, 413...
  • Page 127 A.1 Code list for television sets 121 GRAETZ HIKONA 049, 063, 090, 104, 136, 139, 153, 159, 162, 171, HINARI 004, 018, 042, 049, 066, 172, 198, 225, 307 094, 107, 119, 123, 133, GRANADA 013, 018, 033, 041, 063, 134, 139, 143, 179, 195, 102, 104, 105, 112, 120, 209, 232, 307, 327...
  • Page 128 122 Universal Remote Control INNO HIT 044, 046, 049, 050, 063, 066, 102, 123, 155, 195, KAISUI 006, 031, 049, 050, 063, 217, 379, 407, 413 123, 195, 207, 379, 380 INNOVATION 049, 063 KAMOSONIC INTERACTIVE KAMP INTERBUY 076, 195, 413 KAPSCH 107, 172, 236, 242, 408 INTERFUNK...
  • Page 129 A.1 Code list for television sets 123 LENCO MAGNAFON 049, 063, 107, 195, 408 045, 046, 050, 068, 075, 090, 120, 235, 336, 379, LENOIR 050, 195 LESA MAGNAVOX 018, 042, 049, 063 LEYCO 049, 063, 076, 094, 102, MANDOR MANESTH 063, 076, 094, 113, 134, LEYEO...
  • Page 130 124 Universal Remote Control MITSUBISHI 013, 018, 019, 021, 049, 063, 125, 225 063, 065, 105, 124, 131, NESCO 042, 413 132, 143, 157, 164, 183, NETSAT 049, 063 190, 244, 245, 246, 252, NETWORK 326, 330, 331 NEUFUNK 049, 063, 195, 435 MIVAR 043, 046, 050, 058, 072, NEW WORLD...
  • Page 131 A.1 Code list for television sets 125 ORBIT PAUSA 049, 063 PAUZA ORION 004, 042, 045, 049, 051, PERDIO 063, 076, 094, 113, 131, 049, 063, 102, 107, 113 PERFEKT 134, 139, 150, 179, 191, 049, 063 195, 199, 216, 314, 331, PERSHIN 366, 367, 426 PHILCO...
  • Page 132 126 Universal Remote Control PROLINE RBM (UK) 030, 049, 102, 112, 191, 366, 436 190, 218, 436 PROSONIC RECOR 049, 063, 085, 149, 151, 049, 063 195, 225, 379, 421, 431 RECTILIGNE 049, 063 PROTECH 045, 063, 076, 139, 163, REDIFFUSION 018, 059, 105, 139, 171, 195, 379, 413, 416...
  • Page 133 A.1 Code list for television sets 127 SAMBERS SENTRA 045, 046, 068, 075, 090, 123, 139, 141, 195 120, 155, 336, 407 SERINO 380, 435 SAMSUNG SHARP 050, 063, 066, 076, 102, 018, 094, 143, 170, 190, 155, 189, 195, 217, 359, 206, 214, 302, 362, 364 360, 365, 379, 421 SHORAI...
  • Page 134 128 Universal Remote Control SOUND & VISION 031, 045, 123 040, 050, 064, 168, 195, 213, 218, 242, 243, 379, SOUND WAVE 049, 113, 163 SOUNDESIGN TECH LINE 049, 063, 195 SPECTRA TECHICA SSANGYONG TECHNEMA STANDARD 049, 050, 063, 113, 123, TECHNICS 099, 315 195, 379...
  • Page 135 A.1 Code list for television sets 129 THORN UNIVERSUM 049, 053, 063, 103, 106, 003, 004, 012, 018, 020, 141, 158, 218, 222, 321, 049, 063, 074, 076, 094, 329, 408, 409, 411, 419 107, 131, 155, 163, 165, 172, 195, 202, 206, 210, THORN-FERGUSON 032, 073, 074, 076, 080, 213, 235, 244, 245, 246,...
  • Page 136 130 Universal Remote Control WEGAVOX WELTBLICK 063, 113 YAMISHI 006, 049, 063, 123, 379, WESTINGHOUSE 063, 094 WESTON YOKAN 049, 063 WHARFEDALE 049, 063 YOKO 049, 050, 063, 076, 123, WHITE 195, 379, 413, 421 WHITE WESTINGHOUSE 049, 050, 063, 113, 213, YORX WINCO WINDSTAR...

  • Page 137: Code List For Dvd Players

    A.2 Code list for DVD players 131 A.2 Code list for DVD players 3 DLAB KENWOOD 007, 034, 043, 050, 069 AIWA KISS ALBA AMSTRAD A-TREND LAWSON LECSON LENCO BLUE SKY LG (GOLDSTAR) 005, 055, 064, 070 BUSH 078, 079, 082, 085 LIFETEC LOGIX CINE ULTRA...
  • Page 138 132 Universal Remote Control PIONEER TEAC 010, 012, 020, 038, 041, 046, 065, 071, 074 TECHNICS PROLINE TENSAI 076, 079 PROSCAN 003, 004, 037 TEVION PROVISION THOMSON 003, 004, 073 TOKAI TOKIWA RAITE TOSHIBA 009, 010, 033, 057, 058 003, 004, 018, 037 TV PROJECT 034, 078 REVOY...

  • Page 139: Code List For Audio-Video Receivers

    A.3 Code list for audio-video receivers 133 A.3 Code list for audio-video receivers HARMAN_KARDON 231, 233, 153, 154, 118, ADCOM 082, 092, 225, 161, 023, 148, 149 HITACHI AIWA 170, 018, 104, 202, 203, 213, 211, 188 AKAI INTEGRA ANTHEM 127, 128 ARCAM 141, 255...
  • Page 140 134 Universal Remote Control SAMSUNG SANSUI 040, 048, 110, 065, 228, ONKYO 029, 017, 046, 108, 080, SANYO 047, 059 OPTIMUS 026, 041 SCOTT OUTLAW SHARP 026, 094, 131, 175 SHERWOOD 024, 102, 106, 246 PANASONIC 032, 195, 219, 177, 098, SONY 018, 247, 248, 166, 101, 184, 218, 025, 179, 180,...
  • Page 141 INDEX 135 Index 1st Audio Language, AutoStart, 1st Subtitle Language, avi, 2nd Audio Language, 2nd Subtitle Language, Battle Tank, 4:3, Battle Tank (Network), 16:9, Battle Tank (Single), 93, 22 kHz, bmp, Brightness in Operation Mode, A/V Output, Access Control, Brightness in Standby Mode, Active, Button, Add to Fav,...
  • Page 142 136 INDEX ENERGY, Common Interface, Component, EPG, EPG Gathering Time, Conditional Access Module, Connection Type, 24, 102, eSATA, 14, Cover, Every Day, Cut, Every Weekday, Every Weekend, Cygwin, Export System Data, Date, Daylight Saving Time, F10, Default, 53, Factory Setting, Default PIP Size, Fav–NoFav, 53, Delete, 53,...
  • Page 143 INDEX 137 LNB Power, Hard of Hearing, LNB Setting, HD Output, Local Time, HDMI, 14, 17, Lock, 53, 62, Locked, high definition, Home Media, Loop Through, Home Transponder, Main Display Scrolling, Import System Data, Manual, Info Box Display Time, Media Player, Info Box Position, MediaHighway, MediaHighway EPG,...
  • Page 144 138 INDEX Program Files, Network Firmware Upgrade, program files list, progress bar, Network Search, 28, Provider, 53, NEW, No block, radio services list, Normal, 42, Record, normal-screen television, Recorded Program, 69, 74, 76, ON/OFF, recorded programme list, Once, Recording, One Time, Recording Drive, Recover System Data, on-screen display,...
  • Page 145 INDEX 139 Services Copy, Time Shift Storage, Time Shifting, 46, 58, services list, Share, timer list, Share Device List, Timer Recording Duration, SHOUTcast, Total block, Show Provider, Transponder, 26, 27, 42, 53, Size, transponder, Slideshow Effect, Trick Mode Level, Slideshow Time Interval, Tuner, Tuner 1, SMATV, 28,...
  • Page 146 140 INDEX Web Server, Weekly, wide-screen television, XviD, Y/Pb/Pr, YouTube, 87,...
  • Page 147 At any time during the life of a product Topfield Co., Ltd. may change or modify the hard- ware or software on any product to introduce new features or improve the functionality of the product. Copyright © 2010, Topfield Co., Ltd. All rights reserved. English version http://www.i-topfield.com 110T-C8AC2-701-1...

Table of Contents
