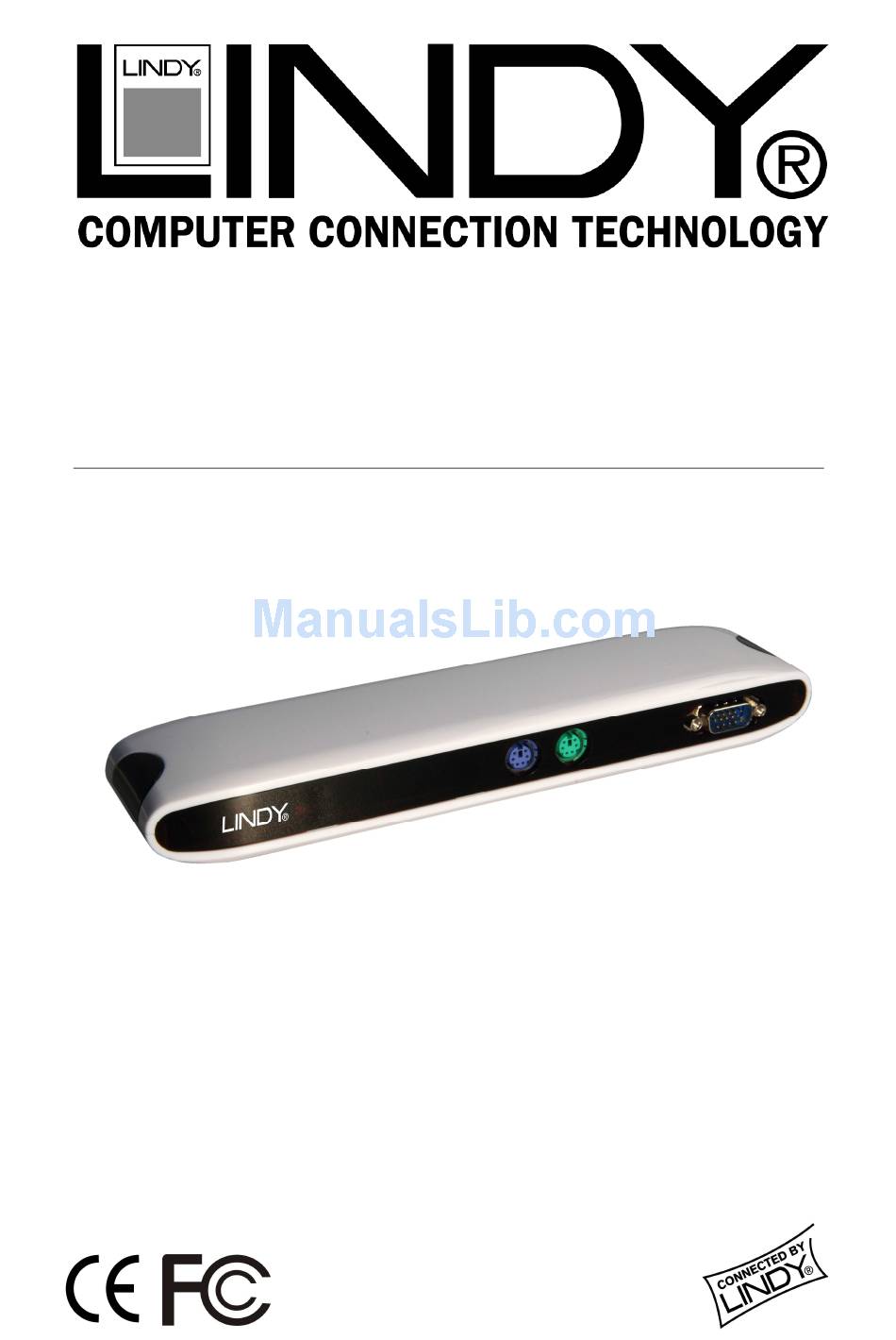

USB 2.0 VGA LAN DOCK
User Manual
English
LINDY No. 42984
www.lindy.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 42984 and is the answer not in the manual?

Questions and answers

Related Manuals for Lindy 42984

Summary of Contents for Lindy 42984

  • Page 1 __________________________________________________________________ USB 2.0 VGA LAN DOCK User Manual English LINDY No. 42984 www.lindy.com...

  • Page 2: Table Of Contents

    Index INTRODUCTION ............................3 1.1......................3 EATURES AND PECIFICATIONS 1.2........................3 YSTEM EQUIREMENTS 1.3........................... 4 ACKAGE ONTENTS 1.4............................4 ONNECTORS 1.5........................5 VAILABLE UNCTIONS 1.6. LED I ..........................5 NDICATOR INSTALLING THE USB 2.0 LAPTOP DOCKING STATION WITH VIDEO ........6 2.1.

  • Page 3: Introduction

    1. Introduction Thank you for purchasing the LINDY USB 2.0 VGA LAN DOCK. The USB 2.0 VGA LAN DOCK is an intelligent expansion module, which connects to a PC or notebook via Universal Serial Bus (USB) port and VGA output port, providing one high-speed RS-232 serial port, one printer port, one PS/2 keyboard &...

  • Page 4: Package Contents

    1.3. Package Contents The product you purchased should contain the equipment and accessories shown as follows: USB 2.0 Laptop Docking Station with Video 3ft (90cm)VGA/USB combo cable 5V, 2A DC power adapter CD Driver User Manual 1.4. Connectors One DB-9 RS-232 serial connector supports baud rates from 1,200 to 115.2K One DB-25 parallel connector supports IEEE-1284 bi-directional printers One mini-din for PS/2 keyboard, one mini-din for PS/2 mouse...

  • Page 5: Available Functions

    1.5. Available Functions The available functions of USB 2.0 Laptop Docking Station depend on the status of power supplied: Bus powered Connect the USB/VGA combo Y cable to your PC to provide bus power. When you provide bus power only, the PS/2 mouse & keyboard, RS232, printer and Ethernet ports will be enabled.

  • Page 6: Installing The Usb 2.0 Laptop Docking Station With Video

    2. Installing the USB 2.0 Laptop Docking Station with Video Before connecting USB 2.0 Laptop Docking Station with Video to your computer, please install the necessary drivers first. Please use the driver CD of USB 2.0 Laptop Docking Station with Video, the “USB 2.0 Laptop Docking Station Driver Installer”...
  • Page 7 Fig Win98-Me-Setup-3 D. Select “I accept the terms of the license agreement” and click “Next” to continue. Fig Win98-Me-Setup-4 E. Press “Finish” to complete the setup program. Fig Win98-Me-Setup-5 F. The “USB-Serial” drivers have been installed.

  • Page 8: Windows 2000/Xp32 Driver Setup

    Fig Win98-Me-Setup-6 G. The USB-Printer driver files have been copied to your system, but the installation is not complete yet until USB enumeration is done later. Fig Win98-Me-Setup-7 2.1.2. Windows 2000/XP32 Driver Setup A. The driver setup for Windows 2000 and Windows XP 32 bits are similar, only the detected OS is different.
  • Page 9 Fig Win2K-XP32-Setup2 D. Press “Finish” to complete the setup program. Fig Win2K-XP32-Setup3 E. The “USB-Lan” drivers have been installed. Fig Win2K-XP32-Setup-4 F. The “USB 2.0 Laptop Docking Station Driver Installer” will launch USB-Serial installer automatically.
  • Page 10 Fig Win2K-XP32-Setup-5 G. Click “Next” to continue. Fig Win2K-XP32-Setup-6 H. Select “I accept the terms of the license agreement” and click “Next” to continue. Fig Win2K-XP32-Setup-7 I. Press “Finish” to complete the setup program. Fig Win2K-XP32-Setup-8...

  • Page 11: Windows Xp64 Driver Setup

    J. The “USB-Serial” drivers have been installed. Fig Win2K-XP32-Setup-9 2.1.3. Windows XP64 Driver Setup A. The USB-Printer driver is embedded in Microsoft Windows and not necessary to install. Fig XP64-Setup-1 B. The “USB 2.0 Laptop Docking Station Driver Installer” will launch USB-Lan installer automatically.

  • Page 12: Windows Vista 32/64 Driver Setup

    Fig WinXP64-Setup3 D. The “USB-Lan” drivers have been installed. Fig WinXP64-Setup-4 E. The USB-Serial driver files have been copied to your system, but the installation is not complete yet until USB enumeration is done later. Fig WinXP64-Setup-5 2.1.4. Windows Vista 32/64 Driver Setup A.
  • Page 13 Fig Vista-Setup-1 C. The “USB 2.0 Laptop Docking Station Driver Installer” will launch USB-Lan installer automatically. Please click “Finish” to complete the setup program. Fig Vista-Setup2 D. The “USB-Lan” drivers have been installed. Fig Vista-Setup-3 E. The “USB 2.0 Laptop Docking Station Driver Installer” will launch USB-Serial installer automatically.
  • Page 14 Fig Vista-Setup-5 G. Select “I accept the terms of the license agreement” and click “Next” to continue. Fig Vista-Setup-6 H. Press “Finish” to complete the setup program. Fig Vista-Setup-7 I. The “USB-Serial” drivers have been installed.

  • Page 15: Hardware Installation

    Fig Vista-Setup-8 2.2. Hardware Installation Power on your computer and make sure that the USB and VGA ports are enabled and working properly. Put the Driver CD into CD-ROM drive of your PC or Notebook. Connect the power adapter to the USB 2.0 Laptop Docking Station with Video (to utilize full functionality).
  • Page 16 Insert the “Windows 98” CD into CD-ROM drive and press “Next” to continue. Fig. Enum98-B1 Click “Search for the best driver for your device” and press “Next” to continue. Fig. Enum98-B2 Click “Specify a location” and press “Next” to continue. iii.
  • Page 17 Fig. Enum98-B4 Press “Finish” to complete the installation of USB HUB. Fig. Enum98-B5 C. USB Composite Device Enumeration Please insert the “Windows 98” CD into your CD-ROM drive and press “Next” to continue. Fig. Enum98-C1 Click “Search for the best driver for your device” and press “Next” to continue.
  • Page 18 Fig. Enum98-C2 Click “Specify a location” and press “Next” to start the searching iii. process. Fig. Enum98-C3 Press “Next” to start the installation process. Fig. Enum98-C4 Press “Finish” to complete the installation of Composite Device.
  • Page 19 Fig. Enum98-C5 D. Ethernet Port Enumeration Please insert the USB 2.0 Laptop Docking Station with Video CD into your CD-ROM drive and press “Next” to continue. Fig. Enum98-D1 Click “Search for the best driver for your device” and press “Next” to continue.
  • Page 20 Fig. Enum98-D3 Press “Next” to start the installation process. (Windows might ask you to insert the “Windows 98” CD during the installation process). Fig. Enum98-D4 Press “Finish” to complete the installation of Ethernet Port. (Restart Windows might necessary) Fig. Enum98-D5 E.
  • Page 21 press “Next” to continue. Fig. Enum98-E1 Click “Search for the best driver for your device” and press “Next” iii. to continue. Fig. Enum98-E2 Click “Specify a location” and press “Next” to start the searching process. Fig. Enum98-E3 Press “Next” to start the installation process.

  • Page 22: Windows 2000/Xp32/Vista Usb Device Enumeration

    Fig. Enum98-E4 Press “Finish” to complete the installation of USB Human Interface Device. Fig. Enum98-E5 vii. All drivers are installed complete, please close the program. Fig. Enum98-OK 2.3.2. Windows 2000/XP32/Vista USB Device Enumeration All USB devices on USB 2.0 Laptop Docking Station with Video will enumerate automatically since all the drivers have been installed.

  • Page 23: Windows Xp64 Usb Device Enumeration

    2.3.3. Windows XP64 USB Device Enumeration A. USB-to-Serial Port Enumeration Please select “No, not this time” and press “Next” to continue. Fig. EnumXP64-1 Please select “Install the software automatically (Recommended)”, and click “Next” to continue. Fig. EnumXP64-2 Click “Finish” to complete the USB-to-Serial driver enumeration. iii.

  • Page 24: Important Set Up Info

    B. Other USB Device Enumeration The other USB devices on USB 2.0 Laptop Docking Station with Video will enumerate automatically since their drivers have been installed. Fig. EnumXP64-OK 2.4. Important Set Up Info Before connecting the printer to the parallel port of USB 2.0 Laptop Docking Station with Video, the printer driver must be installed on your computer in advance, otherwise it might print an unknown format of characters.

  • Page 25: Checking For Proper Installation

    2.5. Checking for Proper Installation Please click on Start, Settings, Control Panel, double-click System, and Device Manager. Please double check “Human Interface Devices”, “Keyboard”, “Mouse”, “Network adapters”, “Ports”, and “Universal serial bus controller” on the dialog box and see if they are working properly.
  • Page 26 Fig.4...

  • Page 27: Setting Up The Printer Device

    2.6. Setting Up the Printer Device Follow the steps below to connect your printer to the USB 2.0 Laptop Docking Station with Video with your PC: 2.6.1. For Windows 98/98SE/ME: Connect the USB 2.0 Laptop Docking Station with Video to your printer with the parallel cable and turn on the printer.
  • Page 28 Fig.6 Click Details folder tab and change the printer port to LPT2:(USB-to- Parallel Port.) (Ref. Fig.7) Fig.7 If you do not have a printer installed yet, go to Start, Settings, Printers, and choose Add Printer. The Add Printer Wizard will start and assist you to install a new printer device.

  • Page 29: For Windows 2000/Xp/Vista

    Windows will ask you which port the printer will be used, choose LPT2: USB to Parallel Port. (Ref. Fig.8) Follow the instructions to complete the installation. Run Print Test Page to see if the printer is working without any problem Fig.8 2.6.2.

  • Page 30: Setting Up The Hyperterminal With Usb To Serial Port

    If you do not have a printer installed yet, click on Start, Settings, Printers and choose Add Printer. The Add Printer Wizard will start and assist you to install a new printer device. Select the printer manufacturer and model name from the list provided by the wizard or use the printer driver diskette came with your printer.
  • Page 31 Fig.11 If you have setup HyperTerminal before, please go to Start, Programs, Accessories, Communications, HyperTerminal. Click File and choose Properties. The Properties dialog page will appear on your screen. If it is your first time to setup HyperTerminal, you will see the following page during the setup procedure.

  • Page 32: Uninstalling The Usb 2.0 Laptop Docking Station With Video

    3. Uninstalling the USB 2.0 Laptop Docking Station with Video If you want to remove USB 2.0 Laptop Docking Station with Video and its driver, please follow the steps below: 3.1. Removing the device Please unplug the USB cable. 3.2. Uninstalling the driver 3.2.1.
  • Page 33 Reboot your Windows system to complete.

  • Page 34: For Windows 2000/Xp32 (Remove Lan, Serial Driver)

    3.2.2. For Windows 2000/XP32 (Remove LAN, Serial Driver): In [Control Panel], [Add/Remove Program], remove “AX88772_2KXP” to uninstall USB-LAN driver. In [Control Panel], [Add/Remove Program], remove “PL2303 driver installer” to uninstall USB-Serial driver. 3.2.3. For Windows XP64 (Remove LAN, Serial Driver ): In [Control Panel], [Add/Remove Program], remove “AX88772_XP 64bit”...

  • Page 35: Trouble Shooting

    4. TROUBLE SHOOTING Q: I installed the driver for the USB 2.0 Laptop Docking Station with Video under Windows XP/Vista operating system but there is no Pinter Port available in the device manager however the other Ports ( Serial ,Mouse, Keyboard and USB) are OK . A: The driver for USB to Printer converter on Windows 2000 and XP/Vista is not required.
  • Page 36 Q: I am getting an “Unknown Device” error. A: If the installation process is completed and some of the devices still don' t work, please click on Start, Settings, Control Panel, double-click System, and Device Manager. Check “Human Interface Devices”, “Keyboard”, “Mouse”, “Network adapters”, “Ports”, and “Universal serial bus controller”...
  • Page 37 with USB 2.0 Laptop Docking Station with Video first, and then connect USB 2.0 Laptop Docking Station with Video to computer' s USB port. CE Certification This equipment complies with the requirements relating to electromagnetic compatibility, EN55022/EN55024 class B for IEC/EN61000-4-2/3 the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility.
