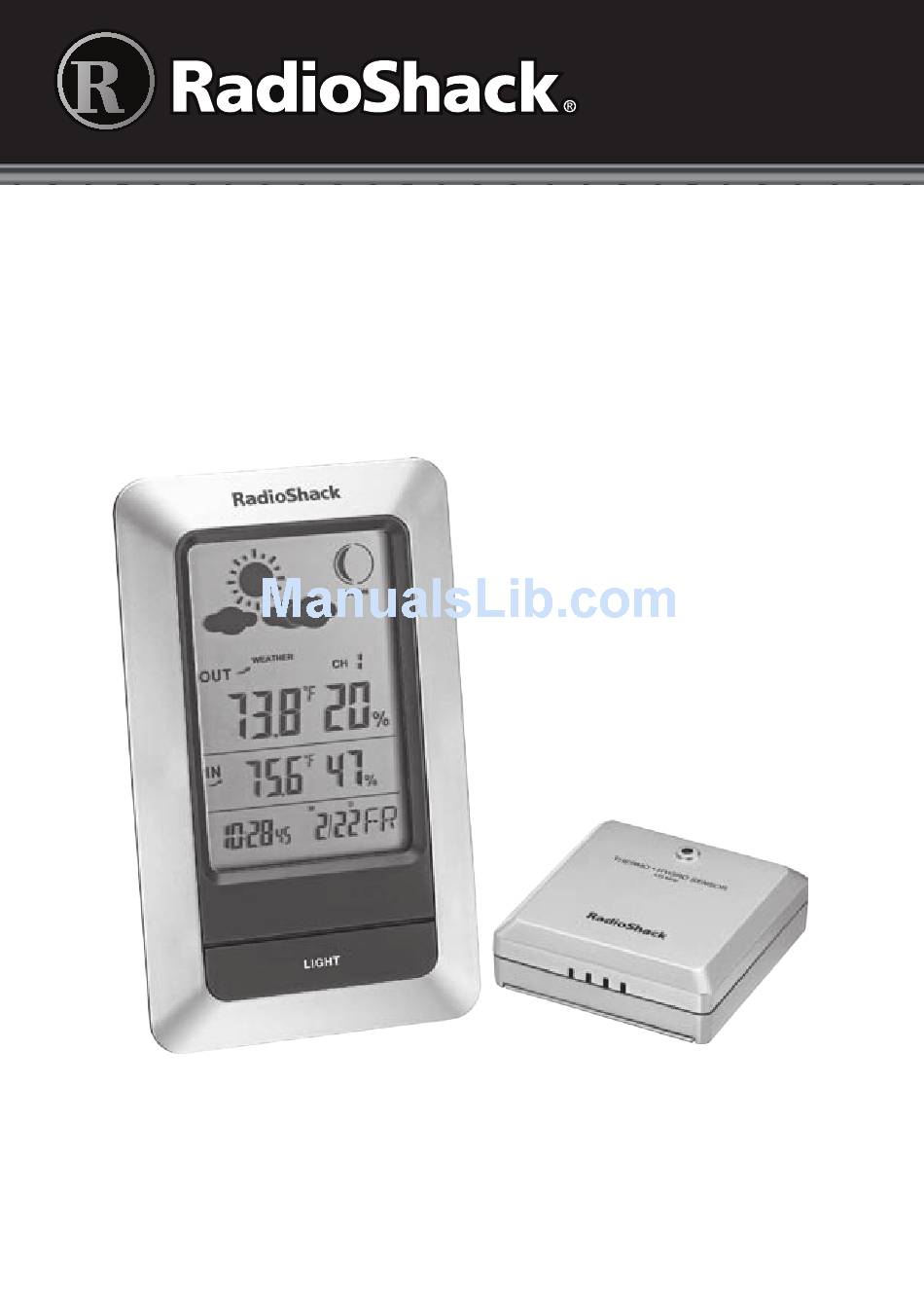

- Page 1 User’s Guide 6300772 Indoor/Outdoor Wireless Weather Forecaster Thank you for purchasing your Wireless Weather Forecaster from RadioShack. Please read this user’s guide before installing, setting up, and using your new weather forecaster.
-
Page 2: Package Contents
Package Contents • Weather Forecaster • Remote Sensor • S crews (2) • User’s Guide Features • Transmits wirelessly up to 98 feet (30 meters) • Predicts conditions with weather icon and temperature trend • Stores minimum and maximum indoor/outdoor temperature and humidity readings • Wall mounts for both weather forecaster and the sensor • Works with up to three sensors (additional sensors not included Important Installation and Location Notes • During initial installation, the temperature and humidity sensors may take up to an hour or more to acclimate to current conditions. • Place the weather forecaster in a well-ventilated indoor area located away from vents, heating or cooling elements, direct sunlight, windows, doors, or any other openings. • Place the sensor on a flat indoor or outdoor surface away from direct sunlight and moisture. Make sure the forecaster and sensor are within 98 feet (30m) of each other, without obstructions between them. To avoid interference, place the forecaster and sensor away from other electronic devices. -
Page 3: Install Batteries
Install Batteries 1. Insert two AAA batteries (not included) into the sensor and two AAA batteries (not included) into the weather forecaster, matching the polarity symbols (+ and –) marked inside each battery compartment. 2. Press RESET on both units. RESET CHANNEL 1 2 3 RESET Battery Notes: • Reset your forecaster after replacing the batteries or if the system malfunctions. When you press RESET, all settings will return to default value, and all stored information will be lost. - Page 4 Moon Phase Display Weather Forecast Display Outdoor Temperature and Humidity with Temperature Trend Display (Current, MAX, and MIN) Indoor Temperature and Humidity with Temperature Trend Display (Current, MAX, and MIN) Clock Calendar Press to turn on the backlight for 7 seconds.
- Page 5 MODE Press and hold for 3 seconds to enter clock setting mode and moon phase view mode. MAX/MIN • Press to display current, maximum, and minimum temperature and humidity. • Press and hold to clear maximum and minimum records when MAX or MIN appears. CHANNEL • Press and hold to search the sensors. • Select sensor. DOWN Adjust the clock. ° ° • Change between Celsius and Fahrenheit • Adjust the clock.
- Page 6 Set the Weather Forecaster and the Sensor 1. If you are using more than one sensor (up to three), choose a different channel for each sensor. Slide CHANNEL 1 2 3 to choose a channel. Press TX once after switching channel. 2. Place the sensor near the weather forecaster. 3. Press and hold CHANNEL to search for the sensors. Icon Description The weather forecaster is searching for a sensor. A sensor channel has been found. The sensor channel cannot be found. Use the Weather Forecaster 1. Press CHANNEL to display the three different sensor channels. 2. Select the temperature format by pressing UP/°C/°F. 3. Press MAX/MIN to select current, maximum, and minimum temperatures and humidity. 4. When MAX or MIN appears, press and hold MAX/MIN to clear all records.
-
Page 7: Weather Forecast Display
Weather Forecast Display Sunny Slightly Cloudy Rainy Cloudy Temperature Trend Rising Steady Falling Set the Clock 1. Press and hold MODE until the hour digits of the clock flash. 2. Press UP/ºC/°F or DOWN repeatedly to adjust settings; press MODE to confirm and go to the next setting. • The setting order is hour, minute, 12/24 hour format, year, calendar format (day-month/month-day), month, day, language (for the day of week). • When you select the 12-hour format, PM appears. • The language options for current time and the day of week are :EN (English), GE (German), FR (French), IT (Italian), NE (Dutch), ES (Spanish), and DA (Danish). - Page 8 View Moon Phase 1. Press and hold MODE for 3 seconds to enter the clock setting mode. 2. Press MODE repeatedly until the year, month, or day digit flashes. 3. Press UP/°C/°F or DOWN to view the moon phase for the next or previous year, month, or day. Press and hold UP/°C/°F or DOWN to quickly go through the moon phases: First Quarter Waxing Gibbous New Moon Waxing Crescent Waning Crescent Third Quarter Waning Gibbous Full Moon...
-
Page 9: Hints And Tips
Hints and Tips If the weather forecaster does not connect to the sensor, the following actions may establish the connection: • Press TX on the sensor and then press and hold CHANNEL. • Relocate the sensor and/or the weather forecaster until connection is found. • The sensor may not function properly in extreme temperatures which affects battery power. Replace the batteries. The unit will resume proper function in more moderate weather. Care and Maintenance • Handle the forecaster and sensor carefully. Do not drop them. • Keep the forecaster dry. If it gets wet, wipe it dry immediately. • Never submerge the product in water. This can cause electrical shock and damage the product. • Do not subject the forecaster to extreme force, shock, or fluctuations in temperature or humidity. • Do not tamper with internal components. -
Page 10: Specifications
Humidity Range ..............20% – 95% Humidity Resolution ..............1% Sensor RF Frequency ............433 MHz Channel Number ................3 Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your local RadioShack store or an experienced radio/TV technician for help. Product Indoor/Outdoor Wireless Weather Forecaster Model 6300772 RadioShack Responsible 300 RadioShack Circle, Party Fort Worth, TX 76102 Phone 817-415-3200... -
Page 11: Limited Warranty
If you cannot eliminate the interference, the FCC requires that you stop using your equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Limited Warranty RadioShack warrants this product against defects in materials and workmanship under normal use by the original purchaser for one (1) year after the date of purchase from a RadioShack-owned store or an authorized RadioShack franchisee or dealer. RADIOSHACK MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries; (d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or insurance costs; (f) costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by persons other than the original purchaser. Should a problem occur that is covered by this warranty, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShack store in the U.S. RadioShack will, at its option, unless otherwise provided by law: (a) repair the product without charge for parts and labor; (b) replace the product with the same or a comparable product; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of RadioShack. New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period. RADIOSHACK EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRATION OF THE STATED WARRANTY PERIOD. - Page 12 CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RADIOSHACK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. You may contact RadioShack at: RadioShack Customer Relations, 300 RadioShack Circle, Fort Worth, TX 76102 04/08 www.RadioShack.com Complies with the European Union’s “Restriction of Hazardous Substances Directive,” which protects the environment by restricting specific hazardous materials and products. ©2013. RadioShack Corporation. All rights reserved. RadioShack is a registered Printed 05A13 trademark used by RadioShack Corporation. in China 6300772...
