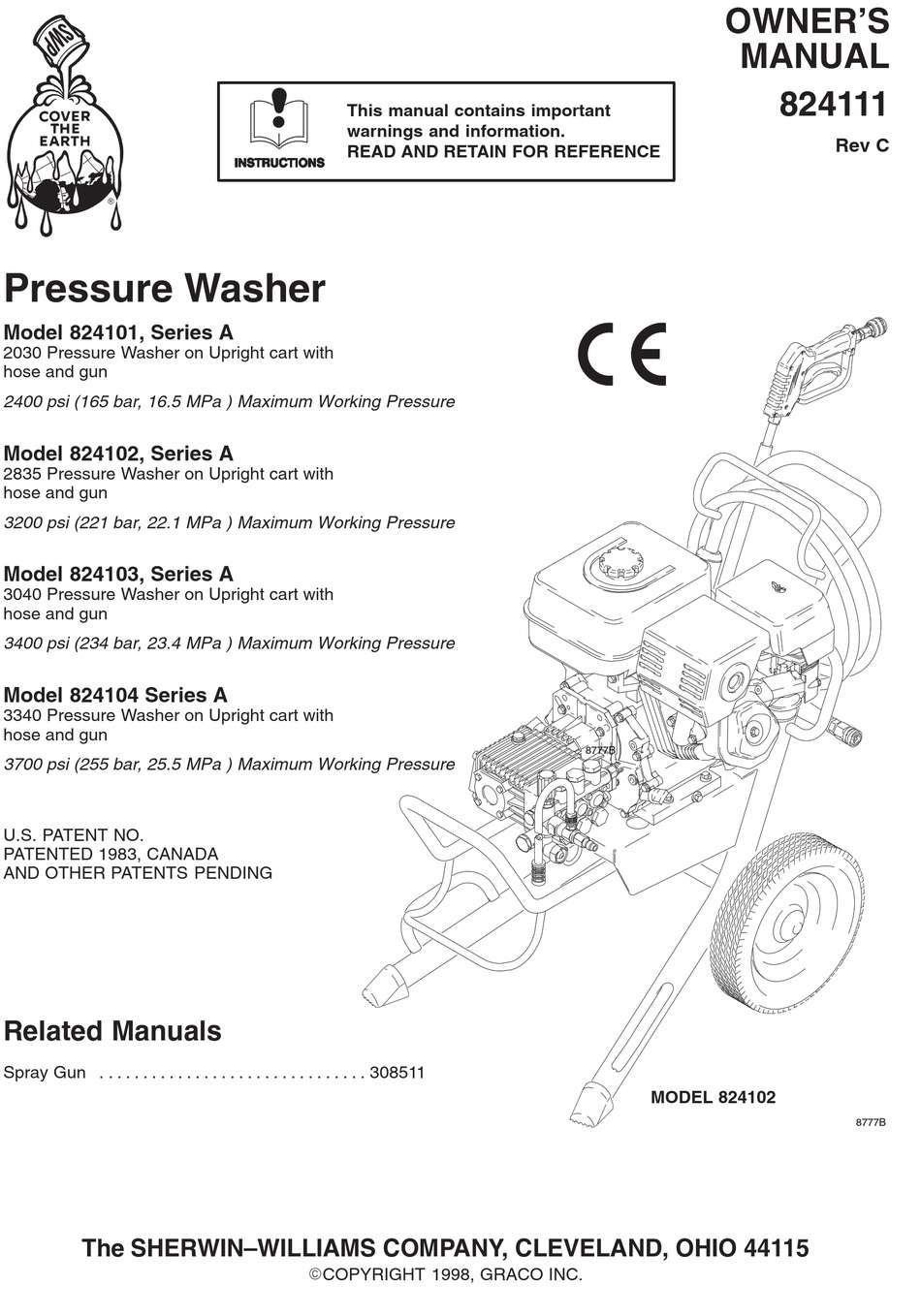

Pressure Washer

Model 824101, Series A
2030 Pressure Washer on Upright cart with
hose and gun
2400 psi (165 bar, 16.5 MPa ) Maximum Working Pressure
Model 824102, Series A
2835 Pressure Washer on Upright cart with
hose and gun
3200 psi (221 bar, 22.1 MPa ) Maximum Working Pressure
Model 824103, Series A
3040 Pressure Washer on Upright cart with
hose and gun
3400 psi (234 bar, 23.4 MPa ) Maximum Working Pressure
Model 824104 Series A
3340 Pressure Washer on Upright cart with
hose and gun
3700 psi (255 bar, 25.5 MPa ) Maximum Working Pressure
U.S. PATENT NO.
PATENTED 1983, CANADA
AND OTHER PATENTS PENDING

Related Manuals

Spray Gun
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The SHERWIN–WILLIAMS COMPANY, CLEVELAND, OHIO 44115
This manual contains important
warnings and information.
READ AND RETAIN FOR REFERENCE
308511
ECOPYRIGHT 1998, GRACO INC.
OWNER'S
MANUAL
824111
8777B
MODEL 824102
Rev C
8777B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 824101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sherwin-Williams 824101

Summary of Contents for Sherwin-Williams 824101

  • Page 1: Pressure Washer

    Rev C READ AND RETAIN FOR REFERENCE Pressure Washer Model 824101, Series A 2030 Pressure Washer on Upright cart with hose and gun 2400 psi (165 bar, 16.5 MPa ) Maximum Working Pressure Model 824102, Series A...
  • Page 2 ....... . 824101 Pump Service ......
  • Page 3 WARNING HAZARDOUS FLUIDS Improper handling of hazardous fluids can cause serious injury, even death, due to splashing in eyes, ingestion or bodily contamination. D Know specific hazards of fluid being used. D Store hazardous fluids in approved containers. Dispose of hazardous fluids per local, state and national guidelines.
  • Page 4 Installation Typical Installation – Pressure Washer SPRAY HOSE RACK SPRAY HOSE INLET WATER CONNECTION HIGH PRESSURE 3/4” GARDEN HOSE CONNECTION HOSE Fig. 1 8777B Check for Shipping Damage Connect to Water Supply Check the unit for any damage that may have occurred in CAUTION shipping.

  • Page 5: Pressure Relief Procedure

    Operation Pressure Relief Procedure Startup WARNING Always use this start–up procedure to ensure that the unit is started safely and properly. INJECTION HAZARD The system pressure must be manually relieved to prevent the system from 1. Check oil levels: starting or spraying accidentally. Fluid under high pressure can be injected through the skin and cause serious injury.
  • Page 6 Operation 4. Trigger the gun until water sprays from the tip 6. Start the engine. indicating that the air is purged from the system. NOTE: For easier starting, have one person start the pressure washer while another person triggers 5. Open the fuel shutoff valve. Be sure the spark plug the spray gun.
  • Page 7 Operation Trigger Safety Latch Installing and Changing Spray Tips WARNING WARNING To reduce the risk of serious bodily injury, including To reduce the risk of serious bodily injury, including fluid injection or splashing in the eyes or onto the fluid injection, splashing in the eyes or on the skin, skin, use extreme caution when changing spray always engage the trigger safety latch whenever tips.
  • Page 8 Operation Shutdown, Flushing and Storage WARNING NOTE: An anti–freeze flush kit 802327 is available to To reduce the risk of serious bodily injury, including make flushing easier. fluid injection, splashing in the eyes or on the skin or injury from moving parts, always follow the CAUTION Pressure Relief Procedure on page 5 before proceeding.

  • Page 9: Troubleshooting

    Troubleshooting WARNING To reduce the risk of serious injury, including fluid injection and splashing in the eyes, or on the skin, always follow Pressure Relief Procedure on page 5 before proceeding. Problem Cause Solution Engine will not No gasoline in fuel tank or carburetor. Fill the tank with gasoline, open fuel shut off valve.
  • Page 10 Troubleshooting Problem Cause Solution Frequent or prema- Scored, damaged or worn plungers. Install new plungers. See PUMP SERVICE, page 13. ture failure of the packings Abrasive material in the fluid being Install proper filtration on pump inlet plumbing. pumped. Inlet water temperature too high. Check water temperature;...

  • Page 11: Pump Service

    824101 Pump Service 2. Carefully separate the manifold from the WARNING crankcase. To reduce the risk of serious bodily injury, including NOTE: It may be necessary to tap the manifold fluid injection, splashing in the eyes or on the skin lightly with a soft mallet to loosen.
  • Page 12 824101 Pump Service 6. Lightly grease the retaining screw and the outer Servicing the V-Packings end of the plunger. Place the washer, o–ring and NOTE: There are two types of packing kits: one is backup ring around the screw and install the nut packings only, the other includes the through the plunger.
  • Page 13 824102, 824103, 824104 Pump Service 2. Carefully separate the manifold from the WARNING crankcase. To reduce the risk of serious bodily injury, including NOTE: It may be necessary to tap the manifold fluid injection, splashing in the eyes or on the skin lightly with a soft mallet to loosen.
  • Page 14 824102, 824103, 824104 Pump Service 6. Lightly grease the retaining screw and the outer Servicing the V-Packings end of the plunger. Place the washer, o–ring and NOTE: There are two types of packing kits: one is backup ring around the screw and install the nut packings only, the other includes the through the plunger.

  • Page 15: Technical Data

    For flushing system with 50% anti-freeze solution prior to transporting or storing pressure washer in below freezing temperatures. Pump Repair Kits Repair Kit Description Qty. Entire Pump Model 824101 Model s 824102 Model 824104 and 824103 804033 801658 801658 SEAL, Oil Oil Seal...
  • Page 16 2030 Pressure Washer – Parts Model 824101, Series A Apply sealant to threads Supplied with pump Supplied with engine All parts supplied with unloader Detail 1 Detail 1 3 Ref 8779B 824111...
  • Page 17 2030 Pressure Washer – Parts USE ONLY GENUINE GRACO PARTS AND ACCESSORIES Model 824101, Series A Ref. Ref. Part No. Description Qty. Part No. Description Qty. 802264 ENGINE, 5.5 hp 21 805546 TIP, spray, Q-type, 804531 PUMP ASSEMBLY (40_ - white), 4004...
  • Page 18 2835, 3040, 3340 Pressure Washer – Parts Model 824102, Series A Apply sealant to threads Model 824103, Series A Model 824104, Series A All parts supplied with unloader Supplied with pump Detail 1 Detail 1 3 Ref 8778B 824111...
  • Page 19 2835, 3040, 3340 Pressure Washer – Parts USE ONLY GENUINE GRACO PARTS AND ACCESSORIES Models 824102, Series A; 824103, Series A; 824104, Series A Ref. Ref. Part No. Description Qty. Part No. Description Qty. ENGINE TIP, spray, Q-type, (40_ - white) 803900 Model 824102, 9 hp 805546...

  • Page 20: Phone Number

    Sherwin-Williams Standard Warranty Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
