Summary of Contents for Energer ENB466PLN

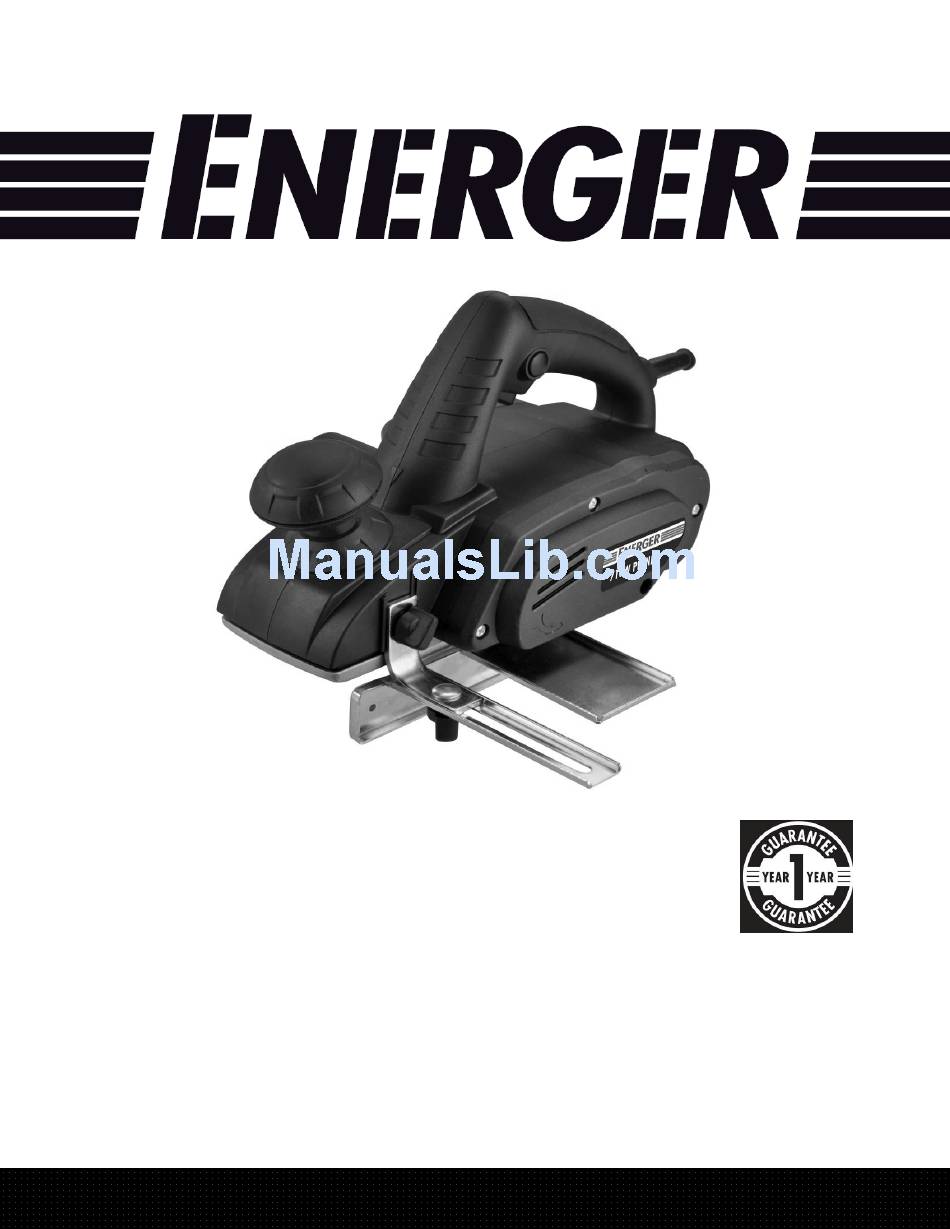

- Page 1 SAFETY AND OPERATING MANUAL Original Instructions 5.0 710W PLANER ENB466PLN...
- Page 2 Read all safety warnings and all instructions before use. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. 710W PLANER ENB466PLN...
-
Page 3: General Safety Instructions
Loose clothes, jewellery or long hair can get caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust-related hazards 710W PLANER ENB466PLN... -
Page 4: Special Safety Instructions
Do not cut into nails, screws or other metal objects. 11.Check the position of power cables before commencing work ensuring they are well away from the work area. 12. Do not use worn or damaged planer blades. This may result in motor overload and substandard work. 710W PLANER ENB466PLN... - Page 5 Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. 710W PLANER ENB466PLN...
-
Page 6: Noise Information
Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). 710W PLANER ENB466PLN... - Page 7 This planer is designed for planing wood surfaces or similar materials, and removing old paint with the exception of any other material having risk ignition, explosion or release of hazardous or dangerous to the user or the environment. 710W PLANER ENB466PLN...
- Page 8 WARNING - To reduce the risk of injury, user must read the instruction manual Wear eye protection Wear ear protection Wear respiratory protection Wear safety gloves Double insulation Class Conforms to all relevant safety standards. yyWxx Manufacturing date code: Year of manufacturing (20yy) and week of manufacturing (Wxx); 710W PLANER ENB466PLN...
- Page 9 Components and controls Depth scale Dust exhaust tube Main handle Lock-off button ON/OFF Switch Drive belt cover Parallel guide Dust bag Dust bag connection nozzle Spanner Hex wrench 710W PLANER ENB466PLN...
-
Page 10: Technical Data
Remove any packing material and loose parts from unit. Check the accessories before use. It should be fit with the machine and your purpose. Never use any damaged or deformed blade in planer. Check the blade before use. It must be fixed correctly. 710W PLANER ENB466PLN... - Page 11 Always carry out a test run before starting work and after On/off switch every tool change! Always ensure that the tools are in good condition, correctly mounted and able to turn freely. The trial run should be at last 30 sec. Fig.4 710W PLANER ENB466PLN...
- Page 12 For chamfering edges use the V-grooves in the base. Set cutting Depth scale in “0” position and then run the planer along the corner edge. Caution! Always test out first on a piece of scrap material for chamfering edges. Fig.6 710W PLANER ENB466PLN...
- Page 13 Fig.8 Caution The blades should be changed regularly. In order not to damage the machine, both blades should be changed at the same time. CAUTION! The machine should be used only with both blades! Fig.9 710W PLANER ENB466PLN...
- Page 14 5. Carry out a test run before starting work to ensure that the tools are in good condition, correctly mounted and able to turn freely. The trial run should be at last 60 seconds. 710W PLANER ENB466PLN...
-
Page 15: Terms Of Use
Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand. Pack the device well or use the original packaging in order to avoid transit damage. Always keep the machine in dry place. 710W PLANER ENB466PLN... -
Page 16: Environmental Protection
GUARANTEE This ENERGER product carries a guarantee of 12 months. If your product develops a fault within this period, you should, in the first instance contact the retailer where the item was purchased. This guarantee specifically excludes losses caused due to:... -
Page 17: Plug Replacement
Note: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket. 710W PLANER ENB466PLN... - Page 18 EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 EN60745-1 EN60745-2-14 Authorised Signatory and technical file holder Date : 07/09/2012 Signature:_________________ Name / title: Peter Harries / Quality Manager Powersmith (UK) LTD. Trade House , Mead Avenue ,BA22 8RT 710W PLANER ENB466PLN...
