Audiovox AVE9103 Owner's Manual

10” kitchen lcd tv / dvd combo
Hide thumbs
Table of Contents

Advertisement

Quick Links

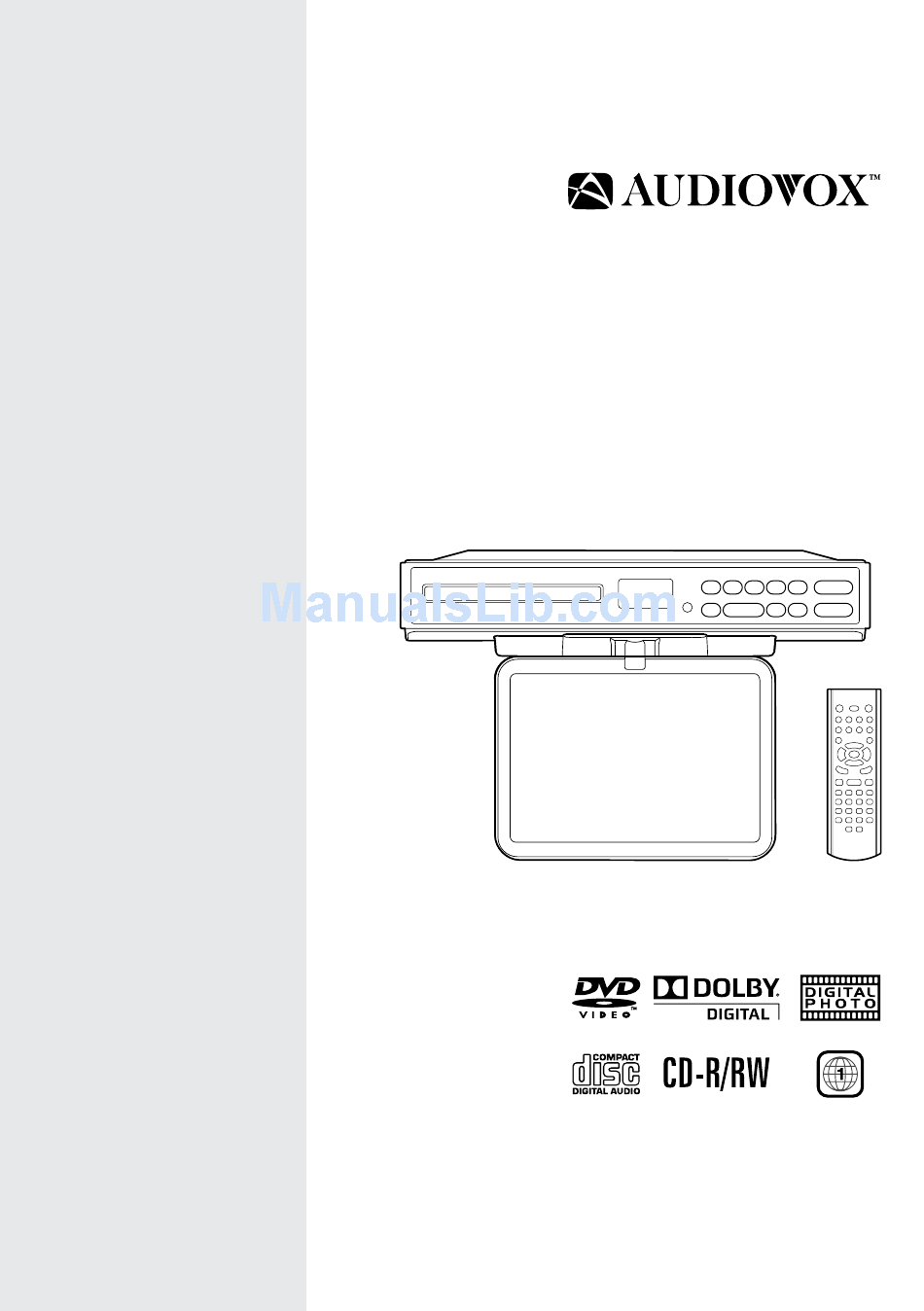

AVE9103
10" Kitchen LCD TV
/ DVD Combo
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Audiovox AVE9103

Summary of Contents for Audiovox AVE9103

  • Page 1 AVE9103 10” Kitchen LCD TV / DVD Combo OWNER’S MANUAL...

  • Page 2: Safety Precautions

    SAfETy PRECAUTiONS THE LiGHTNiNG fLASH AND ARROWHEAD The following marks and symbols are located on WiTHiN THE TRiANGLE iS A WARNiNG top of the unit. SiGN ALERTiNG yOU Of “DANGEROUS VOLTAGE” iNSiDE THE PRODUCT. THE EXCLAMATiON POiNT WiTHiN THE TRiANGLE iS A WARNiNG SiGN ALERTiNG yOU Of iMPORTANT iNSTRUCTiONS ACCOMPANyiNG THE PRODUCT.
  • Page 3 SAfETy PRECAUTiONS FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 4: Important Safety Instructions

    iMPORTANT SAfETy iNSTRUCTiONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 5: Table Of Contents

    TAbLE Of CONTENTS Using the TV ..........23-24 Safety Precautions .......... 1-2 Important Safety Instructions ......3 Scanning for TV Channels Automatically (Only Appears to the First Time Power On).....23 Table of Contents ..........4 TV Channel Setting..........23 Disc Formats ............5 Channel Skip ...........24 Accessories ............

  • Page 6: Disc Formats

    DiSC fORMATS The unit can play DVDs [8cm/12cm disc] Compatible Audio CDs [8cm/12cm disc] Region Management Information Region Management Information: This unit is designed and manufactured to respond to the Region Management Information that is encoded on DVDs. If the region number printed on the DVD does not correspond to the region number of this unit, this unit cannot play that disc.

  • Page 7: Accessories

    ACCESSORiES Please Check and Identify the Included Accessories. Remote control ..........................x 1 AAA 1.5V battery ...........................x 2 Mounting template .........................x 1 1.06” (27mm) spacers........................x 4 .57” (14.4mm) spacers........................x 4 #M 5 x 69 mm screws ........................x 4 AM LOOP antenna ........................x 1 REMOTE CONTROL Using the Remote Control •...

  • Page 8: Control Reference Guide

    CONTROL REfERENCE GUiDE Remote Control 1) MUTE button Press to turn off the sound. 2) STANDby/ON button Turns on the unit and puts it in standby mode. 3) DiSPLAy button Changes disc status information displayed on the screen. 4) PiCTURE button Selects from preset screen display settings to match the type of show you are watching.
  • Page 9 CONTROL REfERENCE GUiDE Remote Control 14) fUNCTiON button Use to select DVD, TV or RADIO mode. 15) GOTO button Goes directly to a programmed location on a DVD/CD. 16) SUbTiTLE button Selects one of the subtitle languages programmed on a DVD. 17) SOUND button Press to select from preset sound settings to match the type of show you are watching.

  • Page 10: Control Reference Guide

    CONTROL REfERENCE GUiDE Unit Disc Tray 10) VOL+ / -button Press OPEN/CLOSE button to open or close Increases/decreases the volume level. the tray. button Place a disc on the disc tray, label side up. Makes adjustments to certain settings. Display Window 11) TV MENU button Displays system information.

  • Page 11: Mounting Instructions

    MOUNTiNG iNSTRUCTiONS TOOLS NEEDED: 1) Electric drill with 1/4” bit; 2) Phillips-head (cross style) screwdriver. STEP 3 STEP 1 If your cabinet does NOT have an overhang: If your cabinet does NOT have an overhang: a) Eight screws are included with this unit, but you a) Place the Mounting Template in the desired will only need four of them.

  • Page 12: Mounting Instructions

    MOUNTiNG iNSTRUCTiONS (Continued from previous page) c) Insert the four selected screws through each e) Partially tighten each screw, but do not fully hole from the inside of the cabinet going down tighten the screws until all of them have been (see Figure 5).

  • Page 13: Connections

    CONNECTiONS Connecting the TV Antenna Connect a TV antenna or CATV cable or Satellite system to the TV antenna terminal. TV antenna To the TV ANT IN terminal FM ANT VIDEO ANT IN LOOP ANT Connecting the Unit to a TV or other Video equipment Use the Video cable (not supplied).

  • Page 14: Plugging In The Unit

    CONNECTiONS Plugging in the Unit Plug the AC power cord into the wall outlet a) Before plugging in the power cord, make sure the voltage of the unit matches your local voltage. b) Plug the power cord directly into the nearest wall outlet, and wrap the remaining cord around the cord storage knob at the rear of the unit.

  • Page 15: Unit Operation

    UNiT OPERATiON Turning the Unit On While the power cord is connected and the unit is on standby, power will be consumed and only the clock display will flash. • Press the ON/Off button to turn the unit on, “DVD” will appear on the front display. After a short period of time, the DVD logo (start-up picture) will appear on the screen.

  • Page 16: Setting The Clock

    SETTiNG THE CLOCK To adjust the clock, the unit must be in standby mode. To enter standby mode, make sure that the unit is plugged in, but not turned on. • Check that the rated voltage of the unit matches your local voltage. 1.

  • Page 17: Playing A Disc

    PLAyiNG A DiSC This owner’s manual explains the basic instructions of this unit. Some DVDs are produced in a manner that allows specific or limited operation during playback. Such as, the unit may not respond to all operating commands. This is not a defect in the unit. Refer to the instruction notes of discs. “...

  • Page 18: Angle Selection

    PLAyiNG A DiSC Angle Selection Some DVDs contain scenes which have been shot from a number of different angles. For these discs, the same scene can be viewed from each of these different angles. 1. While you are playing a DVD with different angles recorded, press the ANGLE button to view the number Sequence of angle shots of current angles available.

  • Page 19: Display Function

    PLAyiNG A DiSC Display Function While the disc is playing, press the DiSPLAy button on the remote control repeatedly to display information on operation status. Single Elapsed Single Elapsed Total SPECiAL fUNCTiON Locating a Specific Title/Chapter If a DVD contains title/chapter numbers, you can locate a specific title/chapter by directly selecting a title/ chapter number.

  • Page 20: Repeat Playback

    REPEAT PLAybACK You can play a specific title, chapter or track repeatedly. (Title repeat, chapter repeat, entire DVD repeat) Repeating a Chapter You can play the same chapter repeatedly. While the disc is playing, press the REPEAT button repeatedly until the indicator displays on the screen.

  • Page 21: Programmable Memory

    PROGRAMMAbLE MEMORy Title/Chapter Programmed Playback You can combine your favorite titles/chapters and play them in the order you determine. 1. Press the MEMORy button in PLAY/STOP mode. A screen will be shown as right. 2. Press the button to highlight the Title. Press the button to choose a desired title.

  • Page 22: Viewing Jpeg Files

    ViEWiNG JPEG fiLES This unit can play JPEG files written to CD-R/RW discs. Viewing jPeG Files File Number: 1. Open the disc tray. ROOT 2. Place a disc onto the disc tray with the label side up. 3. Close the disc tray. Slide show starts automatically. 4.

  • Page 23: Customizing The Function Settings

    CUSTOMiZiNG THE fUNCTiON SETTiNGS Video Setup 1. In STOP mode, press the SETUP button. 2. Use the button to select Video Setup. / ENTER button to highlight TV Type. 3. Press the 4. Press the / ENTER button to enter. 5.

  • Page 24: Using The Tv

    USiNG THE TV Connect a TV antenna or CATV cable or Satellite system to the TV antenna terminal before scanning for TV channels. Scanning for TV Channels Automatically (Only appears to the first time power on) 1. Connect the TV antenna. 2.

  • Page 25: Channel Skip

    USiNG THE TV Channel Skip 1. Press TV MENU button. 2. Use the button to select TV. 3. Use the button to select Channel Skip. Picture Audio Time Setup 4. Press the button to enter. 5. Press the button to select a channel. 6.

  • Page 26: Tv Setup

    TV SETUP Picture Setting 1. Press the TV MENU button. 2. Use the button to select Picture. button to select the options (Picture Mode 3. Use the / Contrast / brightness / Color / Tint / Sharpness / Color Audio Time Setup Mode).

  • Page 27: Time Setting

    TV SETUP Time Setting 1. Press the TV MENU button. 2. Use the button to select Time. 3. Press the button to enter the time settings. Picture Audio 4. Use the button to make adjustment. 5. Use the button to select the options (Time Zone, Daylight Saving Time or Clock).

  • Page 28: Setup Menu

    TV SETUP CC Mode: Select closed caption On, Off, CC on Mute. Analog Closed Caption: Select the analog closed caption or turn it off. Digital Closed Caption: Select the digital closed caption or turn it off. Digital Caption Style: Select As Broadcaster to use the default digital caption style of the broadcaster. Select Custom to activate the caption style items and set your desired detailed settings.

  • Page 29: Listening To The Radio

    LiSTENiNG TO THE RADiO Tuning in to a Station Manually 1. Press the DVD/TV/RADiO button (the fUNCTiON button on the remote control) until the radio frequency appears on the front panel display. 2. Press the AM/fM button to select AM or FM. 3.

  • Page 30: Troubleshooting Guide

    TROUbLESHOOTiNG GUiDE SYMPTOM CAUSe (AND ReMeDY) • Ensure the AC power cord is connected. No power. • The unit is not turned on. • Remove any obstacles between the remote control and the unit. • Use the remote control near the unit. The remote control does not function.

  • Page 31: Maintenance

    MAiNTENANCE Cleaning the Disc A defective or soiled disc inserted into the unit can cause sound to drop out during playback. Handle the disc by holding its inner and outer edges. • Do NOT touch the surface of the unlabeled side of the disc. •...

  • Page 32: Limited Warranty

    For more information on other products and services, please visit our web site at www.1800customersupport.com/audiovox Important: Also keep your “Bill of Sale” as proof of purchase.
