SERVICE MANUAL
Ver 1.0 2003. 04
• SS-WMSP80 is the sub woofer section in HT-C800DP.

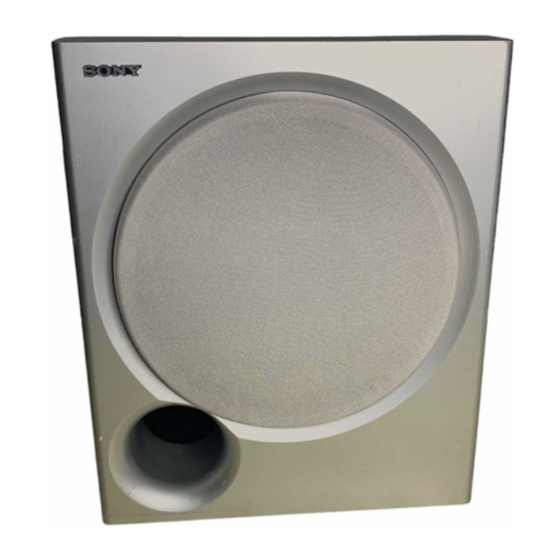

Sub woofer (SS-WMSP80)
Speaker system
Speaker unit
Rated impedance
Dimensions (approx.)
Mass (approx.)
Design and specifications are subject to change without notice.
Sony Corporation
9-877-320-01
2003E16-1
Home Audio Company
© 2003.05
Published by Sony Engineering Corporation
SS-WMSP80
SPECIFICATIONS
Bass reflex
200 mm dia. cone type
6 ohms
×
×
×
270 325 333 mm (10
6
/
8
6.5 kg (14 lb 6 oz.)
US Model
Canadian Model
AEP Model
UK Model
×
× ×
12
7
/
13
1
/
inches)
8
8
SUB WOOFER
E Model
Advertisement
Table of Contents
Related Manuals for Sony SS-WMSP80
Summary of Contents for Sony SS-WMSP80
- Page 1 SERVICE MANUAL US Model Canadian Model Ver 1.0 2003. 04 AEP Model UK Model E Model • SS-WMSP80 is the sub woofer section in HT-C800DP. SPECIFICATIONS Sub woofer (SS-WMSP80) Speaker system Bass reflex Speaker unit 200 mm dia. cone type...
- Page 2 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 4-243-842-01 FRAME, GRILLE 4-235-677-01 SCREW (4X20) (TYPE1), +BVTP 4-998-417-02 EMBLEM (NO.5), SONY 1-825-004-13 SPEAKER (20cm) 4-244-708-01 FRONT (PANEL) 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3...
- Page 3 SS-WMSP80 MEMO...
- Page 4 SS-WMSP80 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision...
