Table Of Contents
33
page
of
33
Go
/
33
Contents
Table of Contents
Bookmarks
Table of Contents

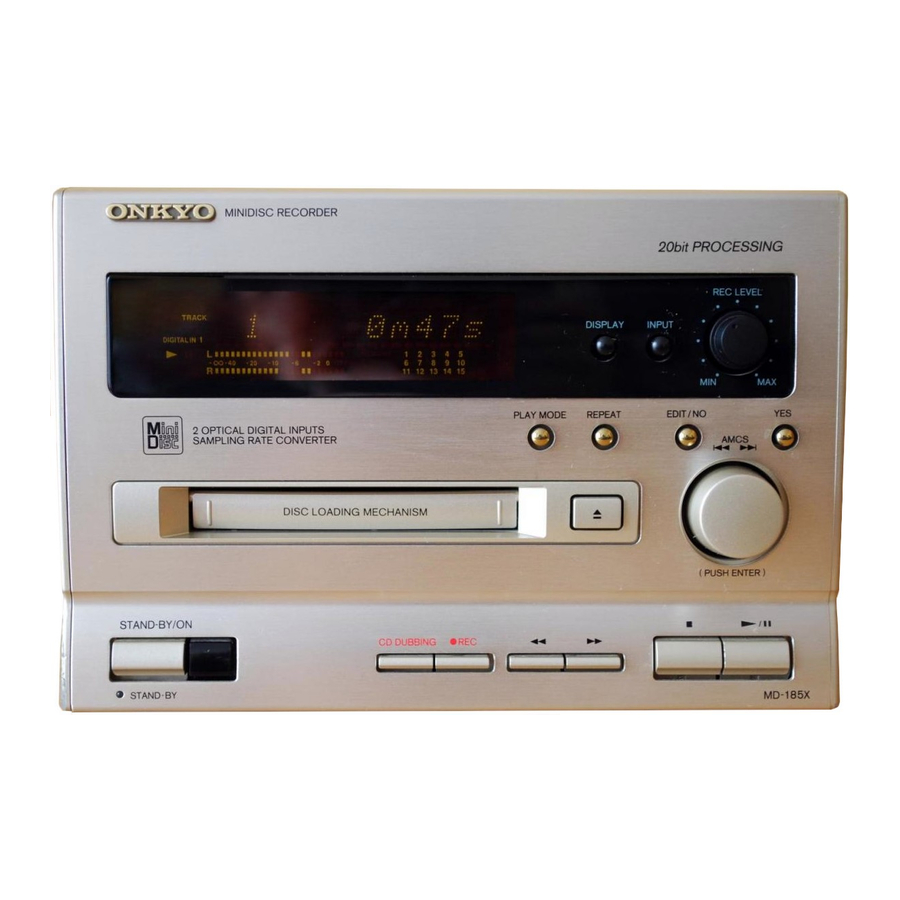

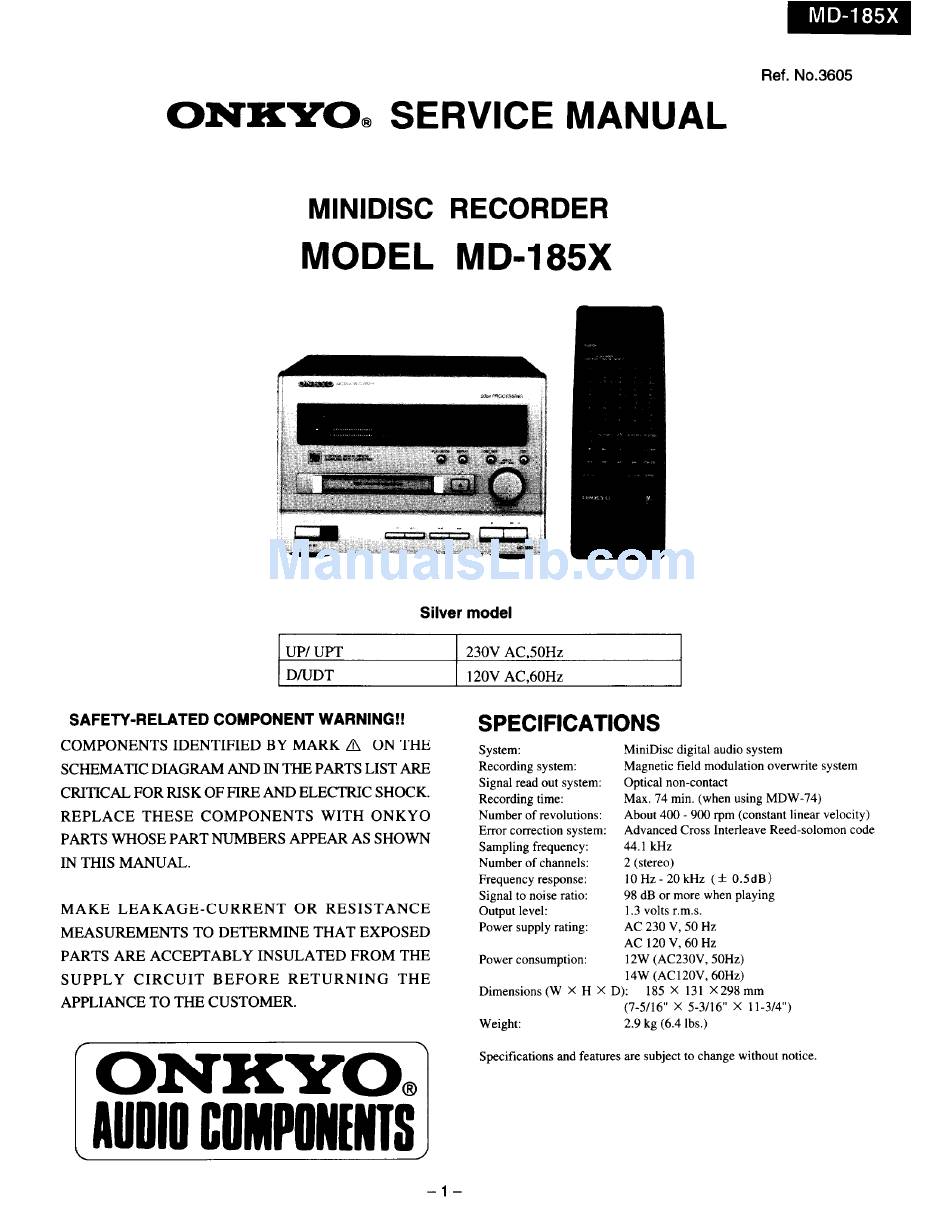

Specifications
Service Safety Precautions
Array
Protection of Eyes from Laser Beam During Servicing
Array
Chassis Exploded View
Chassis Exploded View Parts List
MD Mechanism Exploded View
MD Mechanism Parts List
Block Diagram
Microprocessor Terminal Description
IC Block and Descriptions
Programmable ROM
Encoder/Decoder
D-Ram
Mechanism Control Microprocessor
Check before & after Replacing the Mechanism Parts
Array
Check after the Replacement
Array
Replace the Spindle Motor
Array
MD Mechanism Measurement Items and Measurement Methods
Array
Jitter
Array
Pick-Up Grating Measurement
Array
MD Mechanism Disassembly
Array
MD Mechanism Section
Jitter Checking
Array
