Replacing the Cooling Fans

CAUTION:
NOTE:
1
2
3
4
60
Replacing the Cooling Fans
Cooling fans must be replaced by qualified service personnel only.
There is no need to power off the CR8e or the computer system. The
cooling fans are hot swappable.
Use the Operator Control Panel to identify the failed fan, refer to the

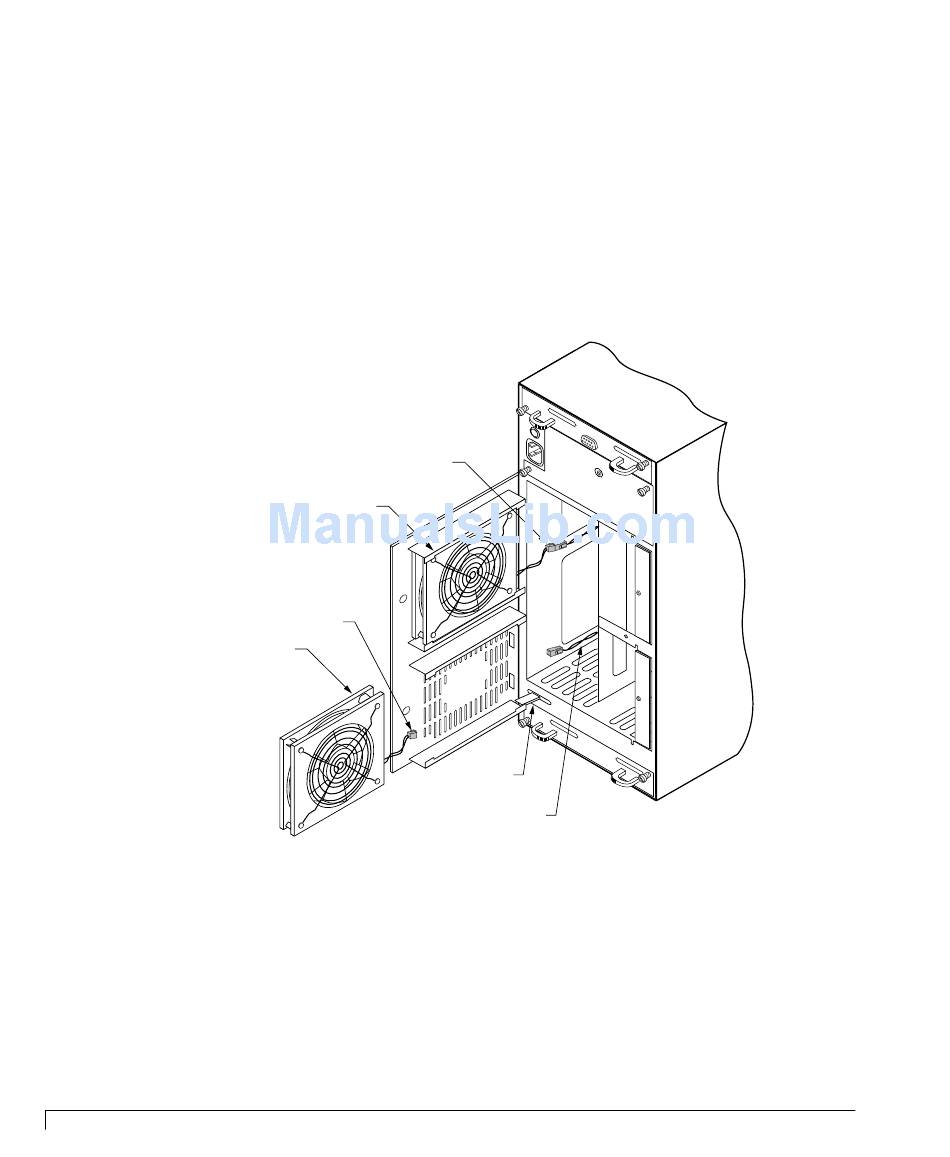

illustration below to locate the components.
Select "Hardware Menu" from the Main Menu and choose "Component
Status." For more information, refer to "Component Status" on page 43.
Power Cable
Fan #2
Fan #1
Power Cable
Fan #1
You may need to scroll through the list with the arrows buttons to locate the
failed component.
Using a flat-blade screwdriver, loosen the rear door access screw. Open the
door to gain access to the fans.
Disconnect the failed fan's power cable connector.
Remove the failed fan by sliding it out from the door assembly.
Fan #2
Door Latch
Fan #1
Power Cable
