- Page 1 HK764070FB User manual Ceramic glass hob...
-
Page 2: Table Of Contents
Contents Thank you for choosing one of our high-quality products. To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently. To refer to this manual any time you need to, we recommend you to keep it in a safe place. -
Page 3: Installation
• Model description (Modell)....• Product number (Prod. Nr.) ....• Serial number (Ser. Nr.) ....You find the rating plate of the appliance on its lower casing. HK764070FB 949 593 335 00 58 HDD 70 AO 220-240 V 50-60-Hz 7,5 kW... -
Page 4: Safety Instructions
Installation Safety instructions WARNING! You must read these! Make sure that the appliance is not damaged because of transportation. Do not connect a damaged appliance. If it is necessary, speak to the supplier. Only an authorised service technician can install, connect or repair this appliance. Use only original spare parts. - Page 5 Installation Assembly min. 500 mm min. 50 mm min. 50 mm +1 mm +1 mm min. 25 mm min. 20 mm min. 30 mm...
-
Page 6: Description Of The Appliance

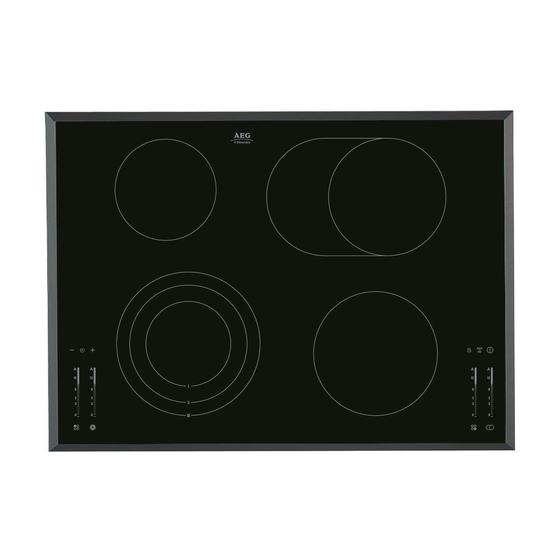

Description of the appliance Description of the appliance Cooking surface layout Single cooking zone 1200 W Oval zone 1400/2200 W Control panel Single cooking zone 1800 W 120/175/210 Triple cooking zone 800/1600/2300 W Control panel Control panel layout 11 12 Use the sensor fields to operate the appliance. -
Page 7: Operating The Appliance
Operating the appliance sensor field function selects the cooking zone the timer display shows the time in minutes cooking zones' indicators of timer shows for which zone you set the time starts and stops the key lock or child lock a lock with an indicator starts and stops STOP+GO with an indicator... -
Page 8: The Heat Setting
Operating the appliance Automatic Switch Off times Heat setting Stops after 6 hours 5 hours 4 hours 1.5 hours The heat setting Touch the control bar at the necessary heat set- ting. Change up or down, if it is necessary. Do not release before you have a correct heat setting. -
Page 9: Starting The Stop+Go
Operating the appliance • Selection of the cooking zone: touch again and again until the indicator of a necessary cooking zone comes on. • Starting the Count Down Timer: touch of the timer to set the time ( minutes). When the indicator of the cooking zone flashes slower, the time counts down. •... -
Page 10: The Child Safety Device
Helpful hints and tips The child safety device This function prevents an accidental operation of the hob. Starting the child safety device . Do not set the heat settings . • Start the hob with • Touch for 4 seconds. The symbol comes on. -
Page 11: Examples Of Cooking Applications
Care and cleaning Öko Timer (Eco Timer) To save the energy, the heater of the cooking zone switches itself off earlier than count down timer signal. The heating time reduction depends on cooking level and cooking time. Examples of cooking applications The data in the table is for guidance only. -
Page 12: What To Do If
What to do if... Scratches or dark stains on the glass ceramic have no effect on how the appliance operates. Removing the dirt: 1. – Remove immediately: melting plastic, plastic foil, and food containing sugar. Use a special glass ceramic scraper. Put the scraper on the glass ceramic surface at an acute angle and slide the blade on the surface. -
Page 13: Environment Concerns
Environment concerns If you tried the above solutions and cannot repair the problem, speak to your dealer or the Customer Care Department. Give the data from the rating plate, three-digit-letter code for the glass ceramic (it is in the corner of the cooking surface) and an error message that comes on. - Page 16 www.electrolux.com To buy accessories, consumables and spare parts at our online shop please visit: www.aeg-electrolux.co.uk...
