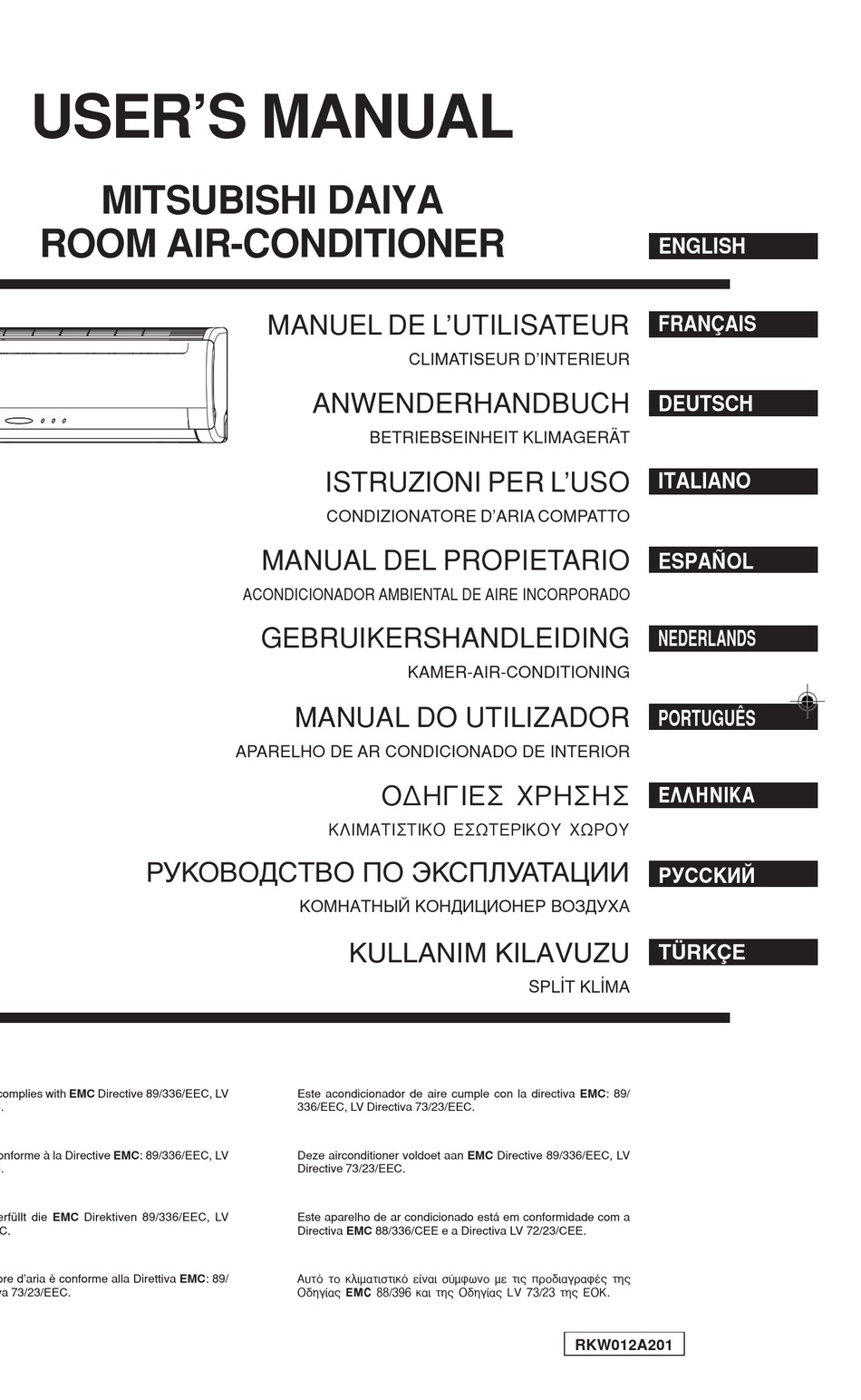

USER'S MANUAL
SRK63ZE-S
SRK71ZE-S
This air conditioner complies with EMC Directive 89/336/EEC, LV
Directive 73/23/EEC.
Ce climatiseur est conforme à la Directive EMC: 89/336/EEC, LV
Directive 73/23/EEC.
Dieses Kimagerät erfüllt die EMC Direktiven 89/336/EEC, LV
Direktiven 73/23/EEC.
Questo condizionatore d'aria è conforme alla Direttiva EMC: 89/
336/EEC, LV Direttiva 73/23/EEC.
MITSUBISHI DAIYA
ROOM AIR-CONDITIONER
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
MANUEL DE L'UTILISATEUR
CLIMATISEUR D'INTERIEUR
ANWENDERHANDBUCH
BETRIEBSEINHEIT KLIMAGERA ¨ T
ISTRUZIONI PER L'USO
CONDIZIONATORE D'ARIA COMPATTO
MANUAL DEL PROPIETARIO
ACONDICIONADOR AMBIENTAL DE AIRE INCORPORADO
GEBRUIKERSHANDLEIDING
KAMER-AIR-CONDITIONING
MANUAL DO UTILIZADOR
APARELHO DE AR CONDICIONADO DE INTERIOR
√¢∏°π∂™ Ã∏™∏™
∫§πª∞∆π™∆π∫√ ∂™ø∆∂ƒπ∫√À Ãøƒ√À
КОМНАТНЫЙ КОНДИЦИОНЕР ВОЗДУХА
KULLANIM KILAVUZU
Este acondicionador de aire cumple con la directiva EMC: 89/
336/EEC, LV Directiva 73/23/EEC.
Deze airconditioner voldoet aan EMC Directive 89/336/EEC, LV
Directive 73/23/EEC.
Este aparelho de ar condicionado está em conformidade com a
Directiva EMC 88/336/CEE e a Directiva LV 72/23/CEE.
∞˘Ùfi ÙÔ ÎÏÈÌ·ÙÈÛÙÈÎfi Â›Ó·È Û‡ÌʈÓÔ Ì ÙȘ ÚԉȷÁڷʤ˜ Ù˘
√‰ËÁ›·˜ EMC 88/396 Î·È Ù˘ √‰ËÁ›·˜ LV 73/23 Ù˘ ∂√∫.
ENGLISH
FRANÇAIS
DEUTSCH
ITALIANO
ESPAN ˜ OL
NEDERLANDS
PORTUGUÊS
∂§§∏¡π∫∞
РУССКИЙ
TÜRKÇE
SPL‹T KL‹MA
RKW012A201
