PhoneMax
®
Installation Guide & User Manual
Model TEL 030
MAN 096 A
®
Williams Sound
Helping People Hear

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PhoneMax TEL 030 and is the answer not in the manual?

Questions and answers

Related Manuals for Williams Sound PhoneMax TEL 030

Summary of Contents for Williams Sound PhoneMax TEL 030

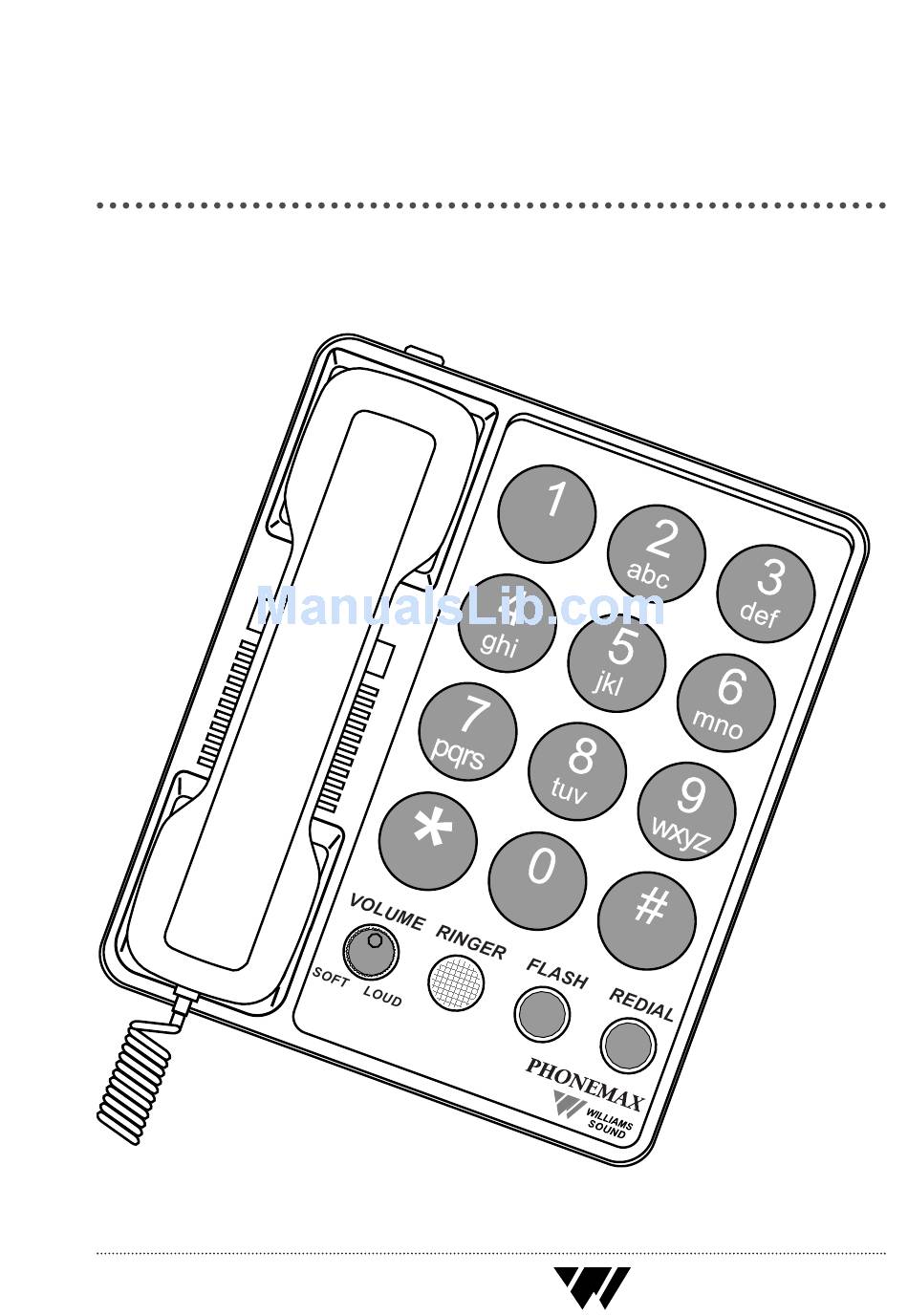

  • Page 1 PhoneMax ® Installation Guide & User Manual Model TEL 030 MAN 096 A ® Williams Sound Helping People Hear...

  • Page 2: Safety Information

    Important Safety Information Statements in this manual preceded by the following words are of special significance. WARNING! Means there is the possibility of personal injury to your- self or others. Other information of particular importance has been placed in italic type like this.

  • Page 3: Table Of Contents

    Bare Wall Installation PhoneMax Operation Using The Volume Control Making A Call Answering A Call Flash And Redial Buttons Using The PhoneMax With A Hearing Aid In Case Of Difficulty Warranty Specifications FCC Notices ® Williams Sound Helping People Hear...

  • Page 4: Introduction

    Introduction Congratulations on the purchase of your PhoneMax ® Amplified Telephone, Model TEL 030.This state-of-the-art Williams Sound product is designed and built with premium quality parts for your assurance of reliability. The PhoneMax ® is designed to improve the intelligibility of the sound signal by emphasizing higher frequency speech sounds.

  • Page 5: Ringer Volume

    Flashing Ring Flash Button Redial Button Indicator Interrupts line for Automatically 1/2 second redials last number Flashes red to indicate ring called Ringer Volume Adjusts Ringer volume level. Ringer Tone Control Adjusts Ringer tone. ® Williams Sound Helping People Hear...

  • Page 6: Installation Steps

    Adjusts ringer volume (Hi, Lo, Off) Adjusts ringer pitch (I, II, III) Step 4: Plug the coiled handset cord into the handset. Plug the other end into the telephone base. (see Fig. 4) Fig. 4: Handset Connection ® Williams Sound Helping People Hear...

  • Page 7: Table/Desk Installation

    This will make the base unit level with the wall. Step 2: Rotate the handset hanger found in the handset cra- dle to prevent the handset from falling. (see Fig. 6) ® Williams Sound Helping People Hear...
  • Page 8 To remove a wall-mounted telephone, slide the phone up and pull it slightly away from the wall. Disconnect the line cord by squeezing the clip on the modular plug and pulling it from the jack. ® Williams Sound Helping People Hear...

  • Page 9: Bare Wall Installation

    Step 6: Check for the dial tone. If you can’t hear a dial tone, see In Case Of Difficulty, page 12. Note: To disconnect the telephone, squeeze the clip on the modular plug and pull it out of the jack. ® Williams Sound Helping People Hear...

  • Page 10: Phonemax Operation

    (T-coil ). Move your hearing aid T-switch to the “T” position and hold the handset close to your hearing aid. The volume can be adjusted with the PhoneMax volume con- trol. ® Williams Sound Helping People Hear...
  • Page 11 The PhoneMax is capable of amplifying sounds to a very loud volume. Always set the VOLUME CONTROL to the SOFT setting before using the phone. Instruct all potential users in its proper operation. Do not let children play with the PhoneMax. ® Williams Sound Helping People Hear...

  • Page 12: In Case Of Difficulty

    4. Your older extension phone may cause the PhoneMax to cut off. If so, install Williams Sound’s optional Equalizer Phone Accessory (TEL 007) in the line to the older phone. The Equalizer balances the amount of phone line current drawn by older phones using the same line as the Phonemax.

  • Page 13: Warranty

    This warranty does not extend to intentional or accidental physical damage. Cords are warranted for 90 days. This war- ranty applies only to products returned to Williams Sound for service. ® Williams Sound...

  • Page 14: Specifications

    Adjustable, 3 positions (lo, med, hi) Flasher: High visibility red neon lamp Connections: 2-wire central office connection, modular plug Ringer Equiv. Number (REN): 1.0B Warranty: Five Years, Parts and Labor* * 90 days on cords and connectors ® Williams Sound Helping People Hear...

  • Page 15: Fcc Notices

    Where it can be done safely, re-orient the receiving telephone or radio antenna. To the extent possible, relocate the television, radio or other receiver with respect to the telephone equip- ment. ® Williams Sound Helping People Hear...
  • Page 16 Williams Sound Corp. Distributed by HITEC - 8160 S Madison St - Burr Ridge, IL 60527 U.S.A. 800-288-8303 © 1999, Williams Sound Corp. MAN 096A...
