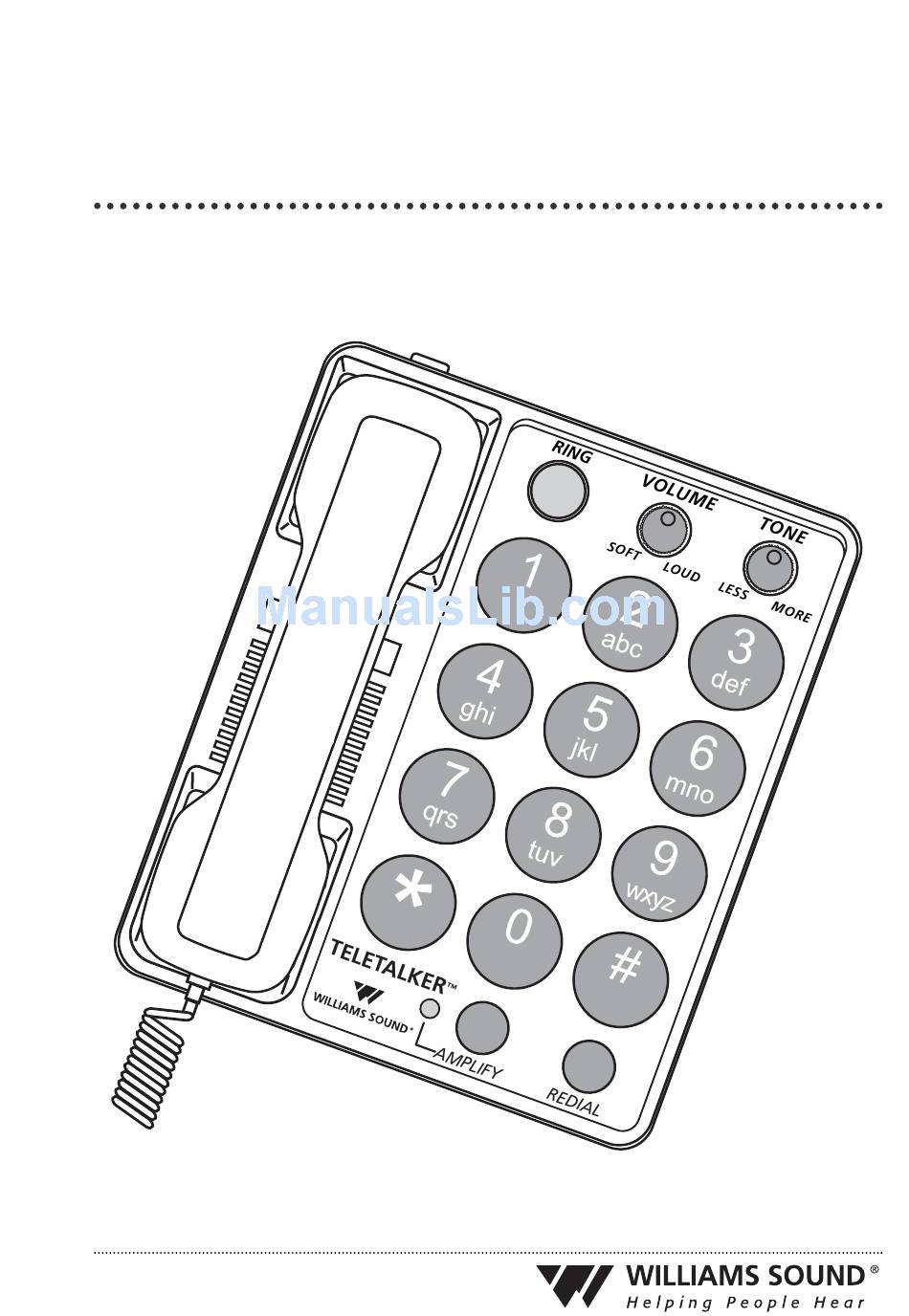

- Page 1 TELETALKER ™ Installation Guide & User Manual Model TEL 040 MAN 088D...
-
Page 2: Important Safety Information
Product Recycling for Customers in the European Union: Please do NOT dispose of your Williams Sound equipment in the house- hold trash. Please take the equipment to a electronics recycling center; OR return the product to the factory for proper disposal. -
Page 3: Table Of Contents
TELETALKER ™ Model TEL 040 Table Of Contents TELETALKER Enhanced Amplified Telephone System, Model TEL 040 Contents Safety Information Introduction Components Features & Functions Installation Steps Table/Desk Installation Wall Plate Installation Bare Wall Installation TELETALKER Operation Using The Amplify Function... -
Page 4: Introduction
Installation Guide & User Manual Introduction Congratulations on the purchase of your TELETALKER Enhanced Amplified Telephone System, Model TEL 040. This state-of-the-art Williams Sound product is designed and built with premium quality parts for your assurance of reliability. The TELETALKER understandability of incoming voice signals by reducing unwant- ed line noise. -
Page 5: Ringer Tone Control
TELETALKER ™ Model TEL 040 Ringer Volume Ringer Tone Control Neckloop/Aux Jack Fig. 1: TELETALKER Features & Functions Flashing Ring Indicator Flashes red to indicate ring Special Handset Speaker Provides superior sound quality Big Buttons Easy to see and use... -
Page 6: Installation Steps
Ringer Volume Control Adjusts ringer volume (Hi, Lo, Off) other end into the telephone base. (see fig. 4) TELETALKER ™ Model TEL 040 TO TEL. LINE PULSE TONE AC 12 V/0.85A Ringer Tone Control Adjusts ringer pitch (I, II, III) -
Page 7: Table/Desk Installation
TELETALKER ™ Model TEL 040 Step 5: Plug the Power Pack cord into the Power Jack located at fig. 5: Power Connection Step 6: Perform either Table/Desk installation or Wall installa- For Table/Desk Installations Step 1: Plug the long line cord into the jack on the back of the Step 2: Plug the other end of the line cord into a modular base- fig. -
Page 8: Wall Plate Installation
Disconnect the line cord by squeezing the clip on the modular plug and pulling it from the jack. Wall Mount Bracket TELETALKER ™ Model TEL 040 Short Wall Cord Studded Wall Phone Plate... -
Page 9: Bare Wall Installation
TELETALKER ™ Model TEL 040 Bare Wall Installation Even if you don’t have a studded wall phone plate, you can still mount the TELETALKER on any wall surface within six feet of a standard modular jack and AC outlet. To mount the phone farther from the jack you’ll need a longer line cord or a telephone exten-... -
Page 10: Teletalker Operation
Step 4: When you hear a dial tone, dial the number and use as a Step 5: Adjust the Volume and Tone controls for best understand- levels. regular phone. ing of the remote party. When you hang-up, the Amplify function automatically turns off. TELETALKER ™ Model TEL 040... -
Page 11: Answering A Call
TELETALKER ™ Model TEL 040 Answering A Call Step 1: Check the Volume Control setting, lift the handset. Step 2: Press the Amplify button. The red Amplify indicator Step 3: Adjust the Volume and Tone controls to comfortable set- Step 4: When you hang-up the phone, the Amplify function... -
Page 12: In Case Of Difficulty
Can make calls, but phone doesn’t ring for incoming calls. There are a number of potential causes to this problem: 1. The handset may not be placed properly on the base. Make sure it is resting properly on the base. TELETALKER ™ Model TEL 040... - Page 13 1. An attenuator cord (WCA 040) must be used with cochlear processors. If you do not have this cord, call your dealer or Williams Sound at 1-800-843-3544 (U.S.A.) or +1 952-943-2252 (Outside the U.S.A.). 2. If you have an attenuator cord and your cochlear processor is still not working, contact the manufacturer of your cochlear processor.
-
Page 14: Fcc Registration Notice
To the extent possible, relocate the television, radio or other receiver with respect to the telephone equipment. If your telephone product runs on AC power, plug your product into an AC outlet that’s not in the same circuit as one used by your radio or television. TELETALKER ™ Model TEL 040... -
Page 15: Limited Warranty
Williams Sound warrants the TELETALKER TEL 040 against defects in materials and workmanship for FIVE (5) years. During the first five years from the purchase date, we will promptly repair or replace the TELETALKER TEL 040. -
Page 16: Specifications
3.5 mm mono jack, 2.7 Ω impedance, 150 mW max. output 2-wire central office connection, modular plug Includes 12 VAC power supply FCC, WEEE Five Years, Parts and Labor** ® ™ Model TEL 040 ® © 2007, Williams Sound Corp. MAN 088D...
