Instructions - Parts
Automatic XT Spray Guns
Airspray, HVLP, and Compliant guns for spraying paints and coatings.
See page 3 for model information.
100 psi (0.7 MPa, 7 bar) Maximum Working Fluid Pressure
100 psi (0.7 MPa, 7 bar) Maximum Working Air Pressure
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.

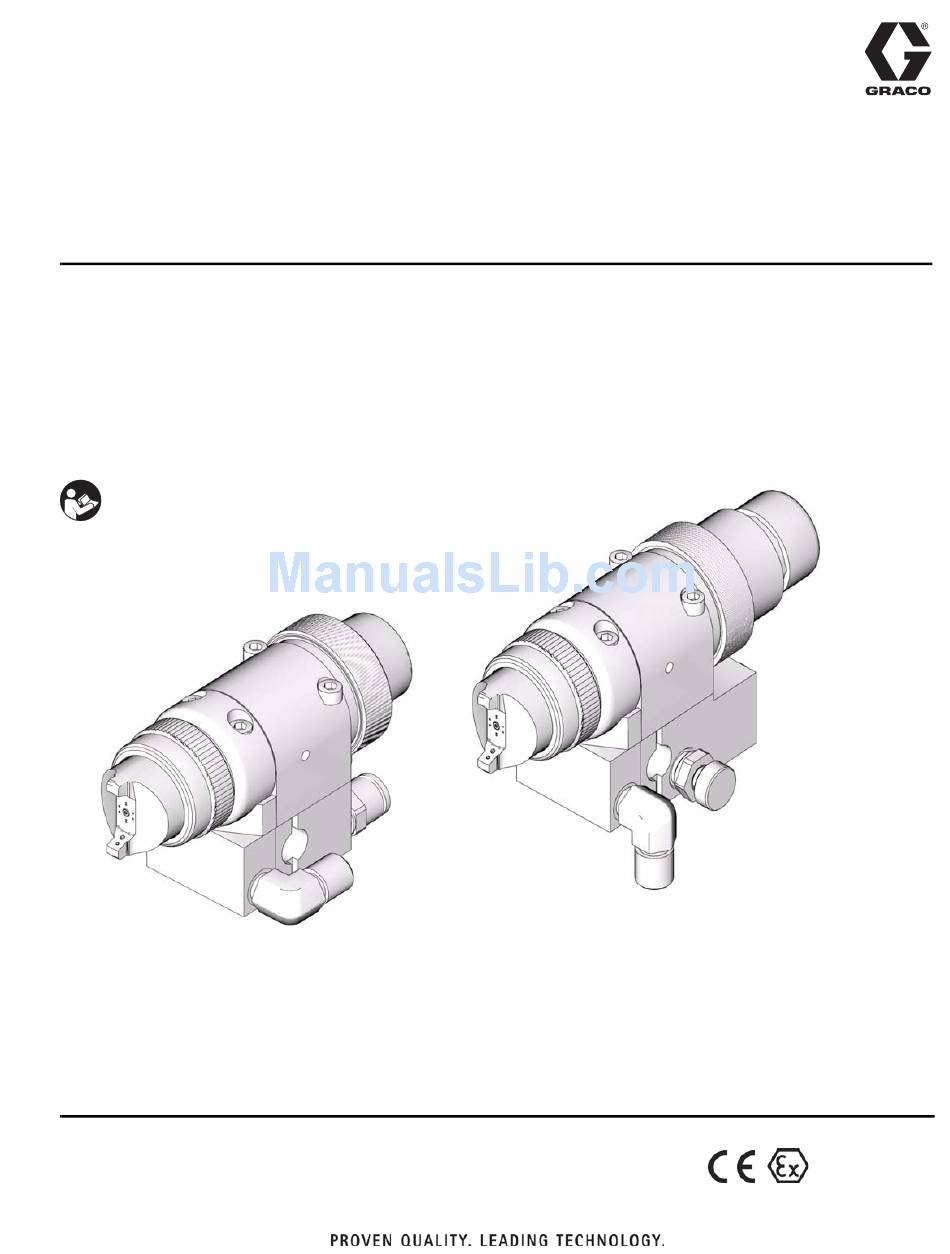

Part No. 249369 Airspray Gun shown mounted on
Part No. 288221 Manifold.
Part No. 249377 Airspray Gun with fluid control
shown mounted on Part No. 288223 Manifold.
TI8085a
311051D
TI8169a
II 2 G c T6
