Panels and
Cabling
This section discusses the MPA 152 Plus rear panel features and cabling.

MPA 152 Plus Rear Panel Features

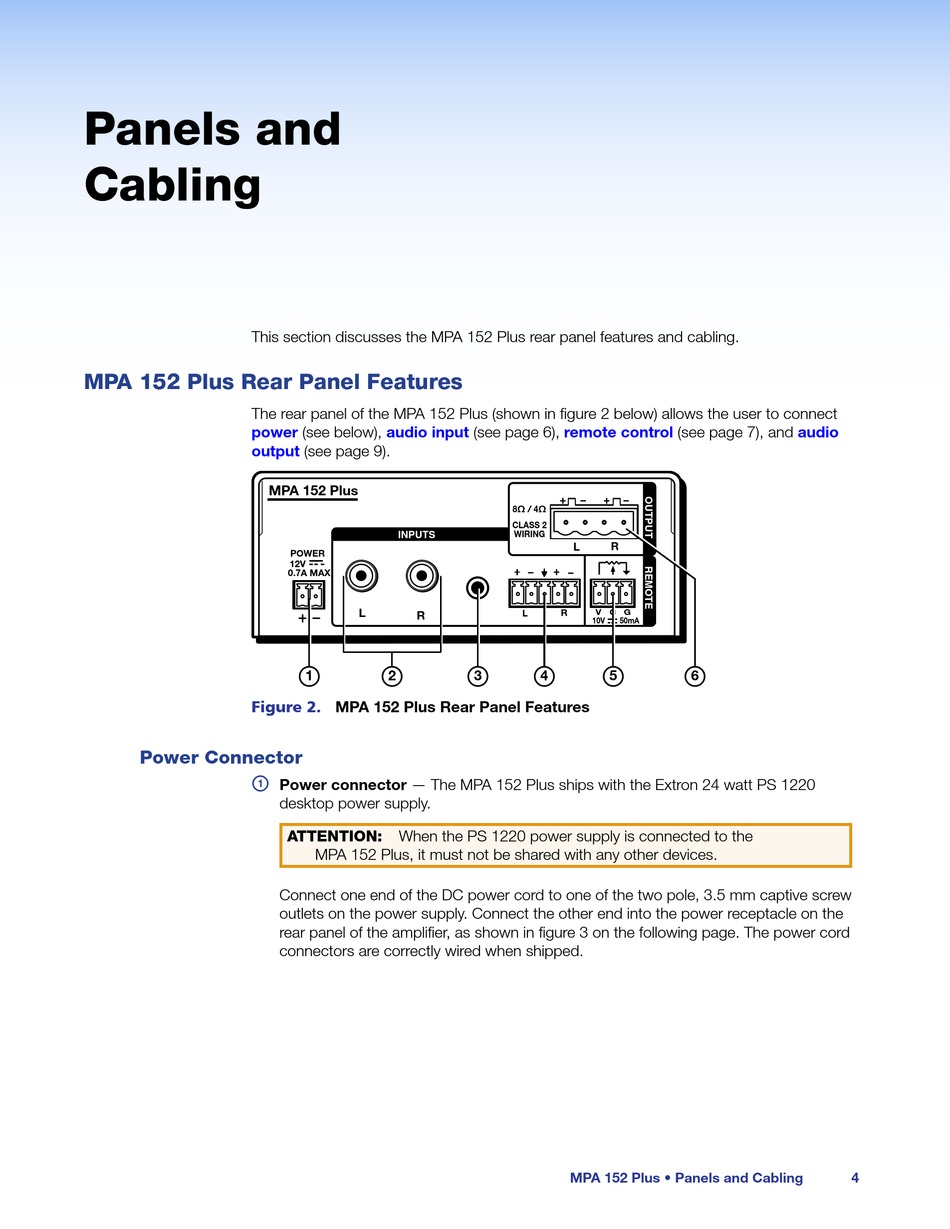

The rear panel of the MPA 152 Plus (shown in figure 2 below) allows the user to connect
power
output
Figure 2.

Power Connector

a
(see below), audio input
(see page 9).
MPA 152 Plus
INPUTS
POWER
12V
0.7A MAX
L
R
1 2
MPA 152 Plus Rear Panel Features
Power connector — The MPA 152 Plus ships with the Extron 24 watt PS 1220
desktop power supply.
When the PS 1220 power supply is connected to the
ATTENTION:
MPA 152 Plus, it must not be shared with any other devices.
Connect one end of the DC power cord to one of the two pole, 3.5 mm captive screw
outlets on the power supply. Connect the other end into the power receptacle on the
rear panel of the amplifier, as shown in figure 3 on the following page. The power cord
connectors are correctly wired when shipped.
(see page 6), remote control
8 / 4
CLASS 2
WIRING
R
L
R V C G
L
10V 50mA
3 4 5
MPA 152 Plus • Panels and Cabling
(see page 7), and audio
6
4
