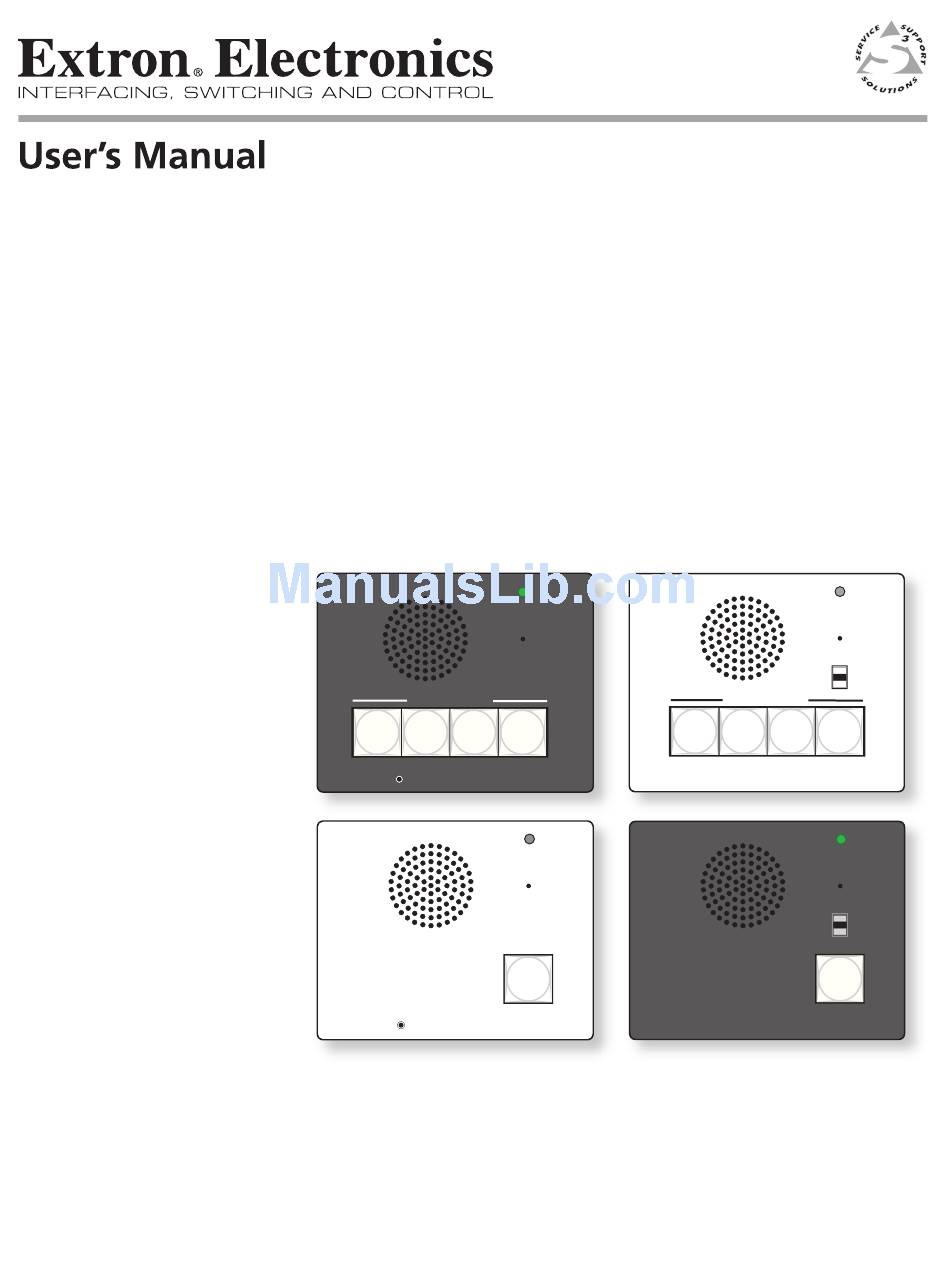

  • Page 1 INTERCOM INTERCOM MIC ON MIC ON LEVEL HIGH PUSH TO TALK PUSH TO TALK HELP HELP ROOM ADMIN ADMIN SECURITY DESK DESK OFFICE OFFICE IPI 104 LEVEL IPI 204 INTERCOM MIC ON INTERCOM MIC ON LEVEL HIGH PUSH TO HELP PUSH TO HELP TALK...
  • Page 2 Precautions Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated on the product. This This symbol is intended to alert the user of important operating and maintenance equipment is intended to be used with a main power system with a grounded (neutral) conductor. The (servicing) instructions in the literature provided with the equipment.
  • Page 3 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Table Of Contents

    Table of Contents Chapter One • Before you get Started ................1-1 About this Manual ........................1-2 Terms and symbols used in this manual ................1-2 Additional reference material ....................1-3 About the IP Intercom Modules ..................1-3 Security features ........................
  • Page 6 Table of Contents, cont’d Configuring the IP Intercom System ................5-5 Basic Configuration ........................5-5 Using the Configuration Utility ..................5-5 Importing a GC2/GCZ file ....................5-6 Entering an IP address manually ..................5-6 Scanning the local subnet ....................5-7 Configuring an IP device with the configuration utility ...........
  • Page 7 Appendix C • Mounting ........................C-1 Mounting the IPI 100 Series ....................C-2 Mounting the IPI 200 Series ....................C-3 Appendix D • Button Labels ..................... D-1 Installing or Replacing Button Labels ................D-2 Button Label Generator software ..................D-2 Installing the Button-Label Generator software ..............
  • Page 8 Table of Contents, cont’d IPI 100 and IPI 200 Series • Table of Contents...

  • Page 9: About This Manual

    IPI 100 and IPI 200 Series Chapter One Before you get Started About This Manual About the IP Intercom Modules Features System Requirements UL Requirements...

  • Page 10: Terms And Symbols Used In This Manual

    IP Intercom ® Modules: • IPI 101 AAP • IPI 104 AAP • IPI 201 Series • IPI 204 Series N The IPI 201 and IPI 204 series include AAP and 2-gang version intercoms. Terms and symbols used in this manual...

  • Page 11: Additional Reference Material

    For an IP Intercom System, each room requires an IPI 201 or IPI 204 intercom, or an MLC 226 IP MediaLink Controller connected to an IPI 104 AAP or IPI 101 AAP. N The IPI 201 and IPI 204 are stand-alone units that do not require a connection to a MediaLink controller.

  • Page 12: Security Features

    Features • Two‑way, half‑duplex voice communications over an IP network • Compatibility with IP Intercom‑enabled MLC 226 IP MediaLink Controllers (IPI 101 AAP and IPI 104 AAP) • Backlit, configurable Push To Talk buttons • Integrated speaker and microphone •...

  • Page 13: System Requirements

    System Requirements The IP Intercom HelpDesk software is available at no charge via the Extron Web site (www.extron.com) or the DVD that comes with your IPI. To install and run IP HelpDesk, you need a PC that meets the following minimum requirements: •...
  • Page 14 Preface, cont’d IPI 100 and IPI 200 Series • Preface...

  • Page 15: Ipi Rear Panel Features And Cabling

    IPI 100 and IPI 200 Series Chapter Two Installation IPI Rear Panel Features and Cabling MLC Audio Connection Sample Applications...
  • Page 16 Rear Panel Ä Intercom port (IPI 101 AAP and IPI 104 AAP only) — This port is used for power, control, and voice data communication with the MLC. Plug one end of a standard, straight through, CAT 5, CAT 5e, or CAT 6 cable terminated with RJ‑45 connectors into this port.
  • Page 17 Å LAN port (IPI 201 AAP and 204 AAP only) — Plug an RJ‑45 jack into the LAN connector to connect to a network. The blinking yellow LED indicates LAN activity. The green LED lights to indicate a good LAN connection. Patch (straight-through) cable Clip Down Crossover cable...
  • Page 18 See the wiring guide in the illustration below. MLC 226 IP Rear Panel MLC 226 IP Rear Panel To/from the IPI 104 AAP or IPI 101 AAP Rear Panel Intercom Port To a Speaker,...

  • Page 19: SamplE ApplIcations

    MLC 226 IP AAP IPI 101 AAP Connect one or more IPI 201, IPI 204 units, or MLC 226 IP(s) with one or more IPI 101 AAP and/or IPI 104 AAP units to a network using straight‑through cable. Using a PC in the network, configure the IPI systems, assigning the PC’s IP address to one button on each IPI, using Global Configurator, the unit’s Web...

  • Page 20: Multiple Pcs To Panel

    MLC 226 IP MLC 226 IP AAP IPI 101 AAP MLC 226 IP AAP IPI 104 AAP IPI 204 AAP IPI 201 AAP Connect one or more PCs to the network and install the IP Intercom HelpDesk Software on each PC. If call forwarding is used, Extron recommends that no more than six PCs should be set up for call forwarding.

  • Page 21: Panel-To-Panel Mode

    The user speaks into the intercom. Audio plays through the speakers or headset at the console the pressed button was configured to call. The intercom user releases the button when done speaking. The console operator clicks the Talk button (in the software) or presses the PC’s space bar to reply.

  • Page 22: Server Mode

    MLC 226 IP MLC 226 IP AAP IPI 101 AAP MLC 226 IP AAP IPI 104 AAP IPI 204 AAP IPI 201 AAP Configure one computer as a server. Ensure that all intercoms are listed in the intercom list of the server and each Help Desk. Also ensure that all Help Desks in the system are on the server’s list of Cooperating Help Desks.

  • Page 23: Intercom With Amplifier

    Intercom with amplifier The MLC’s Audio Out 2‑pole captive screw connector outputs a ‑10 dBV audio signal that can be routed to an MPA 152 or any external audio amplifier, then to speakers. Cable the system as shown in the following diagram. SI 3CT LP Ceiling Speakers...
  • Page 24 Installation, cont’d 2-10 IPI 100 and IPI 200 Series • Installation...

  • Page 25: Chapter Three • Operation

    IPI 100 and IPI 200 Series Chapter Three Operation Front Panel Features and Operation Button Operation...
  • Page 26 IP address of a specific console PC or intercoms. Once configured, the IPI 101 AAP and IPI 201 can communicate to one location (one IP address). The IPI 104 AAP and IPI 204 can communicate with up to four different locations.

  • Page 27: Button Operation

    Button Operation Push to talk operation Press a Push to Talk button to call the help desk or another console. That enables the microphone, causes the Mic On LED to light, and enables communication to the location associated with that button. When pressed, the button lights bright amber. •...
  • Page 28 Operation IPI 100 and IPI 200 Series • Operation...

  • Page 29: Before You Begin

    IPI 100 and IPI 200 Series Chapter Four Initial Configuration Before you Begin Setting the IP Address by Global Configurator Setting the IP Address Using Embedded Web Pages Setting the IP Address Using the ARP Command...
  • Page 30 Initial Configuration The IPI 100 Series units must be connected to a MLC 226 IP MediaLink controller with a valid IP address. See the MLC 226 IP User’s Manual for information about configuring the MLC controller’s IP address. The IPI 200 Series units have a factory default IP address of 192.168.254.254. This IP address must be changed to an address that will operate on your local network.

  • Page 31: Setting The Ip Address Using GlObal Configurator

    Setting the IP address using Global Configurator The preferred method for setting a unit’s IP address is to use Extron’s Global Configurator (GC) application. If you have Global Configurator installed on a local PC, and have a GC project file open, proceed with the steps below. If you do not have Global Configurator installed, it is available as a free download from www.extron.com.

  • Page 32: Setting The Ip Address Using Embedded Web Pages

    Initial Configuration, cont’d Setting the IP address using embedded Web pages Each IPI 200 Series intercom unit contains an on‑board Web server with interactive pages that can be used to configure the device. The intercom unit must be at its factory default IP address. To set an IP address via embedded Web pages: Connect an Ethernet crossover cable between the device and a local PC.
  • Page 33 Change the IP Address and Subnet Mask fields to the desired IP address and subnet mask. Click the Submit button. The new IP address and subnet mask are assigned to the device, and the Web browser connection is immediately lost. The device, with its new IP address and subnet mask is now ready to be connected to your A/V network.

  • Page 34: Setting The Ip Address Using The Arp Command

    Initial Configuration, cont’d Setting the IP address using the ARP command An IPI 200 Series unit’s IP address can be set using the DOS Address Resolution Protocol (ARP) command. The IPI 200 Series unit must be: • physically connected to the network •...

  • Page 35: Introduction To The Software

    IPI 100 and IPI 200 Series Chapter Five HelpDesk Software Introduction to the Software System Requirements Installing the Software Starting the Program Configuring the IPI Intercom System...
  • Page 36 HelpDesk Software Introduction to the Software The IP Intercom System requires a PC running the IP Intercom HelpDesk software and an IP Intercom unit. The HelpDesk program (provided on the software disk) has a management and monitoring application (the main screen) and a configuration utility.
  • Page 37 Starting the Program Click the desktop icon (or use Windows Explorer or the Start menu to navigate to the IPI folder). The program opens with the Getting Started pop‑up screen displayed: Use the scrollbar to find basic information about: • Log‑in as User •...
  • Page 38 HelpDesk Software, cont’d The main program window can now be seen: The following section provides step by step procedures for some of the IP Intercom system’s most common operations. For details about operations not shown here, the user should refer to the HelpDesk help file, which can be accessed by clicking Help in the Help menu or by pressing the F1 key from within the HelpDesk program.

  • Page 39: Configuring The Ip Intercom System

    Configuring the IP Intercom System This section takes you through the step‑by‑step procedures for carrying out certain basic tasks. The examples in this chapter specifically describe the IPI 204 devices but apply to all IP Intercom models. For information about more advanced setup and configuration, consult the IP Intercom HelpDesk help file.

  • Page 40: Importing A Gc2/Gcz File

    HelpDesk Software, cont’d Importing a GC2/GCZ file Select Import GC2/GCZ List (Recommended) from the drop‑down menu. Click Import. A Windows “Open” dialog box opens. Navigate to the folder where you have saved the Global Configurator file and select it. Click Open. The Intercom List is updated using devices from the Global Configurator file.

  • Page 41: Scanning The Local Subnet

    Scanning the local subnet Select Automatic (Local Subnet Only) from the drop‑down menu. The “Add” button is renamed to “Scan”. Click Scan. N The computer only scans the local subnet for available intercoms. A Scan Progress dialog box opens, indicating the progress of the scan. The scan detects only intercoms that are on the same local subnet and adds them to the Configuration Utility’s Intercom List.

  • Page 42: Configuring An Ip Device With The Configuration Utility

    HelpDesk Software, cont’d Configuring an IP device with the configuration utility Open the configuration utility and select one of the IP devices in the Intercom List. When it is highlighted, its information is displayed in the Selected Intercom pane: In the Selected Intercom pane, the unit’s Administrator Password and the IP addresses associated with each of the four buttons on the intercom can be changed.

  • Page 43: Talk Mode

    Talk mode Select one of the IP devices on the Active Intercom List in the main screen. Activate the Talk button by clicking the Talk button and holding down the mouse button or by pressing and holding down the keyboard spacebar.

  • Page 44: Listen Mode

    HelpDesk Software, cont’d Listen mode Under the Tools menu open the Help Desk Preferences dialog box, click on the User Options tab. Ensure the Play recurring alert tone at intercom panel when panel mic is open option and Play alert tone at intercom panel when mic is opened or closed options are checked (they are checked by default).

  • Page 45: Group Announcement

    Press and hold the intercom button. It turns to a high amber color and the Mic On LED lights green. On the PC monitor, the Listen button is activated, the “Incoming Call Alert” indicator flashes, and two audible signals of different frequencies are heard at the intercom.

  • Page 46: Loading A Pre-Recorded .Wav File

    HelpDesk Software, cont’d Loading a pre-recorded .wav file The software allows you to load up to ten pre‑recorded .wav files. The software comes with a library of .wav files in the C:\Program Files\Extron\IPI\wav folder. You can use these .wav files or record your own messages. For example, non‑English speakers may find it easier to have the files in their native language.

  • Page 47: Call Forwarding

    Call forwarding The IP Intercom HelpDesk provides two ways of handling call forwarding: A single PC, acting as a server, forwards calls to the next available help desk. A peer‑to‑peer network allows calls to be forwarded to any available help desk. Setting up a peer-to-peer network All PCs must be running the IP Intercom HelpDesk software.

  • Page 48: Setting Up One Pc As A Server

    HelpDesk Software, cont’d None of the PCs can be set to Server Mode: Under the Tools menu, click on Preferences. The Preferences box opens. Click the Forwarding tab. Uncheck the Mode box. This box is left unchecked by default. If necessary, shut down and restart the IP Intercom HelpDesk program. Setting up one PC as a server All PCs (the server and the help desks) must be running the IP Intercom HelpDesk software.
  • Page 49 The server PC must be set to Server Mode: Under the Tools menu, click on Preferences. The Preferences box opens. Click the Forwarding tab. Check the Mode box. An OK button appears. Click on the OK button. IPI 100 and IPI 200 Series • HelpDesk Software 5-15...
  • Page 50 HelpDesk Software, cont’d Exit and restart the program. When the program restarts, the window will have changed: 5-16 IPI 100 and IPI 200 Series • HelpDesk Software...
  • Page 51 IPI 100 and IPI 200 Series A ppendix A Specifications, Part Numbers, Accessories Specifications — IPI 100 Series Included Parts (IPI 100 Series) Accessories (IPI 100 Series) Specifications — IPI 200 Series Included Parts (IPI 200 Series) Accessories (IPI 200 Series)...

  • Page 52: Appendix A • Specifications, Part Numbers, Accessories

    Specifications, Part Numbers, Accessories Specifications — IPI 100 Series Audio— IPI 101, IPI 104 and MLC 226 IP Speaker ........... 1.4" (35.6 mm), 1‑way, indoor Frequency response Line level output (MLC)... 20 Hz to 3.3 kHz, ±1 dB Speaker output (IPI) ..300 Hz to 3.3 kHz, ‑10 dB Nominal sensitivity/IPI speaker output level 80 dB SPL, 300 mW, 3' (1 m) Processing...

  • Page 53: InclUded Parts (Ipi 100 Series)

    Included Parts (IPI 100 Series) These items are included in each order for an IPI intercom module: Included parts Replacement part number IPI 104 AAP (black, white) 70‑502‑0x IPI 101 AAP (black, white) 70‑501‑0x RJ‑45 interconnection cable (12" CAT 5e) 26‑632‑01...

  • Page 54: Specifications - Ipi 200 Series

    Specifications, Part Numbers, Accessories, cont’d Specifications — IPI 200 Series Audio Speaker ........... 1.4" (35.6 mm), 1‑way, indoor Frequency response Line level output ....20 Hz to 3.3 kHz, ±1 dB Speaker output ....300 Hz to 3.3 kHz, ‑10 dB Nominal sensitivity/IPI speaker output level 80 dB SPL, 300 mW, 3' (1 m) Processing...
  • Page 55 General External power supply ....100 VAC to 240 VAC, 50‑60 Hz, external; to 12 VDC, 2 A, regulated Power input requirements ... +12 VDC, 0.25 A Temperature/humidity ....Storage: ‑40 to +158 °F (‑40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing Cooling ...........
  • Page 56 Specifications, Part Numbers, Accessories, cont’d 4.6” 3.5” 2.7" 2.7" 2.8” 4.5” 2.8" 2.8" IPI 204 AAP IPI 204 1.85” Rear 1.85” Rear Product weight ......0.5 lbs (0.2 kg) Shipping weight ......3 lbs (1 kg) Vibration ......... ISTA 1A in carton (International Safe Transit Association) Regulatory compliance Safety ........

  • Page 57: InclUded Parts (Ipi 200 Series

    Included Parts (IPI 200 Series) These items are included in each order for an IPI intercom module: Included parts Replacement part number IPI 201 AAP (black, white) 60‑809‑1x IPI 201 2‑gang (black, white) 60‑809‑0x IPI 204 AAP (black, white) 60‑810‑1x IPI 204 2‑gang (black, white) 60‑810‑0x 12 V, 1 A power supply...
  • Page 58 Specifications, Part Numbers, Accessories, cont’d IPI 100 and IPI 200 Series • Specifications, Part Numbers, Accessories...
  • Page 59 IPI 100 and IPI 200 Series A ppendix B SIS Programming and Control Introduction to SIS Symbols used in this manual Error messages Command/Response table for SIS commands...

  • Page 60: Appendix B • Sis Programming And Control

    SIS Programming and Control The Extron MediaLink IP Intercom 201 and 204 modules can be remotely set up and controlled via a host computer or other device (such as a control system) by using the Extron Simple Instruction Set (SIS ) commands, accessed via RS‑232 or an ™...

  • Page 61: Password Information

    • If the IPI is on, it sends the boot and copyright messages when you first open a Telnet connection to the IPI. You can see the day of the week, date, and time if the IPI is connected via Telnet, but not via RS‑232. If you are using a Telnet connection, the copyright message, date, and time are followed by a password prompt.

  • Page 62: Commands And Reponses

    SIS Programming and Control, cont’d Commands and Reponses Using the command/response table The IPI 201/204 Series intercom can be controlled via either a Telnet (port 23) or RS‑232 connection using ASCII commands. Or it can be controlled via a Web browser (port 80) connection using URL‑encoded commands.

  • Page 63: Symbol Definitions

    For control via a Web browser, all non‑alphanumeric characters must be represented as the hexadecimal equivalent, %xx, where xx represents the two‑character hex byte. A comma (,), for example, would be represented as %2C. Characters such as %, +, and the space character ( ) must be encoded as hex bytes, or they will be misinterpreted by the IPI.
  • Page 64 SIS Programming and Control, cont’d = Local date and time format Set format (MM/DD/YY‑HH:MM:SS). Example: 01/18/05-10:54:00. Read format (day of week, date month year HH:MM:SS). Example: Tue, 18 Jan 2005 18:19:33. = IP address or subnet mask (xxx.xxx.xxx.xxx). Leading zeros in each of four fields are optional in setting values, and they are suppressed in returned values.
  • Page 65 = Broadcast repetition interval in seconds (0 to 255 [4.25 minutes], default = 0 = off). = Hardware (MAC) address: 4 most‑significant hex nibbles converted into single 16‑bit decimal number. = Hardware (MAC) address: 8 least significant hex nibbles converted into single 32‑bit decimal number.

  • Page 66: Command/Response TablE For Sis Commands

    SIS Programming and Control, cont’d Command/response table for SIS commands Command ASCII (Telnet) URL Encoded Response Additional Description (host to intercom) (host to intercom) (intercom to host) Relay functions Force relay on 1*1O 1 %2A1 O Turn relay on. Rly 1 *1 Force relay off 1*0O 1 %2A0 O...
  • Page 67 Command ASCII (Telnet) URL Encoded Response Additional Description (host to intercom) (host to intercom) (intercom to host) Firmware version, part number & information requests N In a query response, an asterisk (*) after the version number indicates the version that is currently used. A question mark (? or ?.??) indicates that the factory default firmware is the only firmware loaded in the IPI.
  • Page 68 SIS Programming and Control, cont’d Command ASCII (Telnet) URL Encoded Response Additional Description (host to intercom) (host to intercom) (intercom to host) Request the IPI 201 model name IPI 204 Request One‑Button IP the model Intercom description Four‑Button IP Intercom Request Show amount of memory used and system...
  • Page 69 Command ASCII (Telnet) URL Encoded Response Additional Description (host to intercom) (host to intercom) (intercom to host) X3$ ] Read daylight W CX See note at bottom of page B‑10 saving time Set DHCP on 1 DH W1DH Idh 1 Set DHCP off Setting DHCP to off also resets 0 DH...
  • Page 70 SIS Programming and Control, cont’d Command ASCII (Telnet) URL Encoded Response Additional Description (host to intercom) (host to intercom) (intercom to host) X2@ ] Read verbose mode status E X6$ X1$ ] Set the = Broadcast repetition interval broadcast in seconds (0 to 255 [4.25 minutes], interval default = 0 = off).
  • Page 71 Command ASCII (Telnet) URL Encoded Response Additional Description (host to intercom) (host to intercom) (intercom to host) E X3# X4! ] Set user Ipu• = user password password 14, 24 = Password displayed on screen. N A user password cannot be assigned if an administrator password does not exist. Also, if the administrator password is cleared, the user password is also cleared.
  • Page 72 SIS Programming and Control, cont’d Command ASCII (Telnet) URL Encoded Response Additional Description (host to intercom) (host to intercom) (intercom to host) Directory commands Change to path/directory/ CJ or create a W path %2F directory %2F CJ directory Dir•path/directory/ The directory’s name must be composed of alphanumeric characters and may include the minus sign (hyphen, ‑) and the colon (:). The first character must be a letter.
  • Page 73 Command ASCII (Telnet) URL Encoded Response Additional Description (host to intercom) (host to intercom) (intercom to host) Stream Files via Port 80 Load file to Use a POST on port 80 followed by the user flash delimited data to be written to the flash file memory memory.
  • Page 74 SIS Programming and Control, cont’d Command ASCII (Telnet) URL Encoded Response Additional Description (host to intercom) (host to intercom) (intercom to host) List files from Retrieve a list of files stored in the controller. Each line of the current the response lists a different filename and its corresponding directory file size.
  • Page 75 Command ASCII (Telnet) URL Encoded Response Additional Description (host to intercom) (host to intercom) (intercom to host) Reset (zap)/Erase Commands Erase all files ZFFF WZFFF from flash memory Reset all ZXXX WZXXX devices settings to factory presets N Excludes IP settings such as IP address, subnet mask, gatewate IP address and IP Security-level table. User files in flash memory will not be deleted.
  • Page 76 SIS Programming and Control, cont’d B-18 IPI 100 and IPI 200 Series • SIS Programming and Control...

  • Page 77: Appendix C • Mounting

    IPI 100 and IPI 200 Series A ppendix C Mounting Mounting the IPI 100 Series Mounting the IPI 200 Series...
  • Page 78 P T O M IN F IC IP I R IT Extron IPI 104 AAP t r o Intercom Extron MLC 226 IP AAP MediaLink Controller Connect each IPI to an MLC via the RJ‑45 intercom ports on both devices using the included cable.

  • Page 79: Mounting The Ipi 200 Series

    Mounting the IPI 200 Series The IPI 201 and IPI 204 intercoms must be attached to a device faceplate or AAP wall plate and cabled before the device or wall plate is installed in a wall or furniture. Unlike the IPI 100 Series intercoms, the IPI 200 AAP Series intercoms are secured by attaching a clamp bracket to the back of the intercom after it has been inserted through the front of the AAP plate.
  • Page 80 Mounting, cont’d IPI 100 and IPI 200 Series • Mounting...
  • Page 81 IPI 100 and IPI 200 Series A ppendix D Button Labels Installing or Replacing Button Labels...

  • Page 82: Appendix D • Button LabelS

    Button Labels Installing or Replacing Button Labels Printed labels are included with the IPI 100 Series and IPI 200 Series. In addition, users can write on blank labels, purchase additional sheets of printed button labels from Extron (see page A‑3 or A‑7) or print their own customized button labels with the Button Label Generator program.

  • Page 83: Using The Button-Label Generator Software

    Using the Button-Label Generator software To run the Button‑Label Generator program, click on the desktop icon. Alternatively, click Start > Programs > Extron Electronics > Button Label Generator > Button Label Generator. The Button‑Label Generator window opens. In the Systems selection box, choose the IPI 101/201 or the IPI 104/204 option to match the button label size and quantities for your TouchLink panel: Using standard Windows controls, you can create and print labels that can be placed in the clear button caps on the front panel of the switcher.

  • Page 84: Installing Button Labels

    Button Labels Installing Button Labels The button assembly consists of a clear lens cap, the label and a white diffuser. To remove a button assembly and replace a label: Use a small flat‑blade screwdriver to gently pry the button assembly away from its plunger/base.
  • Page 85 Extron Warranty Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:...
  • Page 86 Quick Installation Checklist … Determine which rooms will have IP Intercoms and HelpDesk PCs and where, in each room, they will be located. Ensure there is a network connection for each intercom and each HelpDesk PC. For the IPI 100 Series models …...
