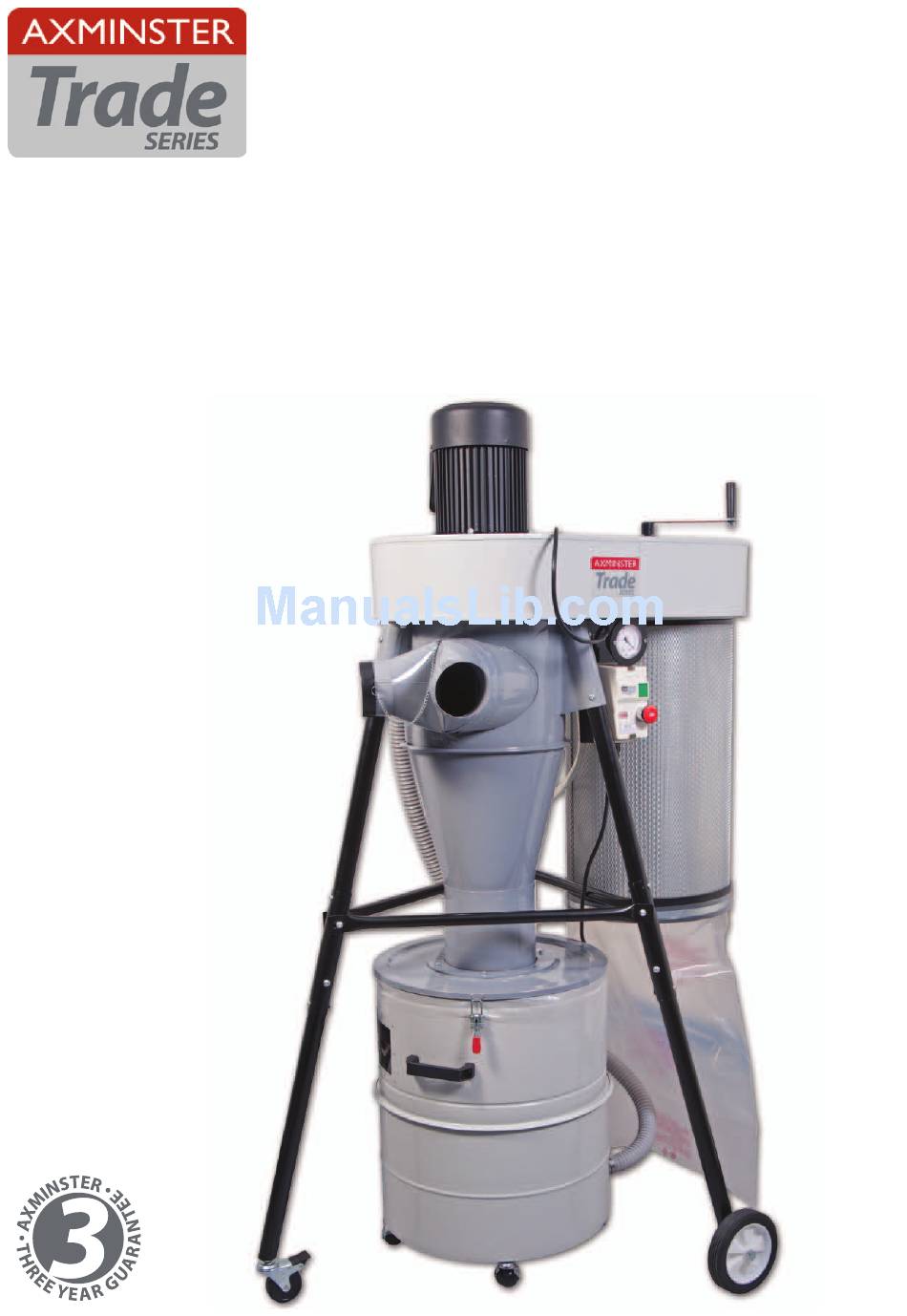

- Page 1 Code 505088 T-2000CK 2hp Cyclone Extractor...
-
Page 4: Inventory List
INVENTORY LIST A. Reducing Collector N. Lower Leg (Short-2 off) B. Round Collector O. Upper Leg (3 off) C. 7”*4” Y-adapter P. PE Bag (Small for under filter) D. Housing Cover Q. Lower Dust Drum E. Connecting Bracket (3 off) R. -
Page 5: Machine Assembly
Machine Assembly Step 1 Assemble Round Collector Main Housing Place the main housing (F) upside down, and place the Round Collector (B) on the housing on motor side with inlet Chute positioned as shown Fixing by 12 off, 3/16” x 3/8” Cap screws around drum and 6 off, 1/4 Hex head Bolts on leg supports Notice: 12 of Cap... - Page 6 Step 3 Assemble Connecting tube Fit the connecting bracket tube (E) with upper leg (O), and fixing by 5/16” Button HD screw Step 4 leg tube Fit the lower leg tube (N and T) with connecting tube, and fixing by 5/16” Button HD screw Step 5 Assemble long Support Tube brace...
- Page 7 Step 6 Assemble Short Support Tube brace Fit the short Support Tube Brace (B1) as shown, and fixing by 5/16” Button HD screw Step 7 Assemble 7” (U) Wheel in short lower leg (N) as shown, and fixing by 3/8” Nut Step 8 Assemble 3”...
- Page 8 Step 9 Fit Switch & Gage Assemble the Magnetic Switch Place the Magnetic Switch under the Main Housing as photo and fix by 5/16” Flange Bolt. Fit the Gage as photo shows, and tighten by 1/4” Flange Bolt. Then fixing the 1/2” clear tube to the back of Round Collector as Photo Step 10 Assemble the Canister Filter (C1) with Main Housing (F) Carefully turn dust...
- Page 9 Step 13 Fit top lid (D) Please the main Housing cover with Main Housing and fit as photo 3/16" x 3/8 socket head cap screws. Step 14 Assemble canister filter cleaning Handle (M) Place Handle on the Canister and fix by the M6 set Screw.
- Page 10 Step 17 . Place the upper dust drum (R) onto the lower dust drum (Q) as shown, with suction pips on bottom drum opposite Window of top drum. Fit the big round clamp (H). Fix the Round Clamp by 1/4”*4” L Hex Screw and Nut. When fitting top drum half on top of bottom base centralize it the best you can then fit clamp and tighten it progressively while lightly tapping on the clamp ring with...
- Page 11 Step 20 Put the big PE Bag (S) inside the dust drum. And try to get air between the Drum and PE bag out as much as possible Step 21 Assemble reducer cone to drum lid Assemble Lid (Z) and top cone (A) as shown.
- Page 12 Step 23 Small PE Bag Install Place the small PE bag (P) as shown on canister filter bottom and fixing by the Belt clamp (X) 1 Step 24 Assemble the 1-1/2 Hose Slide the 1-1/2” hose (G) on the 38mm tube of the round collector and fix by one of the1-3/4”...
-
Page 15: Part List
Part List Motor Main Housing Aluminum Impeller 12-3/4" Reducing Collector PE Bag Big(101) PE Bag Small Ball Caster 2" *5/16" Round Clamp Dia. 347 Hose 1-1/2"* 1.8M Switch Plate Magnetic Switch Hose Clamp 1-1/2" Inlet 7"*4"*2 Steel Clamp Dia. 370 Impeller Washer Handle Plastic... - Page 16 NO. Description Specification Q'TY Connecting Tube Lower Leg Power Cord W/ Plug N Type Handle Cap Screw 3/16"* 3/8" Main Spindle Connecting Spindle Cap Screw M6* 12 Bearing Fixing Plate Hex Bolt M6* 16 Flange Bolt 1/4"*1/2" Flange Bolt 1/4"* 1/2" Drum Lid Cap Nut 1/4"...
- Page 17 General Machinery Safety Instructions Read this entire Manual before using this machine. 1. Read the entire Manual before starting 14. Use correct amperage extension cords. machinery. Machinery may cause serious injury if Undersized extension cords overheat and lose not correctly used. power.
- Page 18 Wood Dust Collector Safety Instructions Read this entire Manual before using this machine. 1. Maintenance. 8. Hearing protection and hazards. Make sure the Dust collector is Always wear turned off and disconnect from the main power hearing protection as noise generated from dust supply and make sure all moving parts have come to collector can cause permanent hearing loss over a complete stop before any inspection, adjustment...
- Page 20 Normal wear and tear; misuse, abuse and neglect are excluded and the machine should not have been engineering machines, Axminster Air compressors and Air Tools, and bench top grinders - no modified in any way. Please do not attempt to service the product without first contacting us; we are registration necessary just proof of purchase.
