Summary of Contents for Axminster WORKSHOP AW50E 50L

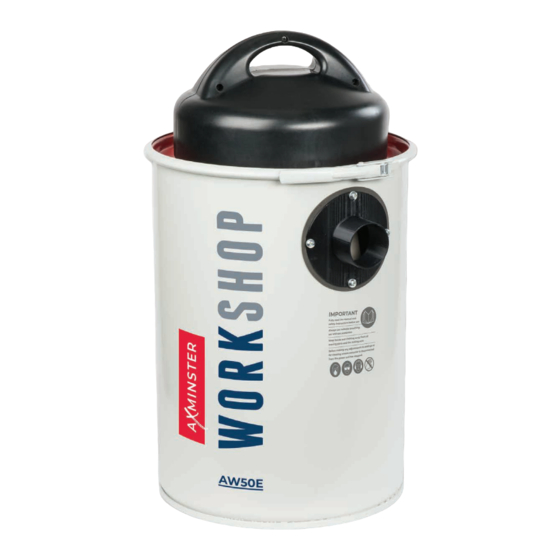

- Page 1 Code 107681 Original Instructions AW50E 50L Portable Dust Collector AT: 09/02/2022 BOOK VERSION: 04...
-
Page 2: Eu Declaration Of Conformity
Exploded Diagrams/Lists 12-13 Wiring Diagram Notes EU DECLARATION OF CONFORMITY Cert No: DC-D EU Declaration of Conformity Axminster Tool Centre Ltd This machine complies with the following directives: Axminster Devon EX13 5PH UK axminstertools.com 2006/42/EC 2014/35/EU declares that the machinery described:-... -
Page 3: What's Included
WHAT’S INCLUDED Quantity Item Part Model Number AW50E Dust Collector Assembly Instruction Manual Micron Paper Bag Filter Cartridge Filter Fitted with a two stage filter system HAVING UNPACKED YOUR DUST COLLECTOR, PLEASE DISPOSE OF ANY UNWANTED PACKAGING PROPERLY. THE PACKAGING IS BIODEGRADABLE. The AC50E is a great entry level workshop vacuum There are adaptors to suit many machines. -
Page 4: General Instructions For 230V Machines
GENERAL INSTRUCTIONS FOR 230V MACHINES The following will enable you to observe good working • Leave machine unplugged until work is about to practices, keep yourself and fellow workers safe and commence. • Always disconnect by pulling on the plug body maintain your tools and equipment in good working order. - Page 5 SPECIFIC SAFETY INSTRUCTIONS FOR DUST EXTRACTORS DO NOT use this machine as a vacuum cleaner, try to keep KEEP the particle filter clean. The machine relies on its the waste medium to wood by-products. ability to ‘blow’ air through the filter to generate good suction.
-
Page 6: Specification
ASSEMBLY The Dust Collector comes fully assembled straight out of Fig 01 the box. Using a hose clip, fit one of our recommended hoses or adapters to the 63mm inlet, see fig 01. See the range of accessories at axminstertools.com, in the catalogue or on pages 10-11. - Page 7 ILLUSTRATION AND PARTS DESCRIPTION Carrying handle 1.1kW 230V 1ph Brush motor Quick release strap 63mm Inlet, suits many common machines Noise level 85dB (A) 50L Drum capacity...
- Page 8 CHANGING THE MICRON PAPER BAG FILTER DISCONNECT THE DUST WEAR A DUST MUSK AND SAFETY COLLECTOR FROM THE GOGGLES BEFORE REMOVING THE MICRON BAG! MAINS SUPPLY! Step 1 Step 3 • Remove the micron bag and filter from the motor assembly.
- Page 9 CHANGING THE MICRON PAPER BAG FILTER Step 6 IF THE PAPER FILTER BECOMES TORN DISPOSE OF IT IN THE PROPER MANNER! Step 5 • Replace the filter assembly so it’s flush against the motor • Insert the cartridge filter into a new micron paper bag casing, lower the motor down into the drum and replace code 210091, tuck the paper down into the cartridge filter.
-
Page 10: Optional Accessories
Code 410063 63mm Dust Extraction Kit Code 210091 Micron Paper Filter Code 102572 Clear Reinforced PVC Hose 63mm x 2.5m Code 103337 Axminster 63mm Flex Form Hose Kit Code 102570 Axminster 2m x 63mm Extraction Hose Kit Code 102573 Axminster 63mm-70mm Dust Extraction Cuff... - Page 11 If this has occurred, clean with an ‘M’ class vacuum cleaner. Monthly • Carry out the weekly checks. • Dependent on usage clean the vacuum extractor using a damp cloth. Code 102535 Axminster Tapered Step Hose Reducers 55-72mm Code 103626 Axminster Hose Adaptor 100mm - 63mm...
- Page 12 EXPLODED DIAGRAMS/LISTS...
- Page 13 EXPLODED DIAGRAMS/LISTS Description Spesification Filter Power cord Dust bag Cord bushing Tapping screw ST4.2 x 10 Switch Transformer box Left guard Circuit board Strain relief plate Tapping screw ST4.2 x 10 Phillips screw M4 x 10 Drum clamp Drum cover Phillips screw M5 x 25 Tapping screw...
-
Page 14: Wiring Diagram
WIRING DIAGRAM... - Page 15 NOTES...
- Page 16 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
