Coleman 2000008054 Setup Instructions

Before you begin

• Read all instructions before set up.
• Select a level site clear of rocks, branches, and other hard or
sharp objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of potential lightning
strikes or falling tree limbs in inclement weather.
• Secure with all stakes and guylines provided to prevent property
damage or personal injury.
• For best results in windy conditions, position narrow end of tent
into the wind.
• Do not drop tent.
• Do not bounce tent bag on its end to remove tent, as these
actions may damage the frame.
• THIS RECREATIONAL PRODUCT REQUIRES A MINIMUM OF TWO
PEOPLE TO ASSEMBLE.
• Under no circumstances should this product be used to cover
automobiles, marine products or similar items.
CAUTION: Avoid pinch points when opening and closing the
tent frame.
1

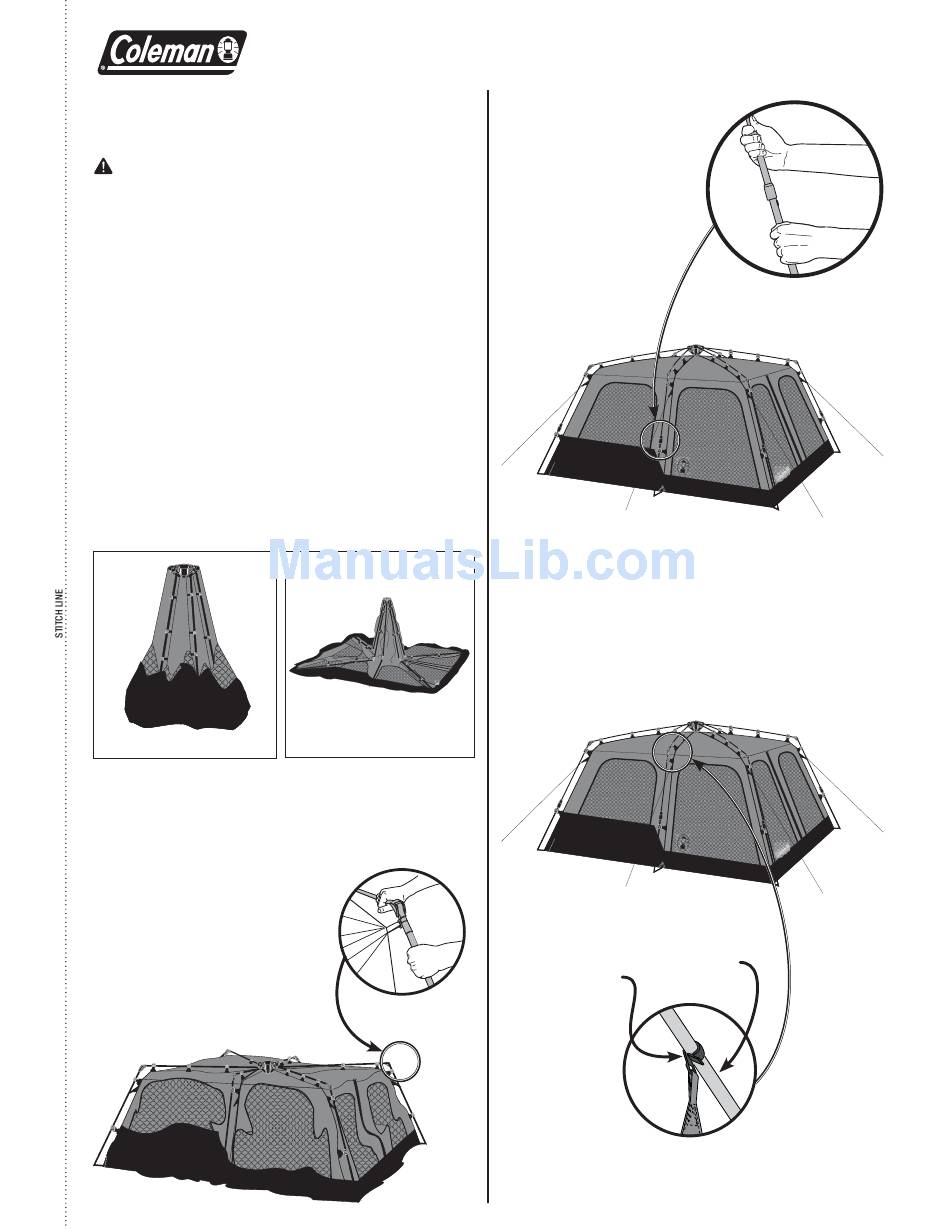

Extend the Tent Frame

• Stand the tent upright with the hub assembly at the
top. (Fig. 1)
• Unfold the arms of the tent downward until they lay fl at on
the ground. (Fig. 2)
Fig. 1
2

Raise the Tent

• Unfold the arm joints located at each of the tent corners.
The tent will raise as the leg poles are extended.
(Fig. 3 and 4)
• Extend each of the telescoping leg poles until they snap
into place. (Fig. 5 and 6)
TENT SETUP INSTRUCTIONS
3
Fig. 2
Fig. 4
Fig. 3
MODEL 2000008054
Fig. 5
Verify Connections
between Tent and
Frame Poles
• Verify the clips along the edges of the tent are properly
attached to the frame poles. (Fig. 7 and Fig. 8)
Fig. 7
Pole
Clip
Fig. 8
Fig. 6
(continued on other side)
