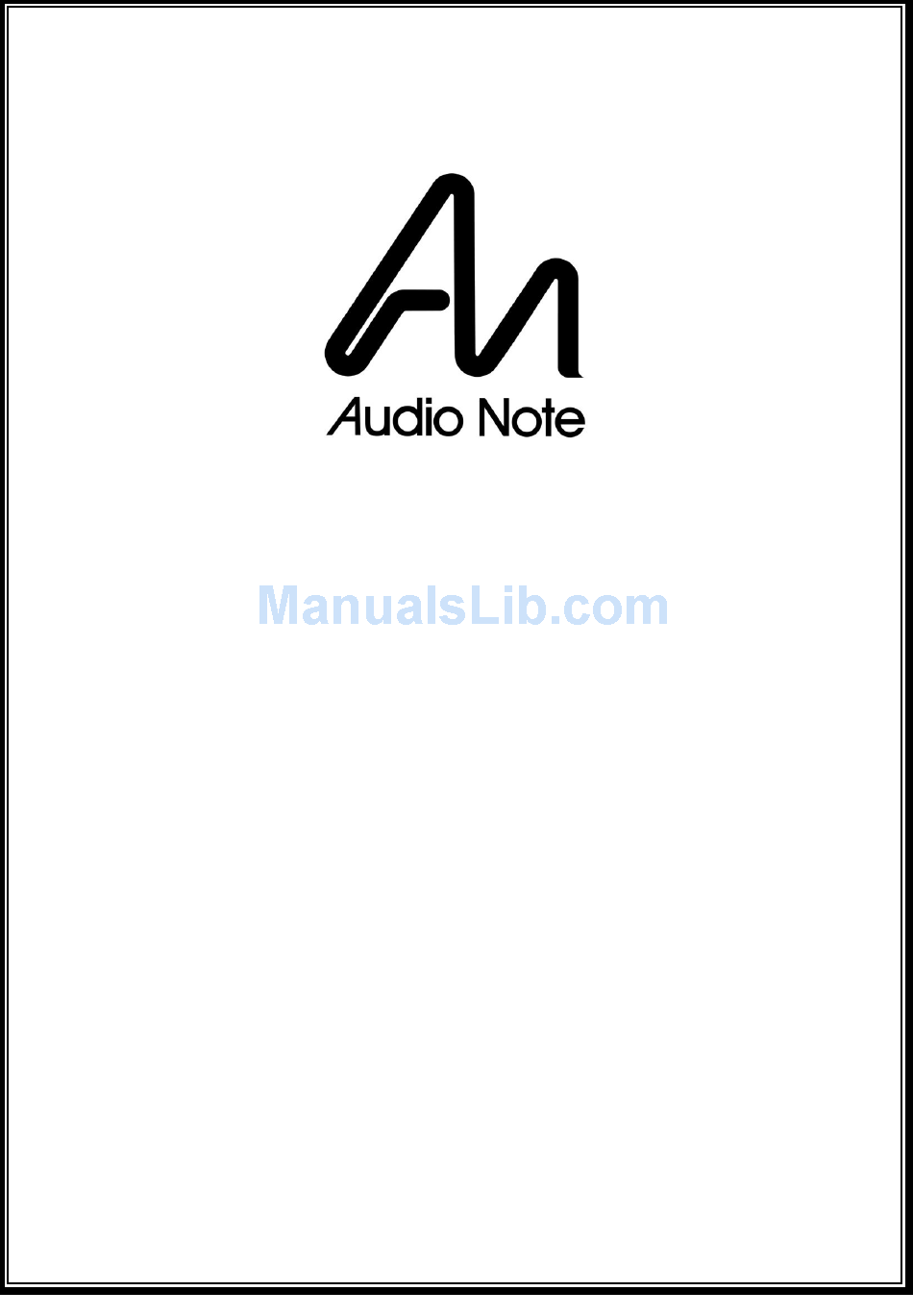

- Page 1 MEISHU Line Silver INTEGRATED AMPLIFIER OWNER’S INFORMATION...
- Page 2 CONTENTS 1) IMPORTANT SAFETY INFORMATION 2) CE DECLARATION OF CONFORMITY DISPOSAL POWER REQUIREMENTS 3) INTRODUCTION 4) OVERVIEW UNPACKING AND INSTALLATION 5) VALVE INSTALLATION 6) CONNECTION 7) OPERATION 8) TECHNICAL SPECIFICATIONS 9) WARRANTY INFORMATION CONTACT INFORMATION...
- Page 3 ! IMPORTANT SAFETY INFORMATION ! RISK OF SHOCK OR ELECTROCUTION! INTERNAL OPERATING VOLTAGES ARE LETHAL! Do not remove top cover, unless specifically instructed to do so in the user manual. This unit contains fuses and other safety components in accordance with BS60065 requirements.
- Page 4 BS EN 60065 in accordance with the regulations 73/23/EEC, 89/336/EEC (from 1 January 1997) CE 94 Peter Qvortrup, Director Audio Note (UK) Limited 25 Montefiore Road Hove East Sussex BN3 1RD United Kingdom...
- Page 5 INTRODUCTION Thank you for purchasing this Audio Note (UK) product. With the correct care it should give you many years of pleasure and enjoyment. Please take the time to read all of the information in this manual before connecting your new component to an electrical supply or your system, to ensure both your safety and satisfaction.
- Page 6 MEISHU LINE SILVER INTEGRATED Congratulations on your purchase of the Audio Note (UK) Meishu Line Silver Integrated Amplifier. It is a Pure Class A Singled Ended valve amplifier that uses the highly regarded 300B direct heated triode valve, producing a level of performance that is radically superior to the vast majority of current designs.
- Page 7 VALVE INSTALLATION The amplifier is shipped without the 3 large valves installed. It is necessary to install the valves first. It is essential that the valves are installed correctly or serious damage that is not covered by the warranty will result. We recommend that your dealer perform this procedure for you if you are in any way unsure.
- Page 8 Inspect a 300B valve base and you will notice that two of the pins are larger than the other two; this is to help ensure that the valve can only be inserted one way. The larger pins must face each other when fitted to their valve bases on the central board.
- Page 9 Tape Recorder. Pre outputs The Preamplifier output sockets are available for use with an extra power amplifier such as the Audio Note P3. They should remain unconnected if no such amplifier is being used. Ground Post A ground post is provided for connection to those source components that also use a separate ground terminal.
- Page 10 Valve Life The valves supplied with your amplifier should provide approximately 6000 hours of operation. They are specially selected by us, and should only be replaced with matched pairs. Please consult your Audio Note (UK) dealer should your valves need replacing.
- Page 11 TECHNICAL SPECIFICATIONS 100k ohm, line level INPUT IMPEDANCE 450mV for full output INPUT SENSITIVITY 8 watts RMS per channel into 4 or 8 Ohm MAXIMUM OUTPUT loads +/- 0.3dB CHANNEL BALANCE 1 x 5U4G VALVE COMPLIMENT 2 x 300B 2 x 6X5 2 x 5687 1 x 6SN7 27.5KG...
- Page 12 Audio Note (UK) warrants this product to be free from defects in materials and workmanship for two years from the original date of purchase from an appointed Audio Note (UK) dealer, and agrees to cover the cost of parts and associated labour required to correct such defects, subject to terms & conditions.
- Page 13 CONTACT INFORMATION If in the future your Audio Note (UK) product requires servicing, or if you require technical support or have any questions regarding this or any of our other products, please contact your local Audio Note (UK) dealer. Alternatively, please feel free to contact us directly: -...
